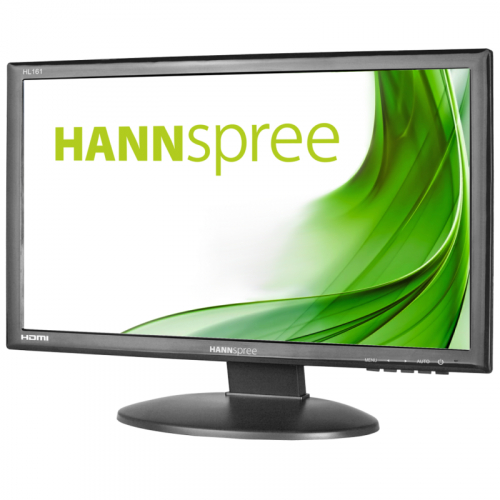

HL 161 HPB

SKU: HL161HPB Category: Tag:
  • LED Backlight Monitor
  • 1366 x 768 WXGA Resolution
  • 25,000,000:1 Active Contrast
  • HDMI, VGA Video Inputs
  • Built-In Stereo Speakers
  • Tilt and Wall-Mountable (VESA)
  • Low Power Consumption
  • Multi-Video Modes
  • ECO Friendly
Monitor Display Spec Display size 39.62cm / 15.6″ Diagonal White LED-Backlight
Brightness(Typical) 220cd/m2
Contrast(Typical) 650:1
25,000,000:1(active contrast)
Pixel Pitch 0.252(H) x 0.252(V) mm
Resolution (H x V) 1366 x 768
Aspect Ratio 16:9
Response Time(Typical) 11ms
View Angles LR,UD(CR>10) H/V 90°/65°
Panel Surface Glare
Display Colors 262k Colors
PC Input Range Horizontal Freq. 30 to 61KHz
Vertical Freq. 56 to 75Hz
Max. display frequency
(Resolution H*V/Fv)
1366 x 768 / 60 Hz
Interface Input 1 D-Sub (VGA x 1
Input 2 HDMI x 1
Input 3 NA
Input 4 NA
Earphone NA
Speakers Yes
Power Consumption(Typical) On:12W
Standby<=0.5W, Off<=0.5W
AC Power Range External Power Supply
Power Mode
Indicator Light
Power on : Green (LED)
Power Saving: Green Flicker (LED)
Temperature 5 ~ 35℃
Humidity 20% ~ 70%, non-condensing
Physical Dimension
378 x 150 x 275 mm
Packing Dimension
421 x 96 x 281 mm
Net Weight 1.1kg
Gross Weight 1.9kg
Bezel Type TBC
Tilt  -30° ~ + 125°
High Adjustable Arm NA
Swivel NA
Pivot NA
Kensington Lock NA
VESA Mounting 75 x 100 mm
Controls Front Control Menu, Bri (+), Vol(-), Input/Enter, Power
On Screen Display 11 Languages
Color Warm, Natural, Cool, User Mode
Preset Mode PC, Movie, Game, Modes
Accessory Power Cable non-removavble (1.8m) Yes
VGA Cable(1.5m) No
Audio Cable(1.5m) NA
DVI Cable(1.5m) No
HDMI-DVI Cable(1.5m) NA
HDMI-HDMI Cable(1.5m) Yes
YPbPr Cable NA
User Manual(CD) Yes
Quick Start Guide(Paper) Yes
