HL 205 HPB

SKU: HL205HPB Category: Tag:
  • 19,5” 16:9 LED Backlight Monitor
  • 1600 x 900 HD+ Resolution
  • 5ms Response Time
  • Dual Input: HDMI + VGA
  • Built-In Stereo Speakers
  • Low Power Consumption
  • Multi-Video Modes
  • Tilt and Wall-Mountable (VESA)
  • Low Blue Light Mode
  • Flicker-Free
Display Size 49,53 cm / 19.5“ Diagonal
Panel Type TFT – LED Backlight
Aspect Ratio 16:9
Resolution (H x V) 1600 x 900
Brightness 250cd/m²
Contrast (Typ.) 1.000:1 (Typical) / 10.000.000:1 (Active)
Viewing Angle L/R; U/D 170° H – 160° V (CR >10)
Response Time 5 msec
Pixel Pitch 0,27 (H) x 0,27 (V) mm
Panel Surface Anti-Glare, Hard Coating (3H), Haze 25%
Display Colors 16.7M Colors
Horizontal Frequency 30 ~ 83 kHz
Vertical Frequency 56 ~ 75 Hz
Max Display Frequency 1600 x 900 @ 60Hz

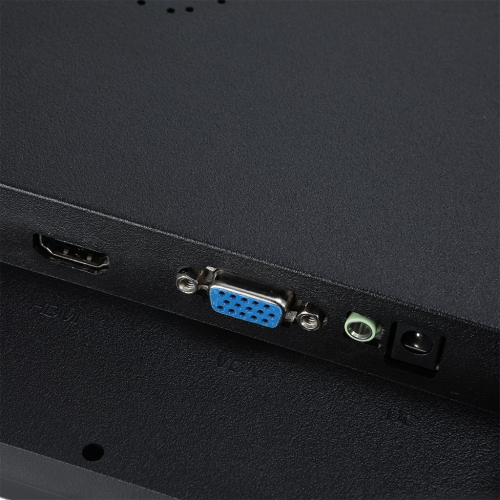

Input 1 D-Sub (VGA)
Input 2 HDMI 1.4
Input 3 Audio In
Speakers Yes, 2W x 2
Power Consumption On: 11,2W; Stand-by: 0,3W; Off: 0,1W
AC Power Range External PSU DC: 12V – 2A
AC 100 ~ 240 Volt; 50 ~ 60 Hz
Product Dimensions 358,57 x 180 x 461,75 mm (W x D x H)
Parking Dimensions 508 x 112 x 341 mm (W x D x H)
Net / Gross Weight 2,5 Kg / 3,2 Kg
Housing Front bezel, back cover, arm, base: black color
VESA Mounting 75 x 75 mm
Monitor Stand Regular Stand
Tilt / Kensington Lock 0° ~ 15° (±2°) / No
Pivot / Swivel No / No

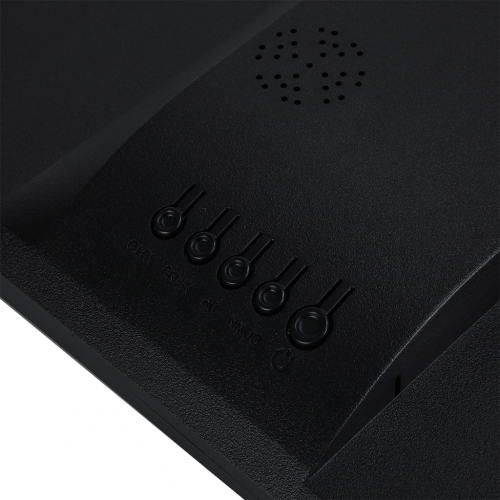

Controls AUTO / Input, MENU, UP / Bri, DOWN / Vol, POWER
Colour 5500, 6500, 9300, User Modes
Preset Mode PC, Movie, Game, ECO Modes
On Screen Display 7 OSD Languages
Other Features Low Blue Light Mode
Flicker Free
Accessory External Power Supply (1,5m);
HDMI Cable (1,5m); Warranty Card;
Quick Start Guide
