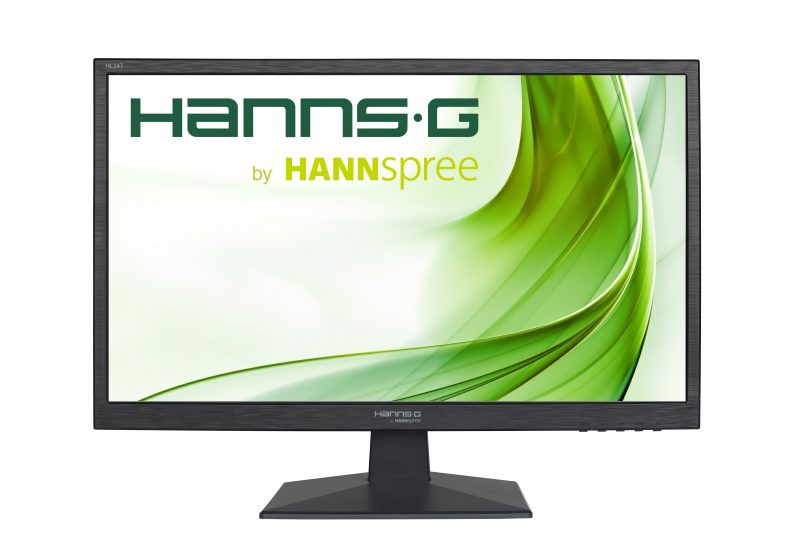

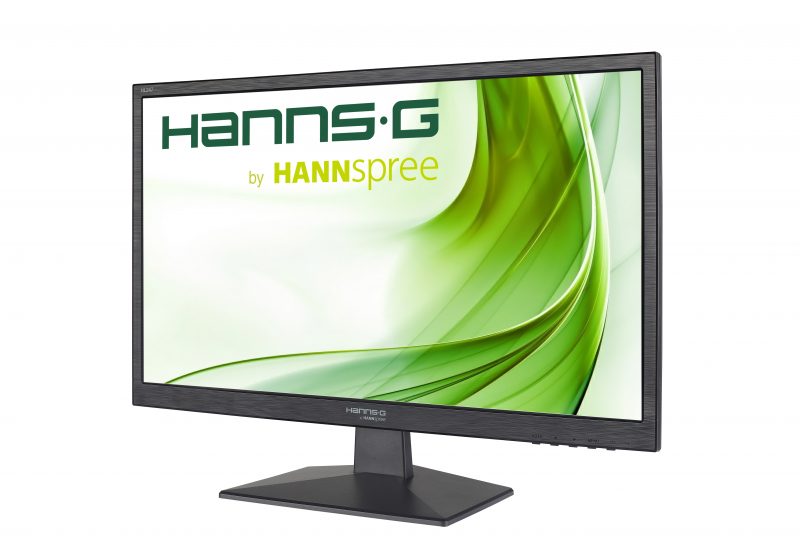

HL 247 DBB

Click Me

SKU: HL247DBB Category:
  • LED Backlight Monitor
  • Full HD 1080P
  • 1920 x 1080 WUXGA Resolution
  • 80,000,000:1 Active Contrast
  • 5ms Fast Response Time
  • VGA + DVI (HDCP) Inputs
  • Low Power Consumption
  • Multi-Video Modes
  • Tilt and Wall-Mountable (VESA)
  • ECO Friendly
Monitor Display Spec Display size

59,94cm / 23,6” Diagonal

Brightness(Typical) 250cd/m2
Contrast(Typical) 1,000:1
80,000,000:1 (Active contrast )
Pixel Pitch

0.2715 (H) x 0.2715 (V) mm

Resolution (H x V) 1920 x 1080
Aspect Ratio 16:9
Response Time(Typical) 5ms (GTG)
View Angles LR,UD(CR>10) H/V 170°/160°
Panel Surface AG
Display Colors 16.7M Colors
PC Input Range Horizontal Freq. 30kHz to 82kHz
Vertical Freq. 56Hz to 75Hz
Max. display frequency
(Resolution H*V/Fv)
1920 x 1080 / 60Hz
Interface Input 1 D-Sub x 1
Input 2 DVI-D x 1


Power Consumption(Typical) On: TBC W
Standby<=0.5W, Off<=0.5W
AC Power Range AC 100-240, 50-60Hz
Power Mode
Indicator Light
Power on : Green
Power Saving: Green Flicker
Operating
Condition
Temperature 5 ~ 35℃
Humidity 20% ~ 70%, non-condensing
Physical Dimension
(W*D*H)

561,3 x 209,9 x 413,2 mm (W x D x H)

Packing Dimension
(W*D*H)

TBC (W x D x H)

Net Weight

TBC Kg

Gross Weight

TBC Kg

Bezel Type Matt

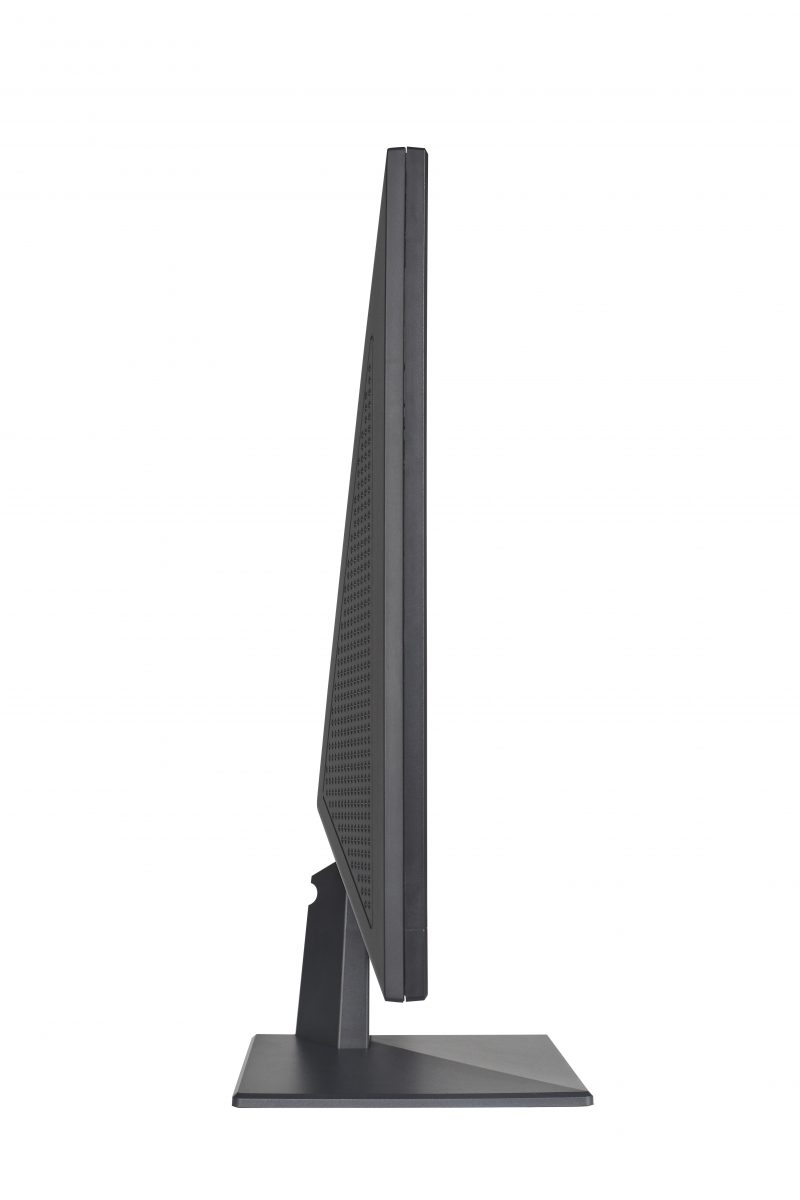

Tilt -3∘~ 13∘

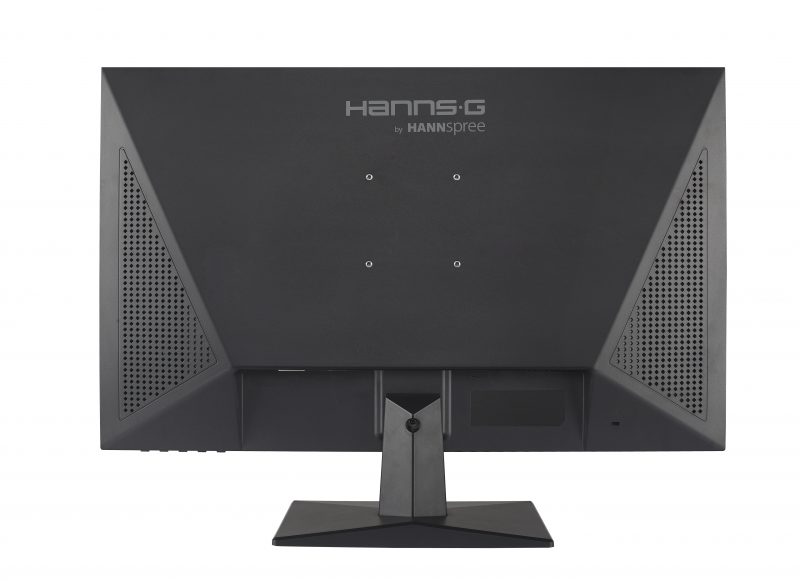

VESA Mounting 100 x 100 mm
  Color Warm, Cool,  User mode
Preset Mode PC, Movie, ECO Modes
Accessory Power Cable(1.5m) Yes
VGA Cable(1.5m) Yes

User Manual(CD) Yes, HSD format
Quick Start Guide(Paper) Yes, HSD format

  • hl247dbb___preliminary_datasheet__de_.pdfDownload
  • hl247dbb___preliminary_datasheet.pdfDownload
