HL247HGB
HL247HGB-backHL247HGB-side-a

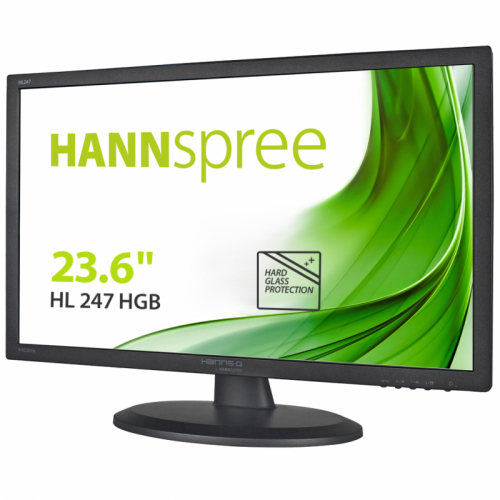

HL 247 HGB

SKU: HL247HGB Category: Tags: ,
  • 23.6” 16:9 LED Backlight Monitor
  • Hard Glass Protection (Hardness ≥7H
  • Full HD 1080P
  • 1920 x 1080 WUXGA Resolution
  • 80,000,000:1 Active Contrast
  • 5ms Fast Response Time
  • VGA + DVI-D + HDMI Inputs
  • Built-In Stereo Speakers
  • Low Power Consumption
  • Multi-Video Modes
  • Tilt and Wall-Mountable (VESA)
  • ECO Friendly

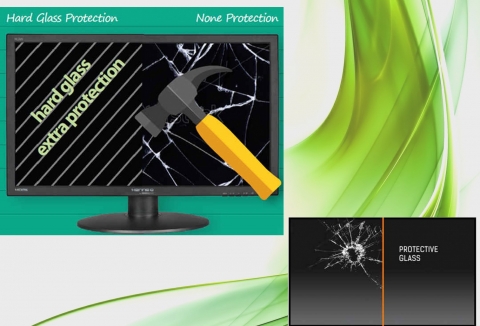

PROTECTED LED FOR EDUCATION AND PUBLIC ENVIRONMENT

Available in different sizes, our toughened Hard Glass fronted LED Monitors (7H hardness rating) are designed specifically for schools, colleges, universities but also Retail and Industrial applications offering protection from impacts and dirt for a long life solution.

The HL247HGB is a high quality 23.6” Monitor featuring a toughened safety glass fitted behind the bezel. The HL247HGB meets the increasing demands for Protected Economical Displays in the Education, Retail and Industrial applications.

hl247hgb-usp-01
HT225HPB-zoom-in-connectivity

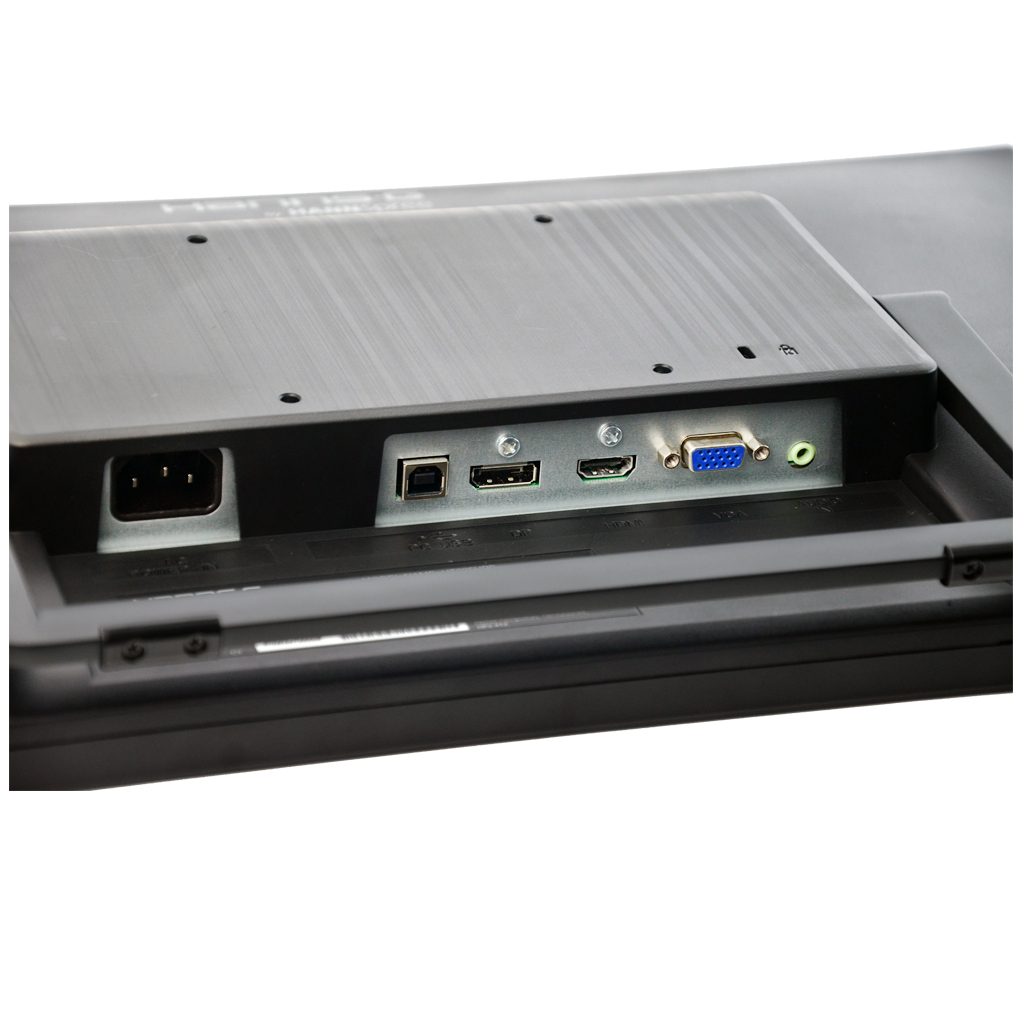

EXTENSIVE CONNECTIVITY

The HL247HGB features a host of connectivity options that include HDMI, DVI and D-Sub VGA for Full HD 1080p content transmission.

The HL247HGB with its wide range of inputs ensures that everything from gaming to chatting with friends online is easily achieved. The various inputs ensure that your monitor is more compatible and ready to handle all of your content.

SPEAKERS AND HEADPHONES

The HL247HGB is equipped with two high quality speakers. Built-in speakers make it easy to catch up with family, friends and colleagues. For movies, music, games and more, you’ll enjoy quality audio without the hassle of connecting external speakers.

Don’t want to disturb anybody? Plug your headset to the headphone socket and turn the volume up

speakers-and-headphones
Hannspree

Hannspree Europe Holdings B.V. Specifications and design are subject to change without notice. Non-metric weights and measurements are approximate.

All brand, product, Service names and logos are trademarks and/or registered trademarks of their respective manufactures and companies. Screen shot are simulated. Actual products may differ slightly from those illustrated on this promotion material.

Please refer to actual samples for final selection. The products displayed on this promotion material may not be available for purchase in your particular country or locality. Please check with Hannspree authorized representatives for the availability of specific products in your area.

Hannspree reserves the right to alter design and specifications as well as to change the accessories with equivalents without notice.

Android, Google, Google Play and other marks are trademarks of Google Inc.

Protector information Material Glass
Hardness ≥7H
Thickness 2MM
Transmittance ≥88%
Reflection 8%~10%
Monitor Display Spec Display size 60cm / 23.6″ Diagonal White LED-Backlight
Brightness(Typical) 250cd/m2
Contrast(Typical) 1,000:1
80,000,000:1(active contrast)
Pixel Pitch 0.2715(H) x 0.2715(V) mm
Resolution (H x V) 1920 x 1080
Aspect Ratio 16:9
Response Time(Typical) 5ms
View Angles LR,UD(CR>10) H/V 170°/160°
Panel Surface AG
Display Colors 16.7M Colors
PC Input Range Horizontal Freq. 30 to 83KHz
Vertical Freq. 56 to 75Hz
Max. display frequency
(Resolution H*V/Fv)
1920 x 1080 /60 Hz
Interface Input 1 D-Sub x 1
Input 2 HDMI x 1
Input 3 PC Audio x 1
Input 4 DVI-D (HDCP)
Input 5 NA
Output
Terminal
Earphone Yes
Speaker(Typical, Amplifier output) 1.5W x 2
Power Consumption(Typical) On: 30W
Standby<=0.5W, Off<=0.5W
AC Power Range AC 100-240, 50-60Hz
Power Mode
Indicator Light
Power on : Green
Power Saving: Amber
Operating
Condition
Temperature 5 ~ 35℃
Humidity 20% ~ 85%, non-condensing
Physical Dimension
(W*D*H)
561*220*399mm
Packing Dimension
(W*D*H)
614*109*465mm
Net Weight 5.2kg
Gross Weight 6.3kg
Tilt -5∘~ 15∘
High Adjustable Arm NA
Swivel NA
Pivot NA
Kensington Lock Yes
VESA Mounting 100 x 100 mm
Controls Front Control Menu, Bri (+), Vol(-)  Input/Enter, Power
On Screen Display HSD OSD format  12  language  :  EN、FR、DE、IT、PT、ES、RU、TC、SC、JP、KO、NL
Color 9300,6500,5500, User Mode
Preset Mode PC, Movie, Game,ECO  Modes
Accessory Power Cable(1.5m) Yes
VGA Cable(1.5m) Yes
Audio Cable(1.5m) Yes
HDMI-DVI Cable(1.5m) NA
HDMI-HDMI Cable(1.5m) NA
YPbPr Cable NA
User Manual(CD)  E-file
Quick Start Guide(Paper) Yes, HSD format
Color Plan      Black texture: front bezel,back cover , arm, base
Certification CE,EU energy label, HDMI
