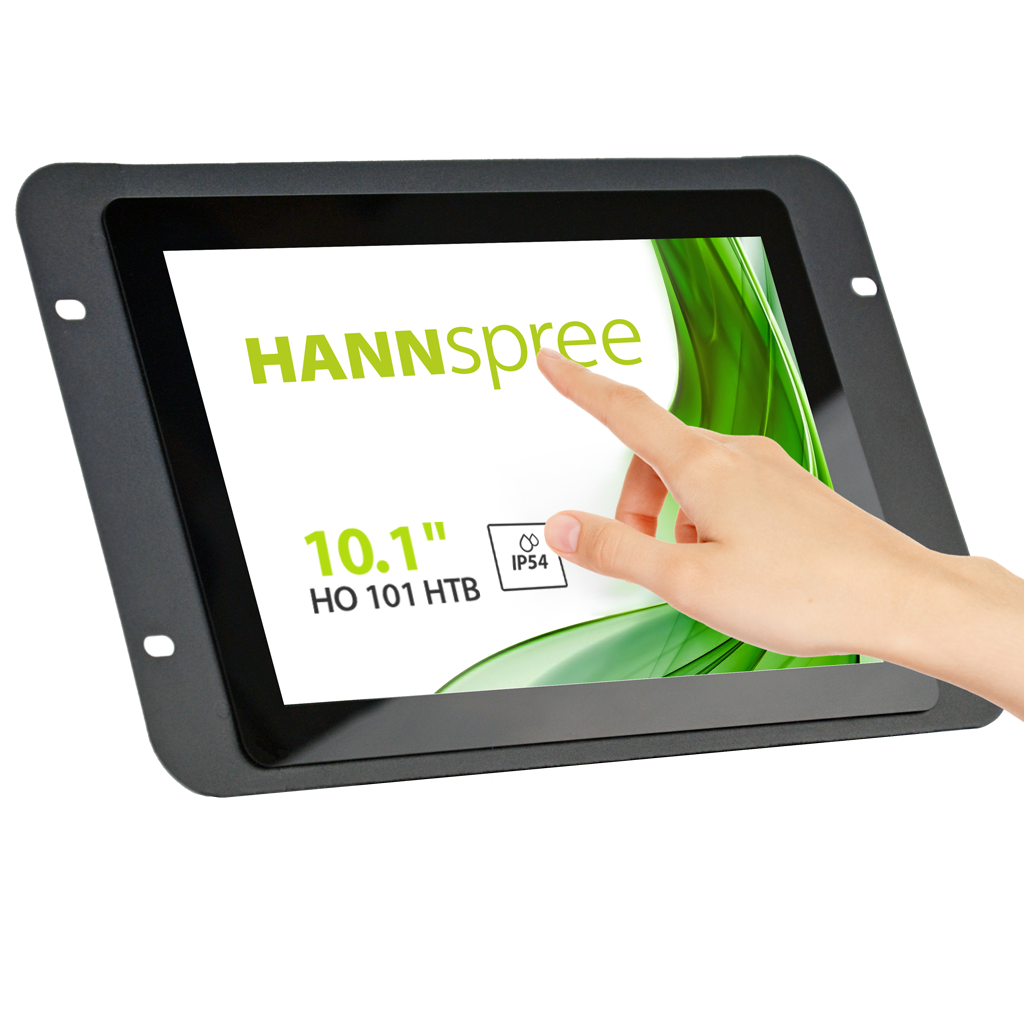

HO101DTB-front--hand

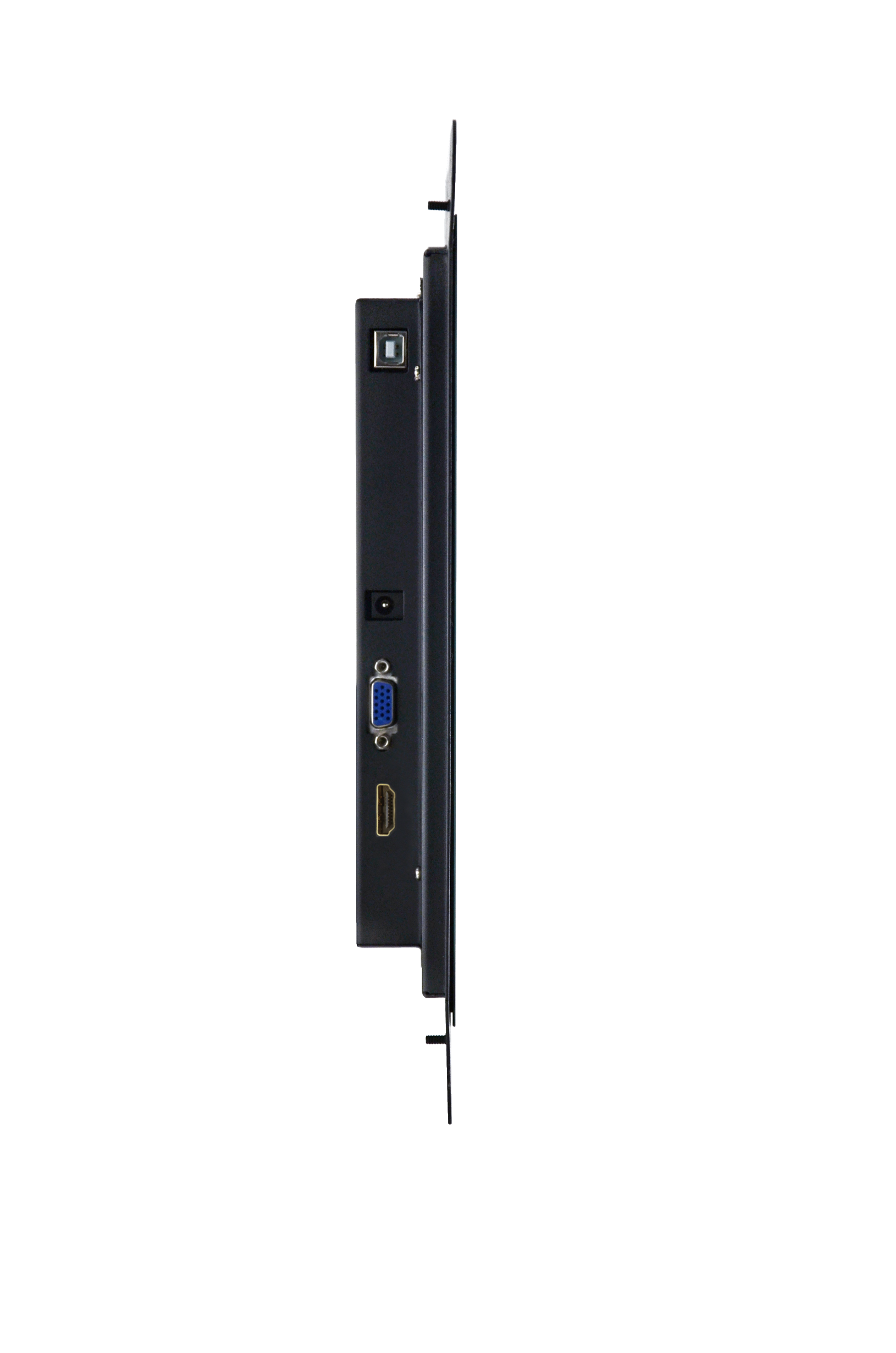

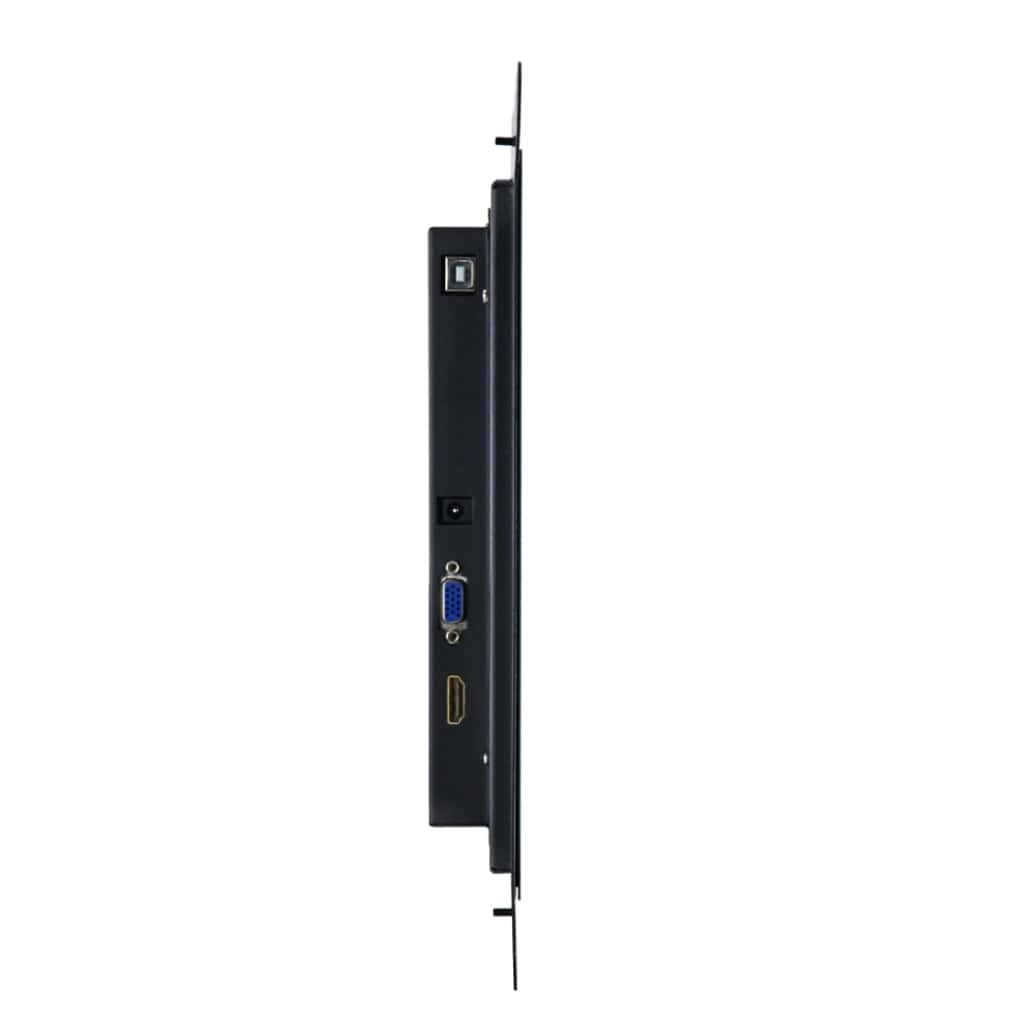

HO101DTB-side-a-vertical

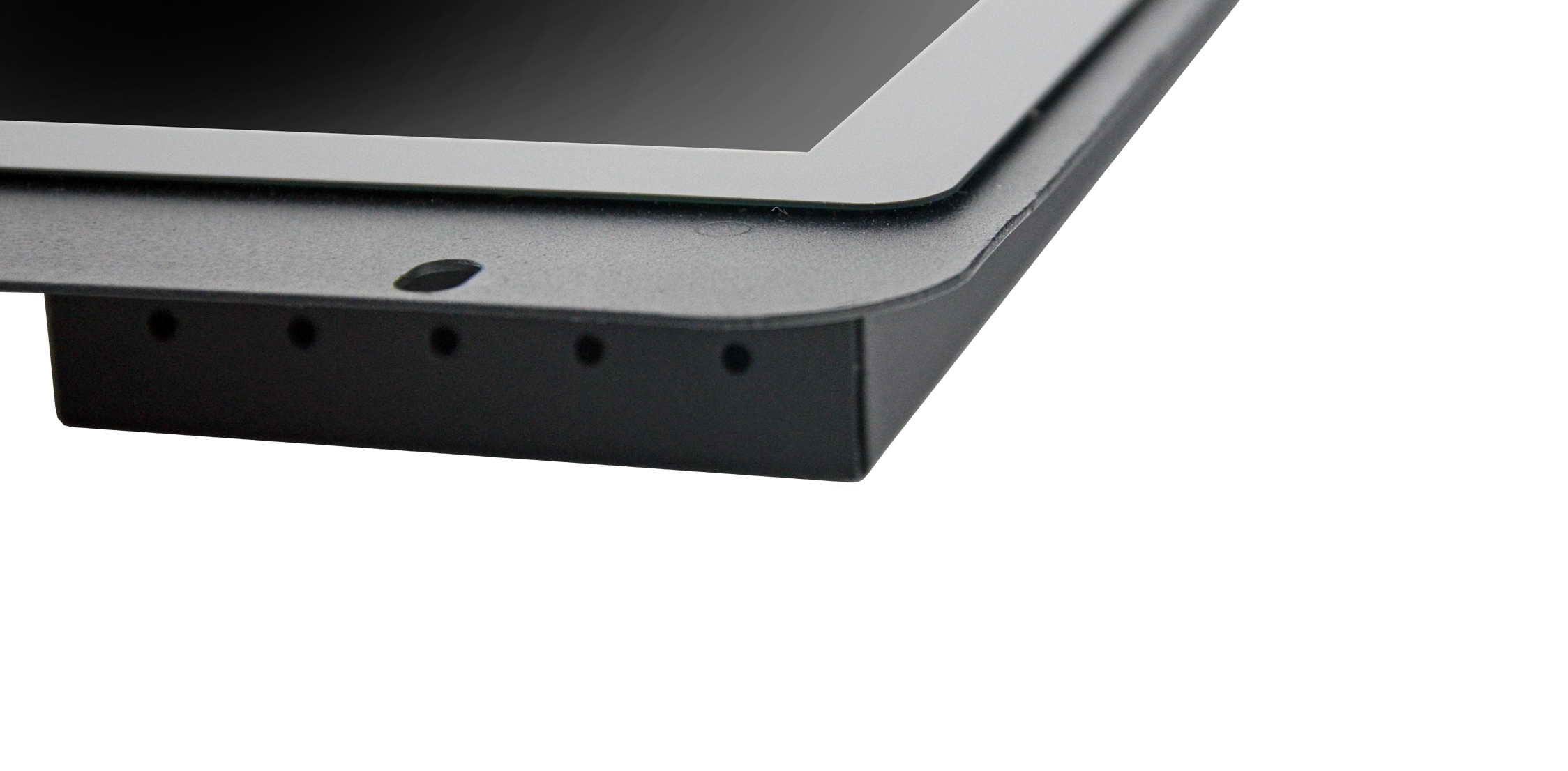

HO101DTB-zoom-in-edge-1

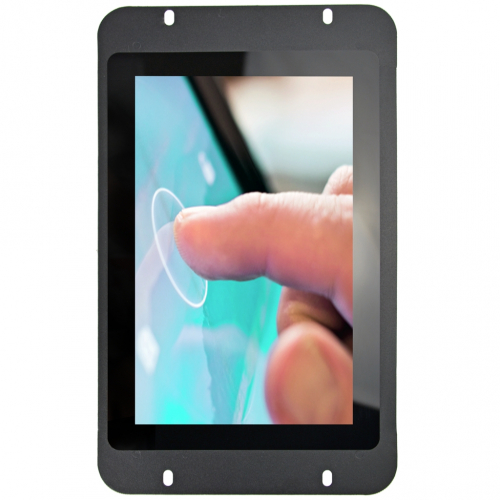

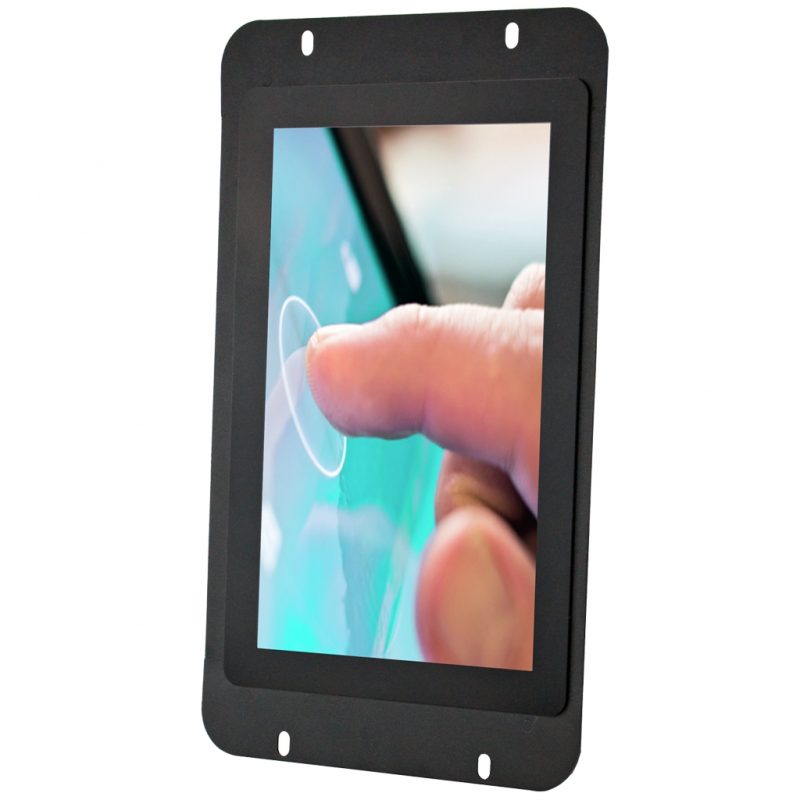

HO101DTB-front-vertical

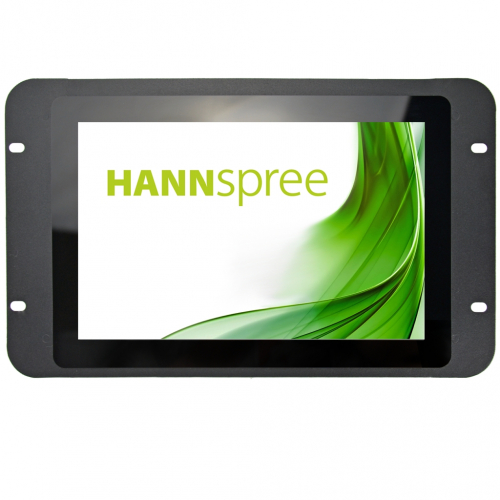

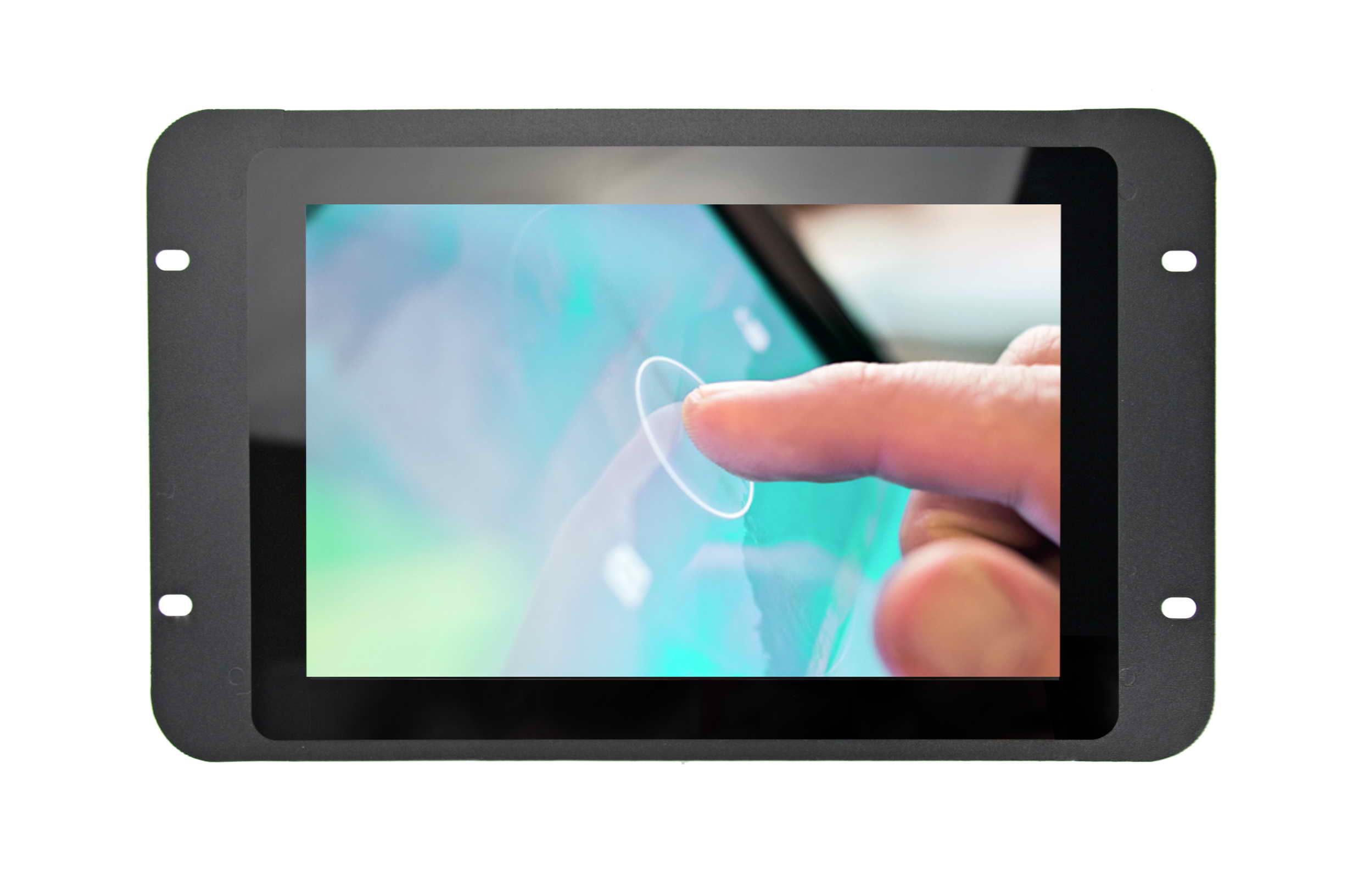

HO101DTB-front
HO101DTB-side-a-hand

HO 101 HTB

SKU: HO101HTB Category: Tag:

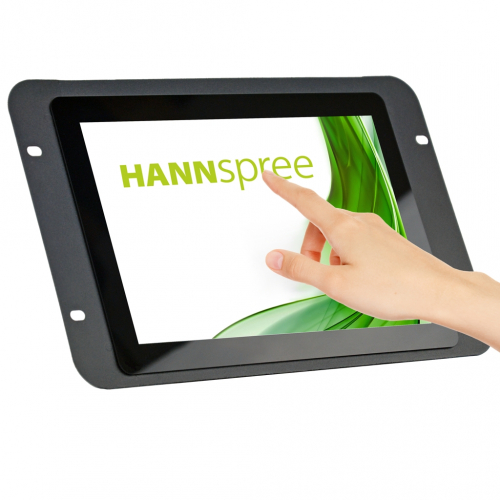

  • 10.1″ 16:9 LED Backlight Open Frame Display
  • 1280 x 800 Resolution
  • 10 Point Touch P-Cap Technolody
  • 170°/170°Ultra Wide Viewing Angles
  • Dual Input: HDMI + VGA
  • IP54 (Front) Rating Level
  • TP Module Thickness 2mm
  • 6H Toughened Hard Panel Surface
  • 12 Volt External Power Supply
  • Touch-Through Glass (available upon request)
  • Orientation: Landscape, Portrait, Face-Up

Touch-Through Glass

We are pleased to share the latest product update to our HO Series – Open Frame PCAP touch displays: support for “touch-through glass” capability.

Touch-through glass enables touch interactivity directly through an additional glass cover (no air gap and glass up to 6mm thick). Ideal for new emerging applications, including interactive display storefront windows, real estate office displays and in-store and restaurant POS and essential when applications demand environmentally sealed & secured enclosures.

The touch-through glass capability is implemented by a firmware upgrade, no hardware alterations are involved. For more details contact your local HSP office / representative or send us a request via the product inquiry form.

This new feature applies to the following models: HO101HTB, HO161HTB, HO165PTB, HO225DTB, HO225HTB, HO320HTB, HO430HTB.

Display Size 25.65cm / 10.1″ Diagonal
Panel Type TFT – LED Backlight
Aspect Ratio 16:10
Resolution (H x V) 1280 x 800
Active Area 137 x 218 mm
Brightness 350 cd/m² (Panel) –300 cd/m² (Monitor)
Contrast (Typ.) 800:1 (Typical)
Display Protection Thickness 2mm
Viewing Angle L/R; U/D 170° H / 170° V  (CR > 10)
Response time 25 msec (typ)
Touch Type Projected Capacitive Type – 10-Point Touch, Material Glass + Glass (G+G)
Display Colors 16.7M Colors
Hardness / Transmittance ≥6H Toughened hard panel surface / ≥85%
IP Rating Level IP 54 (Front), Water and Dust Protection *
Horizontal Frequency 30 ~ 55 kHz
Vertical Frequency 56 ~ 60 Hz
External Power Adapter DC: 12Volt / 3A
Input 1 VGA (D-Sub)
Input 2 HDMI
Input 3 USB Type B (For touch function)
Speakers NA
Power Consumption On: 4,41W; Stand-by: 0,146W; Off: 0,125W
Product Dimensions 310,6 x 34,8 x 188,6 mm (W x D x H)
Packing Dimensions 370 x 90 x 237 mm (W x D x H)
VESA Mounting N/A

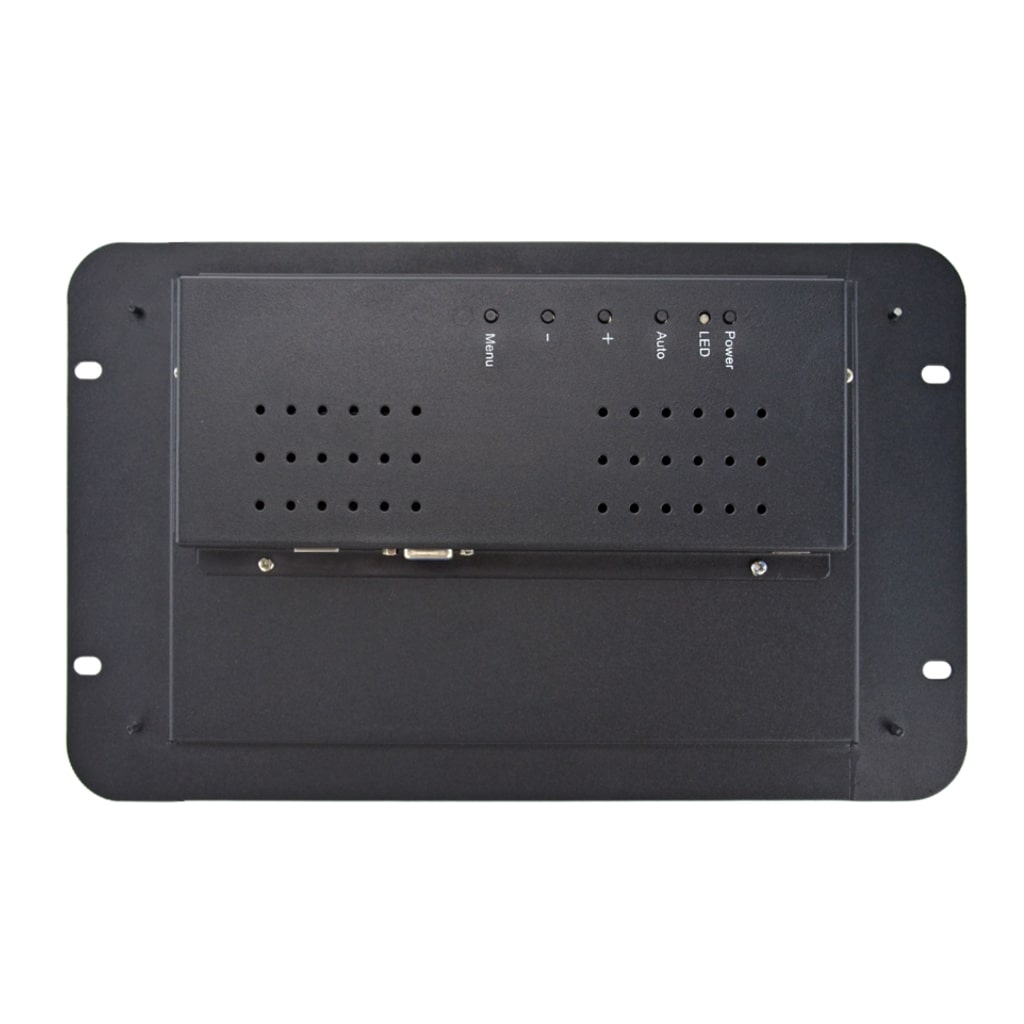

Controls Power, Auto, (+), (-), Menu
Color 9300, 7500, 6500, User Mode
Preset Mode N/A
On Screen Display 9 OSD Languages
LED Backlight life 20.000 hours
Accessory Power Adaptor; Power Cord (1.8m); USB Cable; HDMI Cable (2m)
