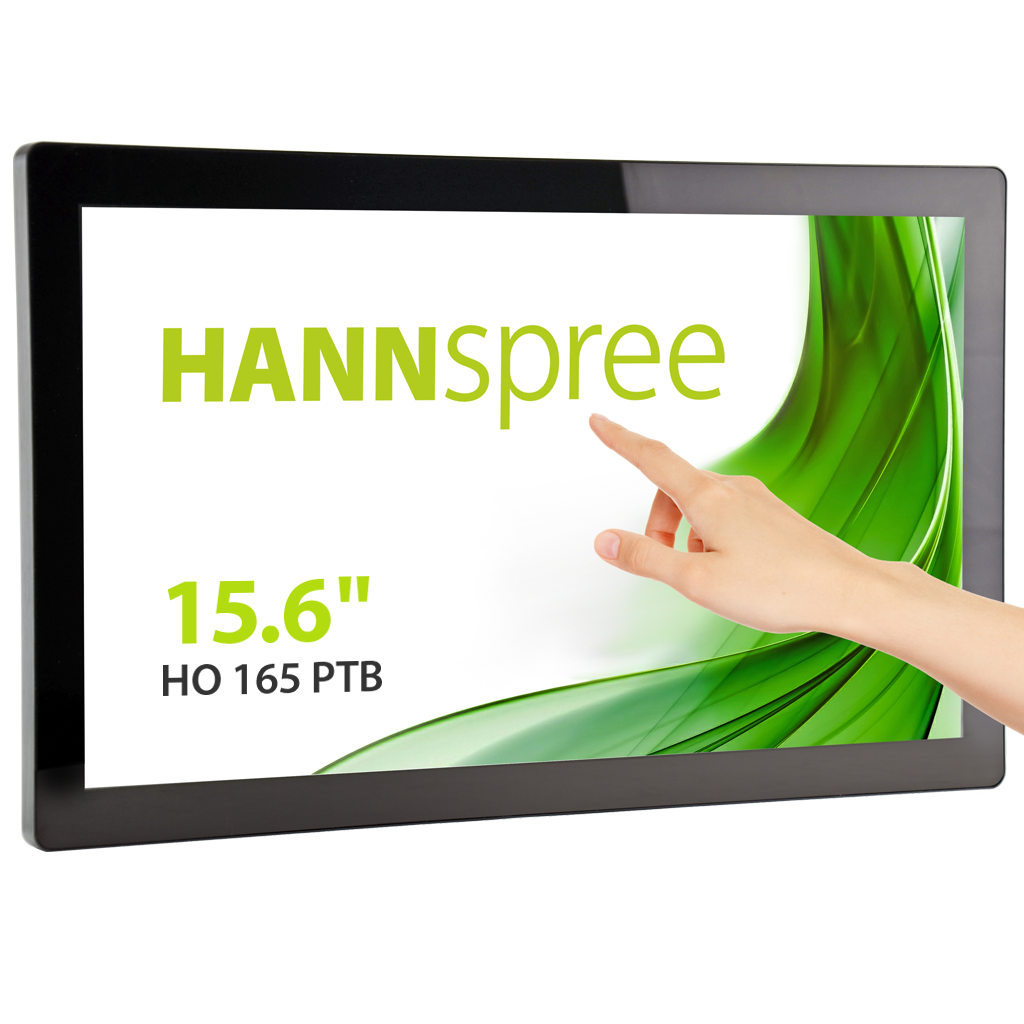

HO 165 PTB

The HANNspree HO165PTB 15.6’’ 16:9 Open-Frame monitor delivers a high-performance display solution. Its rugged bezel with edge-to-edge glass makes it very suitable for applications like tabletop integration. The ideal display for integration in kiosk, totem and a perfect solution for interactive digital signage, In-store Retail, Gaming and many other sectors.

View 360°

SKU: HO165PTB Category: Tag:
  • 15.6″ 16:9 LED Backlight Open Frame Display
  • 1920 x 1080 Resolution Full HD 1080P
  • 10-Point Touch P-Cap Technology
  • 170° / 170° Wide Viewing Angle
  • Dual Input: VGA, HDMI + DP
  • IP65 Rating Level *
  • Display Protection: Thickness 3.9mm
  • 24/7 Operating
  • Built-in Speakers
  • 12 Volt External Power Supply
  • Multiple Mounting Options
  • Touch-Through Glass

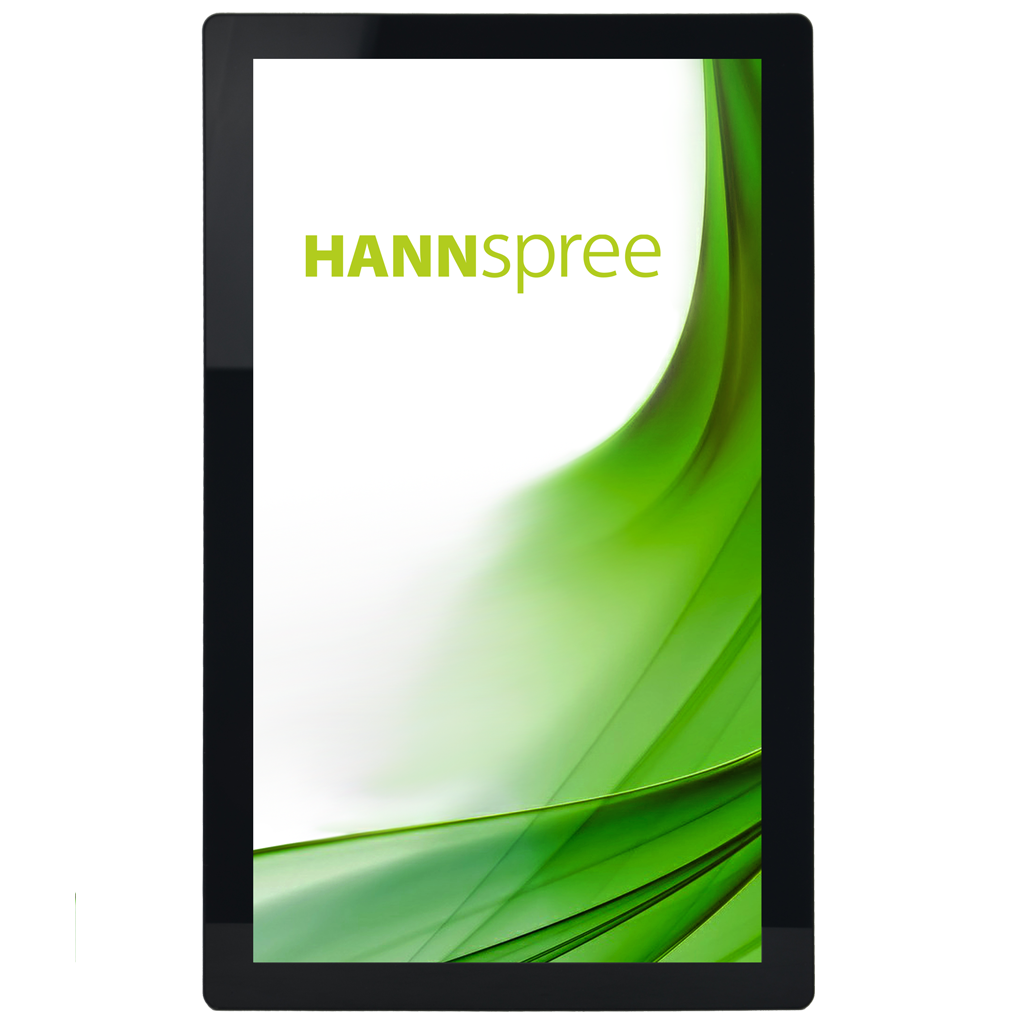

  • Orientation: Landscape, Portrait, Face-Up



* IP65: The IP Code classifies how resistant a device is to foreign objects and moisture. IP65 means that the monitor is protected from total dust ingress and it is protected against low pressure water jets from any direction. Limited ingress permitted.

THE OPEN FRAME – THE INDUSTRIAL DISPLAY SOLUTION

The HANNspree HO165PTB 15.6’’ 16:9 Open-Frame monitor delivers a high performance display solution. Its rugged bezel with edge-to-edge glass makes it very suitable for applications like table top integration. The HANNspree HO165PTB is an ideal display for integration in kiosk, totem and a perfect solution for interactive digital signage, Instore Retail, Gaming and many other sectors.

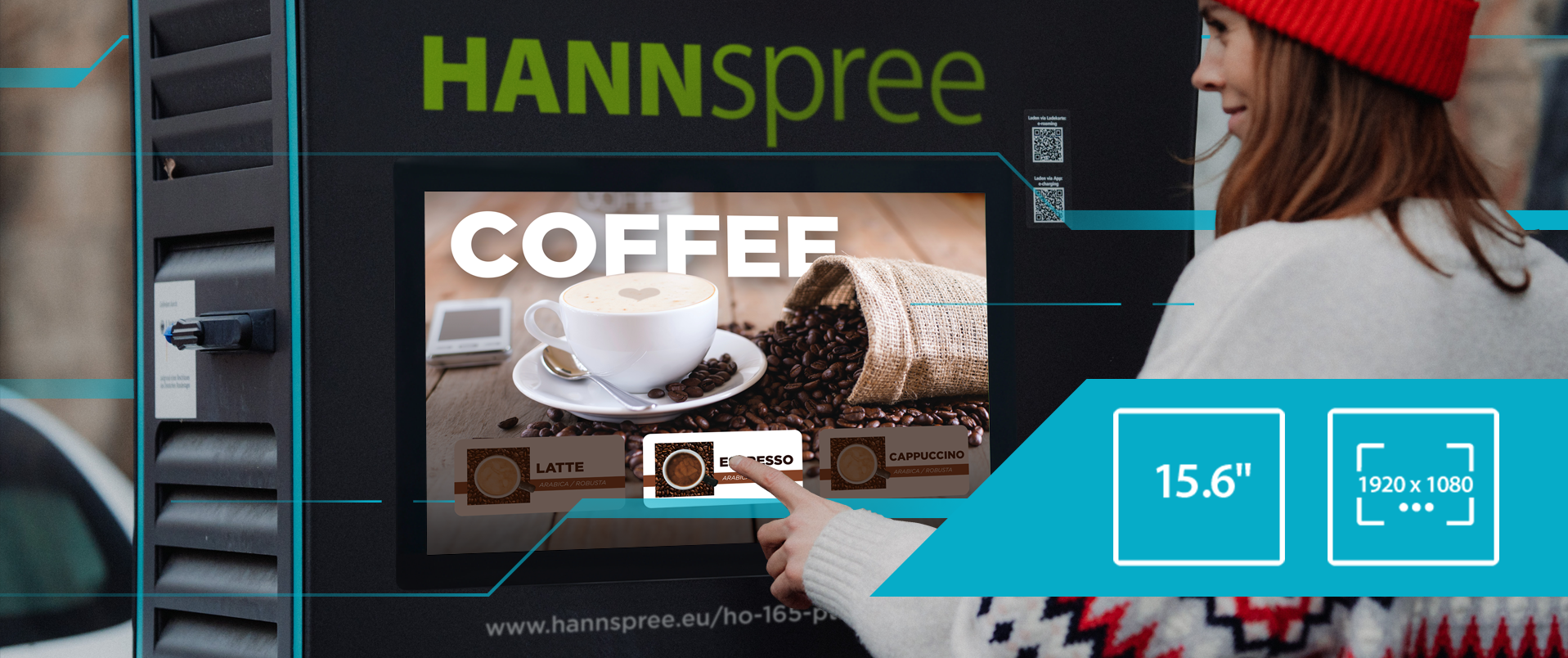

Possible Applications:

Gaming/Casino, Entertainment Slot Machines, Video lottery Machines, Totem Kiosks, Medicine and ticketing, Education, Self-service terminals, Industrial control…

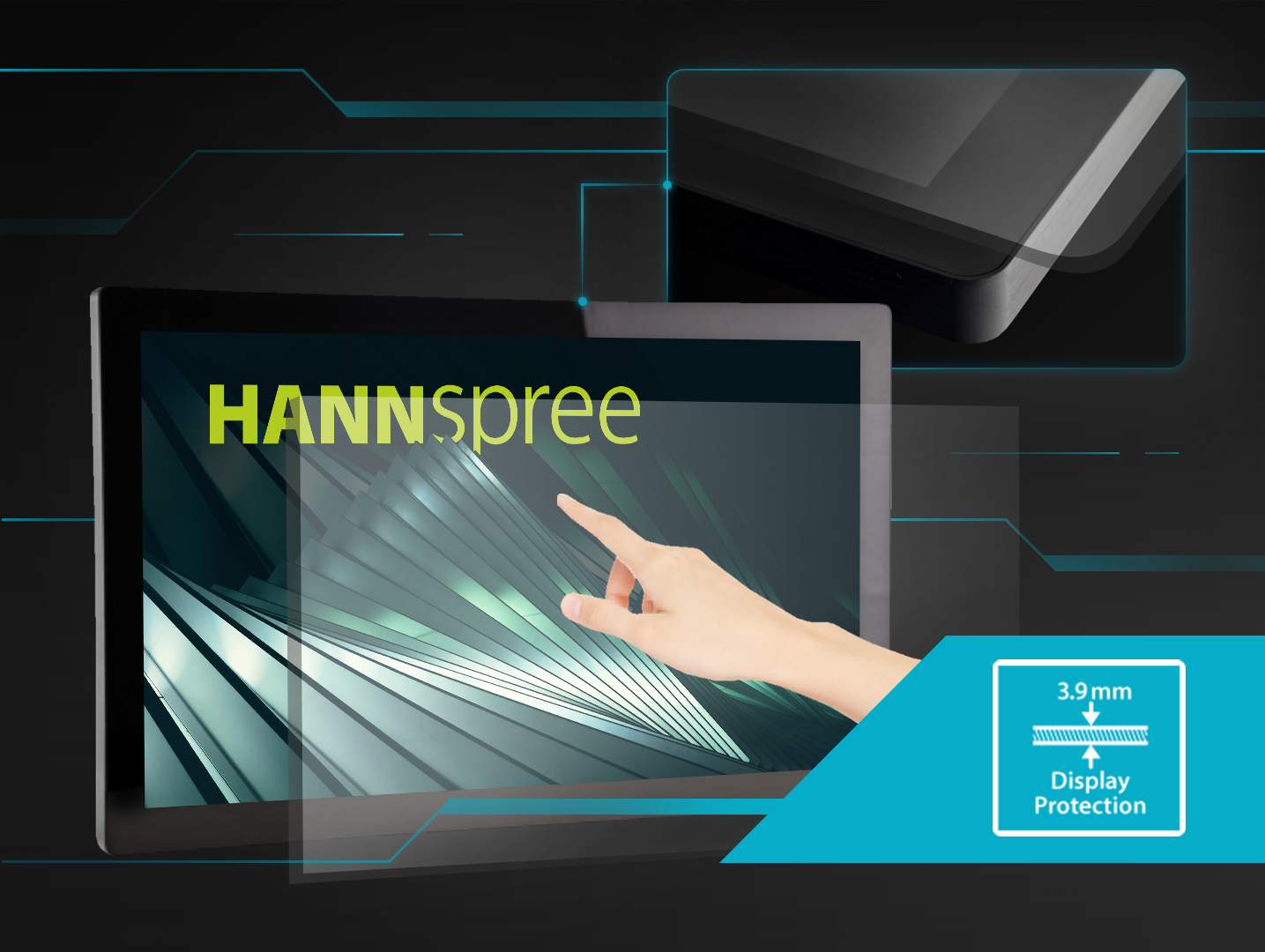

TOUCH-THROUGH GLASS

We are pleased to share the latest product update to our HO Series – Open Frame PCAP touch displays: support for “touch-through glass” capability.

Touch-through glass enables touch interactivity directly through an additional glass cover (no air gap and glass up to 6mm thick). Ideal for new emerging applications, including interactive display storefront windows, real estate office displays and in-store and restaurant POS and essential when applications demand environmentally sealed & secured enclosures.

The touch-through glass capability is implemented by a firmware upgrade, no hardware alterations are involved. For more details contact your local HSP office / representative or send us a request via the product inquiry form.

This new feature applies to the following models: HO101HTB, HO161HTB, HO165PTB, HO225DTB, HO225HTB, HO320HTB, HO430HTB.

ho161dtb-usp_2

PROJECTED CAPACITIVE (PCAP) TOUCH TECHNOLOGY

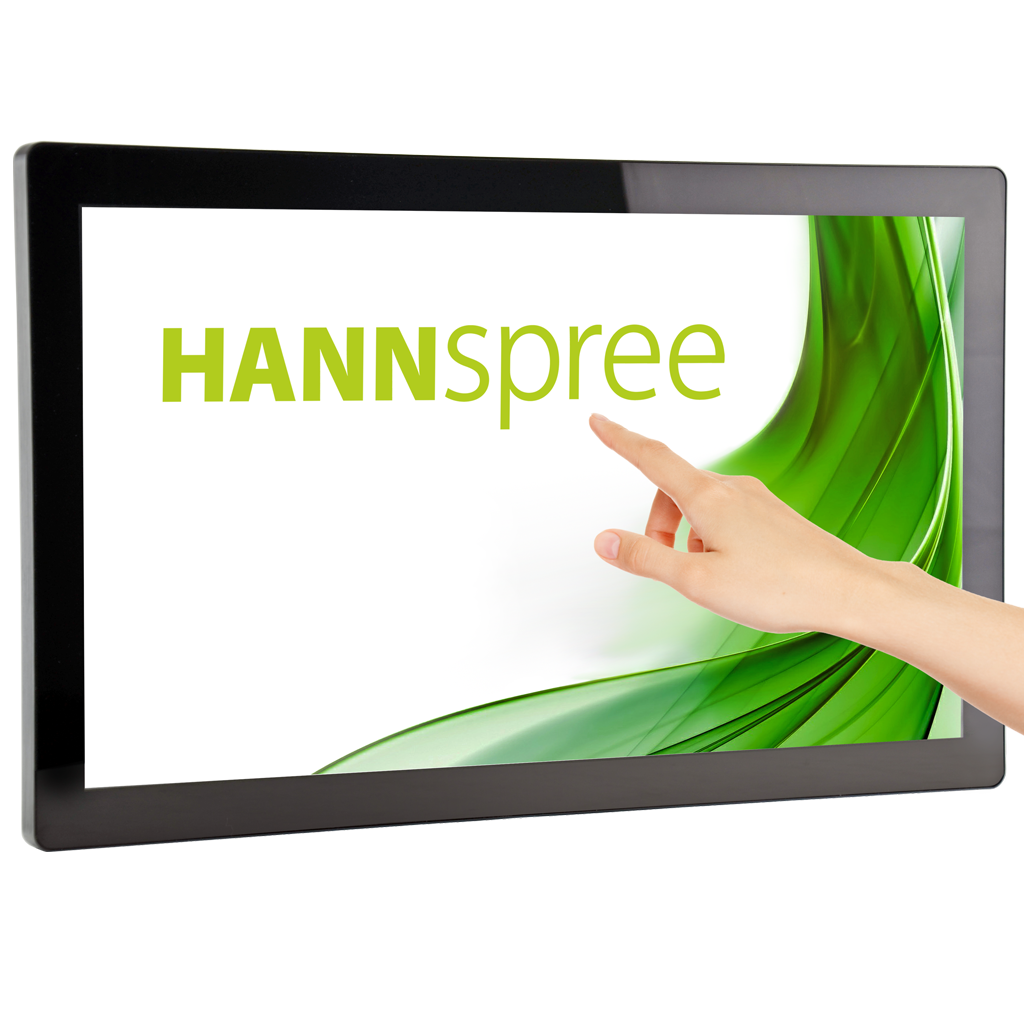

Now multiple users can experience shared touchscreen interaction. Using up to 10 finger touch points, the HANNSpree HO165PTB Monitor allows everyone to play and collaborate at the same time.

The precise and accurate multi-touch display — allowing up to 10 simultaneous touches — allowing you to work smarter and more efficiently.

There’s no need for additional controllers – all they have to do is just reach out and touch the screen. It is certified for Windows 10 and designed to offer superior performance as well as intuitive control, so you can be more productive and do everything you want to do smoothly and quickly.

With Projected Capacitive Touch, users can enjoy a smoother and more accurate touch display experience with increased interactivity. Thanks to the glass overlay this technology is highly durable, the Touch performance is unaffected by everyday use and mishaps such as dirt, dust, condensation, liquid spills or cleaning solutions.

This technology delivers super fast, sensitive touch response with excellent dragging performance and perfect picture quality. Ten-point multi-touch support lets you unlock the power of today’s touch-enabled applications.

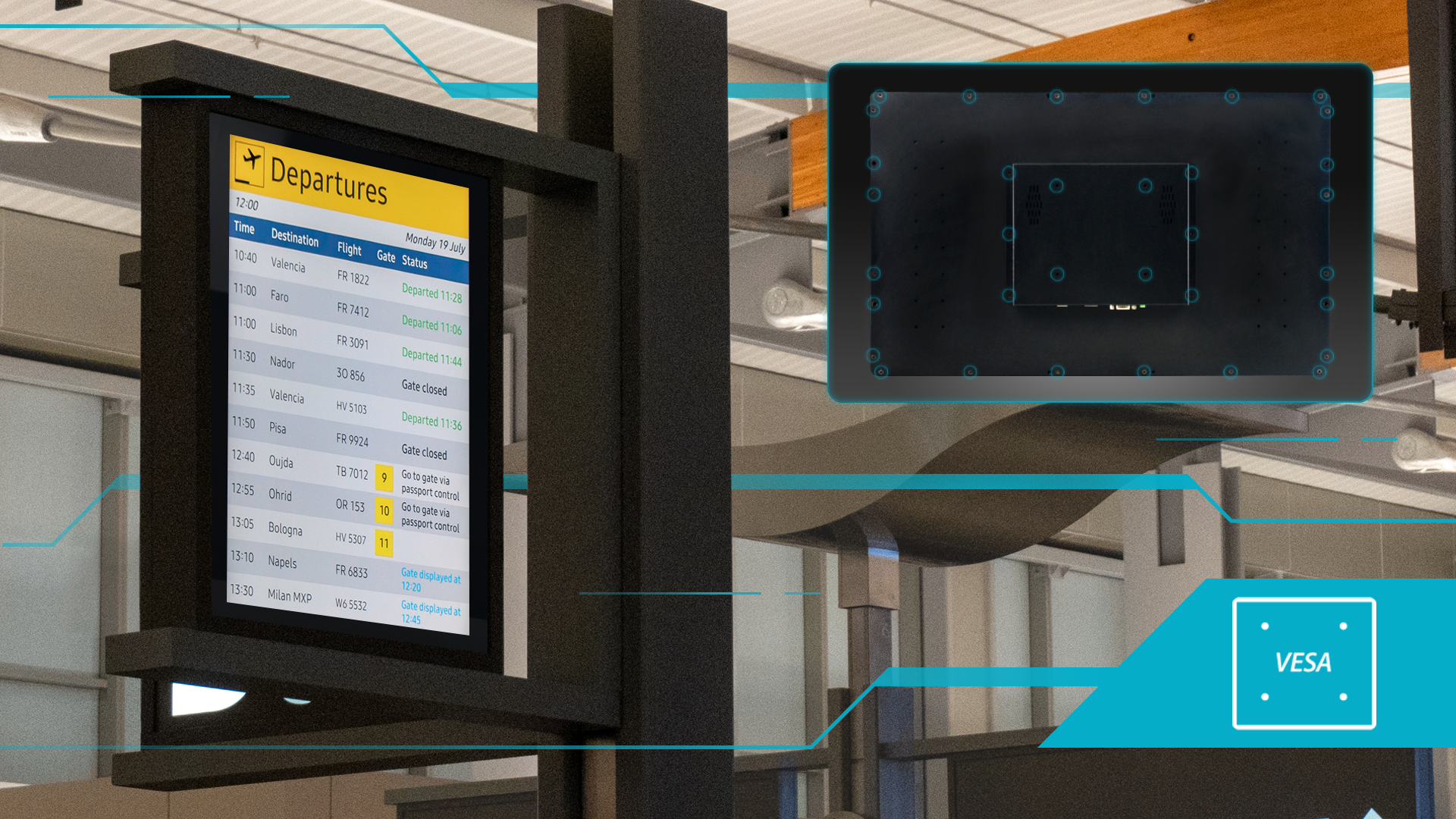

MOUNTING OPTIONS

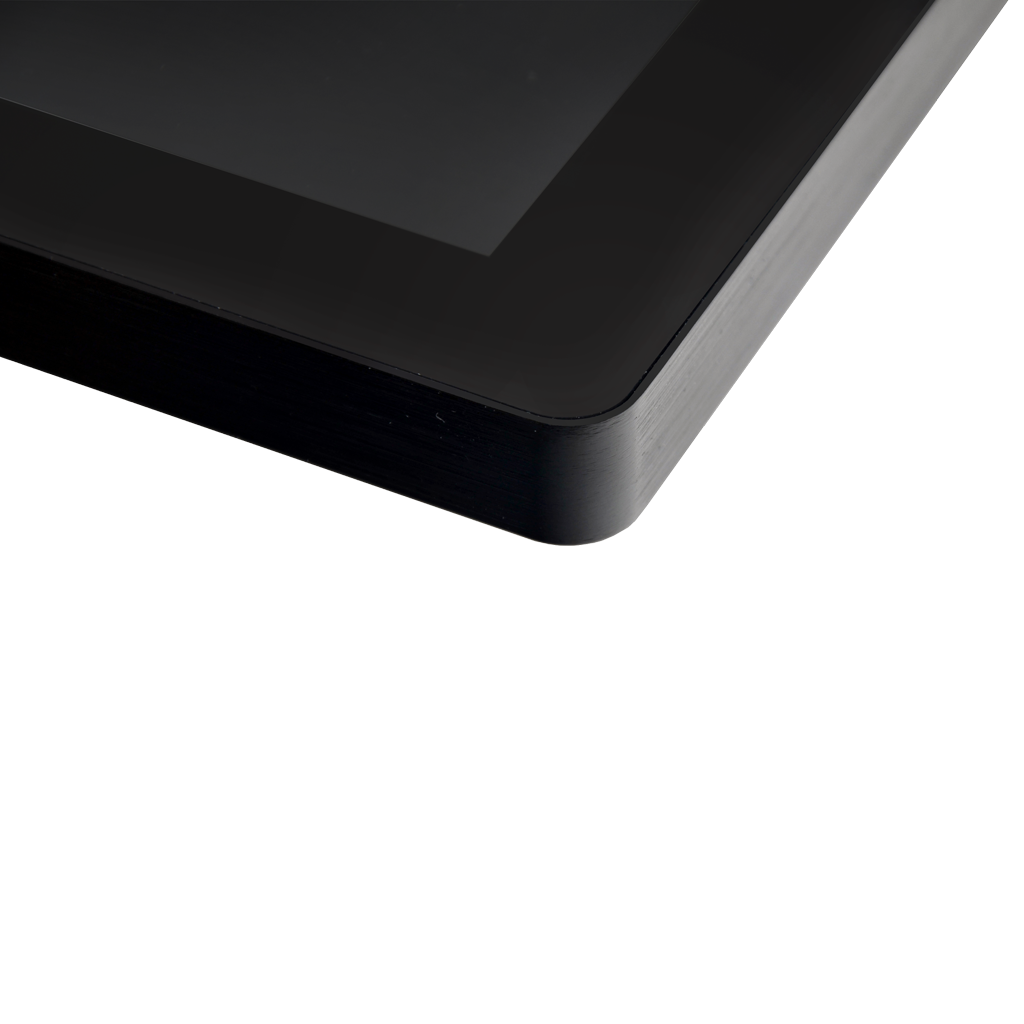

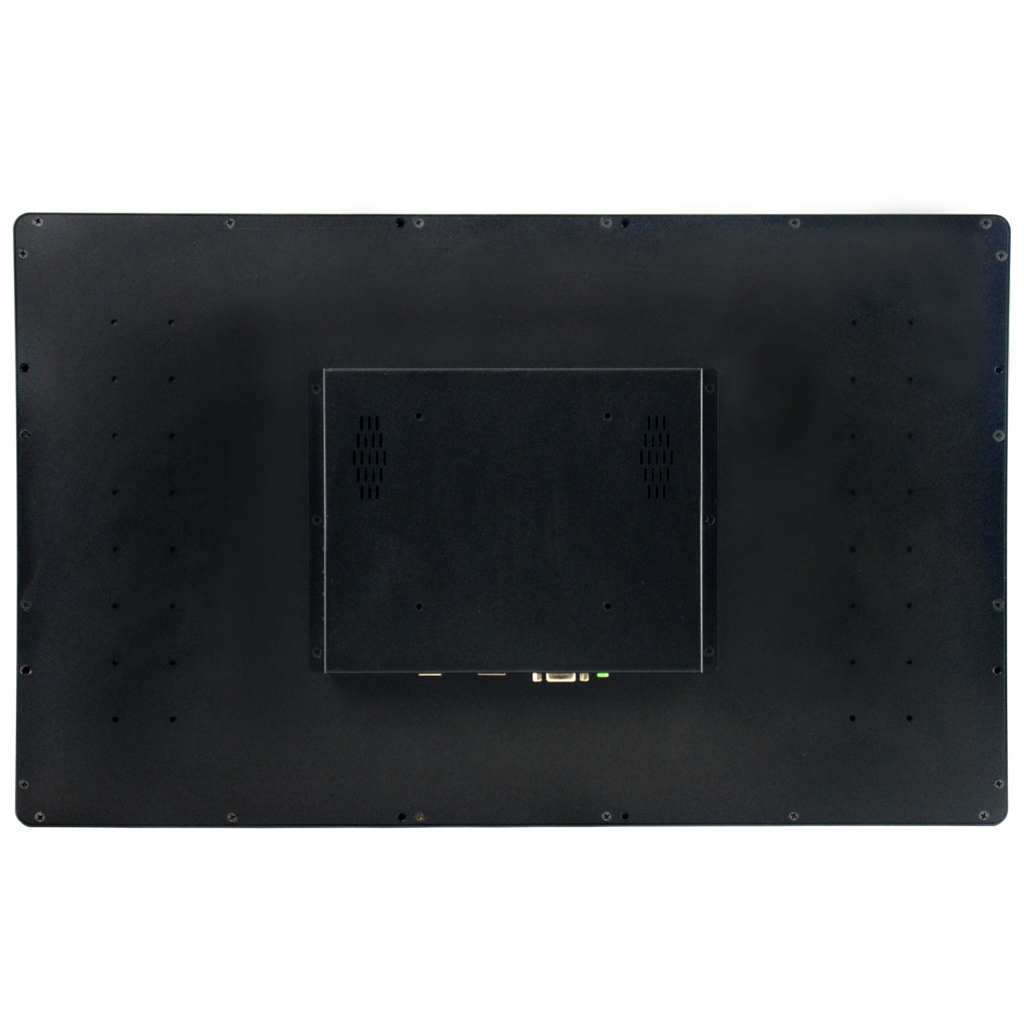

Its rugged bezel with edge-to-edge glass makes it very suitable for applications like table top integration. The display supports rear VESA and external mounting brackets for multiple mounting options. The brackets provide the benefits of easy installation, and flexibility for different applications.

• Supports Multiple Mounting Options

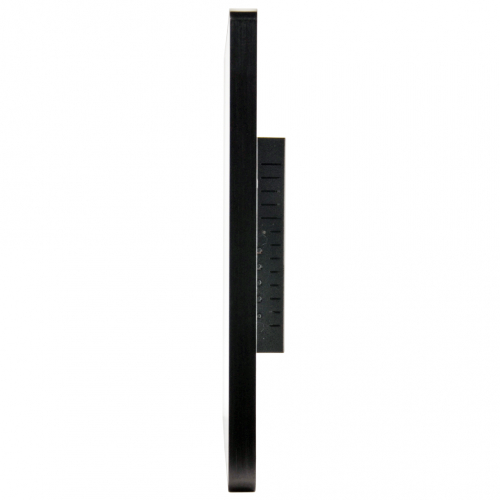

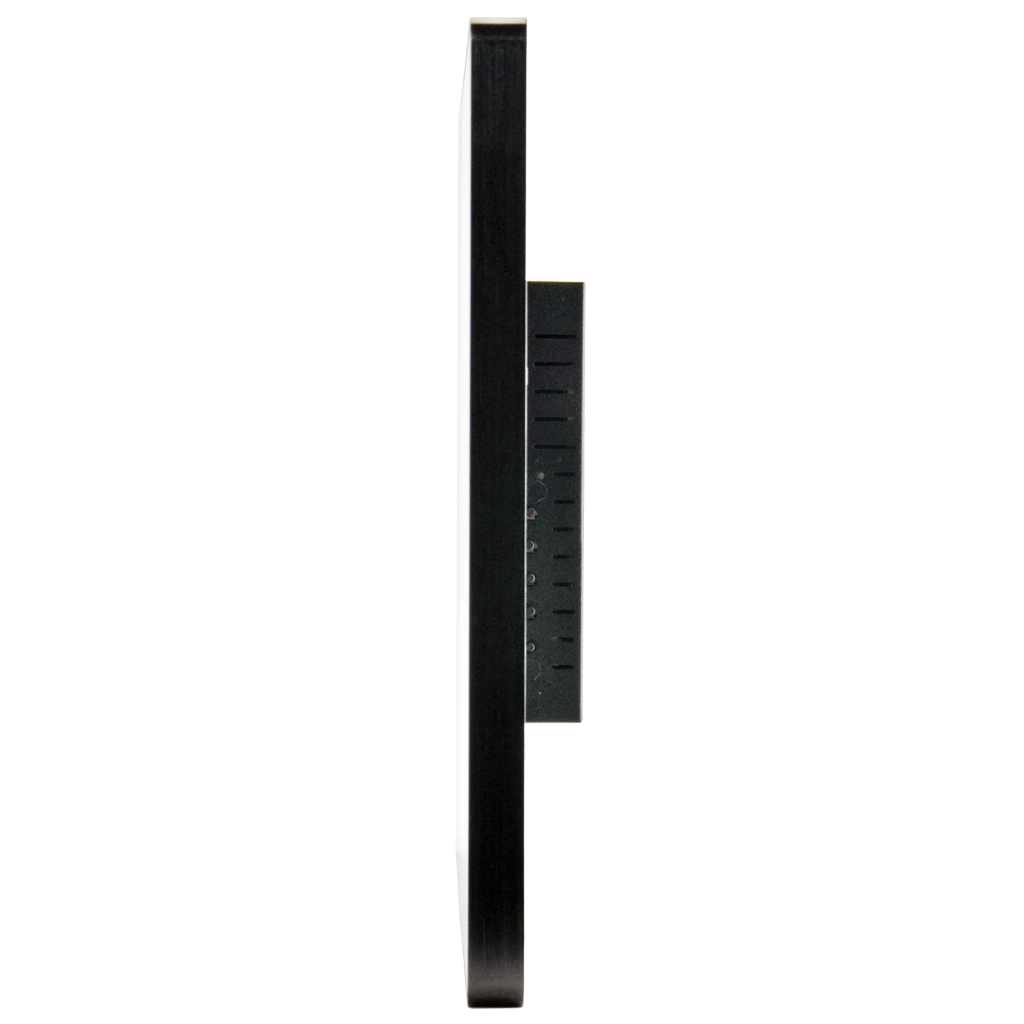

• Slim profile with narrow edges

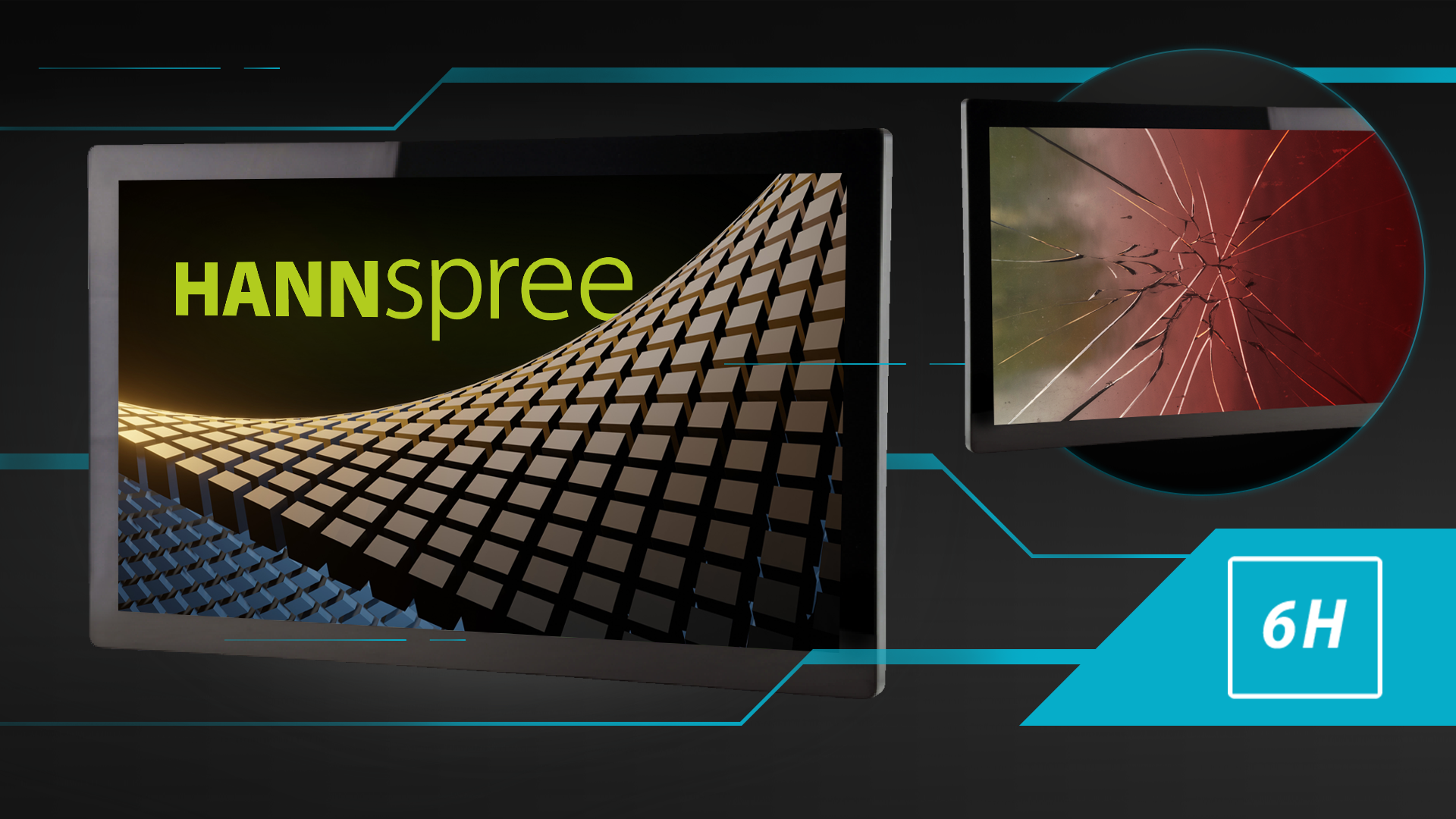

SCRATCH RESISTANT – MULTI-TOUCH SCREEN WITH 6H SURFACE HARDNESS

6H scratch resistant surface hardness ensures durability, as well as a consistent high quality touch experience.

Scratch resistance is essential for touch solutions used for education and public environment. This is achieved thanks to a glass overlay covering the screen. This means that the panel surface can withstand impact from objects and scratches, making it perfect for public spaces and educational institutions.

Our toughened Hard Glass fronted LED Monitors (6H hardness rating) are designed specifically for retail and Industrial applications offering protection from impacts and dirt for a long life solution.

It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

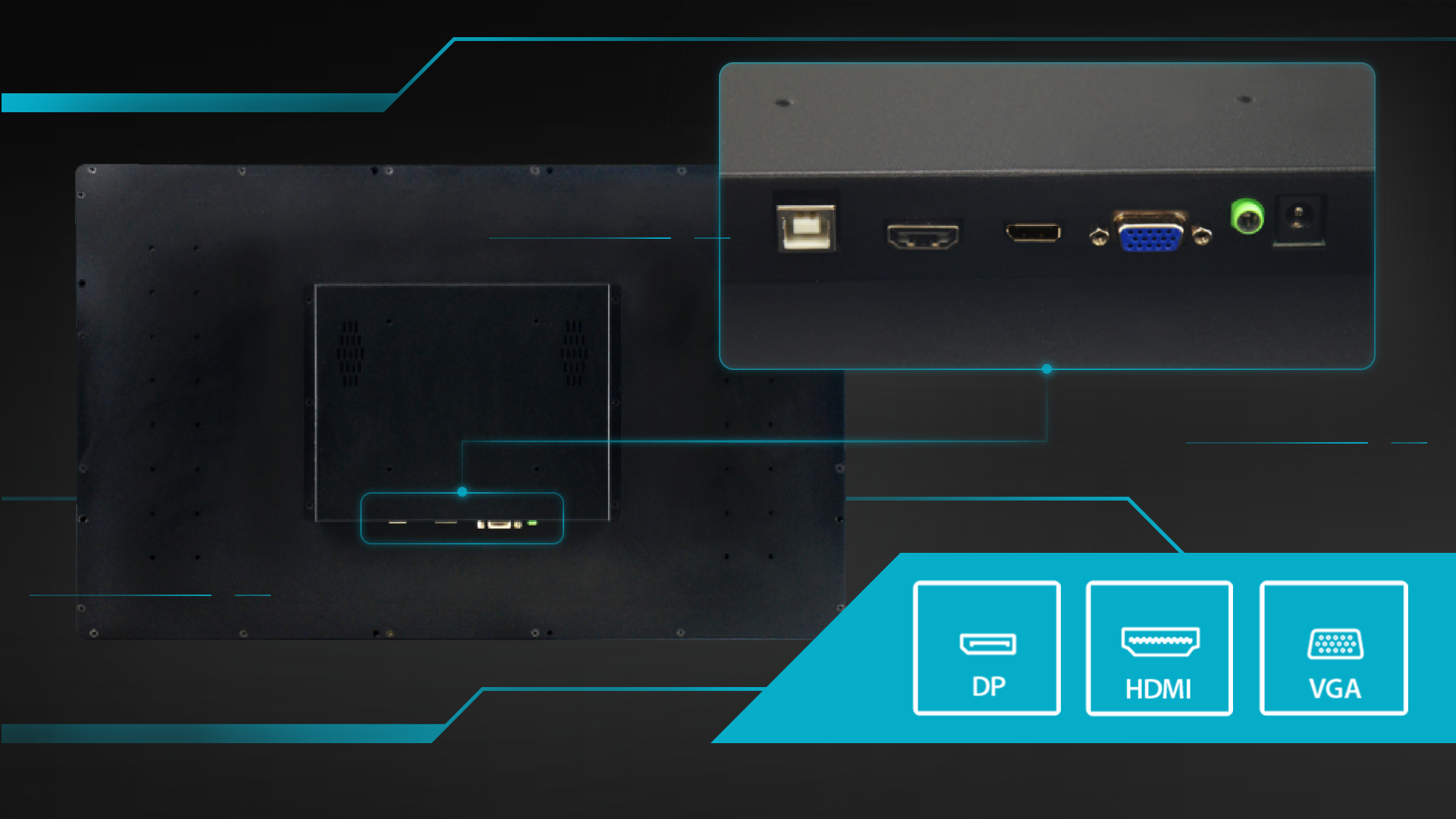

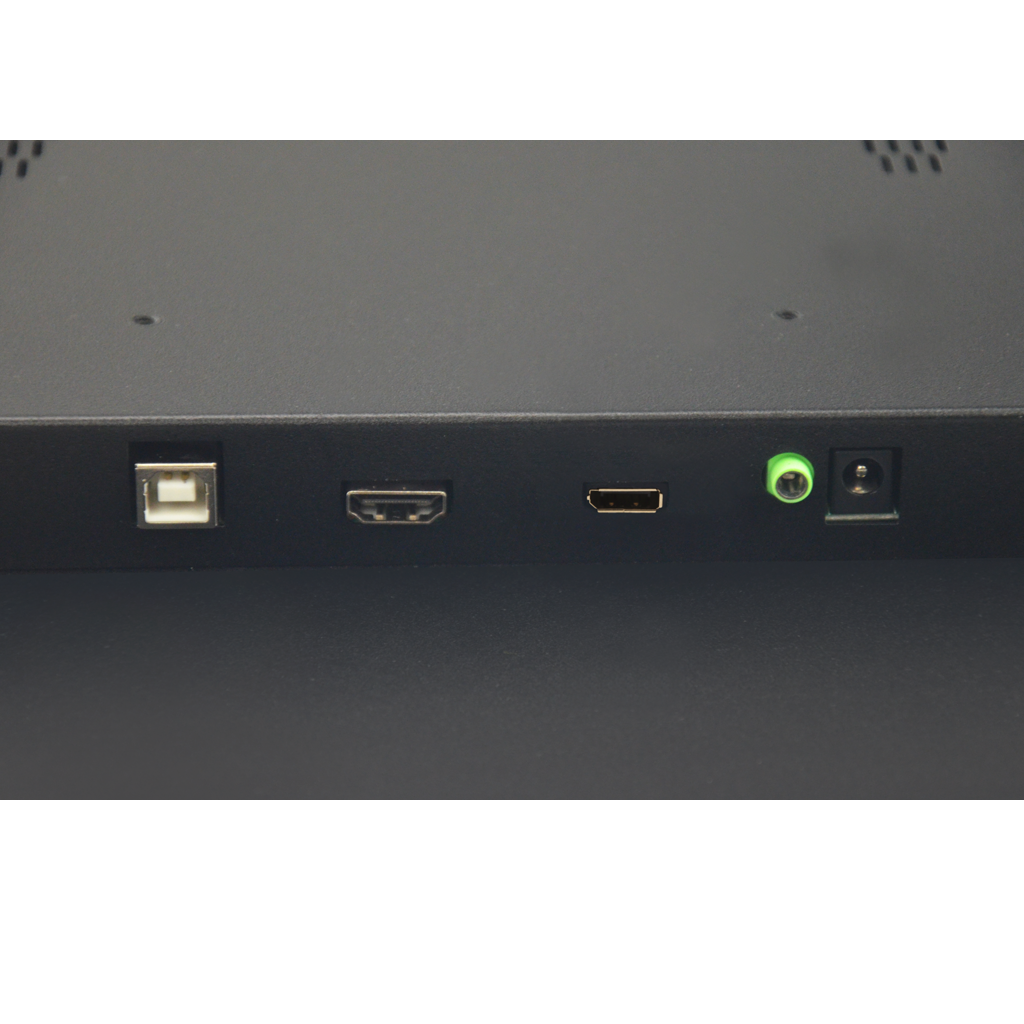

CONNECTIVITY

The HANNspree HO165PTB features a host of connectivity options that include VGA, HDMI and DP.

The HO165PTB Open Frame Touch Monitor ensure that your monitor is more compatible and ready to handle all of your content.

Enabling touch is easy! Simply connect the USB cable from your PC to the monitor’s USB upstream port, and connect one of the video inputs to project images onscreen.

Display Size 39.6 cm / 15.6″ Diagonal
Panel Type TFT – LED Backlight
Aspect Ratio 16:09
Resolution (H x V) 1920 x 1080 Full HD
Panel Brightness 250 cd/m² (Panel) 212 cd/ m² (Monitor)
Contrast (Typ.) 700:1 (Typical) / 10.000.000:1 (Active Contrast)
Display Arena 345.23 x 194.54 mm
Viewing  Angle L/R – U/D  170°H / 170°V
Response Time 25 msec (typ)
Pixel Pitch 0.17925 (H) X 0.17925 (V) mm
Touch Type Projected Capacitive Type 10 Point Touch
Material Glass + Glass
Cover Glass+LOCA+ITO (Indium Tin Oxide) Glass
Display Colours 262K Colors
Horizontal Frequency 31,5 ~ 80 kHz
Vertical Frequency 60 ~ 75 Hz
Max Display Frequency 1920 x 1080 @ 60Hz
Input 1 Display Port
Input 2 HDMI
Input 3 VGA
Input 4 USB for Touch
Speakers Yes, 1.5W x2
Power Consumption On: 15W; Stand-by: 0,5W; Off: 0,3W (TBC)
AC Power Range External Power Supply: 12 Volt / 2.5A Input: AC 100 ~ 240 Volt; 50 ~ 60 Hz
Product Dimensions 387.3 x 40 x 236.4 mm (W x D x H)
Packing Dimensions – x – x – mm (W x D x H) (TBC)
Net / Gross Weight – Kg / – Kg (TBC)
Vesa Mounting 100 x 100 mm
Display Protection TP Module Protection Thickness 3,9mm
Hardness / Transmittance ≥6H Toughened hard panel surface / ≥85%
IP Rating Level IP 65 ** (Front), Water and Dust Protection
24 / 7 Operating Yes
LED Backlight life 15.000 Hours
Accessories Power Adaptor; EU and UK Power Cables (1.5mt); HDMI Cable (1.5mt); USB 2.0 (B-A) Cable (1.8mt)
Certifications CE, RoHS, EU Energy Label
On Screen Display 8 Languages
Color 9300, 6500, 5300, User Mode
Preset Mode Standard, Text, Movie, Game
