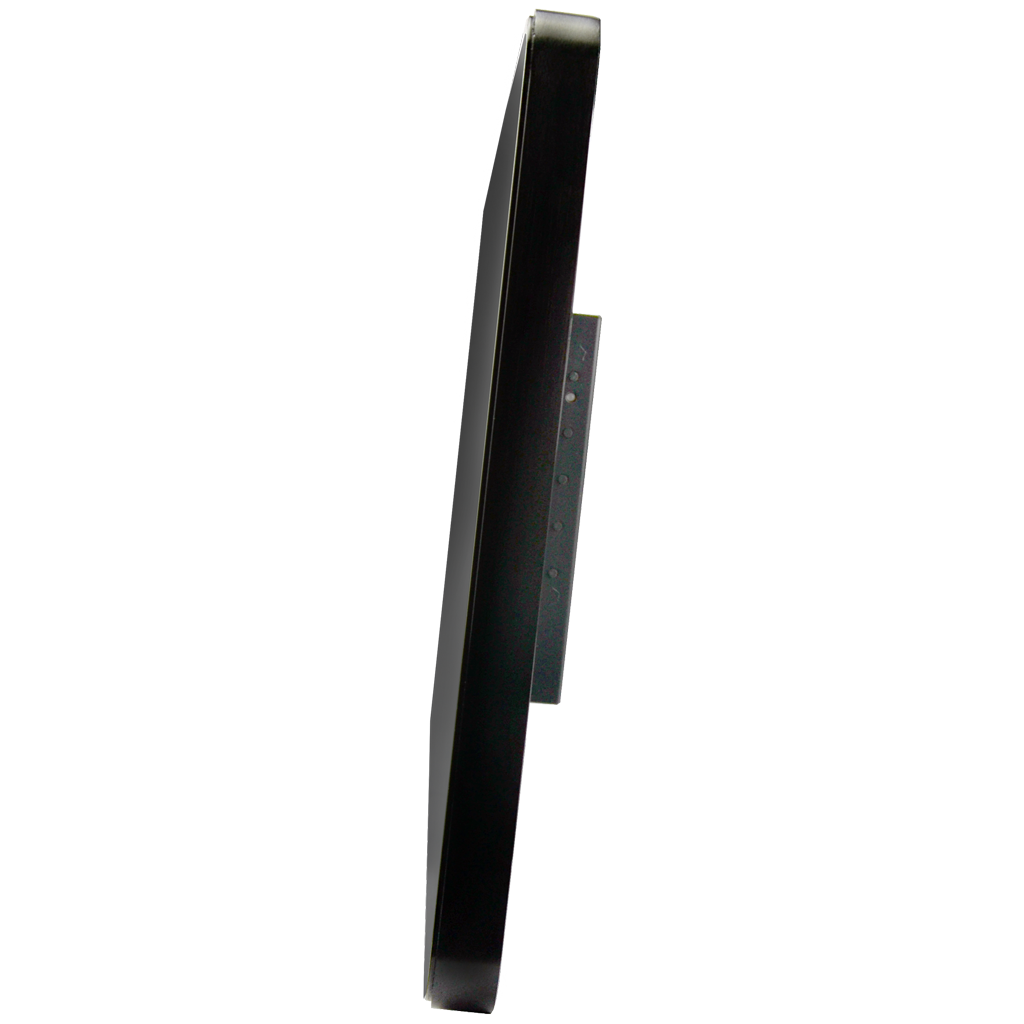

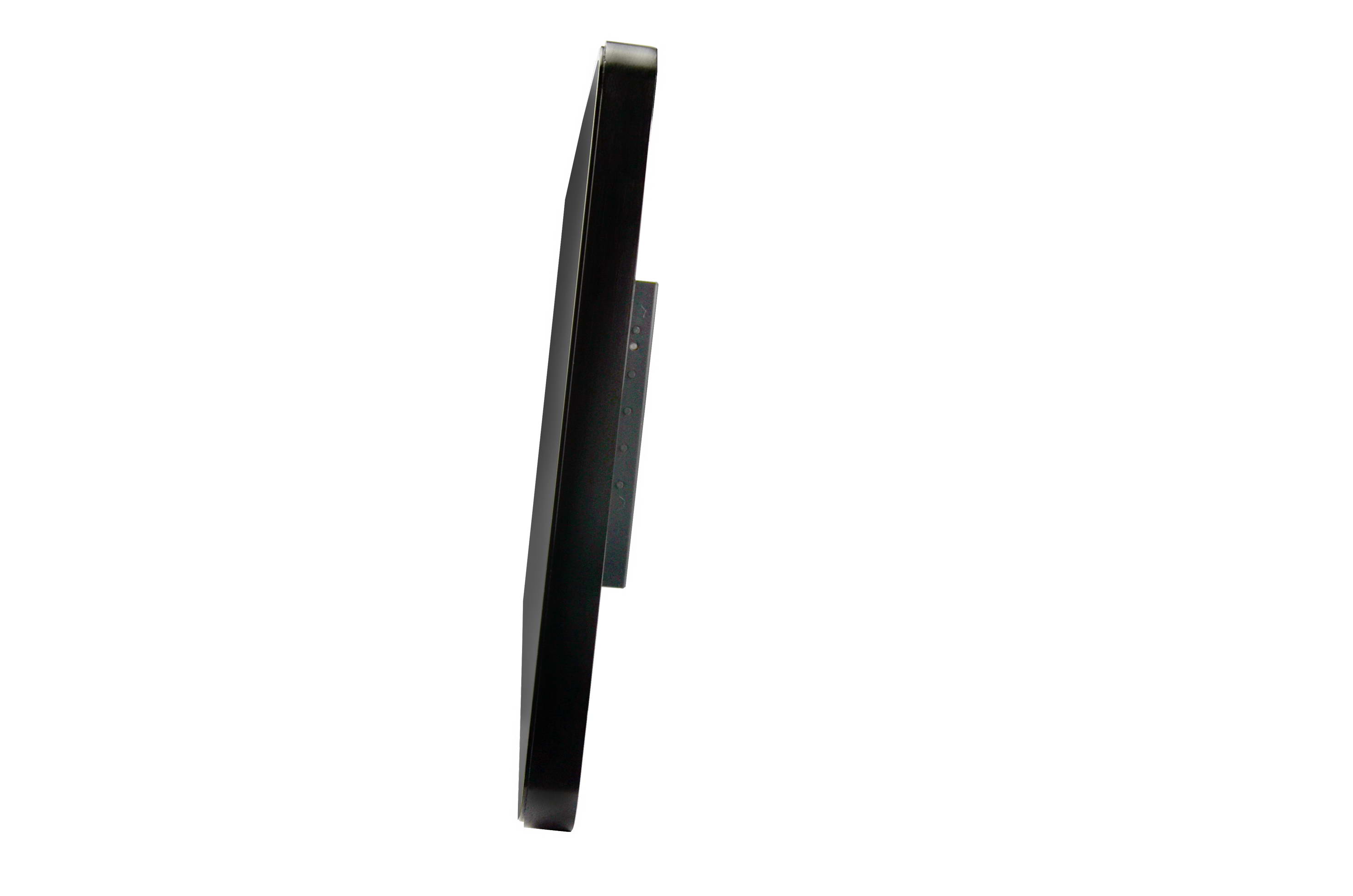

HO225DTB-side

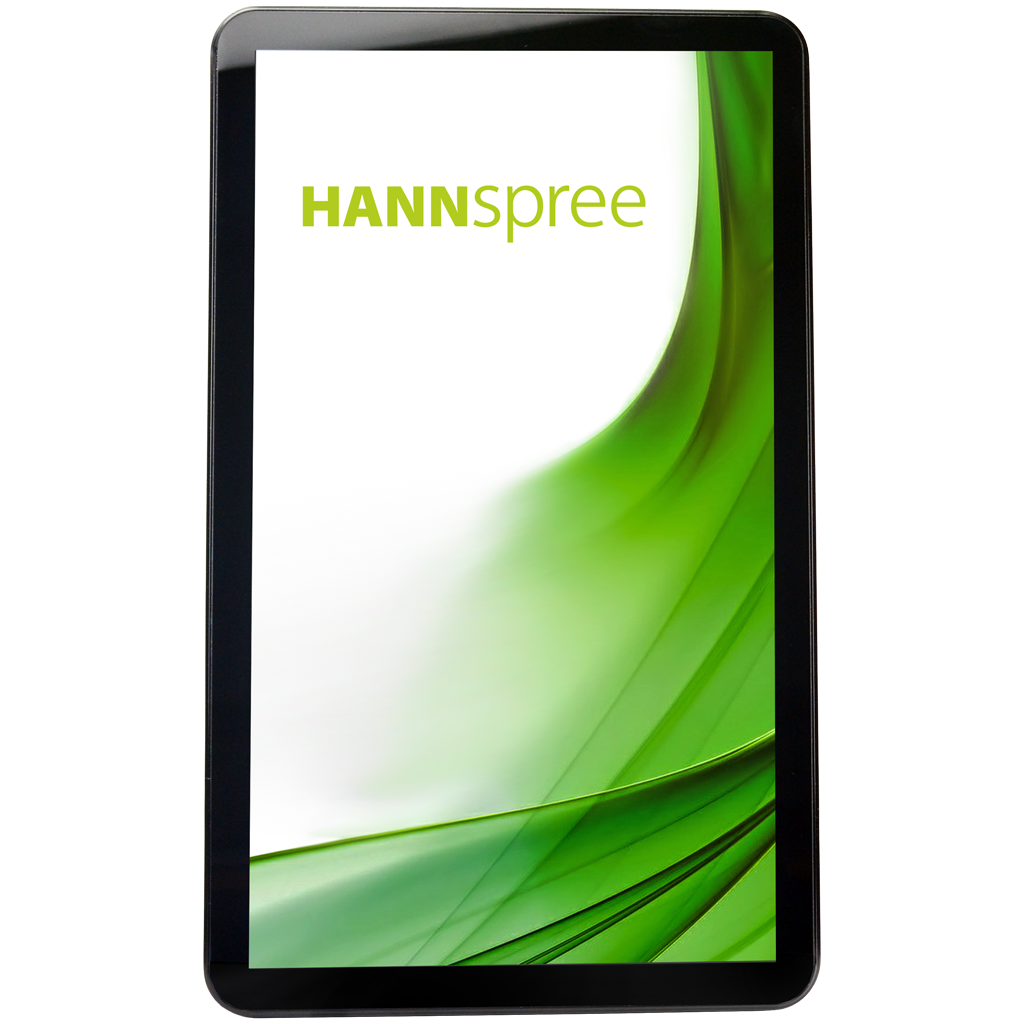

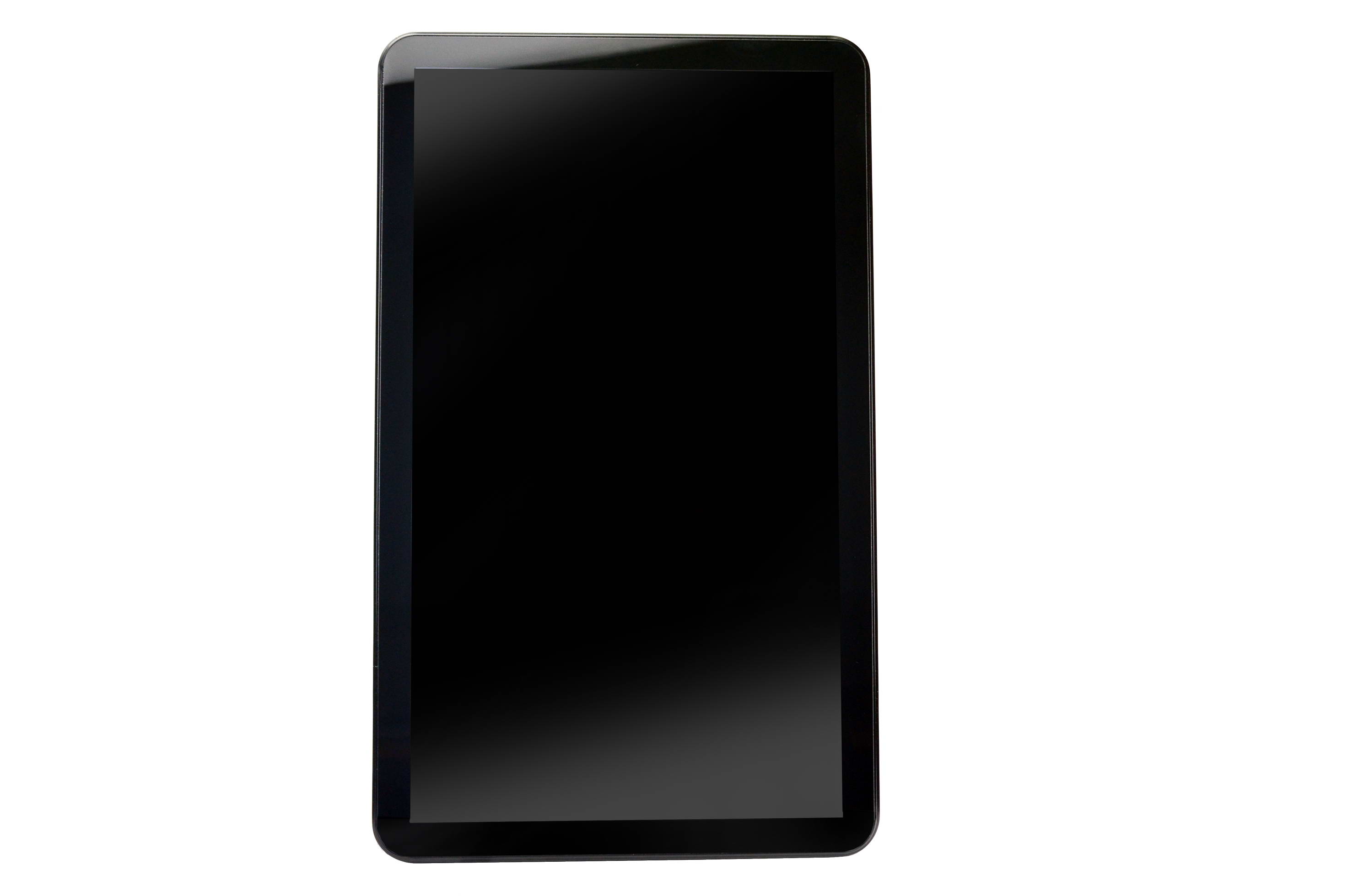

HO225DTB-front-vertical
HO225DTB-front-hand

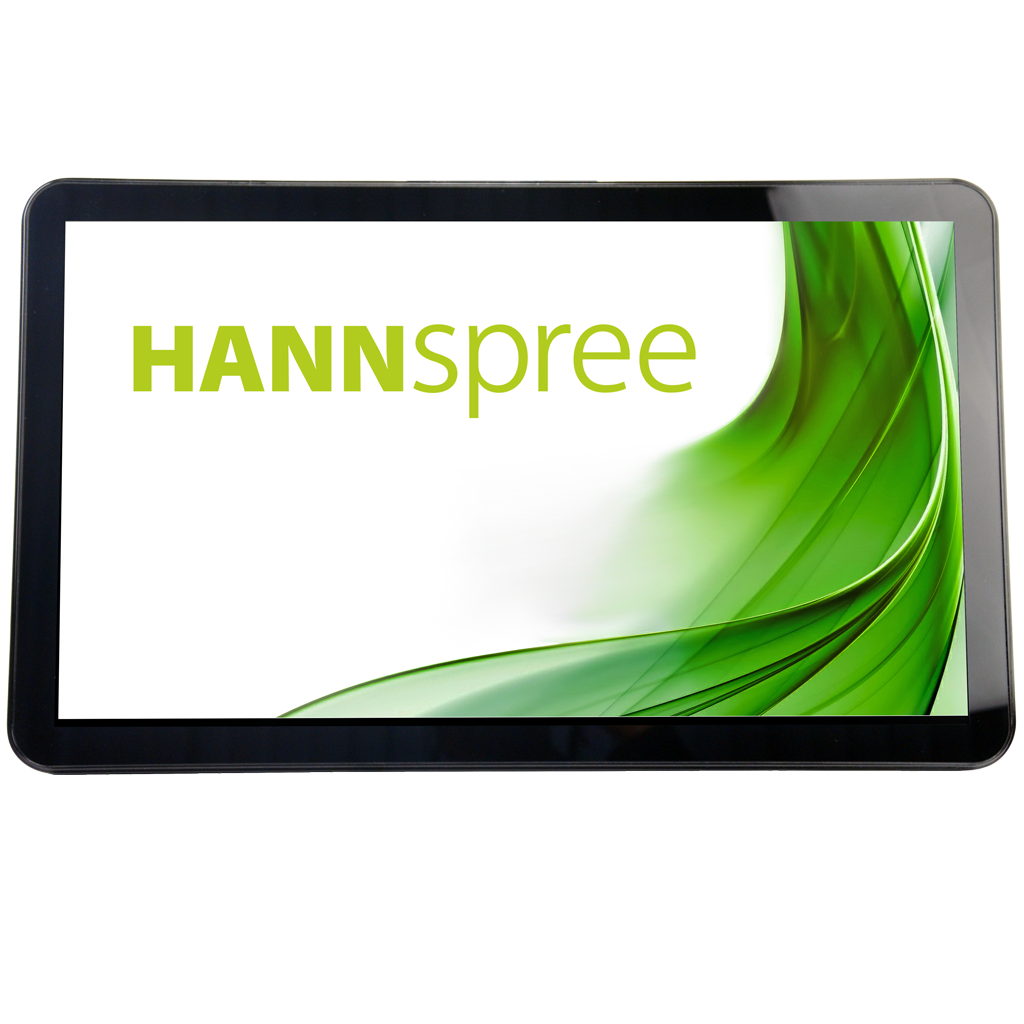

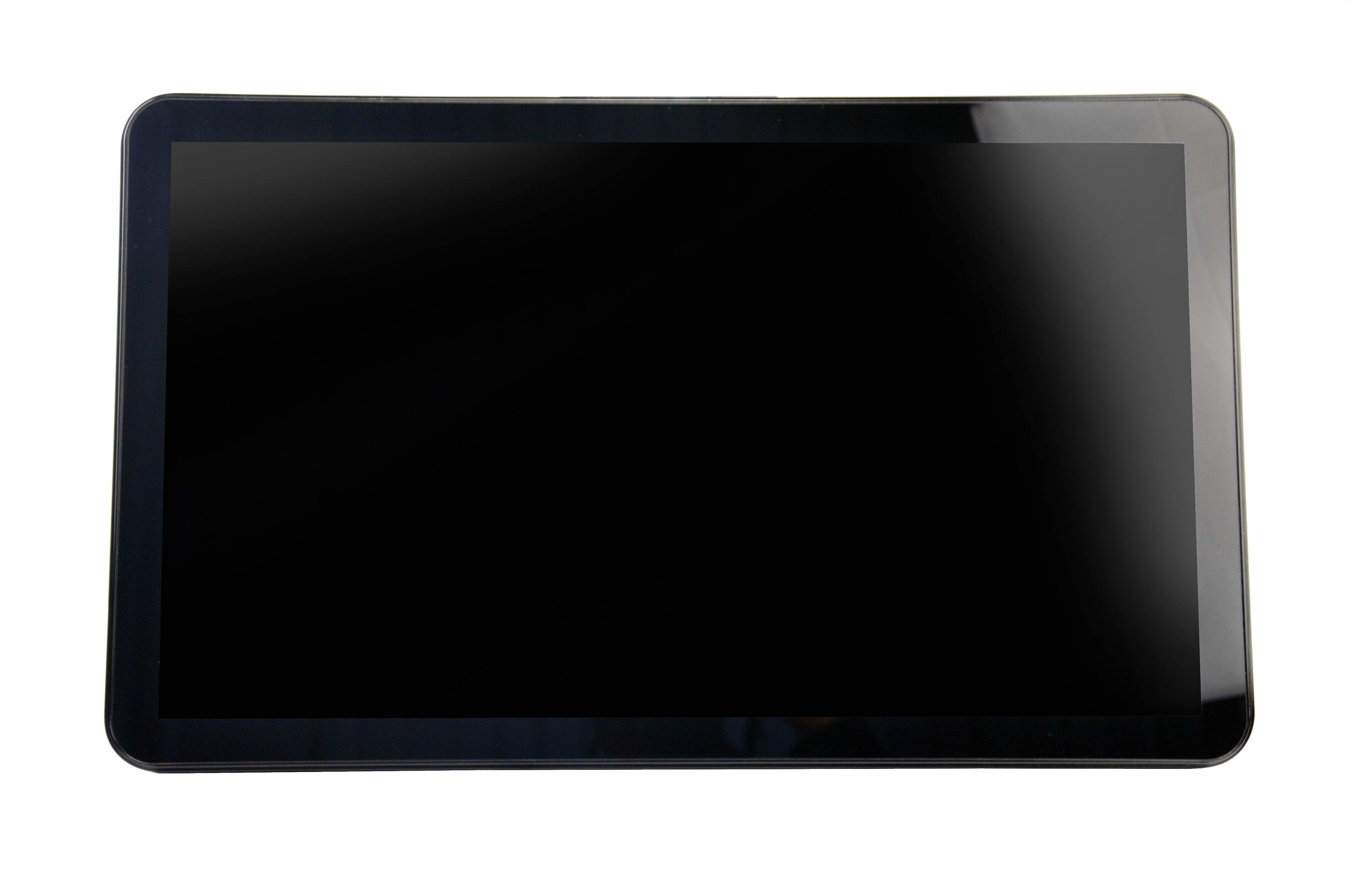

HO225DTB-front
HO225DTB-back
HO225DTB-zoom-in-VESA
HO225DTB-zoom-in-mounting-options

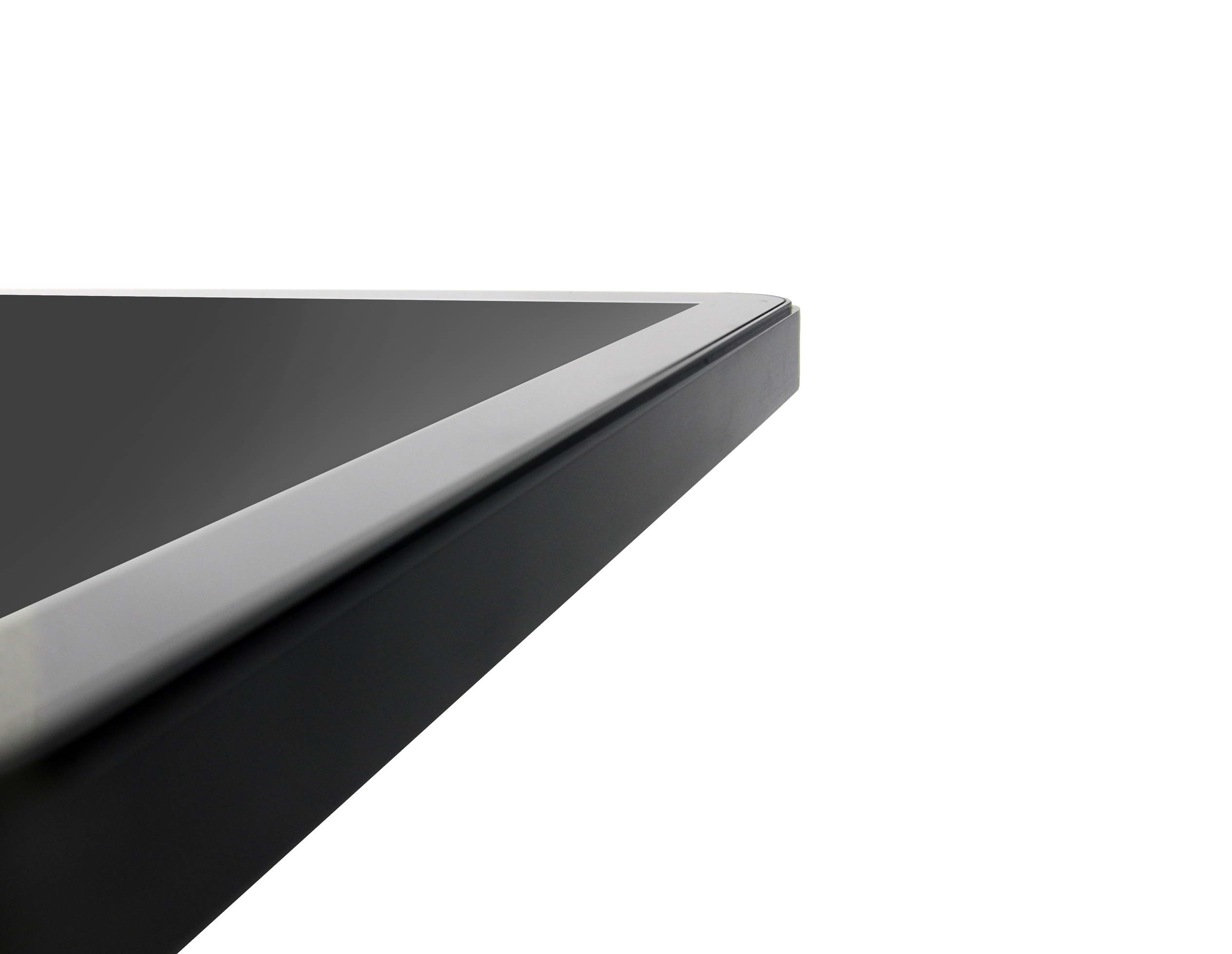

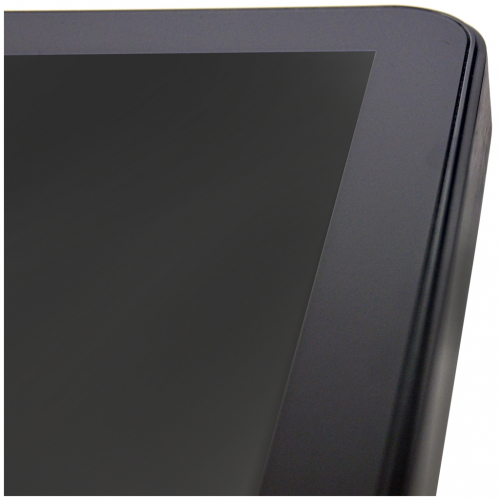

HO225DTB-zoom-in-edge2

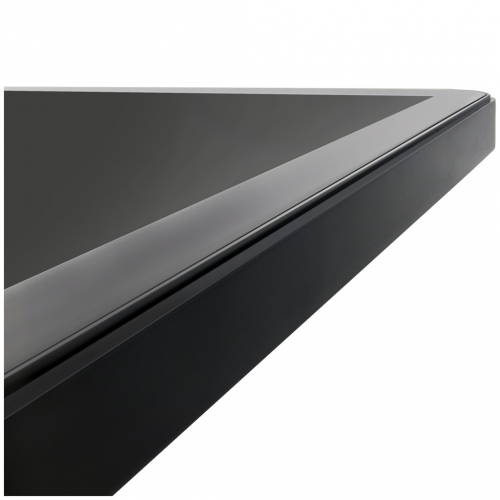

HO225DTB-zoom-in-edge1

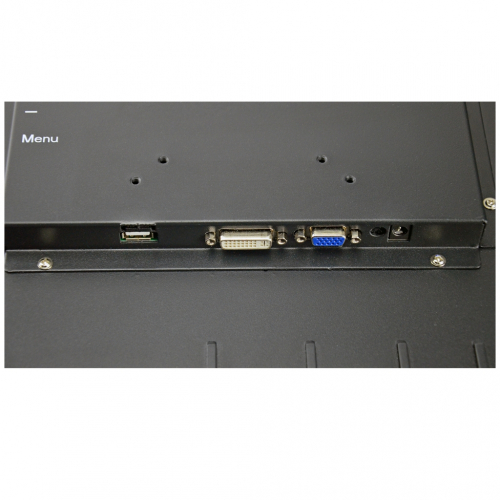

HO225DTB-zoom-in-connectivity
HO225DTB-zoom-in-adapter
HO225DTB-side-a hand

HO 225 DTB

Click Me

SKU: HO225DTB Category: Tag:
  • 21.5″ 16:9 LED Backlight Open Frame Display
  • 1920 x 1080 Resolution Full HD 1080P
  • 10-Point Touch P-Cap Technology
  • 178° / 178° Ultra Wide Viewing Angle
  • 3000:1 High Contrast Ratio

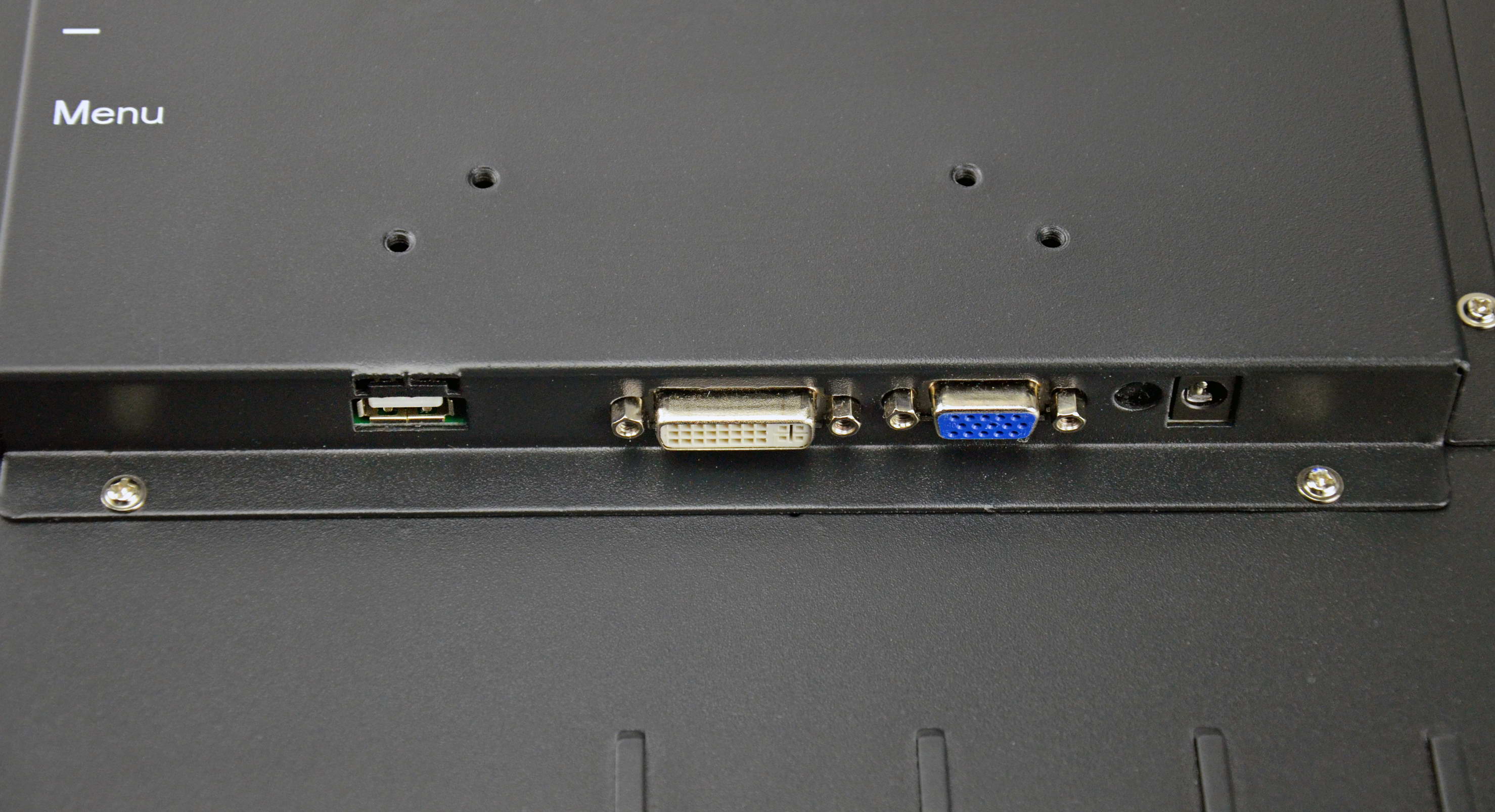

  • Dual Input: DVI-D + VGA
  • IP54 (Front) Water and dust protection *
  • Display Protection: Thickness 3.3mm
  • 24/7 Operating
  • 50.000 Hours Backlight Lifetime

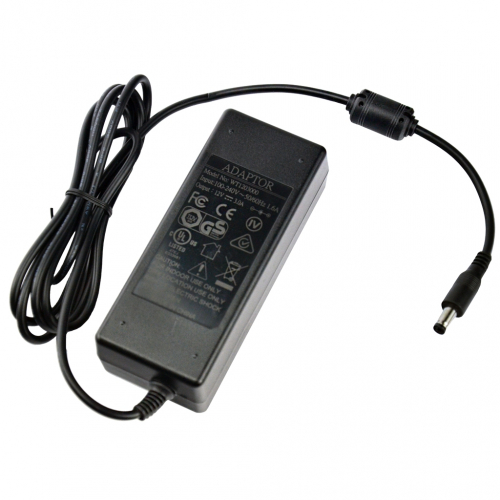

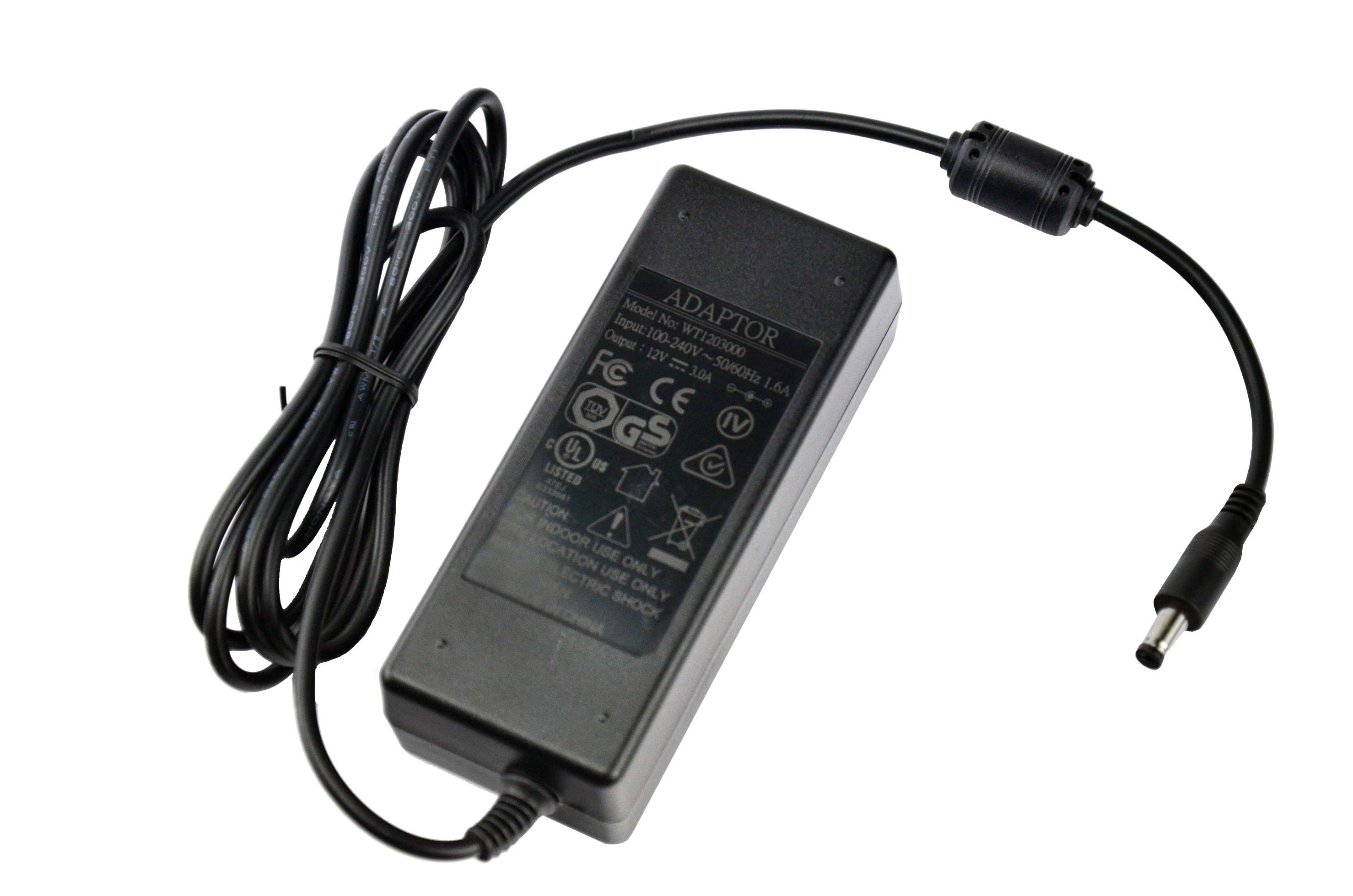

  • 12 Volt External Power Supply
  • Multiple Mounting Options
  • ≥6H Toughened Hard Panel Surface

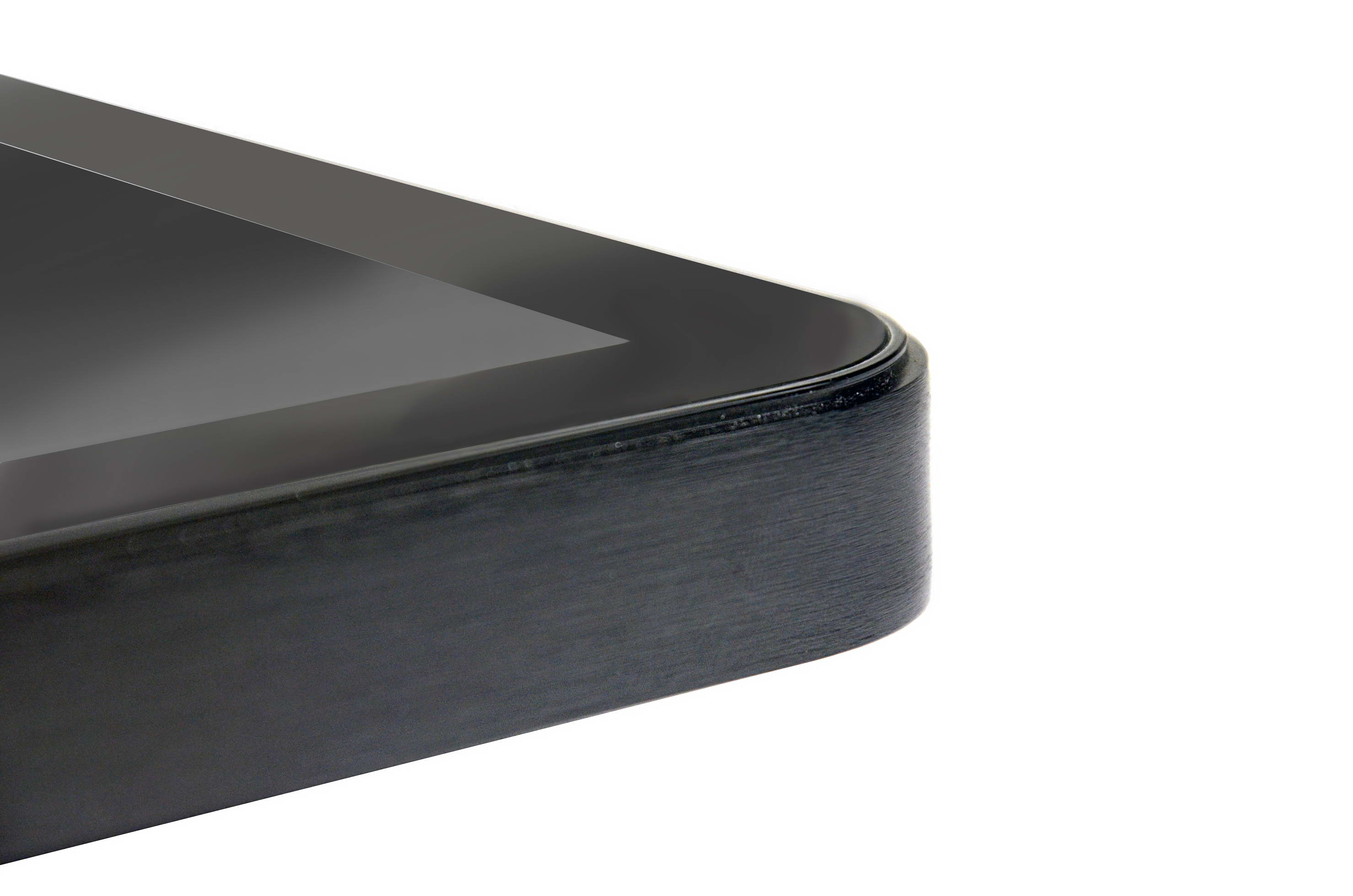

  • Slim Profile with Narrow Edges

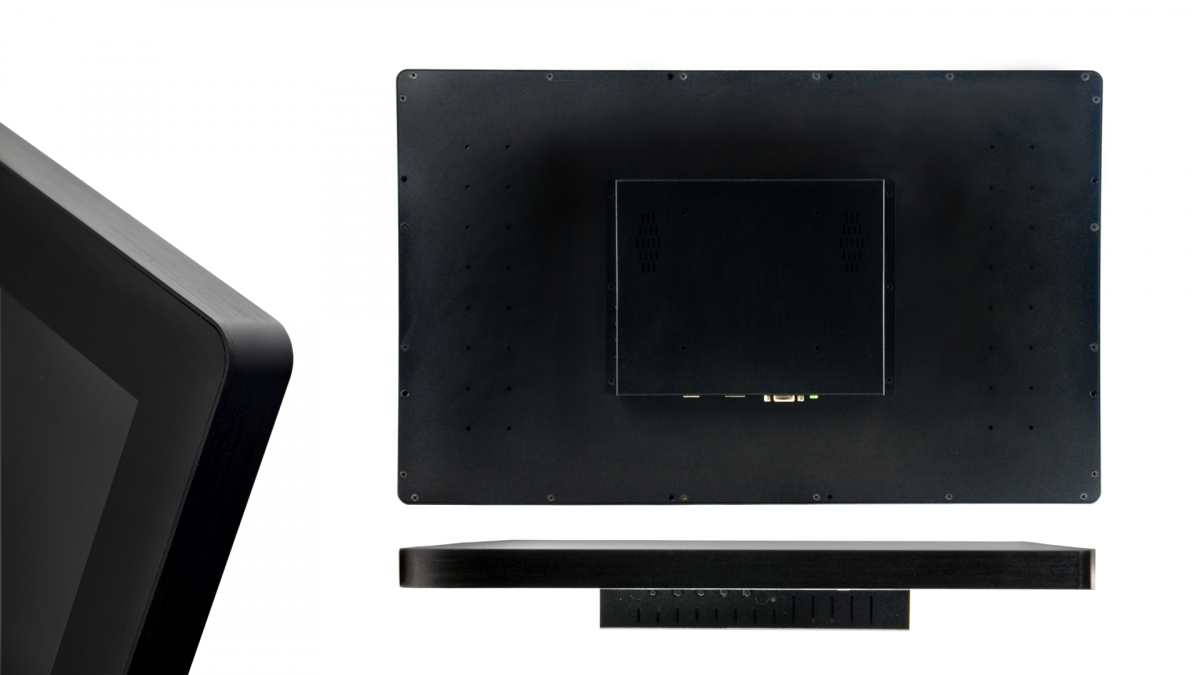

THE OPEN FRAME – THE INDUSTRIAL DISPLAY SOLUTION

The HANNspree HO225DTB 21.5’’ 16:9 Open-Frame monitor delivers a high performance display solution. Its rugged bezel with edge-to-edge glass makes it very suitable for applications like table top integration. The HANNspree HO225DTB is an ideal display for integration in kiosk, totem and a perfect solution for interactive digital signage, Instore Retail, Gaming and many other sectors.

Possible Applications:

Gaming/Casino, Entertainment Slot Machines, Video lottery Machines, Totem Kiosks, Medicine and ticketing, Education, Self-service terminals, Industrial control…

ho161dtb-usp_2

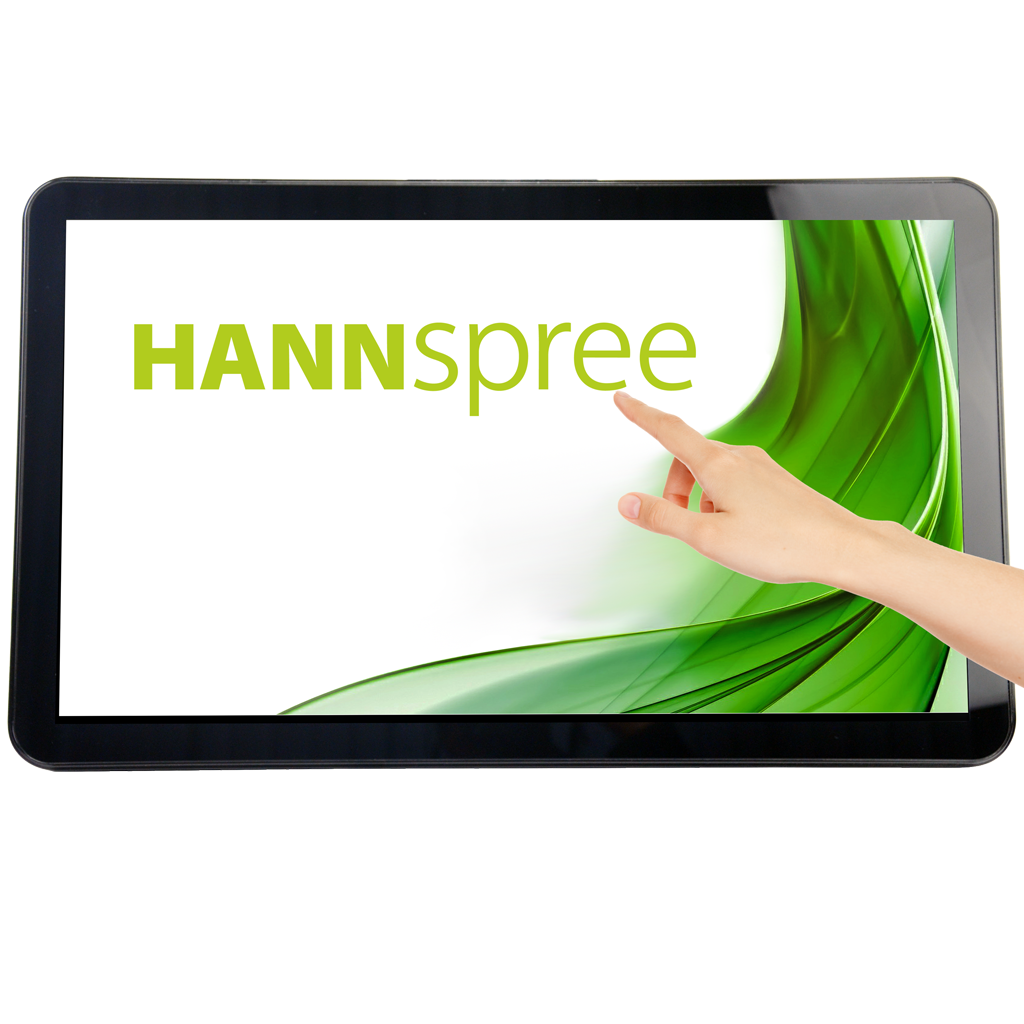

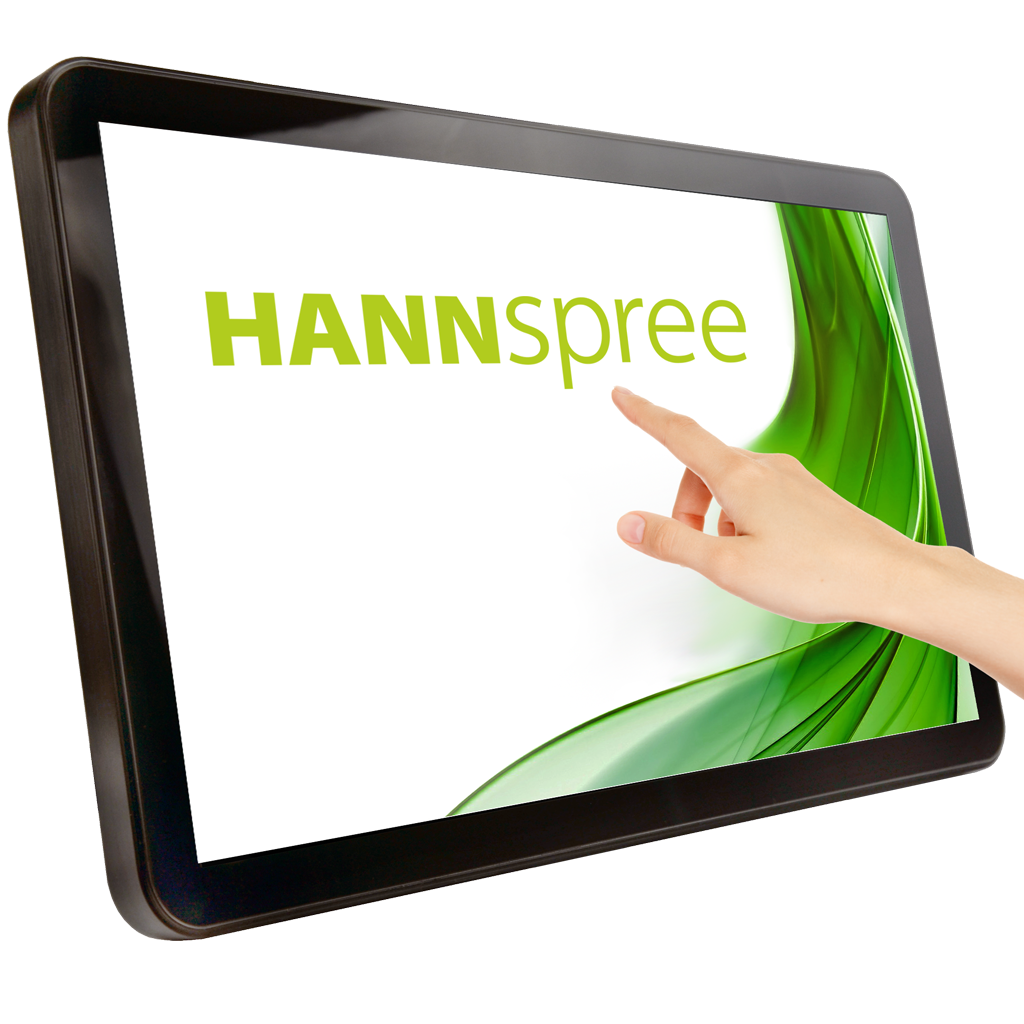

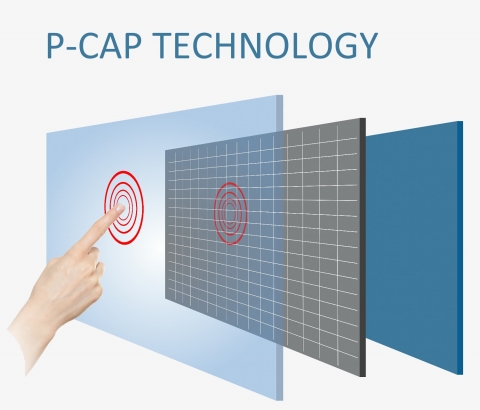

PROJECTED CAPACITIVE (PCAP) TOUCH TECHNOLOGY

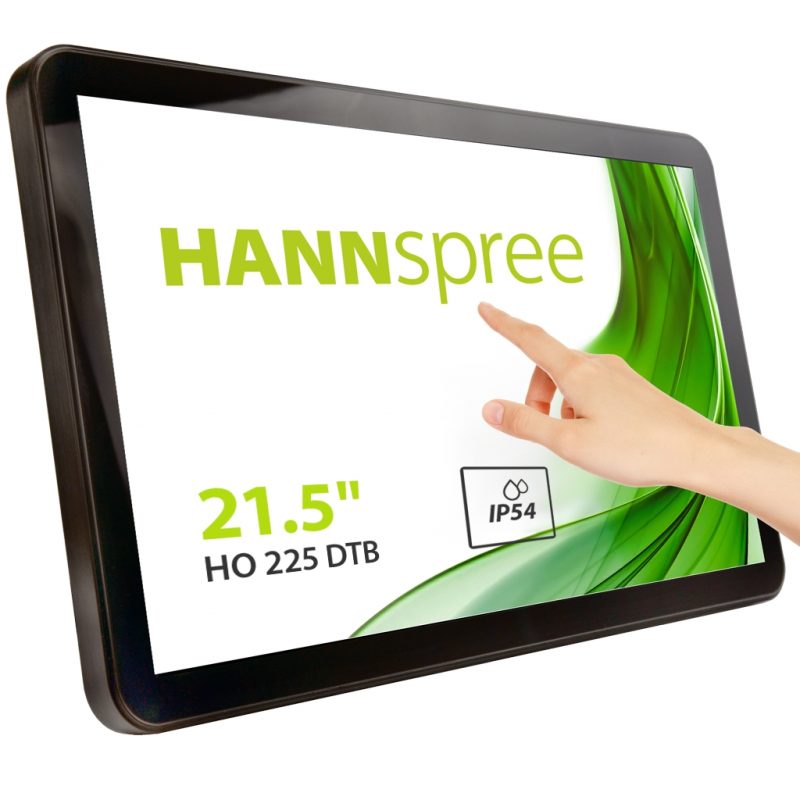

Now multiple users can experience shared touchscreen interaction. Using up to 10 finger touch points, the HANNSpree HO225DTB Monitor allows everyone to play and collabourate at the same time.

The precise and accurate multi-touch display — allowing up to 10 simultaneous touches — allowing you to work smarter and more efficiently.

There’s no need for additional controllers – all they have to do is just reach out and touch the screen. It is certified for Windows 10 and designed to offer superior performance as well as intuitive control, so you can be more productive and do everything you want to do smoothly and quickly.

With Projected Capacitive Touch, users can enjoy a smoother and more accurate touch display experience with increased interactivity. Thanks to the glass overlay this technology is highly durable, the Touch performance is unaffected by everyday use and mishaps such as dirt, dust, condensation, liquid spills or cleaning solutions.

This technology delivers super fast, sensitive touch response with excellent dragging performance and perfect picture quality. Ten-point multi-touch support lets you unlock the power of today’s touch-enabled applications.

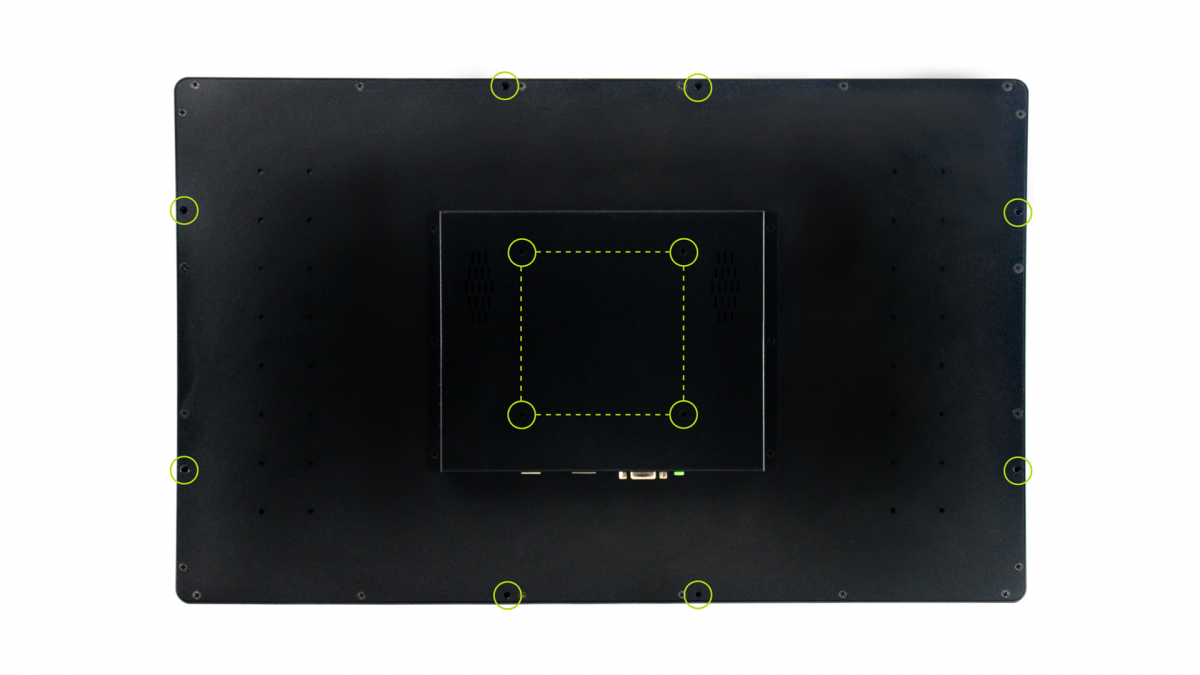

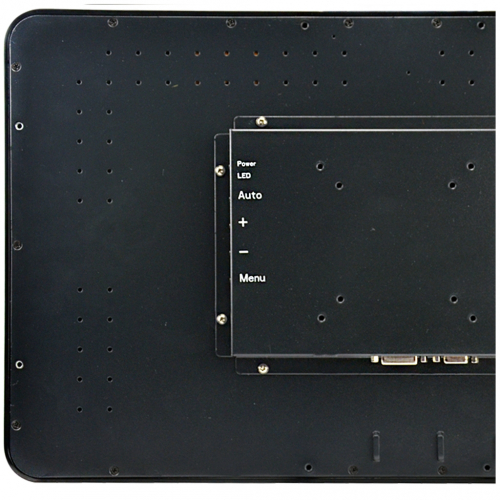

MOUNTING OPTIONS

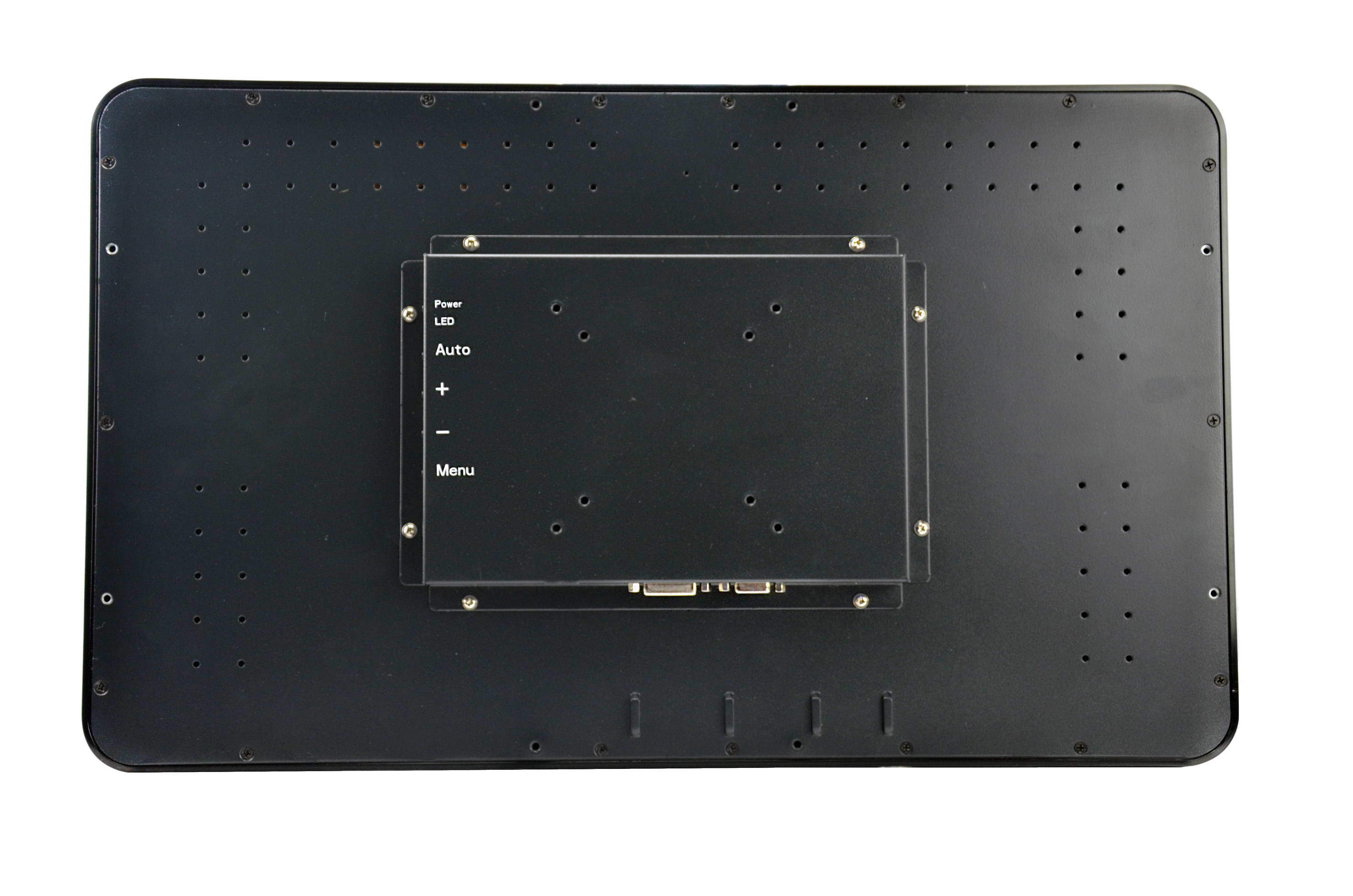

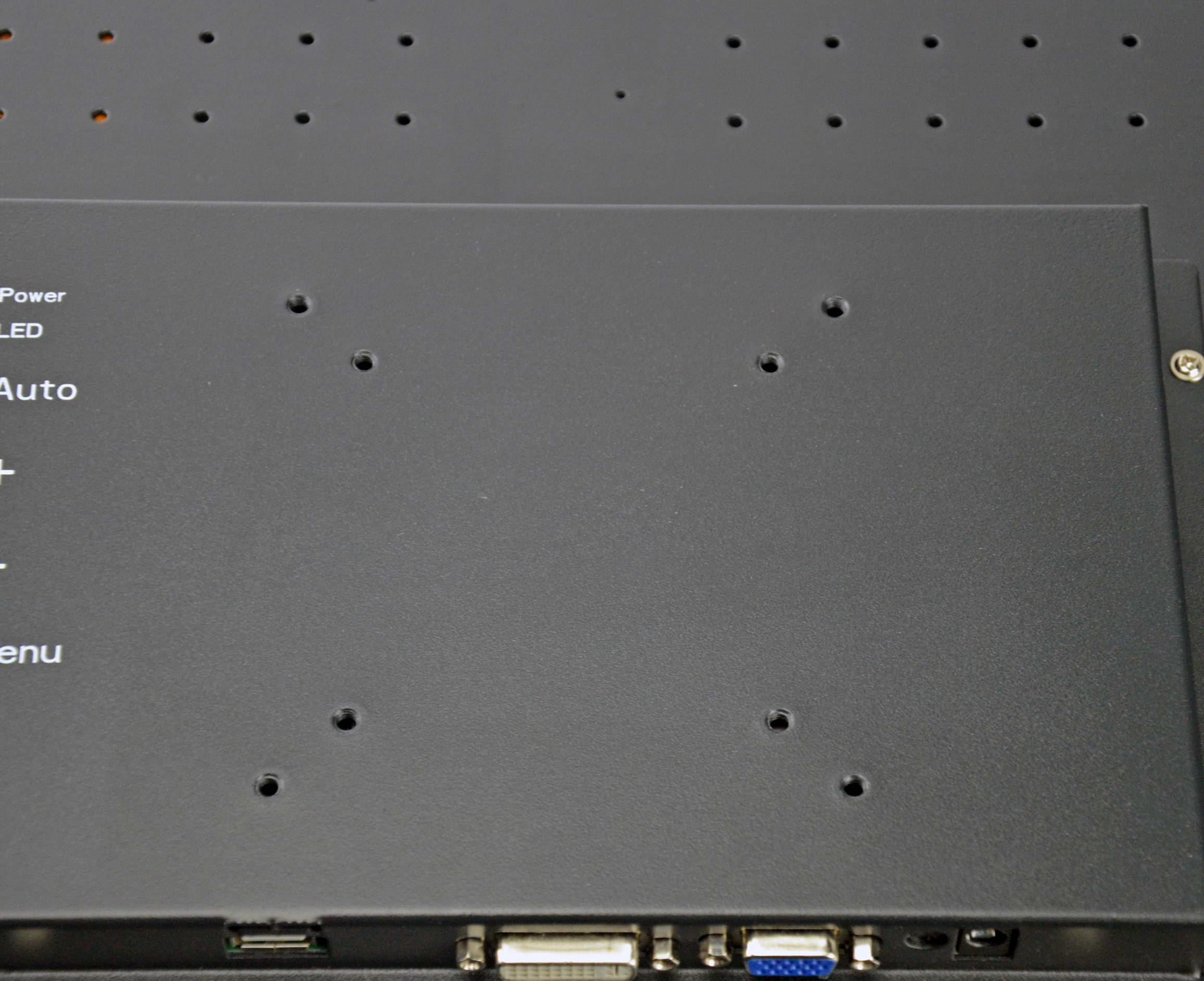

Its rugged bezel with edge-to-edge glass makes it very suitable for applications like table top integration. The display supports rear VESA and external mounting brackets for multiple mounting options. The brackets provide the benefits of easy installation, and flexibility for different applications.

• Supports Multiple Mounting Options

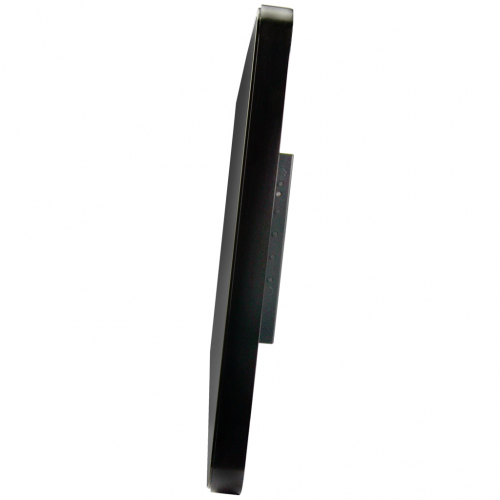

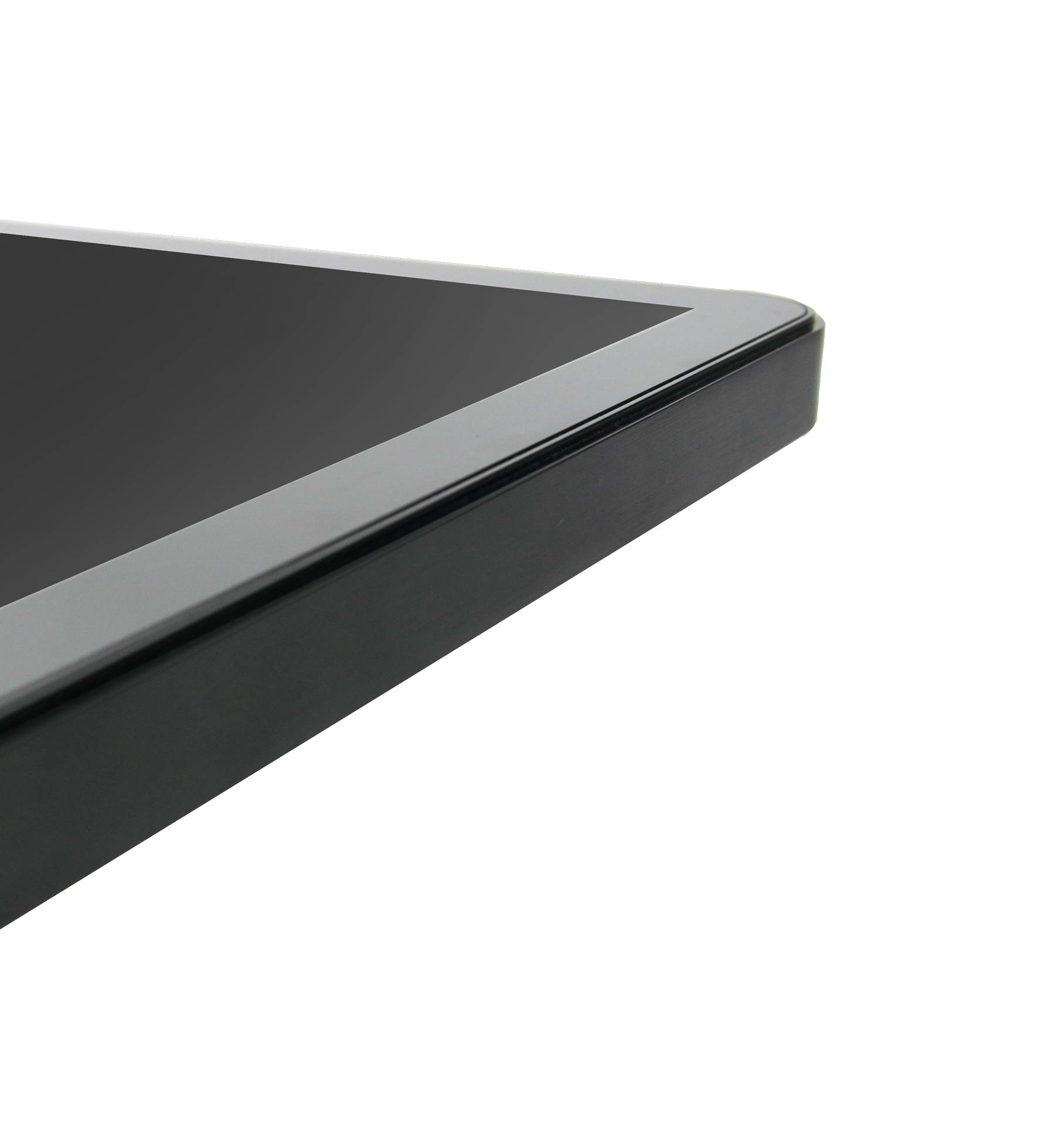

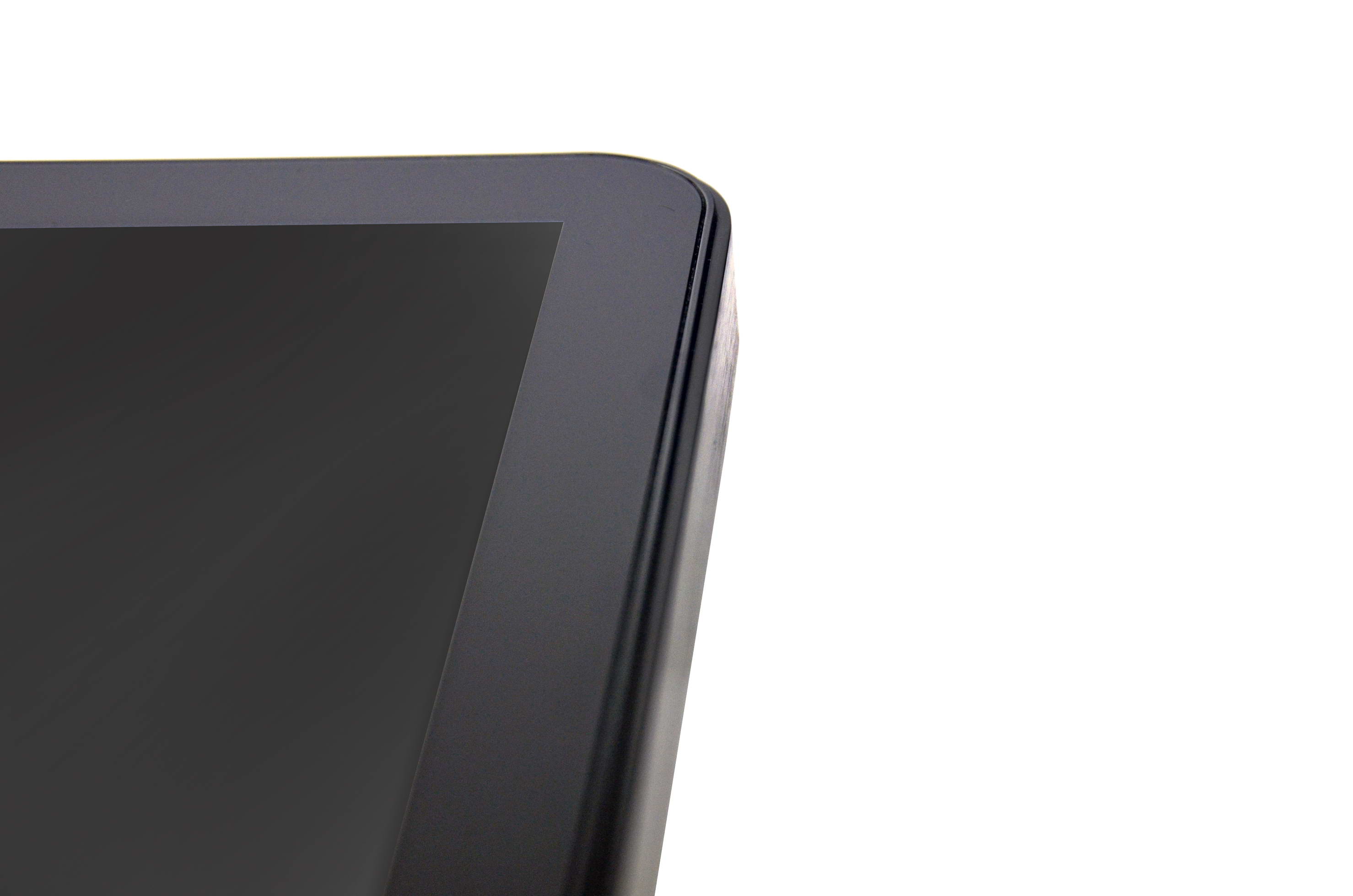

• Slim profile with narrow edges

SCRATCH RESISTANT – MULTI-TOUCH SCREEN WITH 7H SURFACE HARDNESS

6H scratch resistant surface hardness ensures durability, as well as a consistent high quality touch experience.

Scratch resistance is essential for touch solutions used for education and public environment. This is achieved thanks to a glass overlay covering the screen. This means that the panel surface can withstand impact from objects and scratches, making it perfect for public spaces and educational institutions.

Our toughened Hard Glass fronted LED Monitors (6H hardness rating) are designed specifically for retail and Industrial applications offering protection from impacts and dirt for a long life solution.

It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

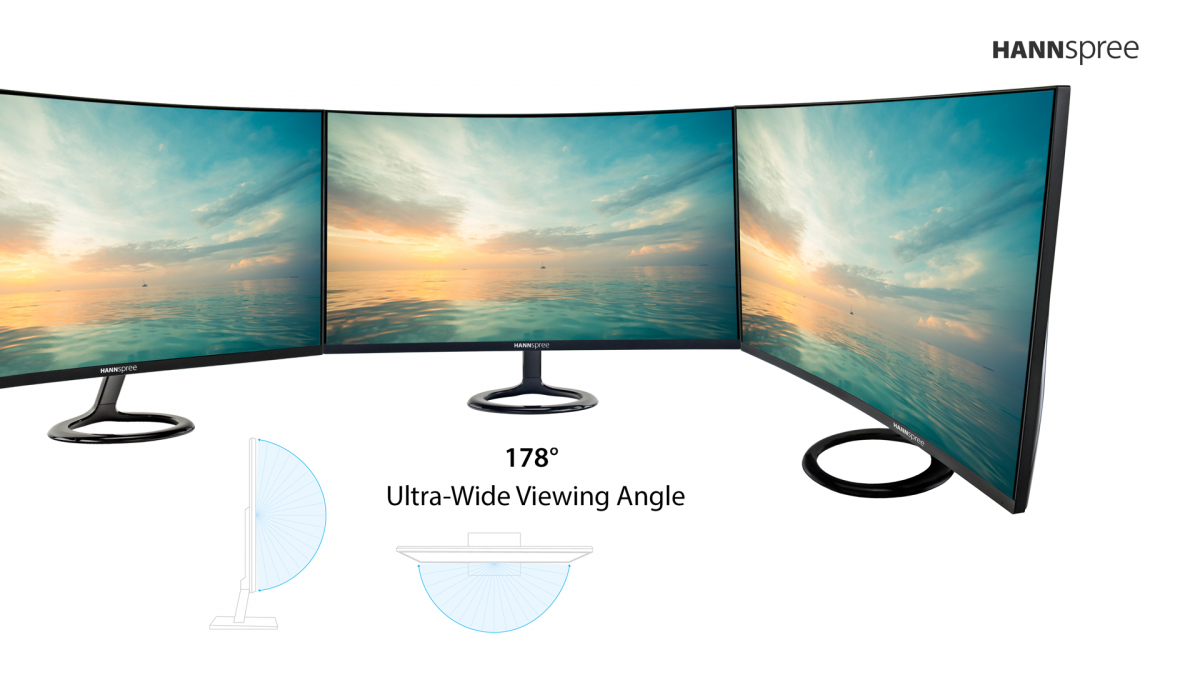

VIVID IMAGES, LIFELIKE VISUALS THE LATEST TECHNOLOGY WITH 178° ULTRA-WIDE VIEW ANGLES

The Touch monitor HO225DTB features a 16:9 aspect ratio LED-backlit panel with a 178° ultra-wide view angle that minimizes color shift on both horizontal and vertical planes to ensure quality visuals from almost any direction. It deliveres improved color accuracy plus increased energy efficiency.

The HO225DTB uses a 178°(H) / 178°(V) ultra-wide viewing angle Full HD panel that eliminates color shift from almost any direction and in nearly every angle.

Hannspree

Hannspree Europe Holdings B.V. Specifications and design are subject to change without notice. Non-metric weights and measurements are approximate.

All brand, product, Service names and logos are trademarks and/or registered trademarks of their respective manufactures and companies. Screen shot are simulated. Actual products may differ slightly from those illustrated on this promotion material.

Please refer to actual samples for final selection. The products displayed on this promotion material may not be available for purchase in your particular country or locality. Please check with Hannspree authorized representatives for the availability of specific products in your area.

Hannspree reserves the right to alter design and specifications as well as to change the accessories with equivalents without notice.

Android, Google, Google Play and other marks are trademarks of Google Inc.

Display Size 54.61 cm / 21.5″ Diagonal
Panel Type TFT – LED Backlight
Aspect Ratio 16:9
Resolution (H x V) 1920 x 1080 Full HD
Panel Brightness 250cd/m² (Typical)
Contrast (Typ.) 3.000:1 (Typical)
Contrast (Active) TBC
Viewing  Angle L/R – U/D  178°H / 178°V
Response Time 8 msec (typ)
Pixel Pitch 0,248 (H) x 0,248 (V) mm
Touch Type Projected Capacitive Type – 10 Point Touch
Display Colours 16.7M Colors
Horizontal Frequency 30 ~ 81 kHz
Vertical Frequency 56 ~ 75 kHz
Max Display Frequency 1920 x 1080 @ 60Hz
Input 1 VGA
Input 2 DVI
Input 3 USB (Touch)
Speakers NA
Power Consumption On: 30W; Stand-by: ≤ 0,5W; Off: ≤ 0,5W
AC Power Range 12 Volt External Power Suply
Product Dimensions 550.2 x 306.8 x 42.4 mm (W x D x H)
Packing Dimensions TBC
Net / Gross Weight 5.6 Kg / 13.2 Kg (2 Units per Master Box)

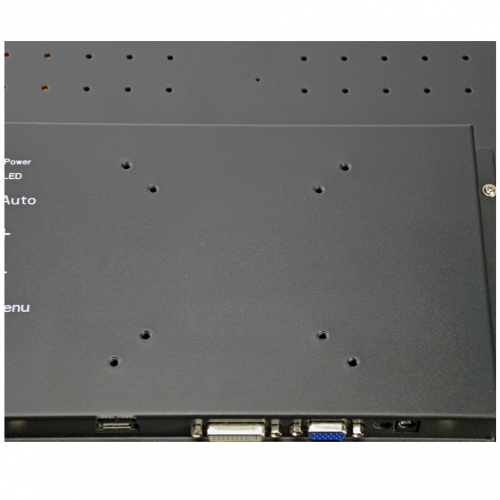

Vesa Mounting 100 x 100 mm
Display Protection Thickness 0.7 mm
Hardness / Transmittance 7H Toughened hard panel surface / ≥85%
IP Rating Level IP 54
24 / 7 Operating Yes
LED Backlight life 50.000 Hours
Accessories Power Supply, VGA Cable (1.5m), USB Cable for Touch
Certifications CE, RoHS, WEEE, Reach
Quantity per  Pallet TBC
Container Loading TBC

datasheets

  • HO225DTB - 21.5'' Open Frame Touch Monitor (IP54).pdfDownload
