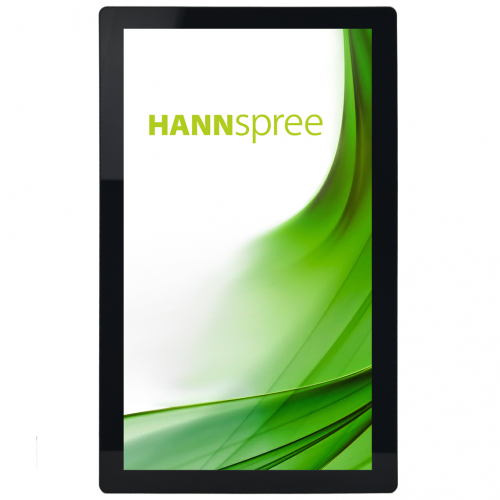

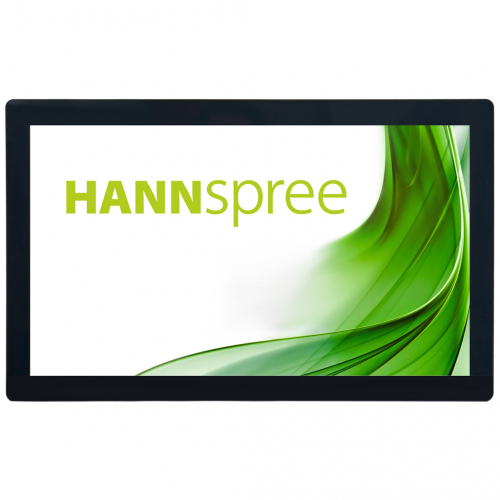

HO 225 HTB

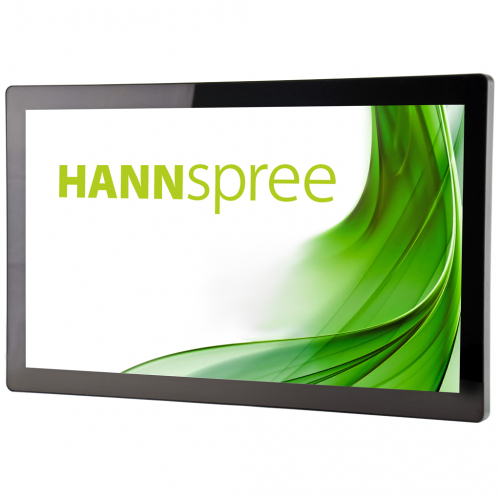

The HANNspree HO225HTB 21.5’’ 16:9 Open-Frame monitor delivers a high performance display solution. Its rugged bezel with edge-to-edge glass makes it very suitable for applications like table top integration. The HANNspree HO225HTB is an ideal display for integration in kiosk, totem and a perfect solution for interactive digital signage, Instore Retail, Gaming and many other sectors.

View 360°

SKU: HO225HTB Category: Tag:
  • 21.5″ 16:9 LED Backlight Open Frame Display
  • 1920 x 1080 Resolution Full HD 1080P
  • 10-Point Touch P-Cap Technology
  • 178° / 178° Ultra Wide Viewing Angle
  • 3000:1 High Contrast Ratio
  • Dual Input: HDMI + VGA
  • IP65 (front) Protection Level *
  • Display Protection: Thickness 2.7mm
  • 24/7 Operating
  • Built-in Speakers
  • 12 Volt External Power Supply
  • Multiple Mounting Options
  • ≥6H Toughened Hard Panel Surface

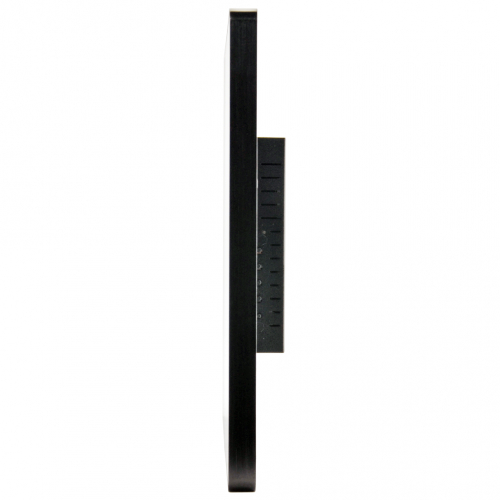

  • Slim Profile, Edge-to-Edge True Flat Surface

THE OPEN FRAME – THE INDUSTRIAL DISPLAY SOLUTION

Possible Applications:

Gaming/Casino, Entertainment Slot Machines, Video lottery Machines, Totem Kiosks, Medicine and ticketing, Education, Self-service terminals, Industrial control…

ho161dtb-usp_2

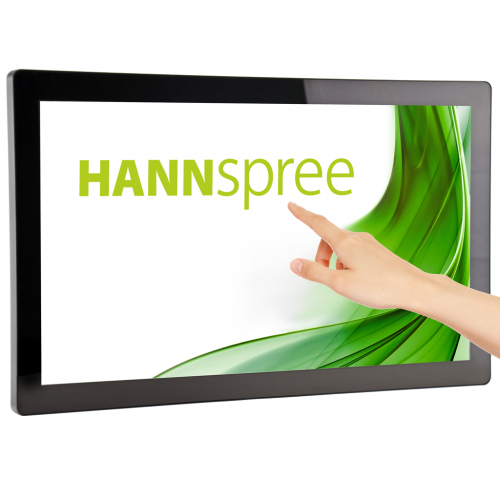

PROJECTED CAPACITIVE (PCAP) TOUCH TECHNOLOGY

Now multiple users can experience shared touchscreen interaction. Using up to 10 finger touch points, the HANNSpree HO225HTB Monitor allows everyone to play and collabourate at the same time.

The precise and accurate multi-touch display — allowing up to 10 simultaneous touches — allowing you to work smarter and more efficiently.

There’s no need for additional controllers – all they have to do is just reach out and touch the screen. It is certified for Windows 10 and designed to offer superior performance as well as intuitive control, so you can be more productive and do everything you want to do smoothly and quickly.

With Projected Capacitive Touch, users can enjoy a smoother and more accurate touch display experience with increased interactivity. Thanks to the glass overlay this technology is highly durable, the Touch performance is unaffected by everyday use and mishaps such as dirt, dust, condensation, liquid spills or cleaning solutions.

This technology delivers super fast, sensitive touch response with excellent dragging performance and perfect picture quality. Ten-point multi-touch support lets you unlock the power of today’s touch-enabled applications.

MOUNTING OPTIONS

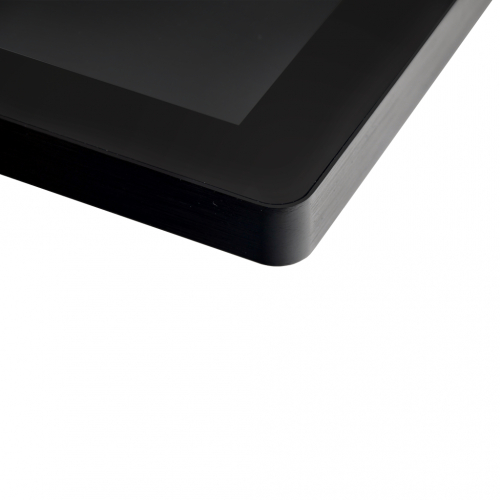

Its rugged bezel with edge-to-edge glass makes it very suitable for applications like table top integration. The display supports rear VESA and external mounting brackets for multiple mounting options. The brackets provide the benefits of easy installation, and flexibility for different applications.

• Supports Multiple Mounting Options

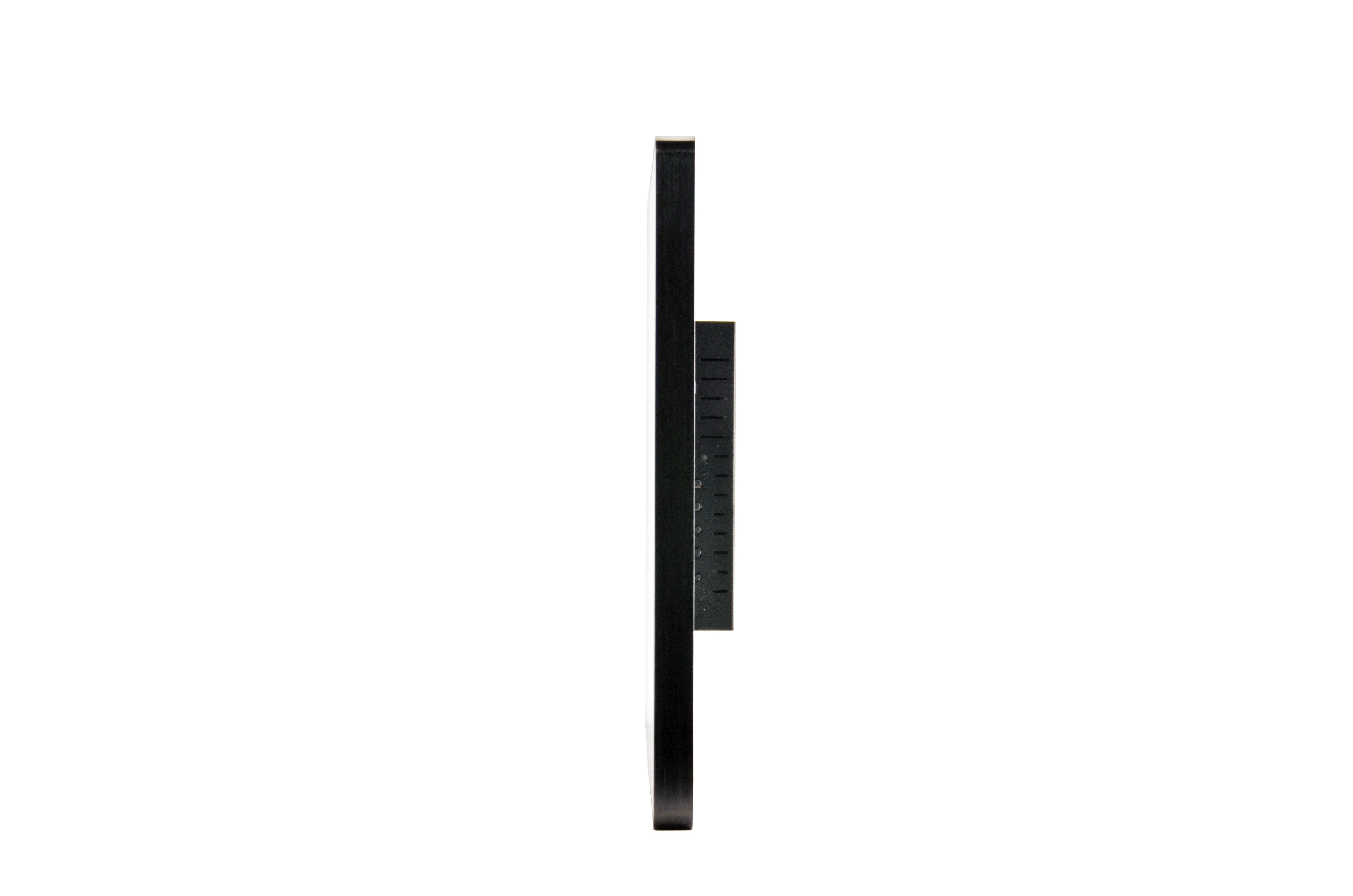

• Slim profile with narrow edges

SCRATCH RESISTANT – MULTI-TOUCH SCREEN WITH 6H SURFACE HARDNESS

6H scratch resistant surface hardness ensures durability, as well as a consistent high quality touch experience.

Scratch resistance is essential for touch solutions used for education and public environment. This is achieved thanks to a glass overlay covering the screen. This means that the panel surface can withstand impact from objects and scratches, making it perfect for public spaces and educational institutions.

Our toughened Hard Glass fronted LED Monitors (6H hardness rating) are designed specifically for retail and Industrial applications offering protection from impacts and dirt for a long life solution.

It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

VIVID IMAGES, LIFELIKE VISUALS THE LATEST TECHNOLOGY WITH 178° ULTRA-WIDE VIEW ANGLES

The Touch monitor HO225HTB features a 16:9 aspect ratio LED-backlit panel with a 178° ultra-wide view angle that minimizes color shift on both horizontal and vertical planes to ensure quality visuals from almost any direction. It deliveres improved color accuracy plus increased energy efficiency.

The HO225HTB uses a 178°(H) / 178°(V) ultra-wide viewing angle Full HD panel that eliminates color shift from almost any direction and in nearly every angle.

Display Size 54.6 cm / 21.5″ Diagonal
Panel Type TFT – LED Backlight
Aspect Ratio 16:9
Resolution (H x V) 1920 x 1080 Full HD
Panel Brightness 250 cd/m² (Panel) 212 cd/ m² (Monitor)
Contrast (Typ.) 3.000:1 (Typical) / 10.000.000:1 (Active Contrast)
Display Arena 476 x 268 mm
Viewing  Angle L/R – U/D  178°H / 178°V
Response Time 18 msec (typ)
Pixel Pitch 0,24795 (H) x 0,24795 (V) mm
Touch Type Projected Capacitive Type 10 Point Touch
Material Glass + Glass
Cover Glass+LOCA+ITO (Indium Tin Oxide) Glass
Display Colours 16.7M Colors
Horizontal Frequency 31,5 ~ 80 kHz
Vertical Frequency 60 ~ 75 Hz
Max Display Frequency 1920 x 1080 @ 60Hz
Input 1 VGA
Input 2 DVI
Input 3 USB 2.0 (Touch)
Speakers Yes, 1.5W x2
Power Consumption On: 13,94 W; Stand by: 0,16W; Off: 0,15W
AC Power Range 12 Volt / 2.5A External Power Supply
Product Dimensions 526,8 x 44 x 324,6mm (W x D x H)
Packing Dimensions 603 x 88 x 415 mm (W x D x H)
Net / Gross Weight X Kg / X Kg
Vesa Mounting 100 x 100 mm
Display Protection Thickness 2,72,7±0.3 mm
Hardness / Transmittance 6H Toughened hard panel surface / ≥85%
IP Rating Level IP 65 on surface (Front), Water and Dust Protection *
24 / 7 Operating Yes
LED Backlight life 30.000 Hours
Accessories Power Adaptor; EU and UK Power cables ; HDMI Cable
(1.5m); USB 2.0 (B A) Cable for Touch (1.8m).
Certifications CE, RoHS
On Screen Display 8 Languages
Color 5500K, 6500K, 9300K, User Mode
Preset Mode Standard, Text, Movie, Game

datasheets

  • HO225HTB - 21.5'' Open Frame Touch Monitor (IP65).pdfDownload
