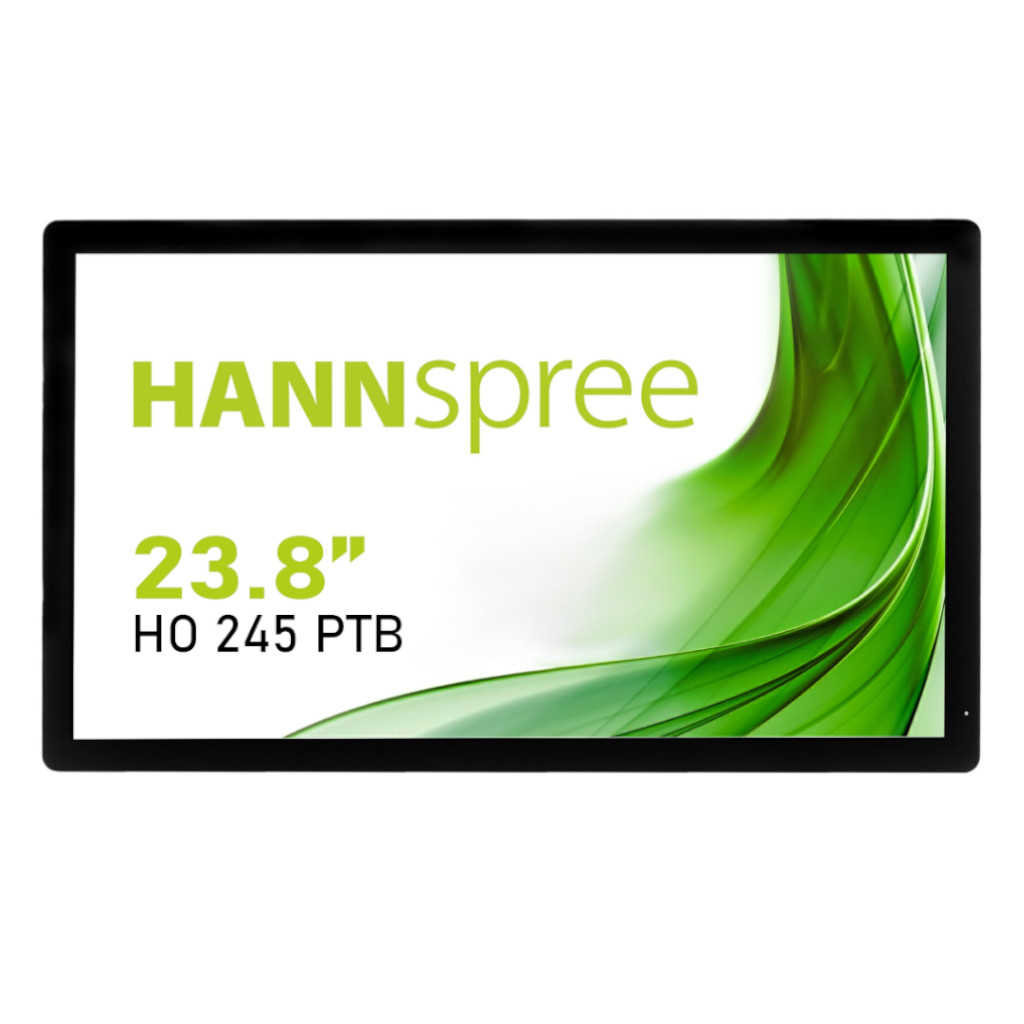

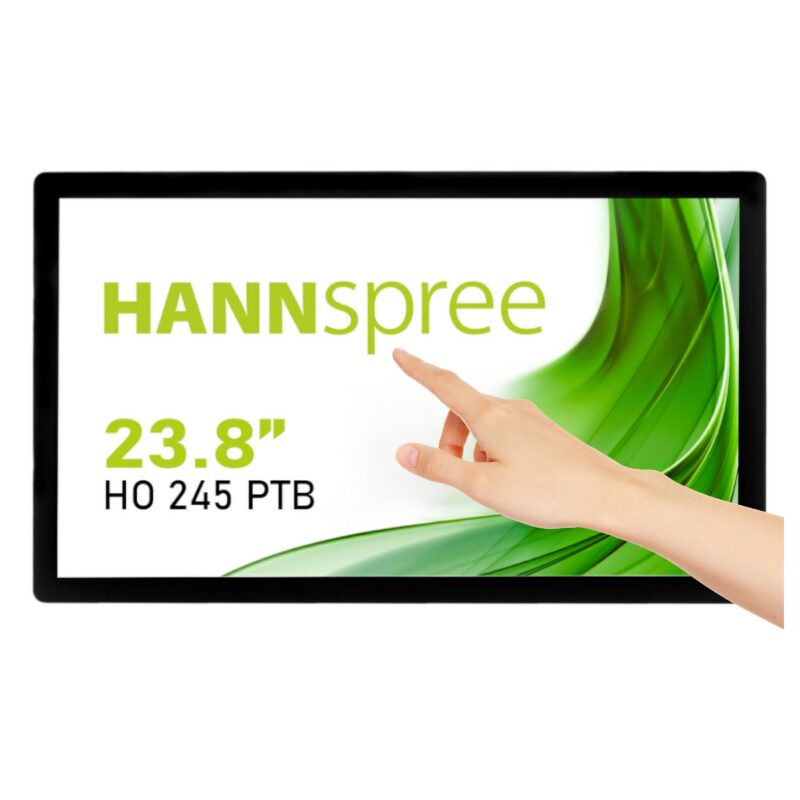

HO 245 PTB

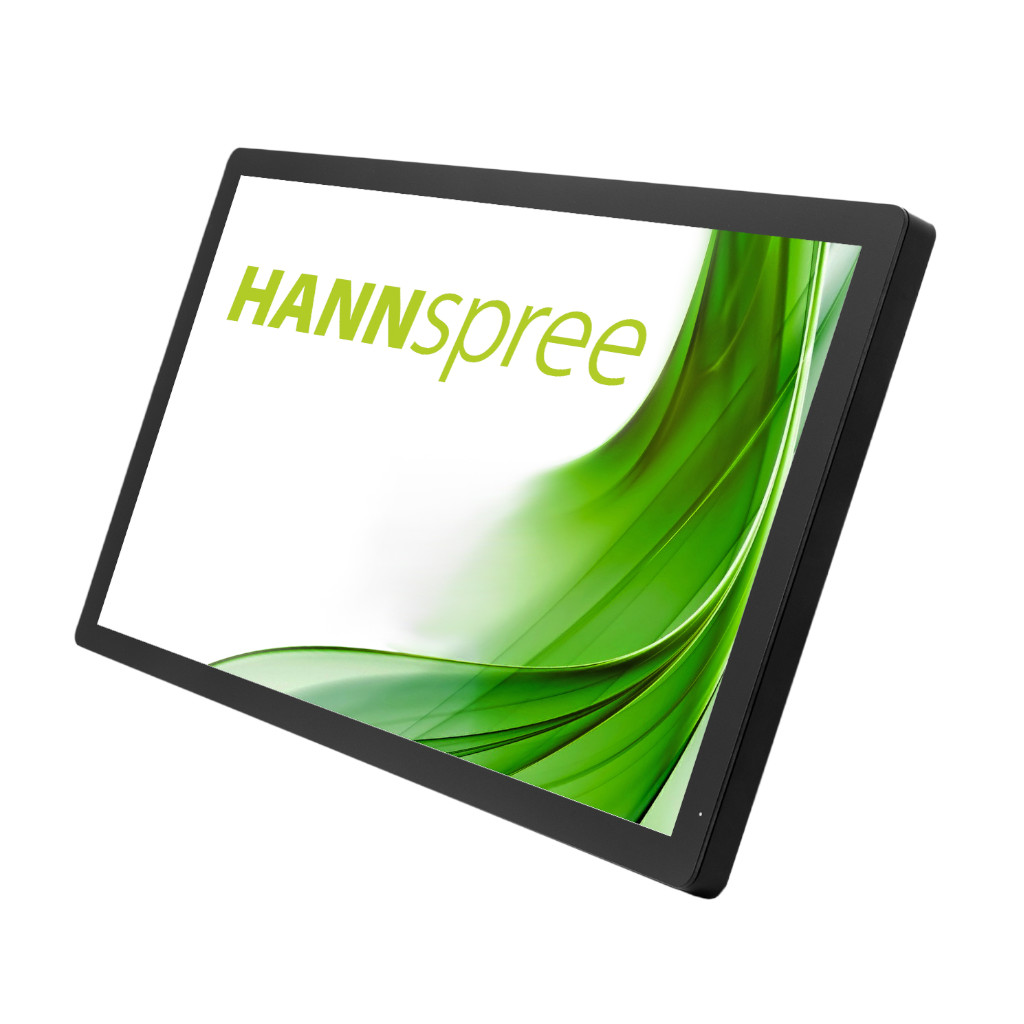

The HANNspree HO245PTB 27’’ 16:9 Open-Frame monitor delivers a high-performance display solution. Its rugged bezel with edge-to-edge glass makes it very suitable for applications like tabletop integration.

The HANNspree HO245PTB is an ideal display for integration in a kiosk, totem and a perfect solution for interactive digital signage, In-store Retail, Gaming and many other sectors.

SKU: HO245PTB Categories: , Tag:

1920 x 1080 Resolution Full HD 1080P
10-Point Touch P-Cap Technology
178° / 178° Ultra Wide Viewing Angle
Triple Input: DP + HDMI + VGA
Built-in Speakers
IP65 Rating Level
Display Protection: Thickness 3mm
≥7H Toughened Hard Panel Surface
Built for 24/7
VESA Mount
Orientation: Landscape, Portrait, Face-Up

VIVID IMAGES, LIFELIKE VISUALS WITH ULTRA-WIDE VIEWING ANGLES

The Touch monitor HO245PTB features a 16:9 aspect ratio LED-backlit panel with a 178° ultra-wide view angle that minimizes colour shift on both horizontal and vertical planes to ensure quality visuals from almost any direction. It delivers improved colour accuracy plus increased energy efficiency.

The HO245PTB uses a 178°(H) / 178°(V) ultra-wide viewing angle Full HD panel that eliminates colour shift from almost any direction and in nearly every angle.

PROJECTED CAPACITIVE (PCAP) TOUCH TECHNOLOGY

Now multiple users can experience shared touchscreen interaction. Using up to 10 finger touchpoints, the HANNSpree HO245PTB Monitor allows everyone to play and collaborate at the same time.

The precise and accurate multi-touch display — allowing up to 10 simultaneous touches — allowing you to work smarter and more efficiently.

There’s no need for additional controllers – all they have to do is just reach out and touch the screen. It is certified for Windows 10 and designed to offer superior performance as well as intuitive control, so you can be more productive and do everything you want to do smoothly and quickly.

With Projected Capacitive Touch, users can enjoy a smoother and more accurate touch display experience with increased interactivity. Thanks to the glass overlay this technology is highly durable, the Touch performance is unaffected by everyday use and mishaps such as dirt, dust, condensation, liquid spills or cleaning solutions.

This technology delivers super-fast, sensitive touch response with excellent dragging performance and perfect picture quality. Ten-point multi-touch support lets you unlock the power of today’s touch-enabled applications.

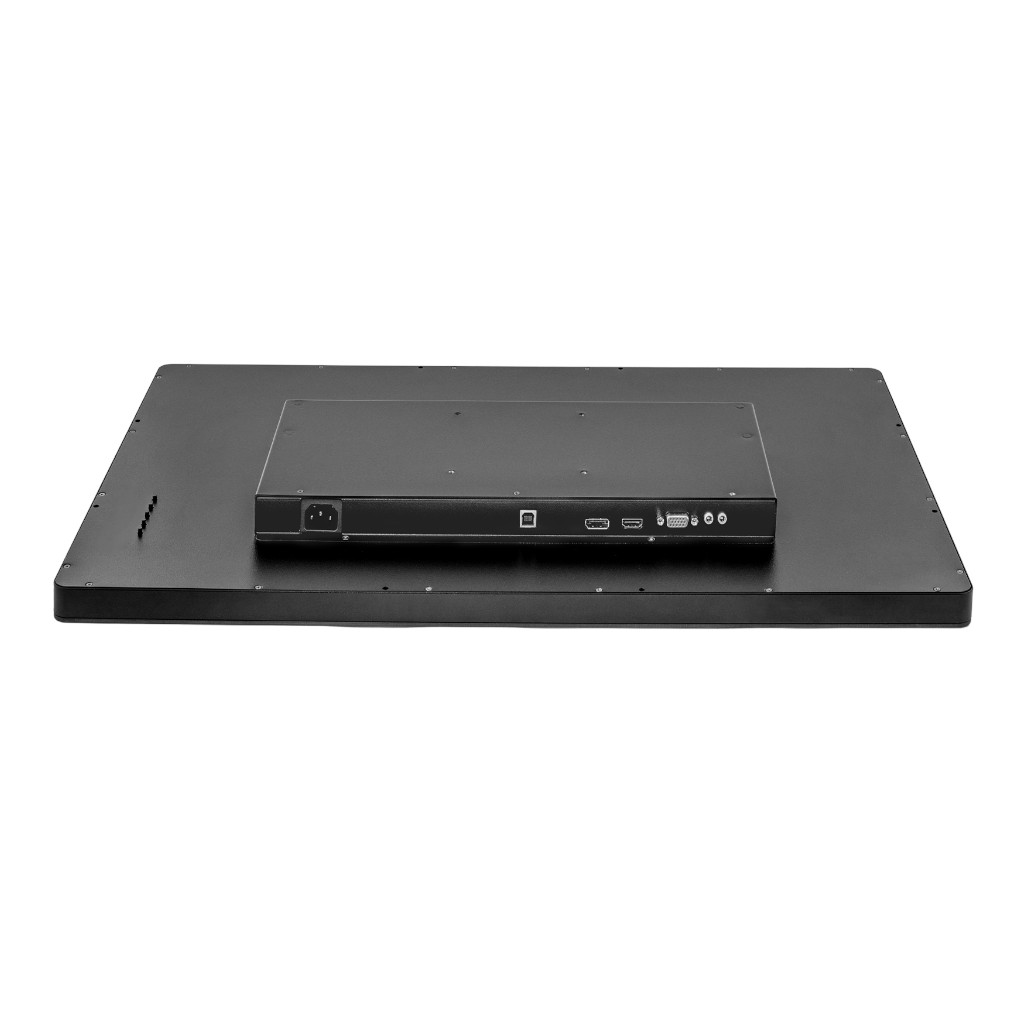

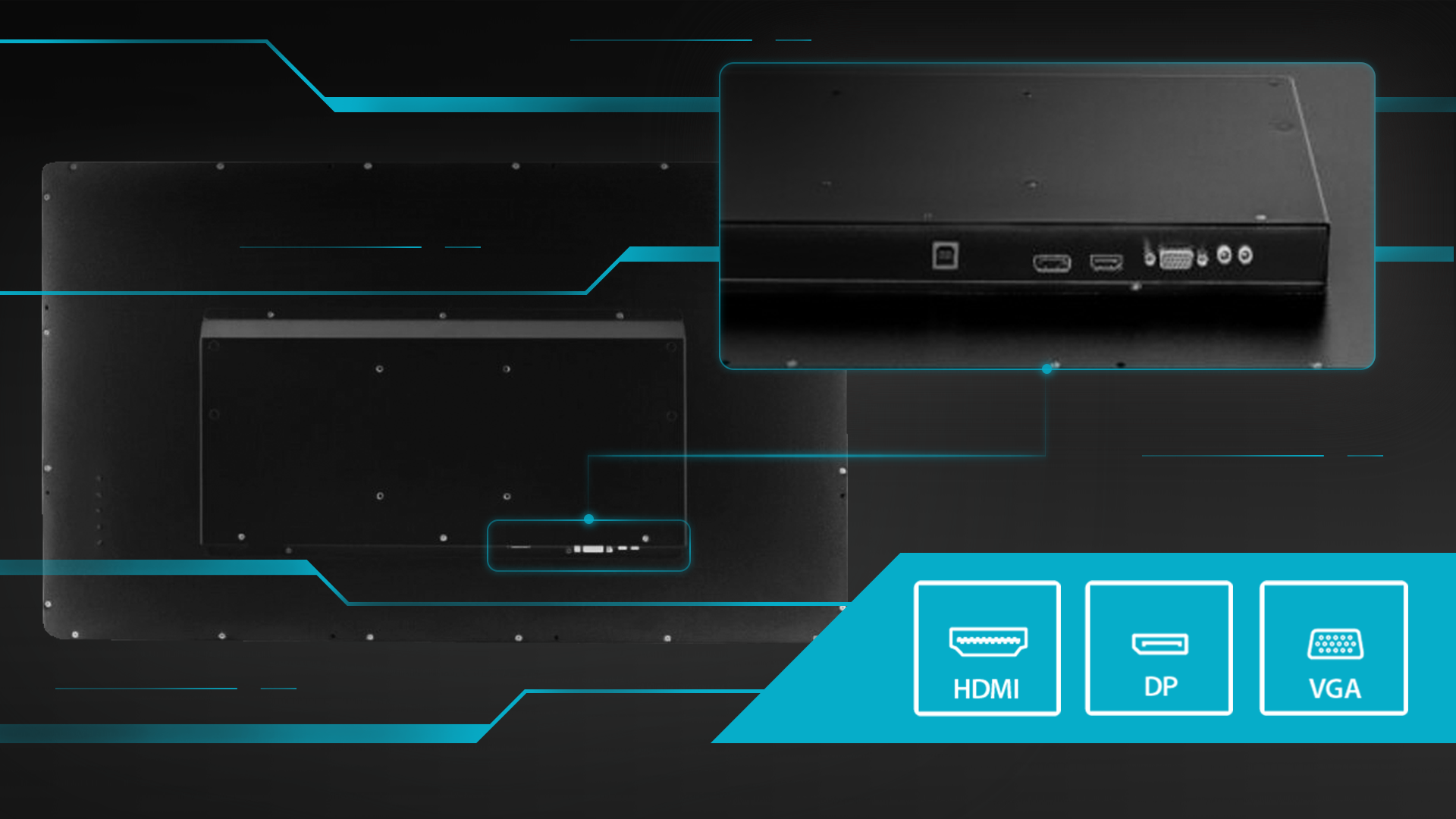

EXTENSIVE CONNECTIVITY

The HANNspree HO245PTB features a host of connectivity options that include VGA, HDMI and DP.

The HO245PTB Open Frame Touch Monitor ensures that your monitor is more compatible and ready to handle all of your content.

Enabling touch is easy! Simply connect the USB cable from your PC to the monitor’s USB upstream port, and connect one of the video inputs to project images onscreen

SCRATCH-RESISTANT – MULTI-TOUCH SCREEN WITH 7H SURFACE HARDNESS

7H scratch resistant surface hardness ensures durability, as well as a consistent high-quality touch experience.

Scratch resistance is essential for touch solutions used for education and public environment. This is achieved thanks to a glass overlay covering the screen. This means that the panel surface can withstand impact from objects and scratches, making it perfect for public spaces and educational institutions.

Our toughened Hard Glass fronted LED Monitors (≥7H hardness rating) are designed specifically for retail and Industrial applications offering protection from impacts and dirt for a long-life solution.

It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

MOUNTING OPTIONS

Its rugged bezel with edge-to-edge glass makes it very suitable for applications like tabletop integration.

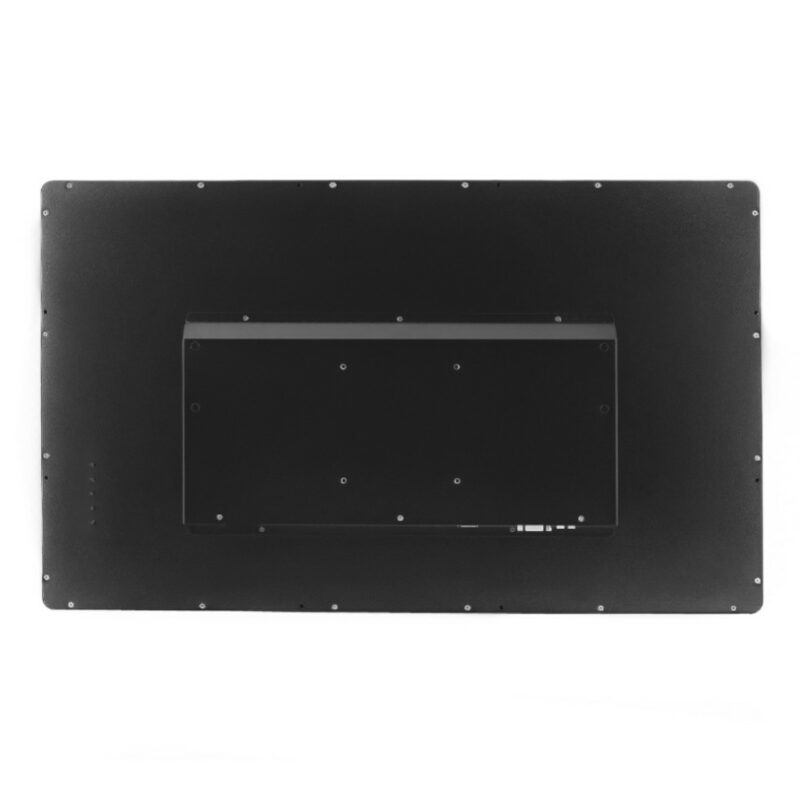

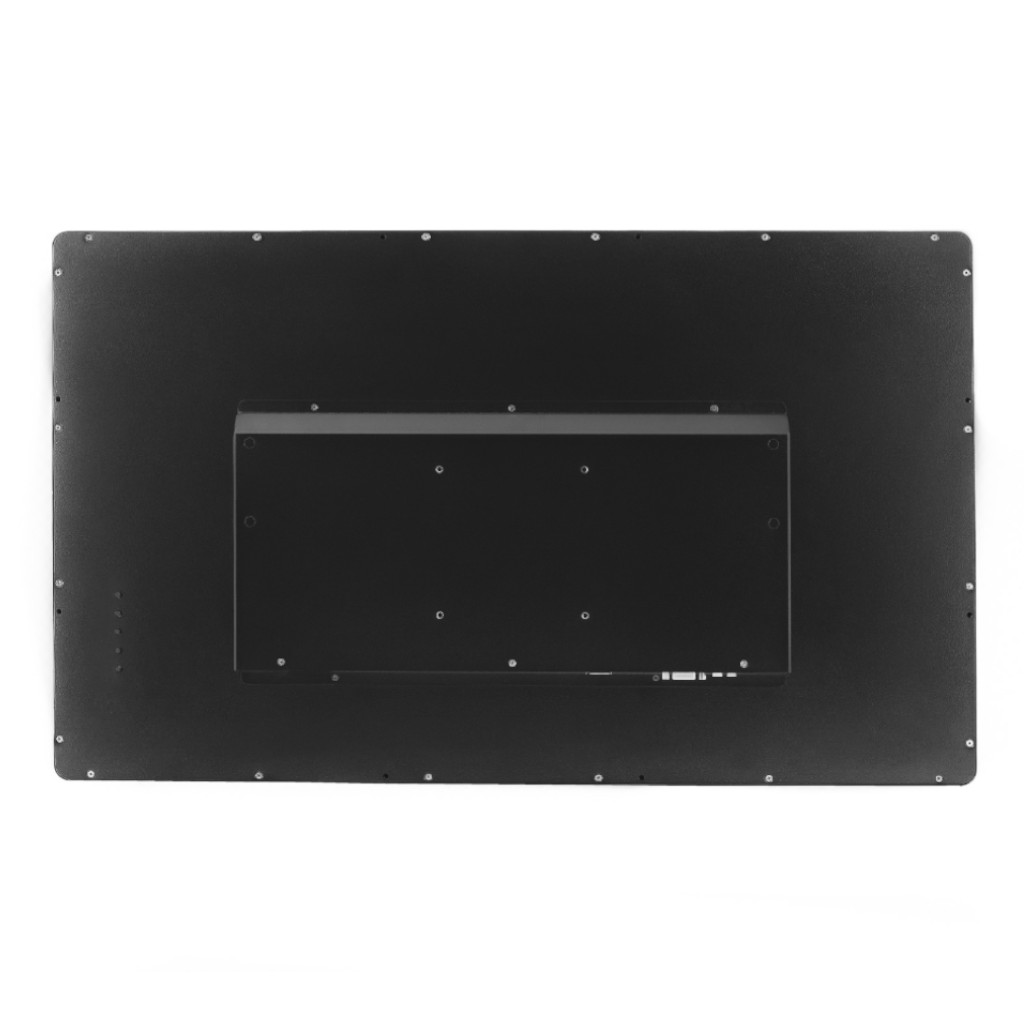

The display supports rear VESA and external mounting brackets for multiple mounting options.

The brackets provide the benefits of easy installation and flexibility for different applications.

  • Supports Multiple Mounting Options
  • Slim profile with narrow edges
Display Size 60.45 cm / 23.8“ Diagonal
Panel Type TFT – LED Backlight, ADS Panel (*)
Aspect Ratio 16:9
Resolution (H x V) 1920 x 1080 Full HD
Brightness 350 cd/m² (Panel) – 285 cd/m² (Monitor)
Contrast (Typ.) 1.000:1 (Typical) – 5.000.000 (Active Contrast)
Viewing Angle L/R; U/D 178° H / 178° V (CR > 10)
Response time 5 msec
Pixel Pitch 0,2745 (H) x 0,2745 (V) mm
Touch Type Projected Capacitive – 10 Point Touch
Type: Cover Glass + LOCA + ITO Glass
Display Colors 16.7M Colors
Horizontal Frequency 30 ~ 83 kHz
Vertical Frequency 56 ~ 75 kHz
Max Display Frequency 1920 x  1080 @ 60Hz
Input 1 VGA
Input 2 HDMI
Inout 3 Display Port
Input 4 USB 2.0 (Touch)
Speakers Yes, 2W x 2, Earphone jack
Power Consumption On: 35W; Stand-by: ≤0,5W; Off: ≤0,3W (TBC)
AC Power Range Built-In Power Supply
AC 100 ~ 240 Volt; 50 ~ 60 Hz
Product Dimensions 549 x 55 x 333 mm (W x D x H) TBC
Packing Dimensions 630 x 123 x 439 mm (W x D x H) TBC
Net / Gross Weight – Kg / – Kg TBC
VESA Mounting 100 x 100 mm and 75 x 75 MM
Display Protection Thickness 3.0±0.3 mm
Hardness / Transmittance ≥7H Toughened hard panel surface / ≥85%
IP Rating Level IP 65 on surface (Front), Water and Dust Protection **
Controls Power, Auto, (+), (-), Menu
Colour 5500K, 6500K, 9300K, User Modes
Preset Mode PC, Movie, Game, ECO Modes
On Screen Display 11 Languages
Accessory Power Adaptor; EU and UK Power cables (1.5 mt); HDMI
Cable (1.5m); USB 2.0 (B-A) Cable for Touch (1.8m);
Quick Start Guide; Warranty Card
Orientation Landscape, Portrait, Face-Up
24 / 7 Yes
