HO 550 HTB

SKU: HO550HTB Category: Tag:

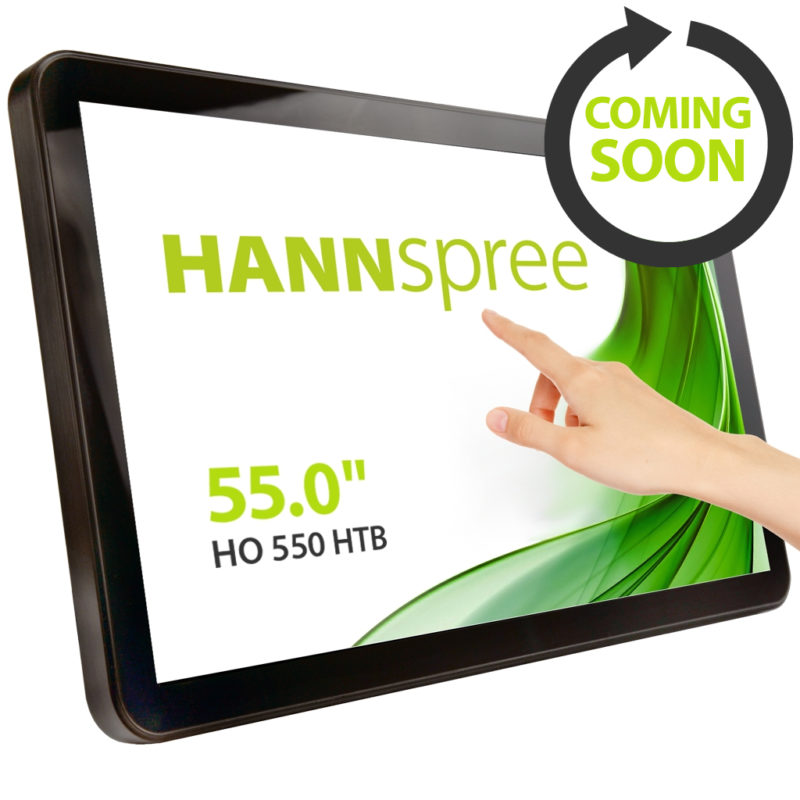

  • 55″ 16:9 LED Backlight Open Frame Display
  • 1920 x 1080 Full HD 1080P Resolution

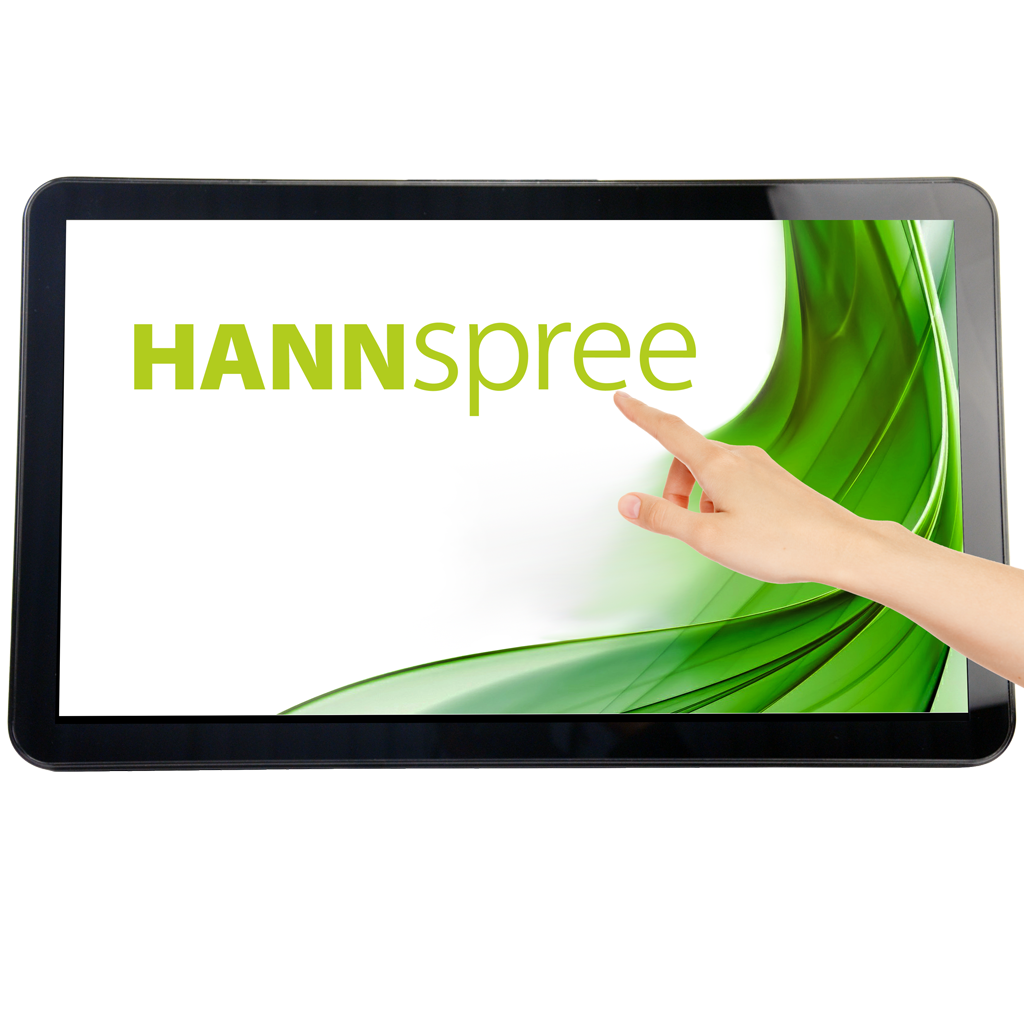

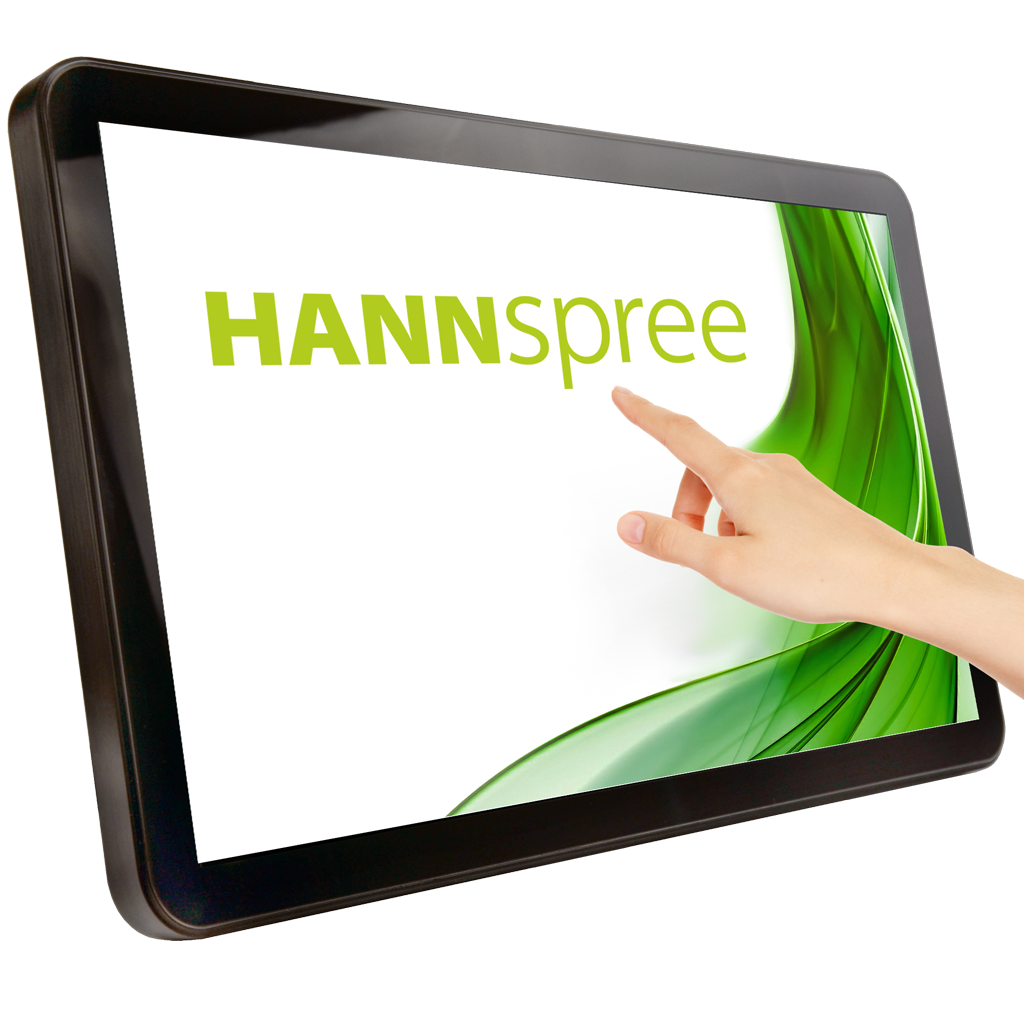

  • 10-Point Touch P-Cap Technology
  • 178° / 178° Ultra Wide Viewing Angle
  • 5000:1 High Contrast Ratio
  • Multiple Mounting Options
  • ≥6H Toughened Hard Panel

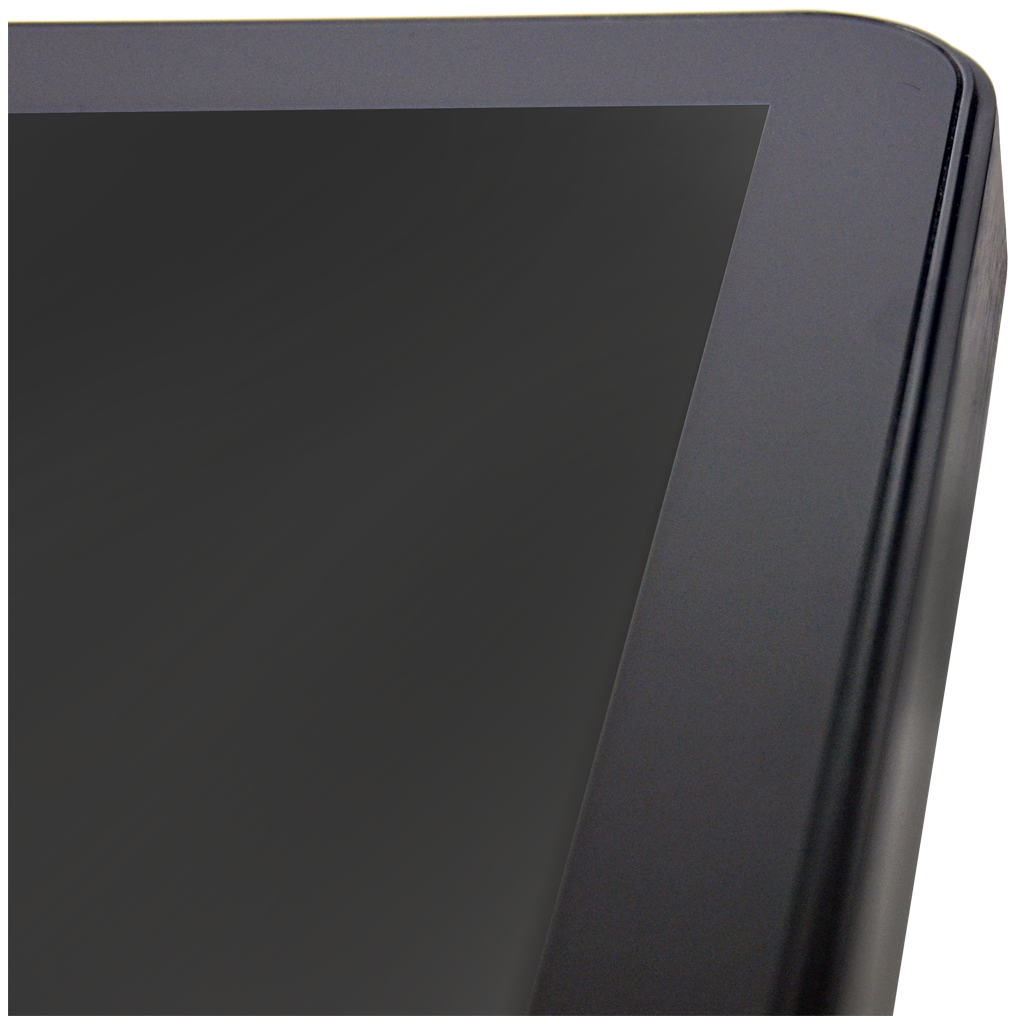

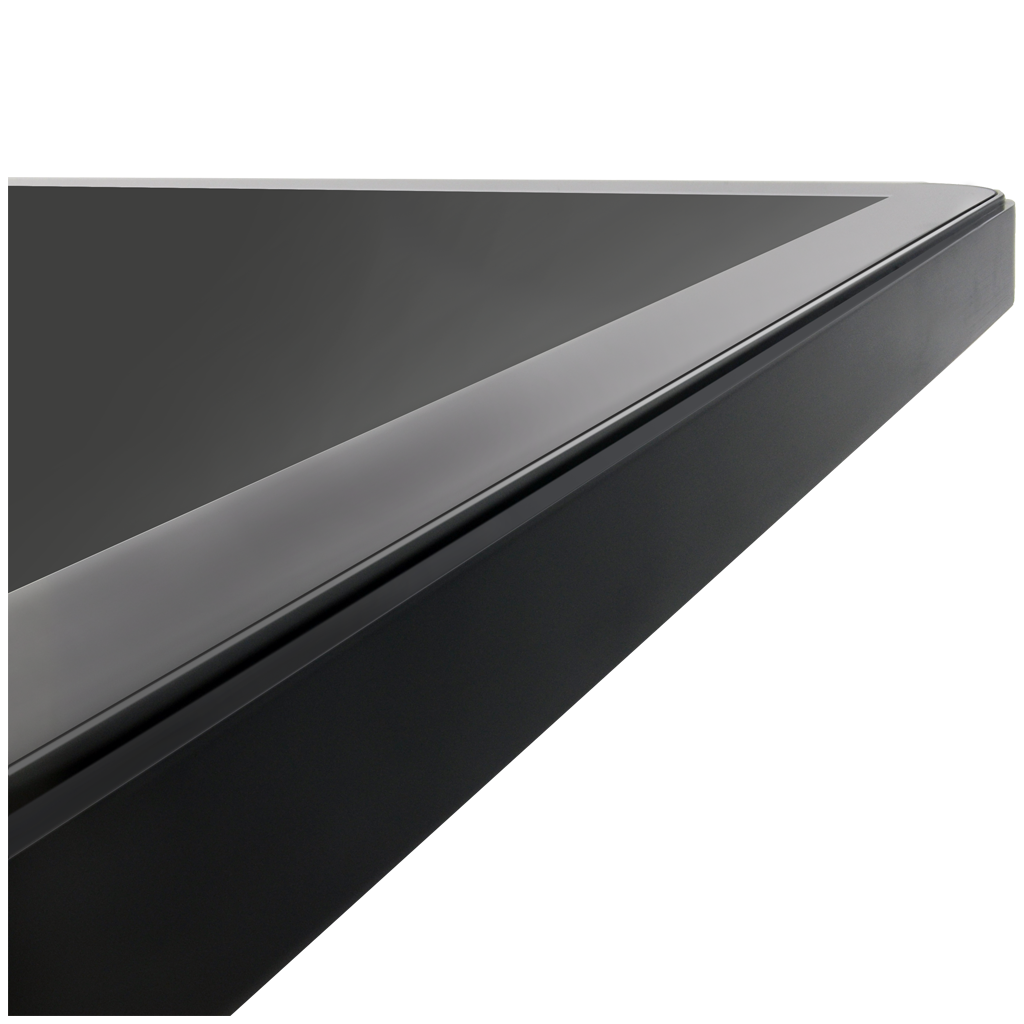

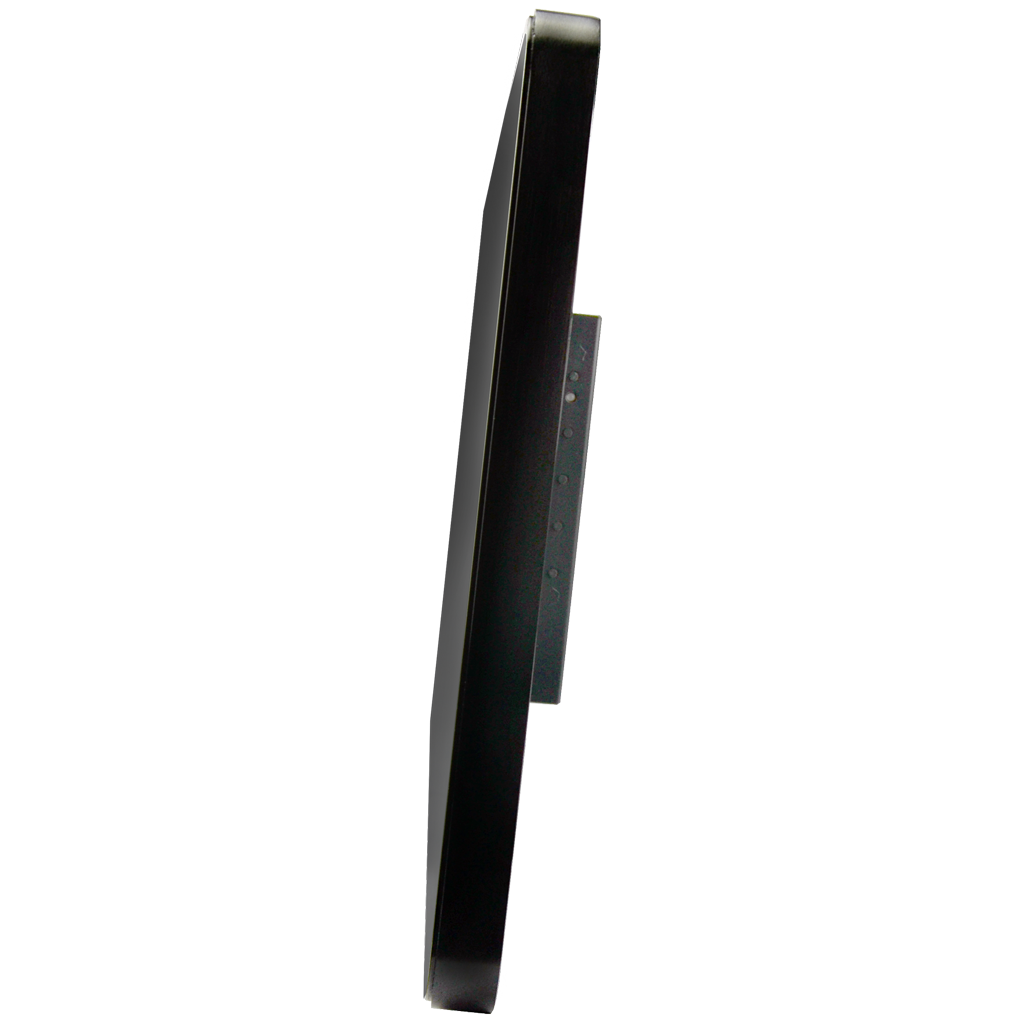

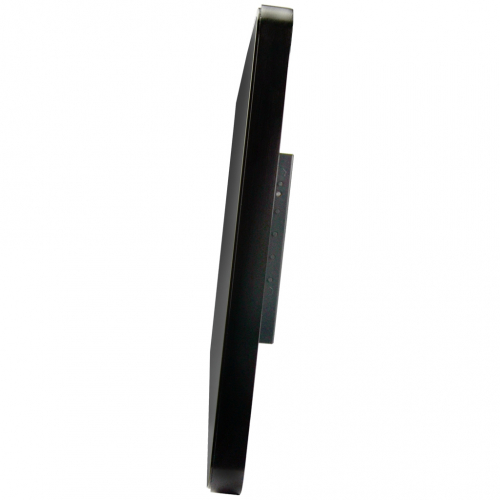

  • Slim Profile with Narrow Edges

LIMITLESS POSSIBILITIES WITH OPEN FRAME

Designed for demanding environments, the HANNspree Open Frame series delivers a long life cycle, high resolution experience to a wide range of commercial and industrial applications. Featuring a molded metal casing to extra protection, these open-frame monitors have a long-lasting product life cycle, Digital video inputs along with VESA and or flange mount capability, the HANNspree Industrial Open-Frame family make the most of your digital world.

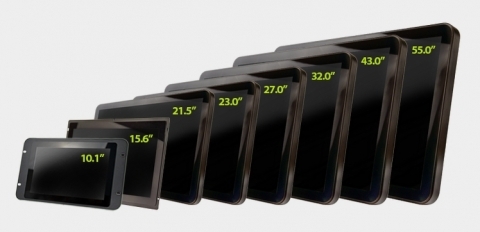

Choose from standard or touch screen high performance displays ranging from 10.1″ up to 55″ and the right aspect ratio to best fit your application.

ho230htb-usp-01
ho230htb-usp-02

AVAILABLE FOR MULTIPLE APPLICATIONS AND SYSTEMS INTEGRATION

With the support of highly experienced, vertical manufacturing capabilities, our Open Frame monitor business is designed to provide a cost effective, “one stop solution” for project requirements. We already supply Open Frame solutions for a number of large gaming tenders across Europe.

Offering a completely flexible, personal service HannsG by Hannspree delivers customised solutions to fulfil the specific demands of both OEMs and System Integrators.

AVAILABLE FOR MULTIPLE APPLICATIONS AND SYSTEMS INTEGRATION

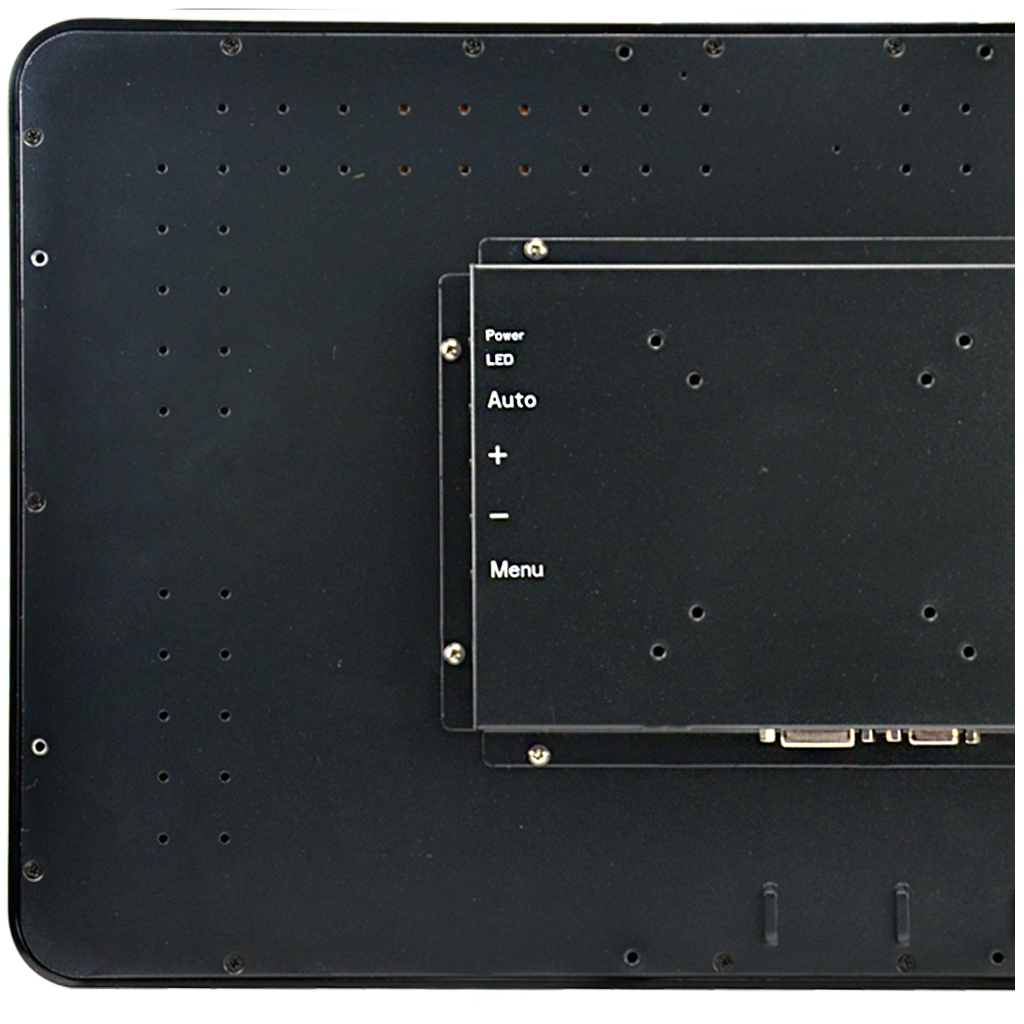

Our display supports rear and VESA mount for multiple mounting options and together with integrated brackets provides the benefits of easy installation, and flexibility for different applications.

The HANNspree open frame display employs the latest LCD technology to ensure high reliability and the best user experience.

ho230htb-usp-03
Display Size 139.7cm / 55″ Diagonal
Panel Type TFT – LED Backlight
Aspect Ratio 16:9
Resolution (H x V) 1920 x 1080 Full HD
Brightness 300cd/m²
Contrast (Typ.) 1200:1 (Typical)
Display Area 940.89 x 529.25 mm
Viewing Angle L/R; U/D 178° H / 178° V
Response time 8 msec
Pixel Pitch  0.490 (H) x 0.490 (V) mm
Touch Type Projected Capacitive Type – 10 Point Touch Material Glass + Glass
Display Colors 16.7M Colors
Horizontal Frequency 30 ~ 80 kHz
Vertical Frequency 55 ~ 75 kHz
Max Display Frequency 1920 x  1080 @ 60Hz
Input 1 VGA
Input 2 HDMI
Input 3 USB (Touch)
Power Consumption On: 45W; Standby<=0.5W, Off<=0.5W
AC Power Range AC 100 ~  240 Volt; 50 ~  60 Hz
Product Dimensions TBC x TBC x TBC mm (W x D x H)
Packing Dimensions TBC x TBC x TBC mm (W x D x H)
Net / Gross Weight TBC Kgs / TBC Kgs  (±0.3KG)

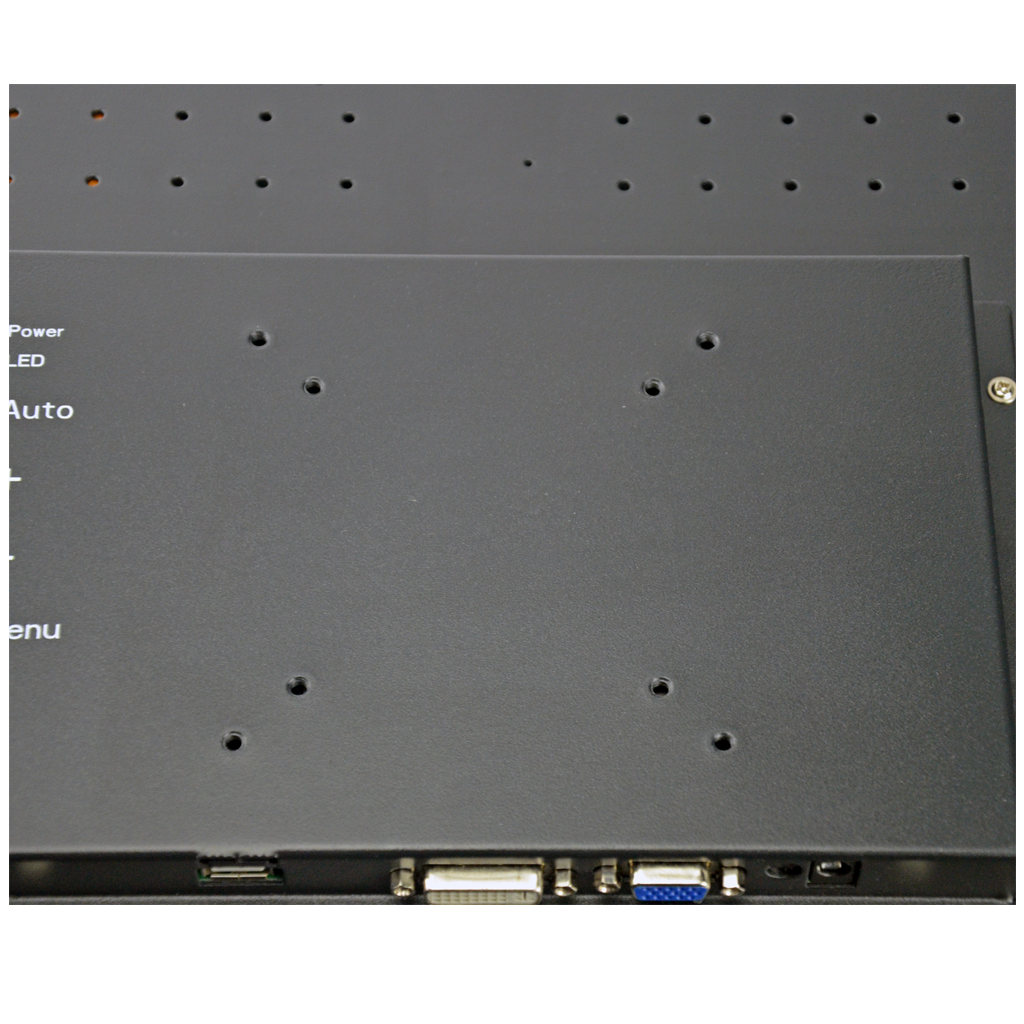

VESA Mounting  100 x 100 mm
MTBF 50.000hrs
Hardness / Transmittance ≥6H Toughened hard panel surface / ≥85%
IP Rating Level IP 54 (Front) Water and Dust Protection*
Controls Power, Auto, (+), (-), Menu
LED Backlight life 30.000 hours
Accessories Power Cable; VGA Cable (1.5.); USB Cable for Touch
Certifications CE, RoHS
On Screen Display 5 Languages
