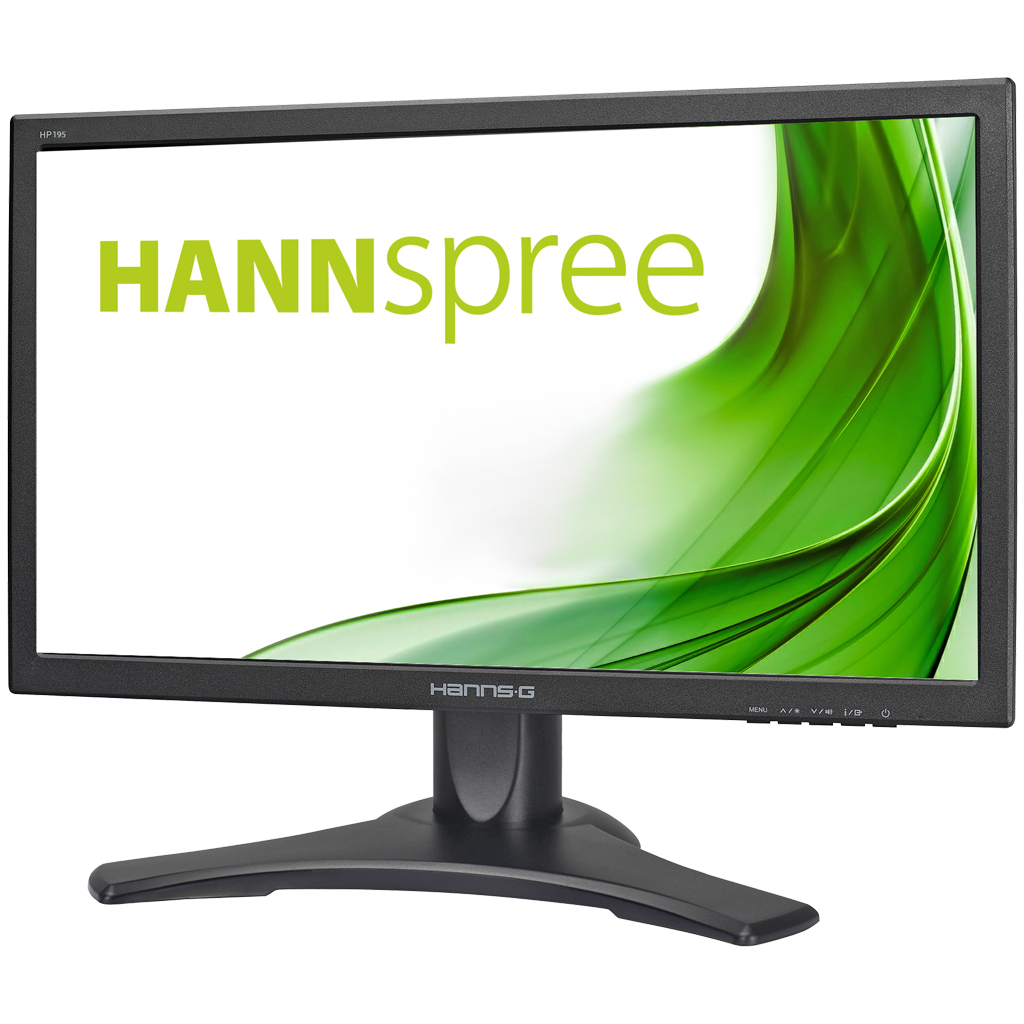

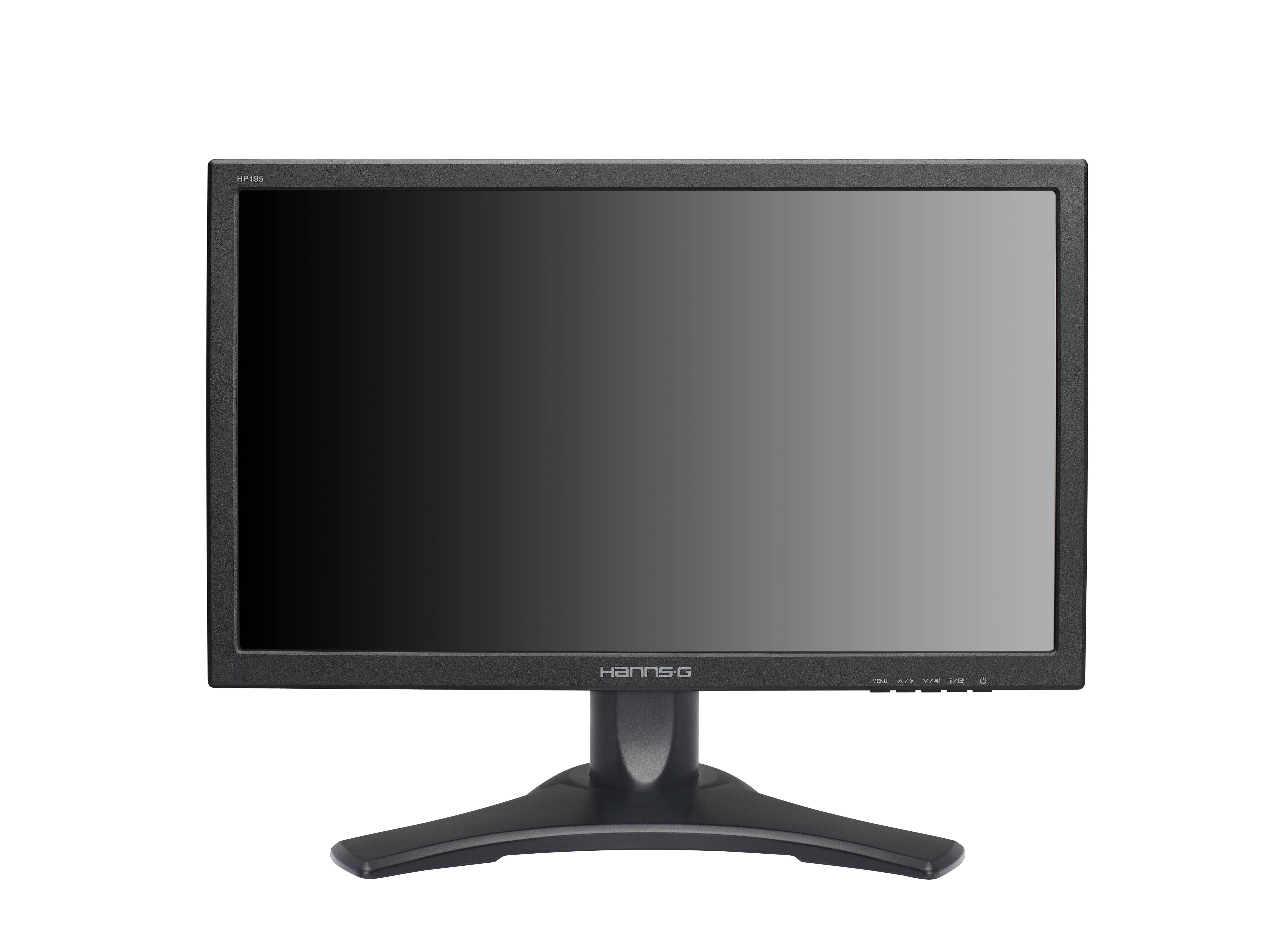

- 18.5″ Wide LED
- VGA D-Sub / DVI-D (HDCP) / PC Audio
- Built-in Stereo Speakers

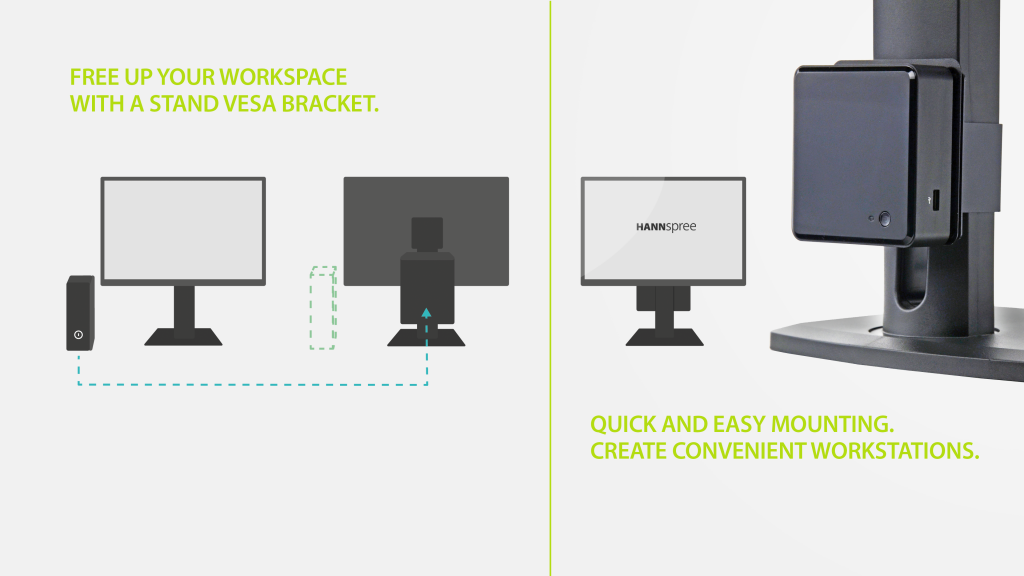

- Tilt and Wall-Mountable (VESA Standard 100 x 100)

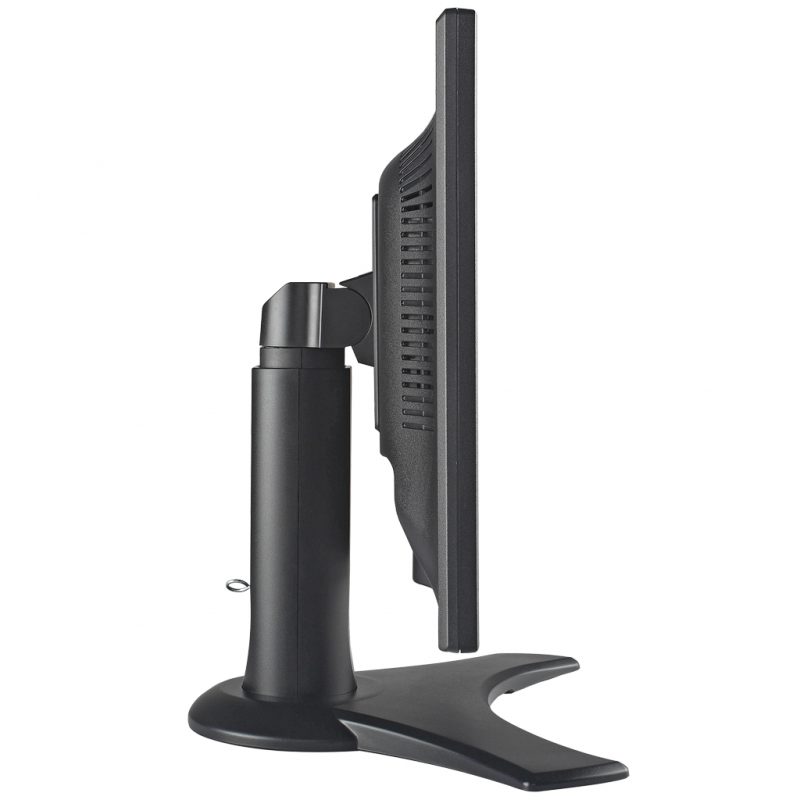

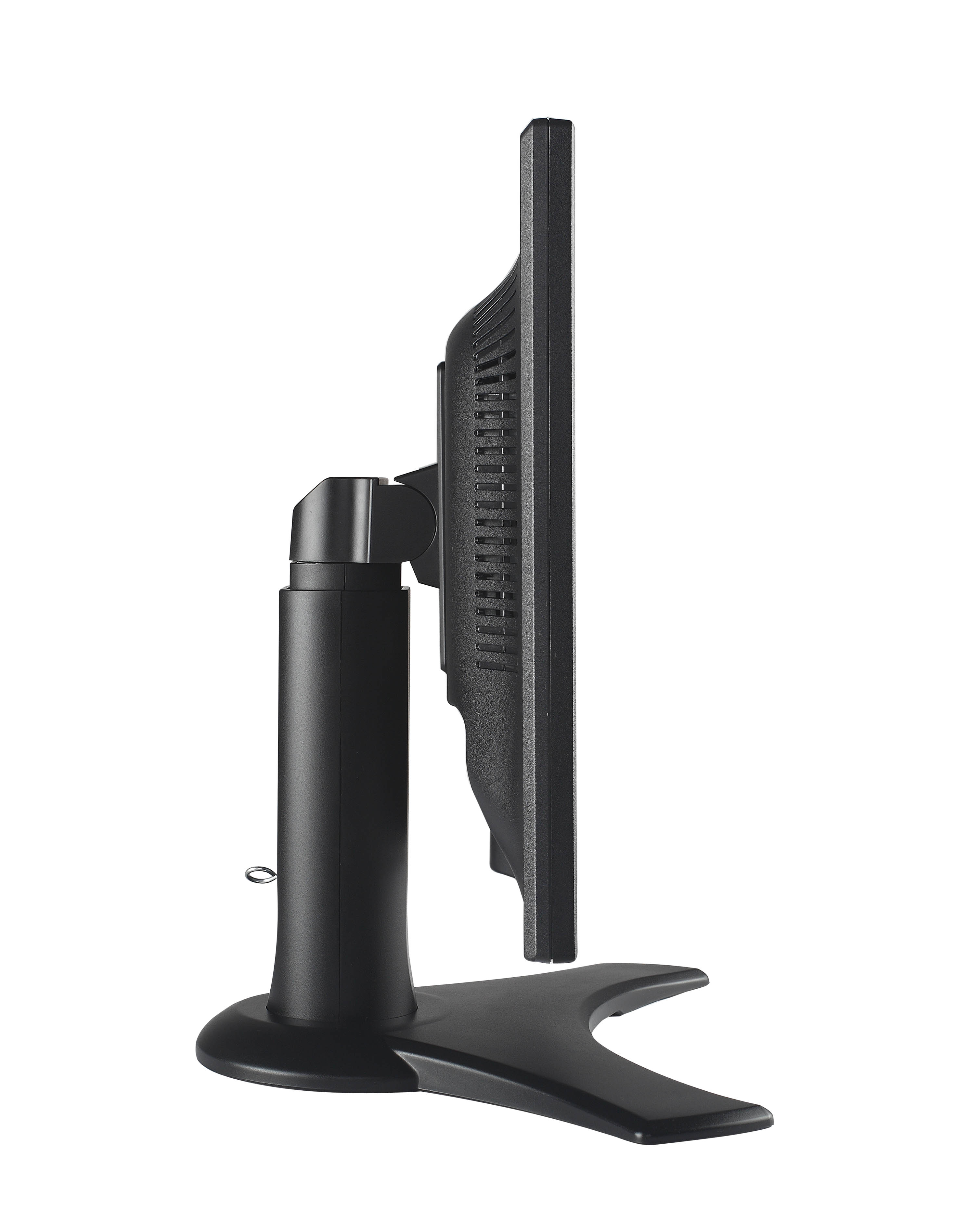

- Multi-Functional Height Adjustable Stand

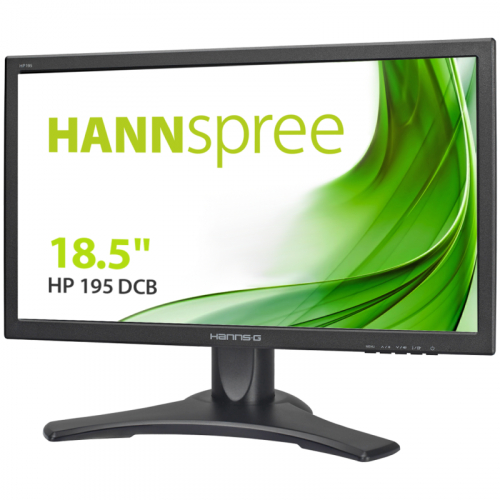

HP 195 DCB
| Inch | 18.5″ | |
| Brand | HannsG | |
| Model no | HP195DCB | |
| Region | EU | |
| LCD Panel | Display size | 47cm / 18.5″ Diagonal White LED-Backlight |
| Brightness | 250cd/m2 | |
| Contrast | 1000:1 (Typ.) 50,000,000:1 (Active contrast) |
|
| Pixel pitch | 0.3(H)*0.3(V) mm | |
| Resolution (H x V) | 1366 x 768 | |
| Aspect Ratio | 16:9 | |
| Response time | 5ms | |
| View angles LR,UD | H/V 170°/160° (CR>10) | |
| Color | WARM,NATURE,COOL, User Mode | |
| Panel surface | AG | |
| Display colors | 16.7M Colors | |
| PC Input Range | Horizontal Freq. | 30 to 61kHz |
| Vertical Freq. | 56Hz to 75Hz | |
| Max. display frequency (Resolution H*V/Fv) |
1366 x 768 /60Hz | |
| Interface | Input 1 | D-Sub |
| Input 2 | DVI-D (HDCP) | |
| Input 3 | PC audio | |
| Input 4 | NA | |
| Output Terminal |
Earphone | NA |
| Speaker | 1W x 2 | |
| Power | Consumption | On: 22W (Typ.) Standby<=0.5, Off<=0.5W |
| AC Power Range | AC 100~240V, 50~60Hz | |
| Power Mode Indicator Light |
Power on : Green (LED) Power saving : Amber (LED) |
|
| Operating Condition |
Temperature | 5°C ~ 35°C |
| Humidity | 20% ~ 85%, non-condensing | |
| Physical | Dimension (W*D*H mm) |
444.2*456.2*217.2 |
| Packing dimension (W*D*H mm) |
537*390*169 | |
| Net weight | 3.38KG | |
| Gross weight | 4.62KG | |
| Bezel Type | Matt | |
| Tilt | -5∘~ 15 | |
| High Adjustable Arm | Yes (left up 110mm) |
|
| Swivel | Yes (30°(Left) +/- 5° ~ 0°~ 30°(Right)+/- 5°∘) |
|
| Pivot | NA | |
| Kensington Lock | Yes | |

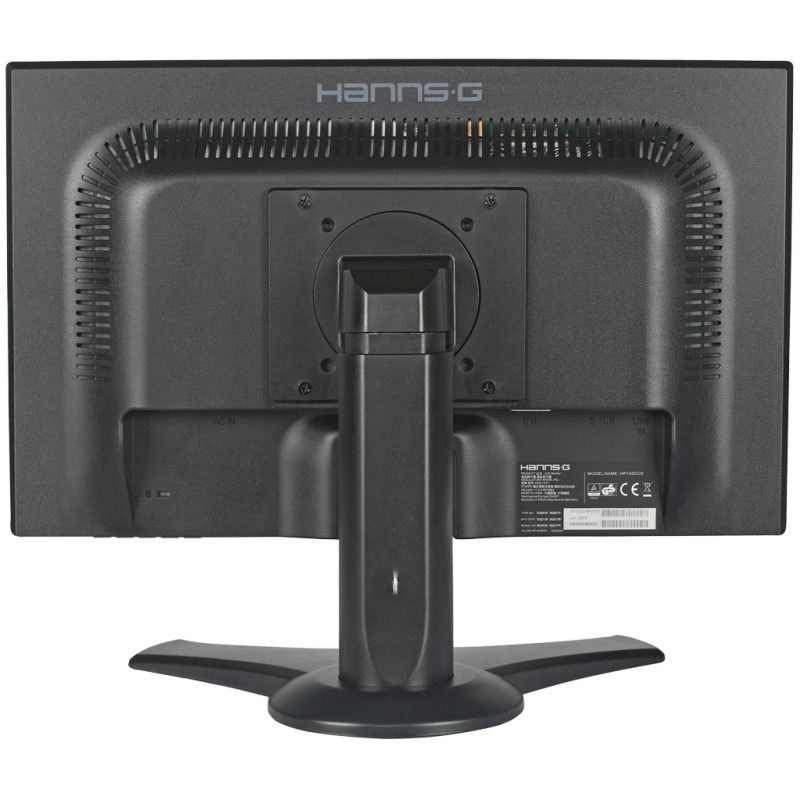

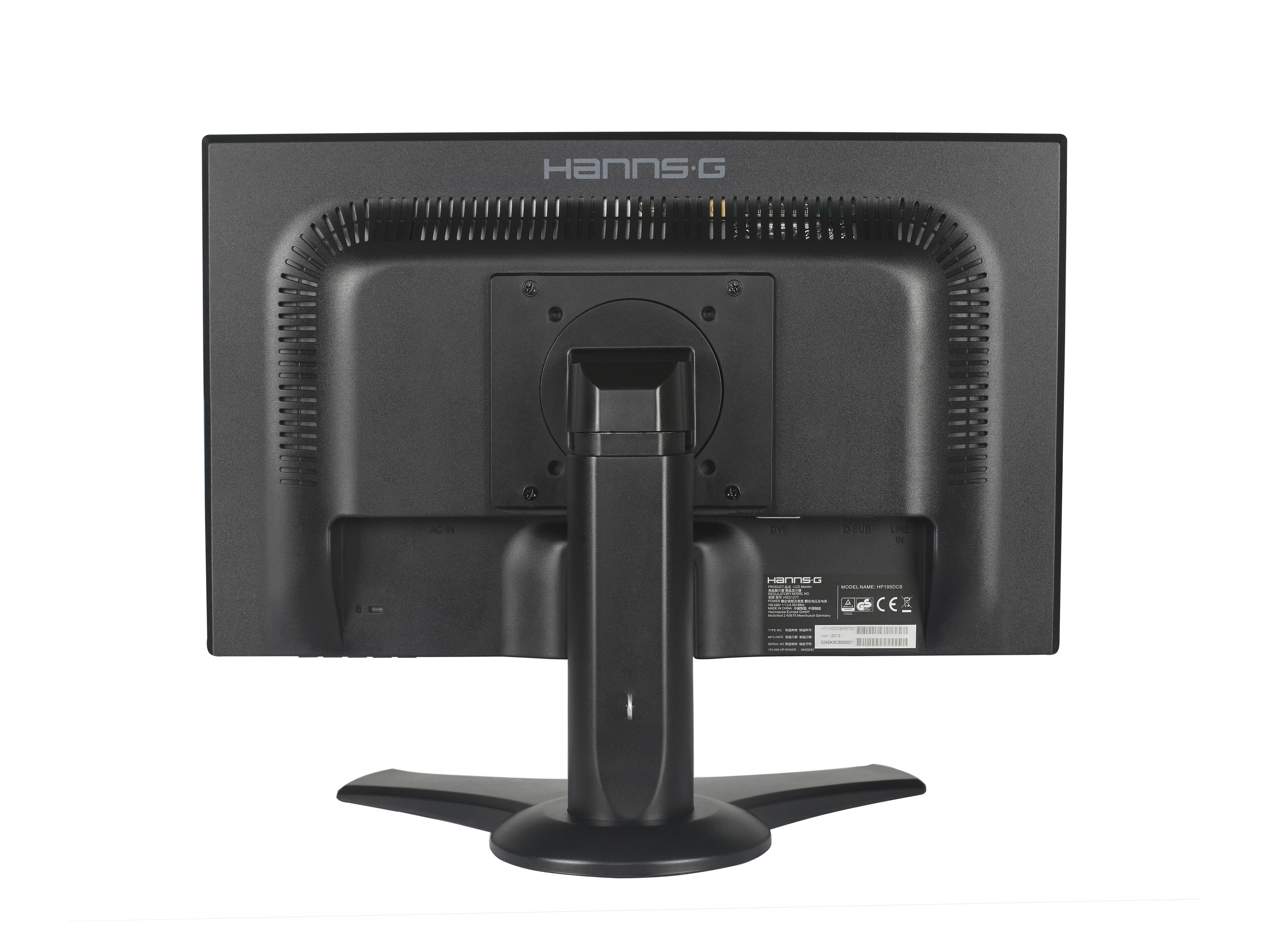

| VESA mounting | 100 x 100mm (arm detachable) | |
| Controls | Front control | Menu, Bri (+), Vol(-) Input/Enter, Power |
| On Screen Display | 12 language : EN,TC,DE,FR,ES,IT,PT,NL,SC,JS,KR,Russian | |
| Preset Mode | PC, Movie, Game, ECO Modes | |
| Loading | 40′ HQ | NA |
| 40′ Standard | 60×22=1320 / container | |
| 20′ ‘Standard | 60×10=600 / container | |
| Accessory | 1.8m Power Cord | Yes (1.5M) |
| 1.8m VGA cable | Yes (1.5M) included in DJB version only | |
| Audio Cable | Yes (1.5M) | |
| DVI Cable | Yes (1.5M) included in DCB version only | |
| HDMI-DVI cable | NA | |
| HDMI – HDMI cable | NA | |
| YPbPr Cable | NA | |
| Audio R/L Cabel | NA | |
| CD Menu (23 language) & QSG (12 language) & Warranty | Yes, in DJB version only | |
| Color Plan | Bezel / Arm / Base : Texture Rear Cover : Texture |
|
| Carton box | Brown | |
| Green product (Jan. 2009) | Yes | |
| Window 8 | NA | |
| Certification | CE, CB, TUV-GS, , Energy Star 6.0 | |
datasheets
hp195dcb___datasheet.pdfDownload
