- LED Backlight Monitor
- 1920 x 1080 (Full HD) Resolution
- 30,000,000:1 Active Contrast
- 5ms Response Time
- VGA + DVI (HDCP) Inputs
- Low Power Consumption
- Multi-Video Modes: PC / Movie / Game / ECO

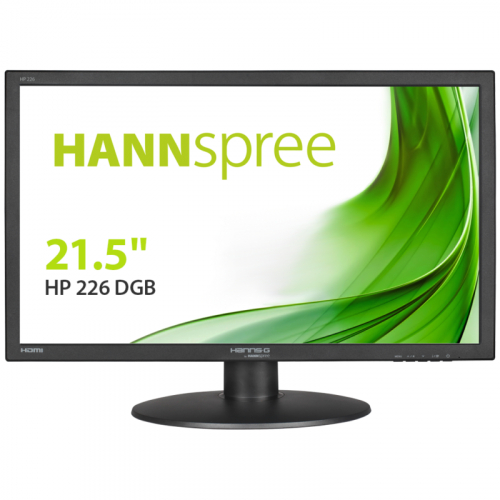

HP 226 DGB
Available in different sizes, our toughened Hard Glass fronted LED Monitors (7H hardness rating) are designed specifically for schools, colleges and universities, offering protection from impacts and dirt for a long life solution.
Our high quality monitor features a toughened safety glass fitted behind the bezel fulfiling the increasing demands for protected economical Display in the Education, Retail and Industrial applications.
| Model Name | HP226DGB | |
| Protector information | Material | Glass |
| Hardness | ≥7H | |
| Thickness | 3MM | |
| Transmittance | ≥88% | |
| Reflection | 8%~10% | |
| Monitor Display Spec | Display size | 54.6cm / 21.5″ Diagonal Wide LED |
| Brightness(Typical) | 220cd/m2 | |
| Contrast(Typical) | 1000:1 30,000,000:1 (active contrast) |
|
| Pixel Pitch | 0.248(H) x 0.248(V) | |
| Resolution (H x V) | 1920*1080 | |
| Aspect Ratio | 16:9 | |
| Response Time(Typical) | 5ms | |
| View Angles LR,UD(CR>10) | H/V 160°/160°(CR>10) | |
| Panel Surface | Anti-glare | |
| Display Colors | 16.7M Colors | |
| PC Input Range | Horizontal Freq. | 31kHz to 83kHz |
| Vertical Freq. | 56Hz to 75Hz | |
| Max. display frequency (Resolution H*V/Fv) |
1920 x 1080 /60Hz | |
| Interface | Input 1 | D-Sub x 1 |
| Input 2 | DVI-D(with HDCP) x 1 | |
| Input 3 | PC audio x 1 | |
| Input 4 | NA | |
| Output Terminal |
Earphone | NA |
| Speaker(Typical) | 1.5W x 2 | |
| Power | Consumption(Typical) | On: 30 W Standby<=1W, Off<=0.5W |
| AC Power Range | AC 100~240V, 50~60Hz | |
| Power Mode Indicator Light |
Power on : Green (LED) Power saving : Green Flicker (LED) |
|
| Operating Condition |
Temperature | 5℃ ~ 35℃ |
| Humidity | 20% ~ 85%, non-condensing | |
| Physical | Dimension (W*D*H) |
512*203*390mm |
| Packing Dimension (W*D*H) |
572*152*452mm | |
| Net Weight | 5Kg | |
| Gross Weight | 5.8Kg | |
| Bezel Type | Matt | |
| Tilt | -5∘~ 15∘ | |
| High Adjustable Arm | NA | |
| Swivel | NA | |
| Pivot | NA | |
| Kensington Lock | Yes | |
| VESA Mounting | 100 x 100mm | |
| Controls | Front Control | Menu, Bri (+), Vol(-) Input/Enter, Power |
| On Screen Display | HSD OSD format, 12 language : EN,TC,DE,FR,ES,IT,PT,NL,SC,JS,KR,Russian | |
| Color | WARM,NATURE,COOL, User Mode | |
| Preset Mode | PC, Movie, Game, ECO Modes | |
| Accessory | Power Cable(1.8m) | Yes |
| VGA Cable(1.8m) | Yes | |
| Audio Cable(1.8m) | Yes | |
| DVI Cable(1.8m) | Optional | |
| HDMI-DVI Cable(1.8m) | NA | |
| HDMI-HDMI Cable(1.8m) | NA | |
| YPbPr Cable | NA | |
| User Manual(CD) | Yes, HSD format | |
| Quick Start Guide(Paper) | Yes, HSD format | |
| Color Plan | Front Bezel / Arm / Base : Black texture Rear Cover : Black texture |
|
| Carton Box | Brown carton, HSD format | |
| Green Product (Jan. 2009) | Yes | |
| Windows 7 | Yes | |
| HDMI Logo | NA | |
| Certification | CE, Eup, EnergyStar 5.x (most update version) | |
