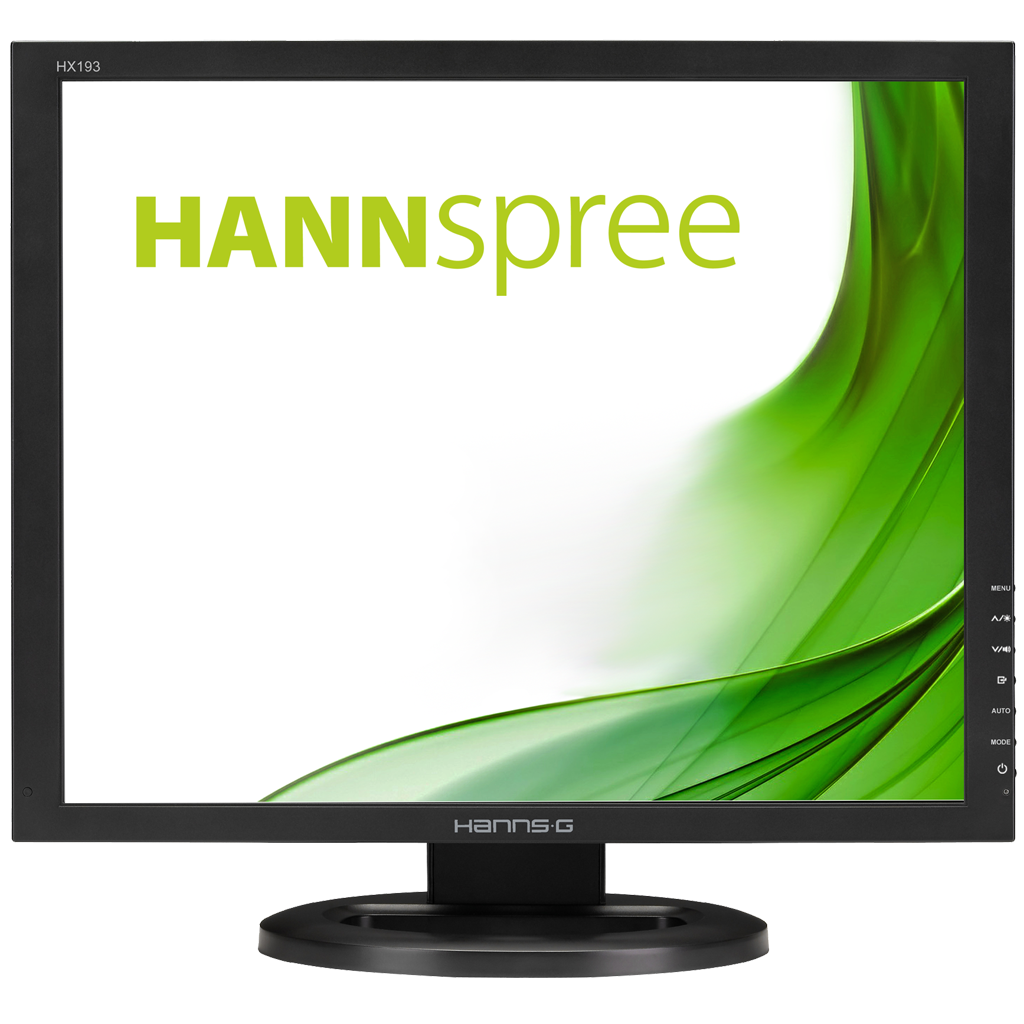

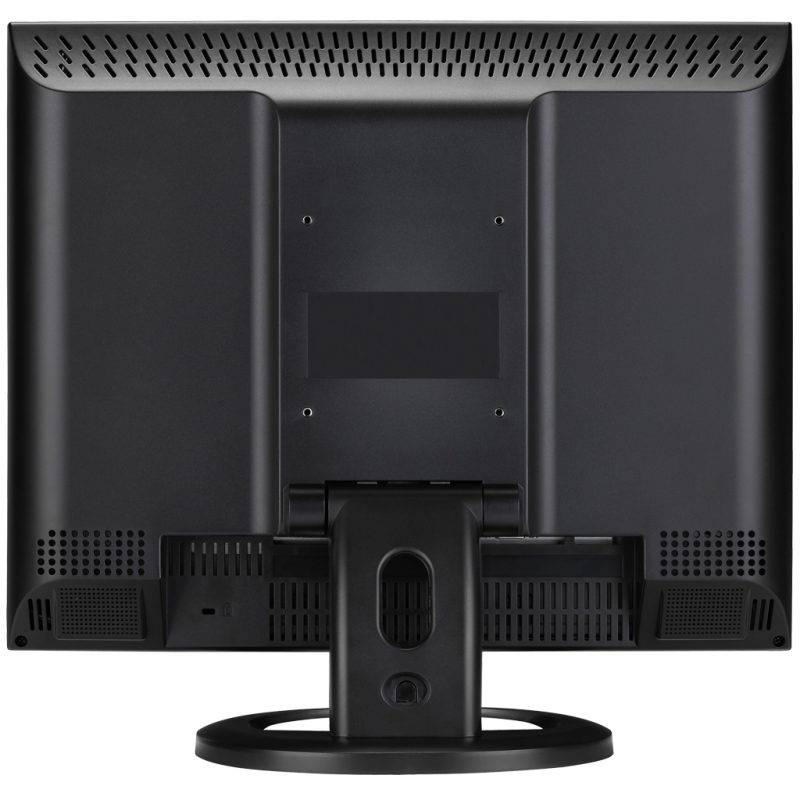

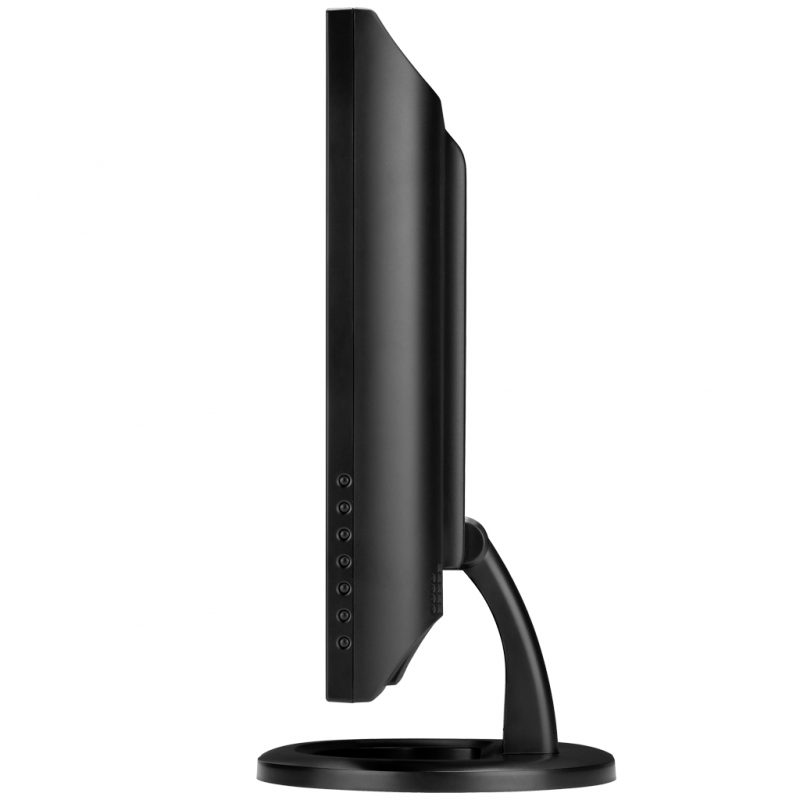

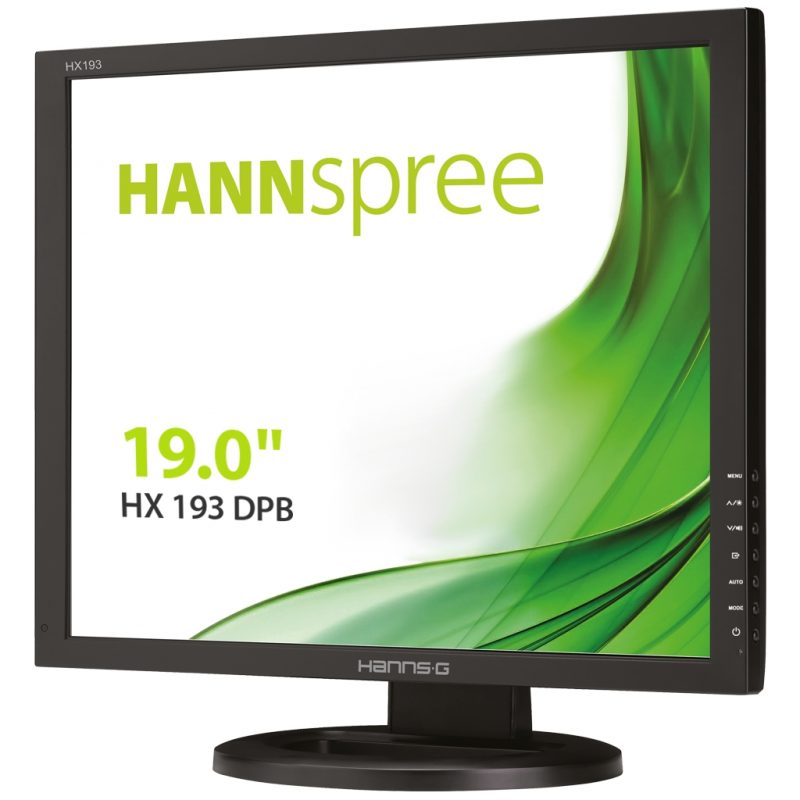

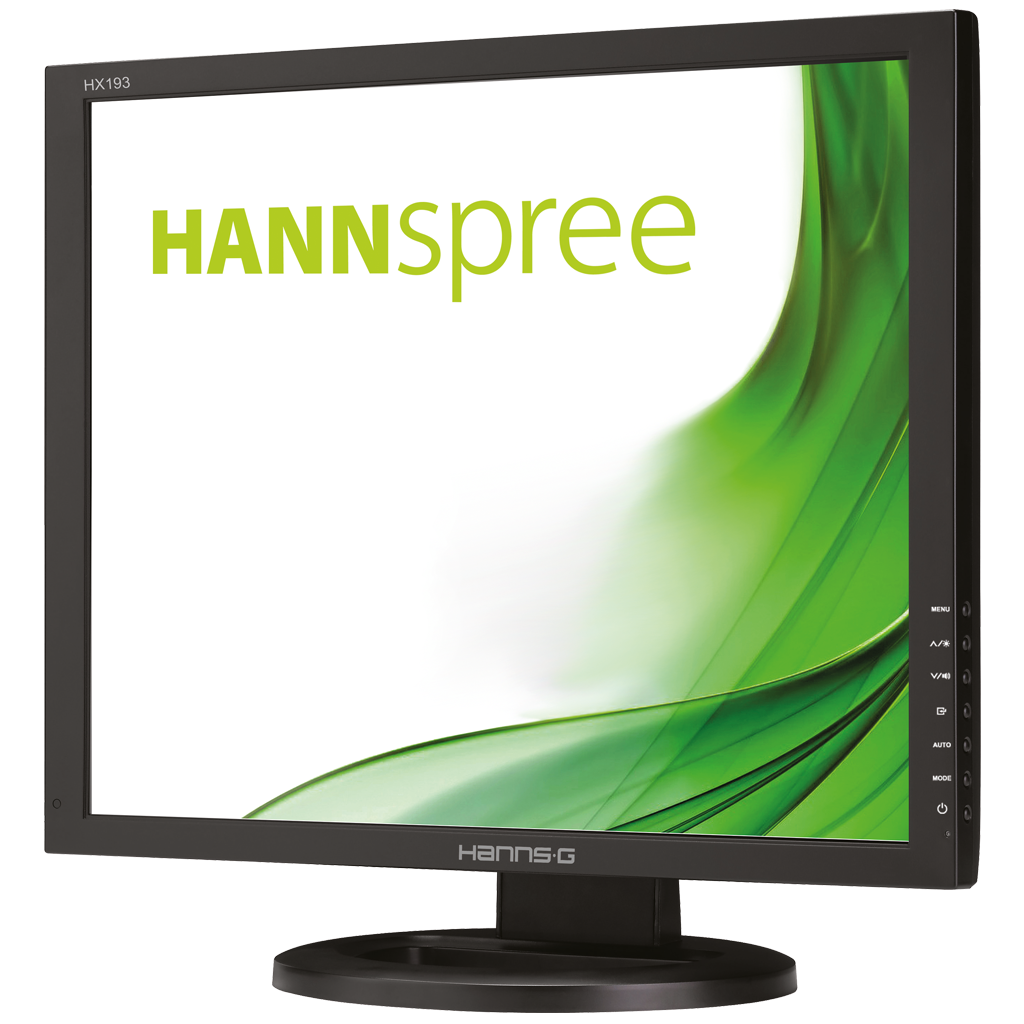

HO193DPB-side-aHO193DPB-backHO193DPB-frontHO193DPB-side

HX 193 DPB

Click Me

SKU: HX193DPB Category: Tag:
  • LED Backlight Monitor
  • 1280 x 1024 SXGA Resolution
  • 40,000,000:1 Active Contrast
  • 5ms Fast Response Time
  • Low Power Consumption
  • Multi-Video Modes: PC / Movie / Game / ECO
  • Tilt and Wall-Mountable (VESA)
  • ECO Friendly
Model Name HX193DPB
Monitor Display Spec Display size
48.3cm / 19″ Diagonal LED Monitor
Brightness(Typical) 250cd/m2
Contrast(Typical) 1,000:1 (typ)
40,000,000:1(Active Contrast)
Pixel Pitch 0.294(H) x 0.294(V)
Resolution (H x V) 1280 x 1024
Aspect Ratio 5:4
Response Time(Typical) 5ms
View Angles LR,UD(CR>10) H/V 170°/160°
Panel Surface AG
Display Colors 16.7M Colors
PC Input Range Horizontal Freq. 30kHz~82kHz
Vertical Freq. 56Hz~75Hz
Max. display frequency
(Resolution H*V/Fv)
1280×1024/75Hz
Interface Input 1 D-Sub x 1
Input 2 DVI-D (HDCP)  x 1
Input 3 Audio x 1
Input 4 NA
Output
Terminal
Earphone NA
Speaker(Typical, Amplifier output) 2W x2
Power Consumption(Typical) On: 21.1 W
Standby<=0.5W, Off<=0.5W
AC Power Range AC 100-240, 50-60Hz
Power Mode
Indicator Light
Power on : Green
Power Saving: Green flicker
Operating
Condition
Temperature 5 ~ 35℃
Humidity 20% ~ 85%, non-condensing
Physical Dimension
(W*D*H)
422*65.9*387.6
Packing Dimension
(W*D*H)
478*140*403
Net Weight 3.78Kg
Gross Weight 4.81Kg
Tilt -5∘~ 15∘
High Adjustable Arm NA
Swivel NA
Pivot NA
Kensington Lock Yes
VESA Mounting 100 x 100 mm
Controls Front Control Menu, Bri(+), Vol(-),  Input/Enter, Auto, Mode, Power
On Screen Display HSD OSD format 12 language  : EN,TC,DE,FR,ES,IT,PT,NL,SC,JS,KR,Russian
Color WARM,NATURE,COOL, User Mode
Preset Mode PC, Movie, Game, ECO Modes
Loading 40′ HQ NA
40′ Standard 1890pcs -EU/US
20′ ‘Standard 900pcs – EU/US
Accessory Power Cable(1.5m) Yes
VGA Cable(1.5m) Yes
Audio Cable(1.5m) Yes
DVI Cable(1.5m) Optional
HDMI-DVI Cable(1.5m) NA
HDMI-HDMI Cable(1.5m) NA
YPbPr Cable NA
User Manual(CD) Yes, HSD format
Quick Start Guide(Paper) Yes, HSD format
Color Plan All black texture
Carton Box Brown carton, HSD format
Green Product  (Jan. 2009) Yes
Windows 7 Yes
HDMI Logo NA
Others PC99 function (Must)
Certification  CE, CB, GOST, Nemko GS, TCO 5.2, EPA 5.2, FCC, UL, 3C, China energy level 1
