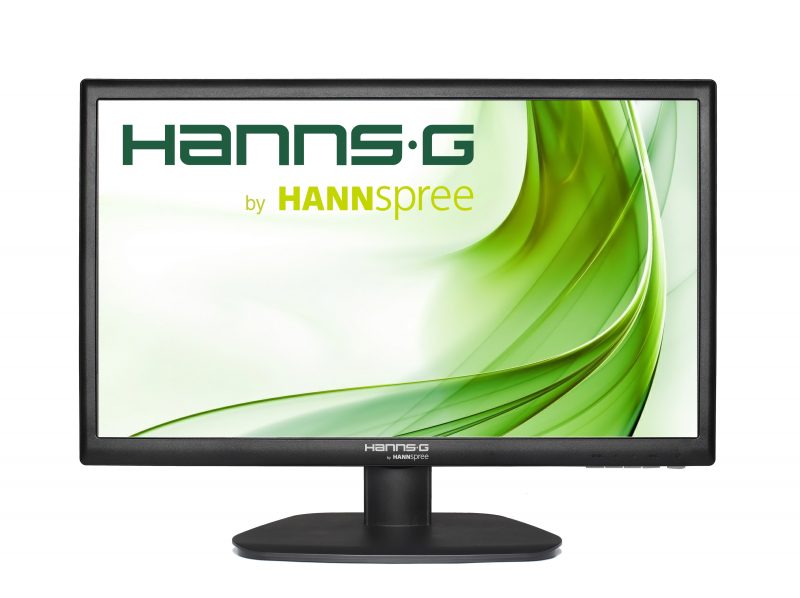

HL 225 DBB

SKU: HL225DBB Category:
  • 21.5” LED Backlight Monitor
  • Full HD 1080P
  • 1920 x 1080 WUXGA Resolution
  • 80,000,000:1 Active Contrast
  • 5 msec Response Time
  • VGA + DVI-D (HDCP) Inouts
  • Low Energy Consumption
  • Wall Mountable (VESA)
  • Multi-Video Modes
  • Eco Friendly
LCD Panel Display size 54,6cm / 21.5″ Diagonal White LED-Backlight
Brightness(Typical) 250cd/m2 (Typical)
Contrast(Typical) 1000:1 (Typical)
80,000,000:1 (Active Contrast )
Pixel Pitch 0.248(H) * 0.248(V)
Resolution (H x V) 1920 x1080
Aspect Ratio 16:9
Response Time(Typical) 5ms
View Angles LR,UD(CR>10) HV  170/160
Panel Surface Anti-glare
Display Colors 16.7M colors
PC Input
Range
Horizontal Freq. 30 to 83KHz
Vertical Freq. 56 to 75Hz
Max. display frequency
(Resolution H*V/Fv)
1920 x1080  / 60hz
Interface Input 1 D-Sub x 1
Input 2 DVI-D (w HDCP) x 1
Output
Terminal
Earphone NA
Speaker(Typical) NA
Power Consumption(Typical) On: 30 W Standby<=0.5W, Off<=0.5W
AC Power Range AC 100~240V, 50~60Hz
Power Mode
Indicator Light
Power on : Green (LED) Power saving : Green Flicker (LED)
Operating
Condition
Temperature 5℃ ~ 35℃
Humidity 20% ~ 85%, non-condensing
  Dimension
(W*D*H)
511*170*375mm
Packing Dimension TBC
  Net Weight 3.4KG
Gross Weight 4.5KG
Tilt -5∘~ 20∘
High Adjustable Arm NA
Swivel NA
Pivot NA
Kensington Lock Yes
VESA Mounting 100 x 100mm
Controls Front Control Menu, Vol(-), Bri (+), Auto, Power
On Screen Display Follow DW OSD format, 11 language  : EN,TC,DE,FR,ES,IT,PT,SC,JS,KR,Russian
Color WARM,NATURE,COOL, User Mode
Preset Mode PC, Movie, Game Modes
Accessory Power Cable Yes (1.5M)
VGA Cable Yes (1.5M)
Color Plan Arm / Base /Bezel / Rear Cover – Black Texture
Certification CE,  RoHS
(EPA & ISO9241-307 are optional)
