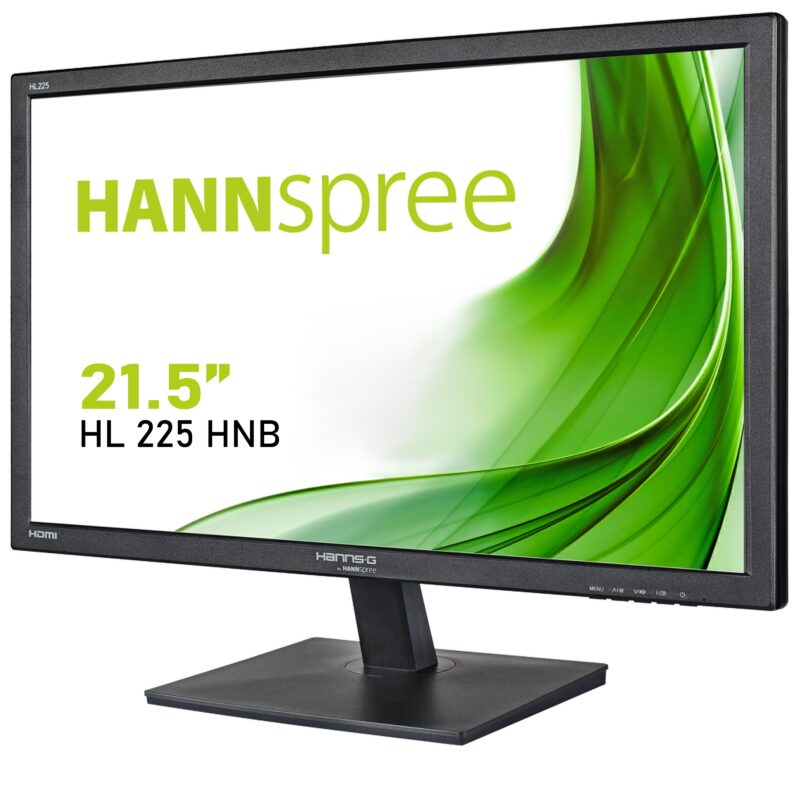

HL 225 HNB

SKU: HL225HNB Category:
  • 21,5” 16:9 LED Backlight Monitor
  • 1920 x 1080 WUXGA Resolution
  • Full HD 1080P
  • 5ms Fast Response Time
  • HDMI+VGA
  • Tilt and Wall-Mountable (VESA)
  • Low Power Consumption
  • Multi-Video Modes
  • ECO Friendly
LCD Panel Display size 54,6cm / 21.5″ Diagonal White LED-Backlight
Brightness(Typical) 200cd/m2
Contrast(Typical) 700:1
40,000,000:1(active contrast)
Pixel Pitch 0.248(H) * 0.248(V)
Resolution (H x V) 1920 x1080
Aspect Ratio 16:9
Response Time(Typical) 5ms
View Angles LR,UD(CR>10) H/V 90°/65°
Panel Surface Anti-glare
Display Colors 16.7M colors
PC Input Range Horizontal Freq. 30 to 83KHz
Vertical Freq. 56 to 75Hz
Max. display frequency
(Resolution H*V/Fv)
1920 x1080  / 60hz
Interface Input 1 D-Sub x1
Input 2 HDMI x 1
Output
Terminal
Earphone Yes
Speaker(Typical) NA
Power Consumption(Typical) On: 24W
Standby<=0.5W, Off<=0.5W
AC Power Range AC 100~240V, 50~60Hz
Power Mode
Indicator Light
Power On:Green (LED)
Power Saving:Amber (LED)
Operating
Condition
Temperature 5℃ ~ 35℃
Humidity 20% ~ 85%, non-condensing
Physical Dimension
(W*D*H)
512.8*367.4*184.2mm
Packing Dimension
(W*D*H)
571*416*118mm
Net Weight 3.2KG
Gross Weight 4.12KG
Bezel Type Matt

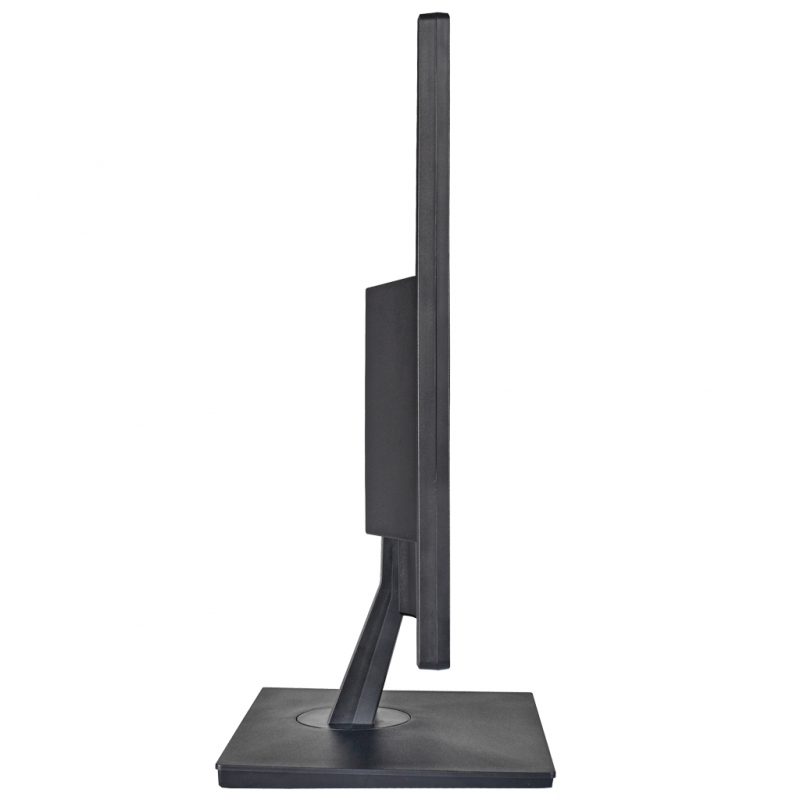

Tilt -3°~20°
Kensington Lock Yes
VESA Mounting 100 x 100mm
Controls Front Control Menu, Bri (+), Vol(-), Input/Enter, Power
On Screen Display HSD OSD format, 12 language  : EN,TC,DE,FR,ES,IT,PT,NL,SC,JS,KR,Russian
Color WARM,NATURE,COOL, User Mode
Preset Mode PC, Movie, Game, ECO Modes
Loading 40′ HQ NA
40′ Standard 1890PCS
20′ ‘Standard 900PCS
Accessory Power Cable Yes (1.5M)
VGA Cable Yes (1.5M)
User Manual(e-file) Yes, HSD format (23 language)
Quick Start Guide(Paper) Yes, HSD format
Color Plan Arm / Base/Rear Cover/Bezel- Texture
Carton Box Brown carton, HSD format
HDMI Logo Yes
Certification  CE, CB,EU Erergy Label, HDMI
Energy label 23 kWh/annum
