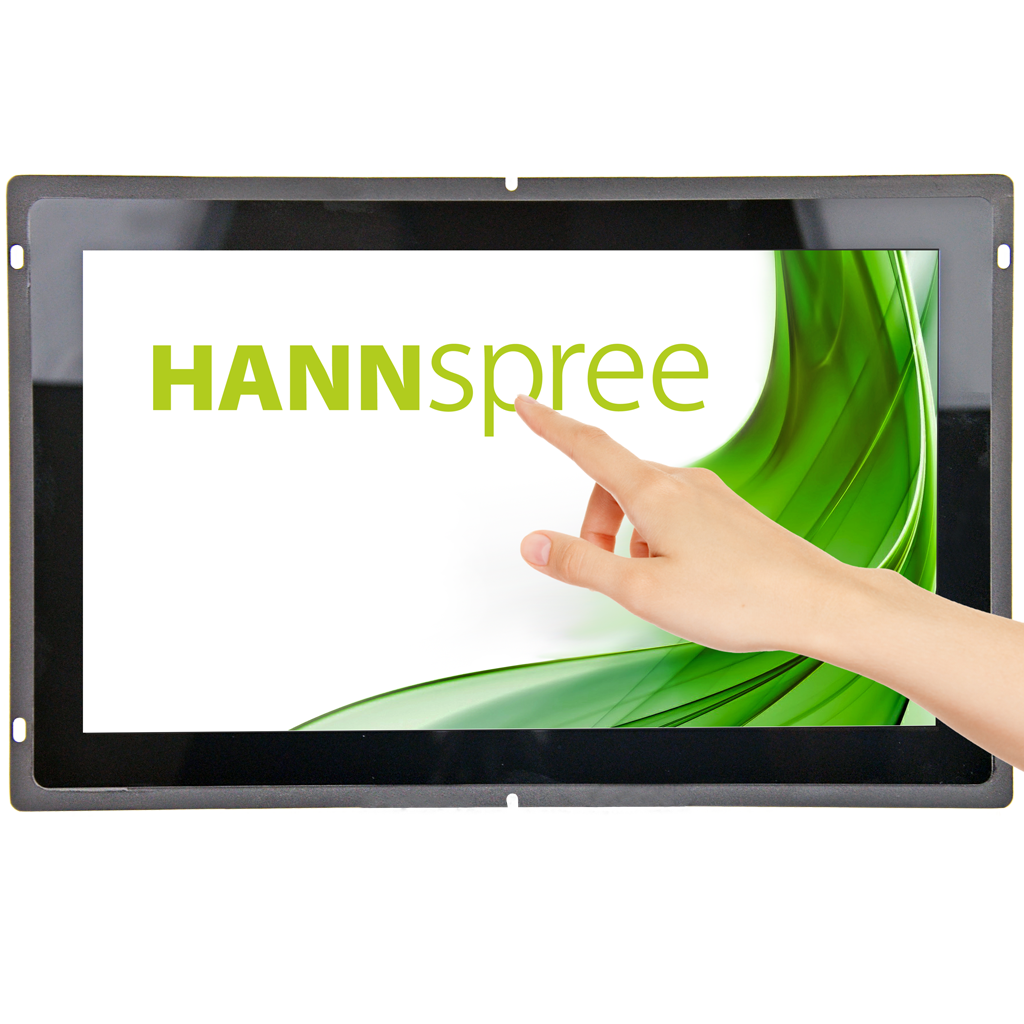

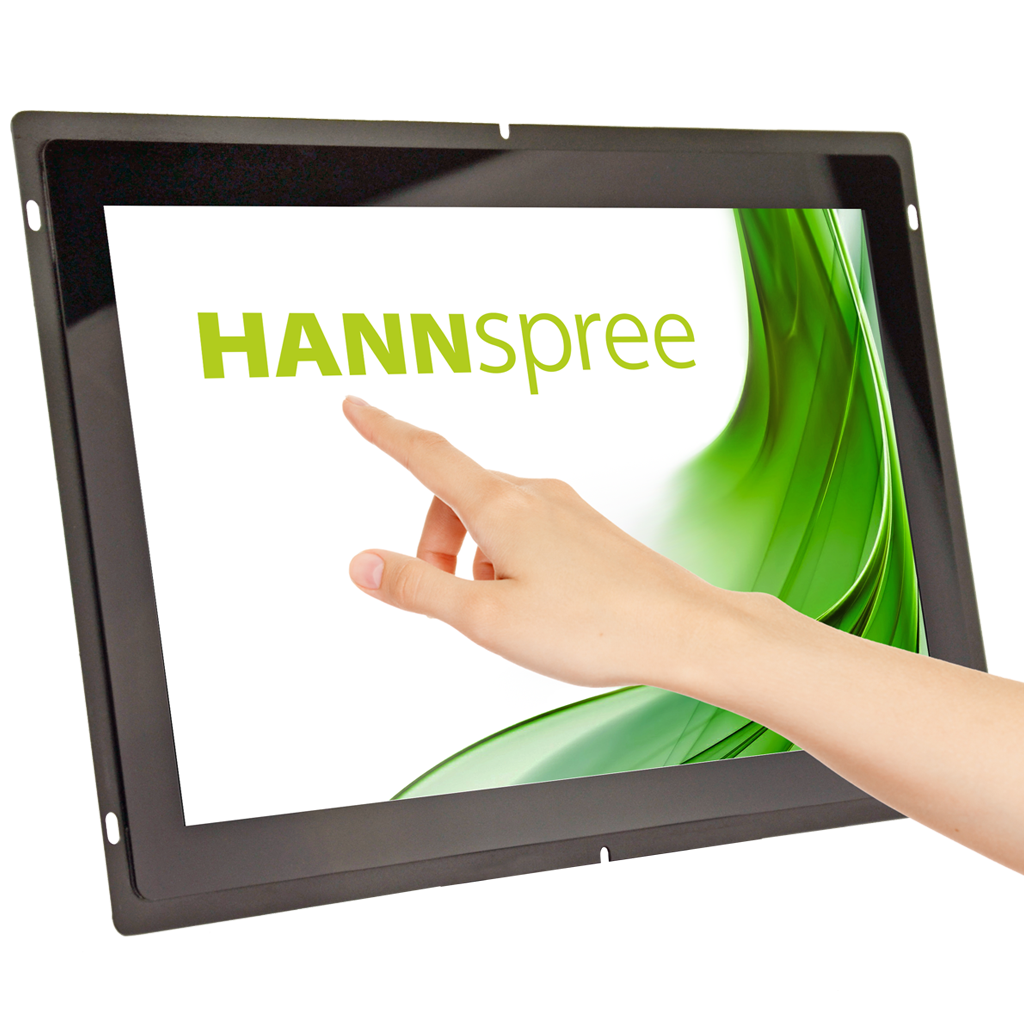

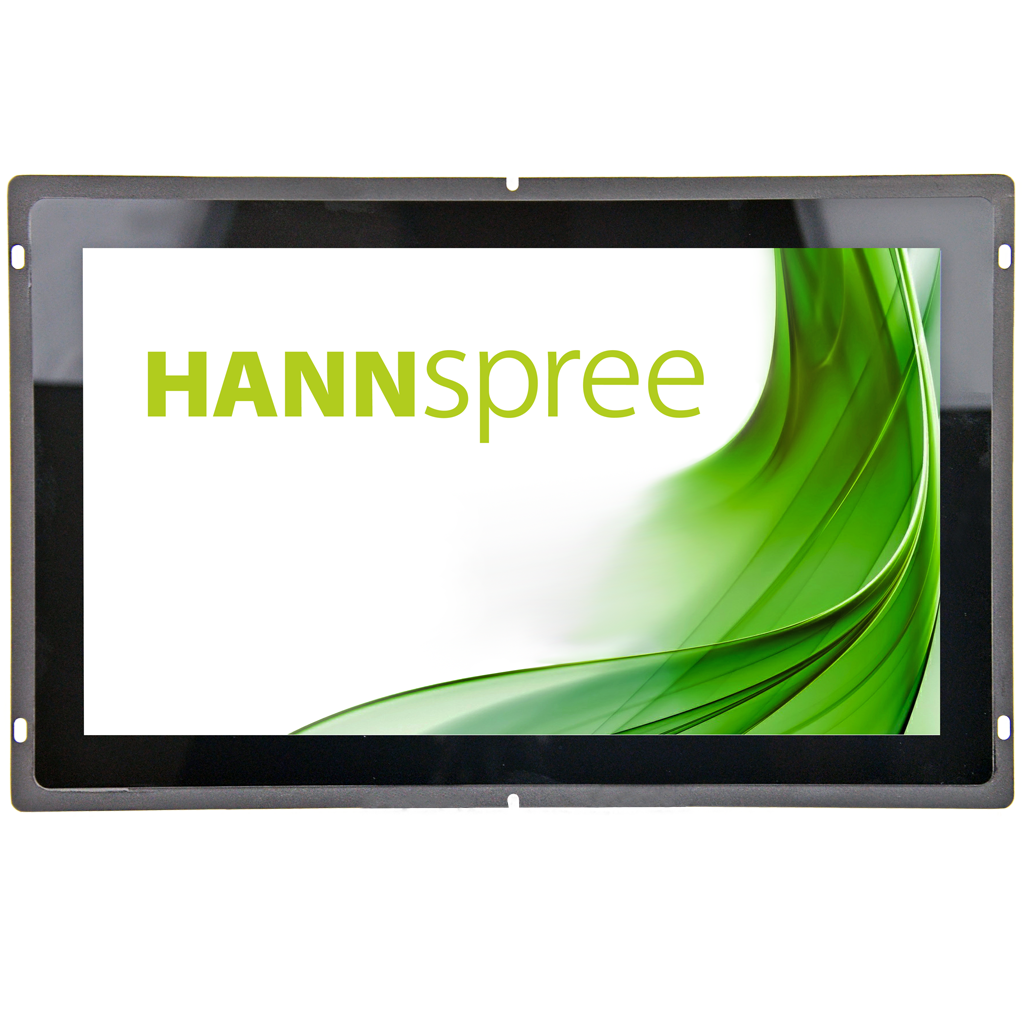

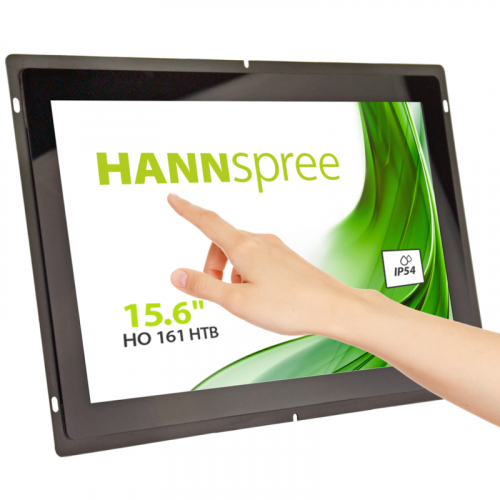

HO 161 HTB

Click Me

SKU: HO161DTB Category: Tag:
  • 15.6″ 16:9 LED Backlight Open Frame Display
  • 1920 x 1080 Resolution Full HD 1080P
  • 10-Point Touch P-Cap Technology
  • 170° / 170° Ultra Wide Viewing Angle

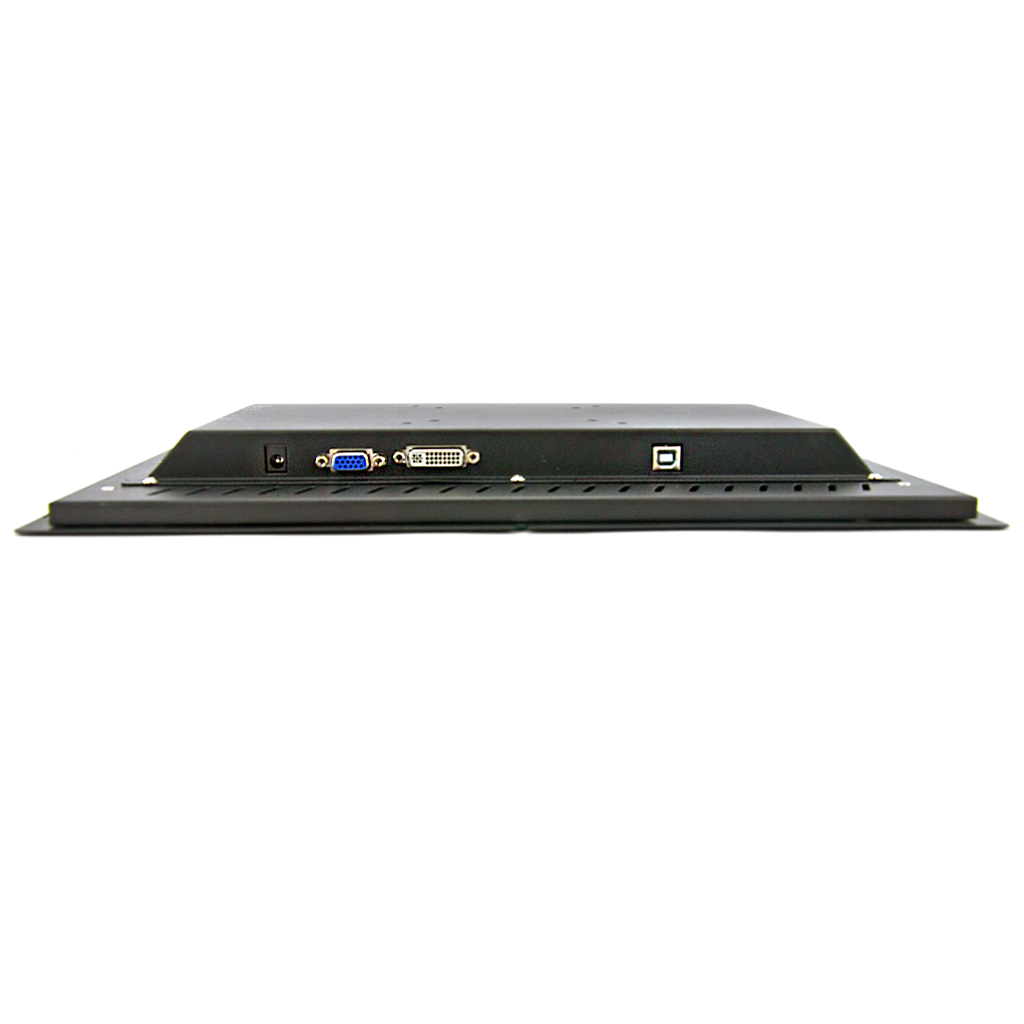

  • Dual Input: HDMI + VGA
  • IP54 (front) Rating Level
  • TP Module Thickness 3.3mm​
  • 24/7 Operating
  • ≥7H Toughened Hard Panel Surface
  • 12 Volt External Power Supply
  • Multiple Mounting Options
Energy Label, HO 161 HTB

THE OPEN FRAME – THE INDUSTRIAL DISPLAY SOLUTION

The HANNspree HO161DTB 15.6’’ 16:9 Open-Frame monitor delivers a high-performance display solution. Its rugged bezel with edge-to-edge glass makes it very suitable for applications like table top integration. The HANNspree HO161DTB is an ideal display for integration in a kiosk, totem and a perfect solution for interactive digital signage, Instore Retail, Gaming and many other sectors.

Possible Applications:

Gaming/Casino, Entertainment Slot Machines, Video lottery Machines, Totem Kiosks, Medicine and ticketing, Education, Self-service terminals, Industrial control…

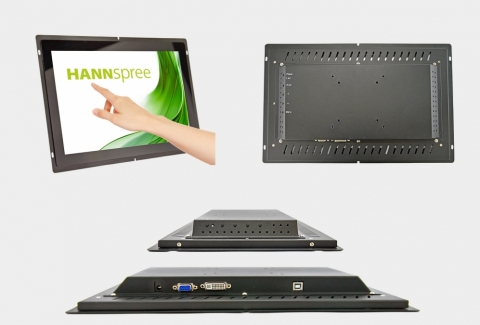

ho161dtb-usp_1
ho161dtb-usp_2

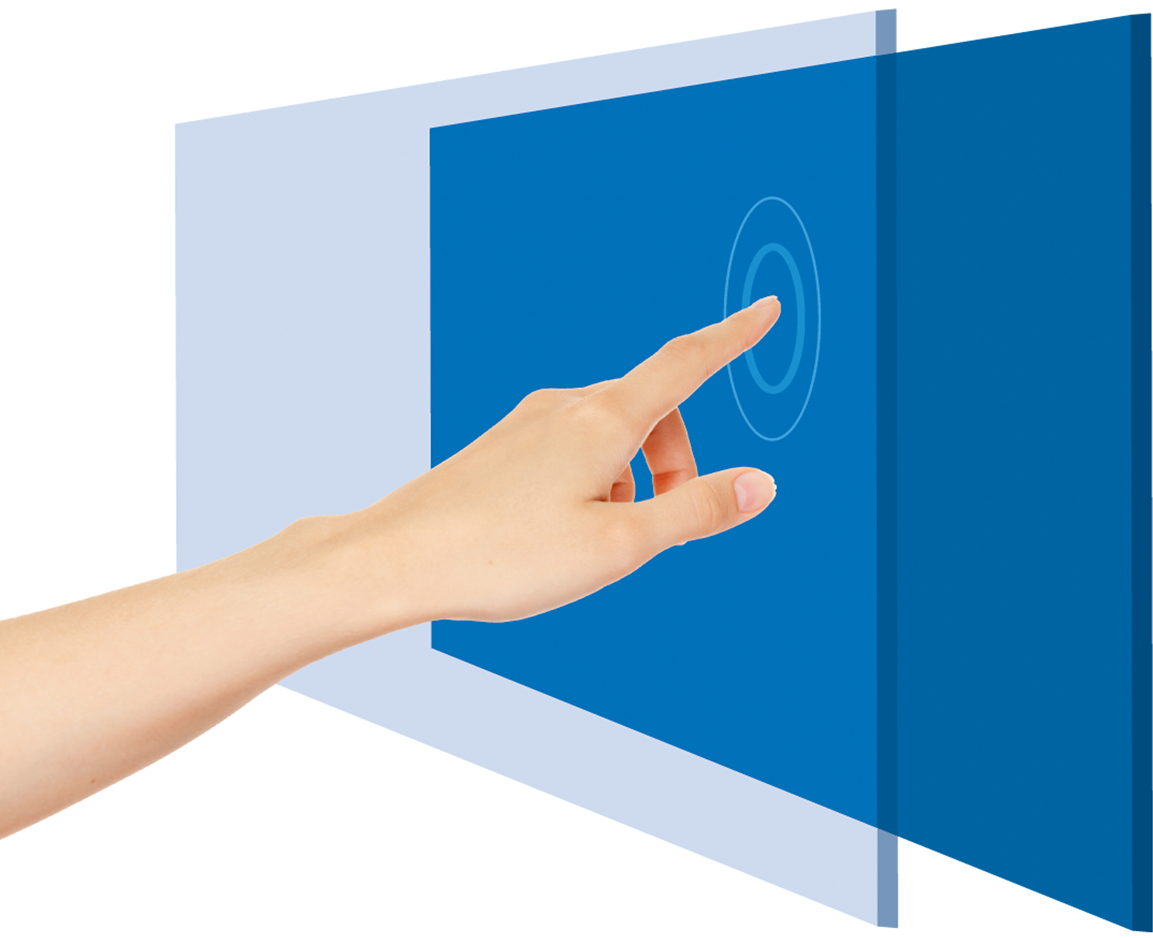

PROJECTED CAPACITIVE (PCAP) TOUCH TECHNOLOGY

Now multiple users can experience shared touchscreen interaction. Using up to 10 finger touch points, the HANNSpree HO161HTB Monitor allows everyone to play and collaborate at the same time.

The precise and accurate multi-touch display — allowing up to 10 simultaneous touches — allowing you to work smarter and more efficiently.

There’s no need for additional controllers – all they have to do is just reach out and touch the screen. It is certified for Windows 10 and designed to offer superior performance as well as intuitive control, so you can be more productive and do everything you want to do smoothly and quickly.

With Projected Capacitive Touch, users can enjoy a smoother and more accurate touch display experience with increased interactivity. Thanks to the glass overlay this technology is highly durable, the Touch performance is unaffected by everyday use and mishaps such as dirt, dust, condensation, liquid spills or cleaning solutions.

This technology delivers super fast, sensitive touch response with excellent dragging performance and perfect picture quality. Ten-point multi-touch support lets you unlock the power of today’s touch-enabled applications.

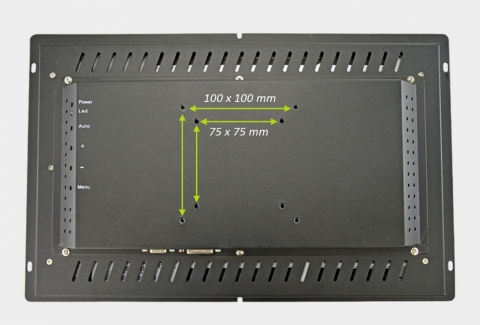

MOUNTING OPTIONS

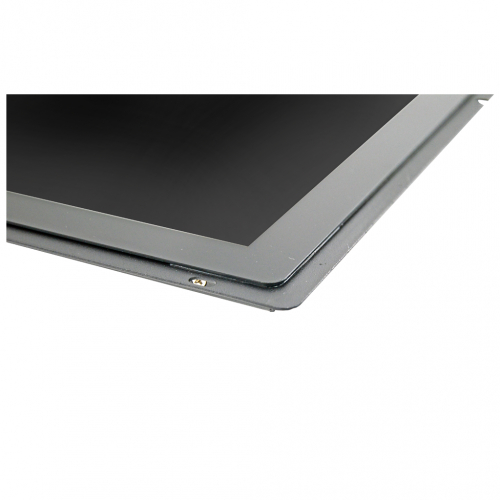

Its rugged bezel with edge-to-edge glass makes it very suitable for applications like table top integration. The display supports rear VESA and external mounting brackets for multiple mounting options. The brackets provide the benefits of easy installation, and flexibility for different applications.

• Supports Multiple Mounting Options

• Slim profile with narrow edges

ho161dtb-usp_3
scratch-resistant-hans-monitors

SCRATCH RESISTANT – MULTI-TOUCH SCREEN WITH 7H SURFACE HARDNESS

7H scratch resistant surface hardness ensures durability, as well as a consistent high quality touch experience.

Scratch resistance is essential for touch solutions used for education and public environment. This is achieved thanks to a glass overlay covering the screen. This means that the panel surface can withstand impact from objects and scratches, making it perfect for public spaces and educational institutions.

Our toughened Hard Glass fronted LED Monitors (7H hardness rating) are designed specifically for retail and Industrial applications offering protection from impacts and dirt for a long life solution.

It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

Hannspree Europe Holdings B.V. Specifications and design are subject to change without notice. Non-metric weights and measurements are approximate.

All brand, product, Service names and logos are trademarks and/or registered trademarks of their respective manufactures and companies. Screen shot are simulated. Actual products may differ slightly from those illustrated on this promotion material.

Please refer to actual samples for final selection. The products displayed on this promotion material may not be available for purchase in your particular country or locality. Please check with Hannspree authorized representatives for the availability of specific products in your area.

Hannspree reserves the right to alter design and specifications as well as to change the accessories with equivalents without notice.

Android, Google, Google Play and other marks are trademarks of Google Inc.

Hannspree
Display Size 39.6cm / 15.6″ Diagonal
Panel Type TFT – LED Backlight
Aspect Ratio 16:9
Resolution (H x V) 1920 x 1080 Full HD
Panel Brightness 250cd/m² (Typical)
Contrast (Typ.) 800:1 (Typical)
Display Area 344.16 x 193.59 mm
Viewing  Angle L/R – U/D  170°H / 170°V (CR > 10)
Response Time 30 msec
Pixel Pitch 0,17925 (H) x 0,17925 (V) mm
Touch Type Projected Capacitive Type – 10 Point Touch – Material Glass + Glass
Display Colours 256K Colors
Horizontal Frequency 30 ~ 80 kHz
Vertical Frequency 56 ~ 75 kHz
Max Display Frequency 1920 x 1080 @ 60Hz

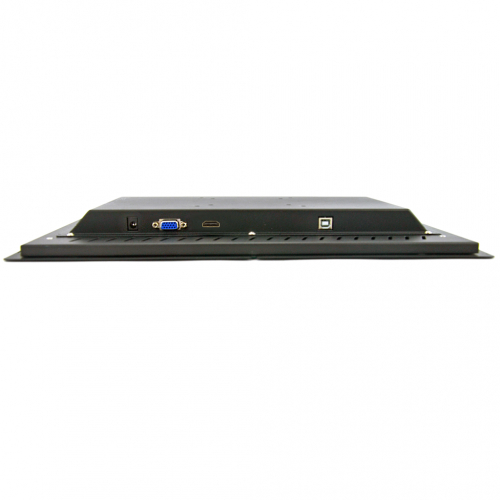

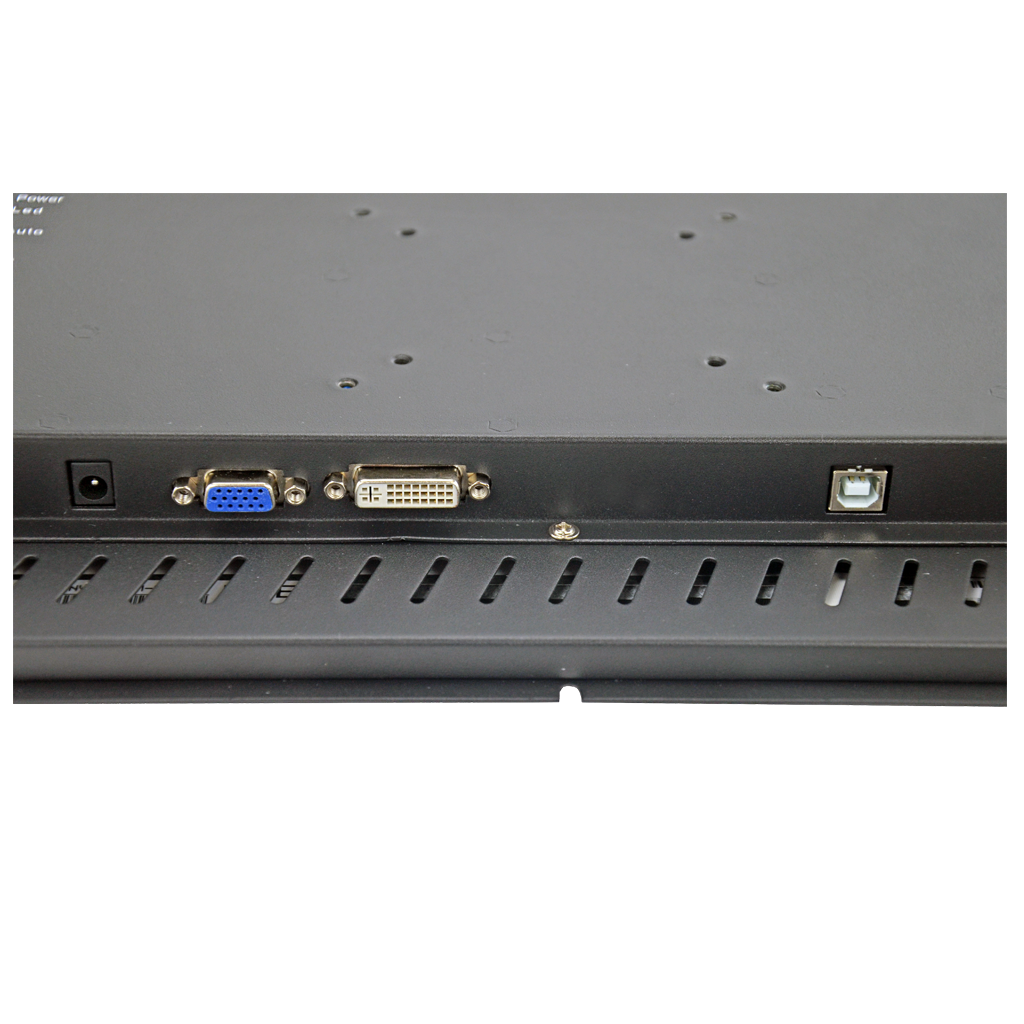

Input 1 VGA
Input 2 HDMI
Input 3 USB Interface (Touch)
Speakers N/A
Power Consumption On: 7W; Stand-by: 0,121W; Off: 0,109W
AC Power Range 12 Volt / 1A External Power Suply
Product Dimensions  405 x 36.4 x 256 mm (W x D x H)
Packing Dimensions TBC
Net / Gross Weight TBC

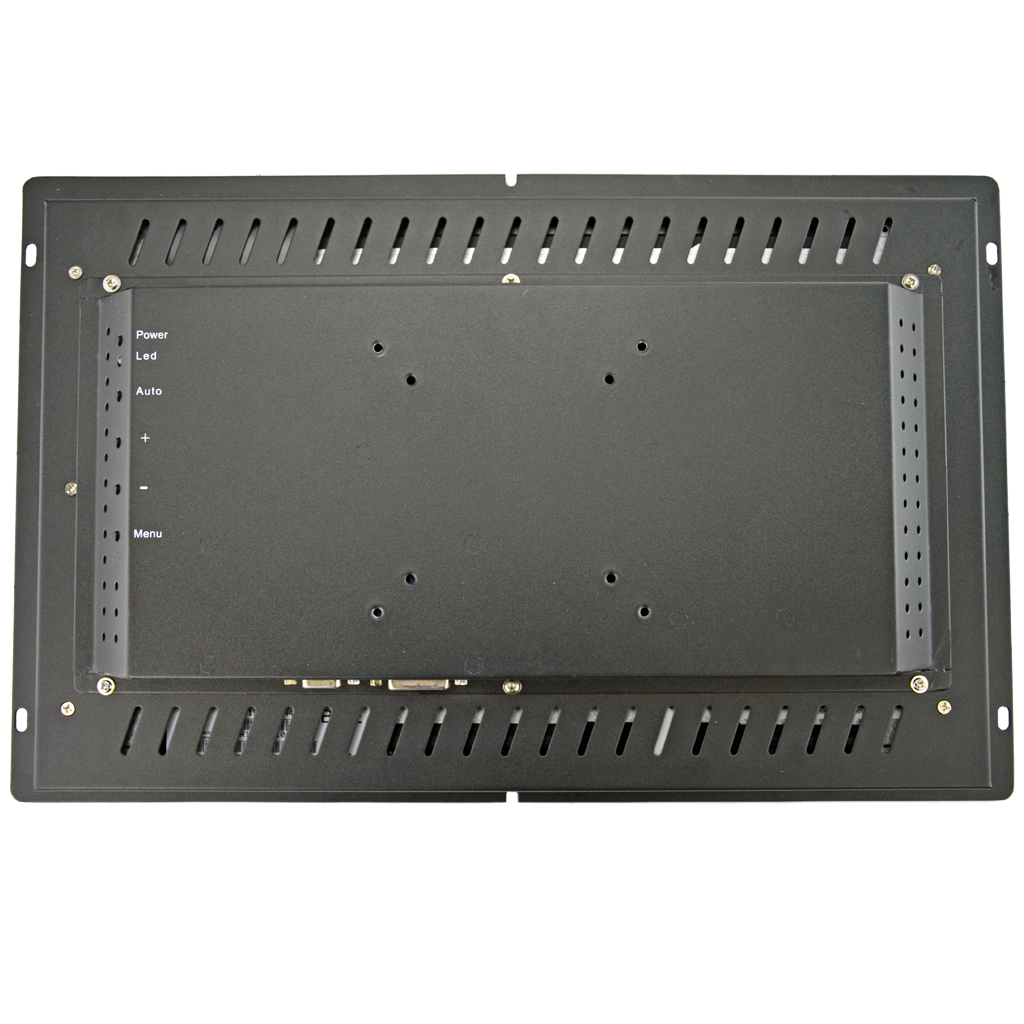

Vesa Mounting 75 x 75 mm / 100 x 100 mm
Display Protection TP Module Protection Thickness 3,3±0.3 mm
Hardness / Transmittance 7H Toughened hard panel surface / ≥85%
IP Rating Level IP 54 (Front), Water and Dust Protection *
24 / 7 Operating Yes
LED Backlight life 15.000 Hours
Accessories Power Supply, HDMI Cable (1.5m), USB Cable for Touch
Certifications CE
On Screen Display 9 Languages
Color 9300, 7500, 6500, User Mode

datasheets

  • HO161HTB - 15.6'' Open Frame Touch Monitor (IP54).pdfDownload
