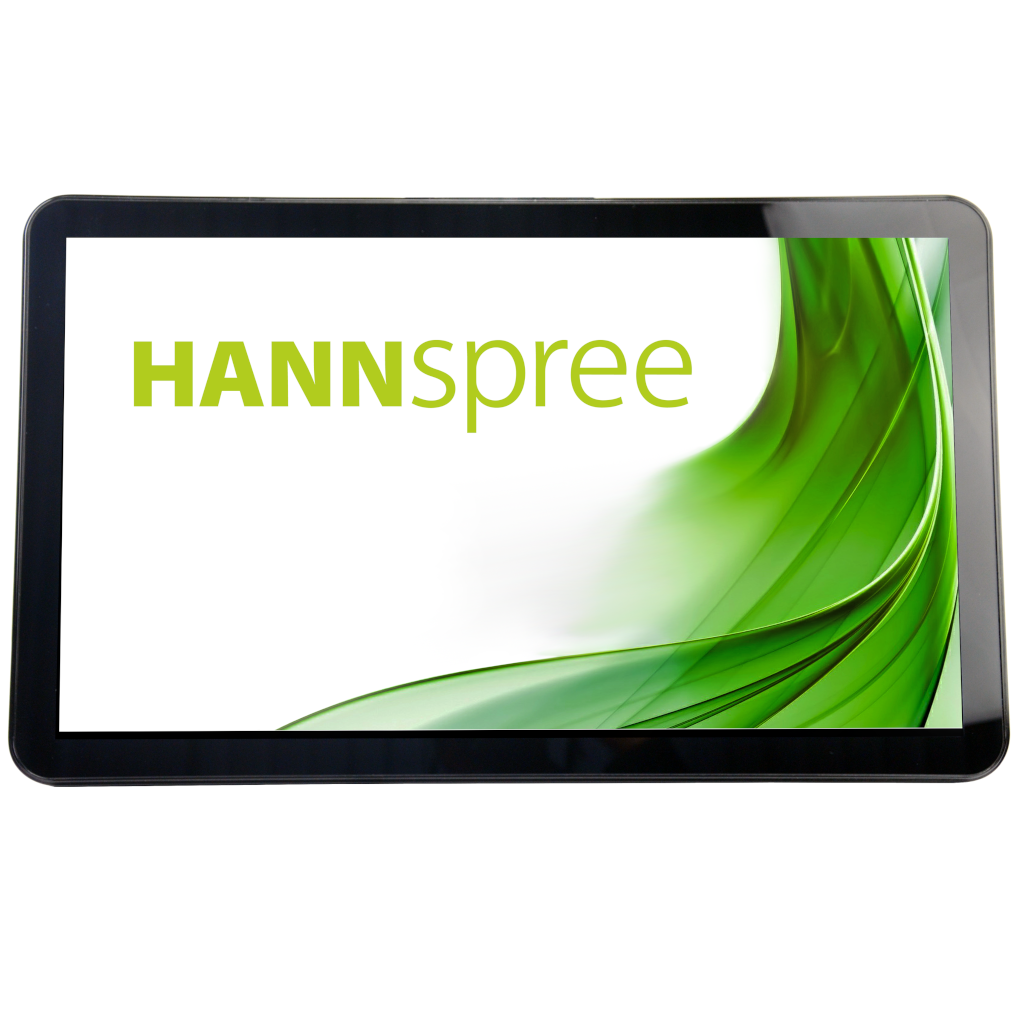

HO 225 OTB

SKU: HO225OTB Category: Tag:
  • 1920 x 1080 Resolution Full HD 1080P
  • 10-Point Touch P-Cap Technology
  • 178° / 178° Ultra Wide Viewing Angle
  • High Brightness Panel 1000 cd/ m²
  • IP65 Rating Level
  • Display Protection: Thickness 3mm
  • Designed for 24/7 Operation
  • 50.000 Hours Backlight Lifetime

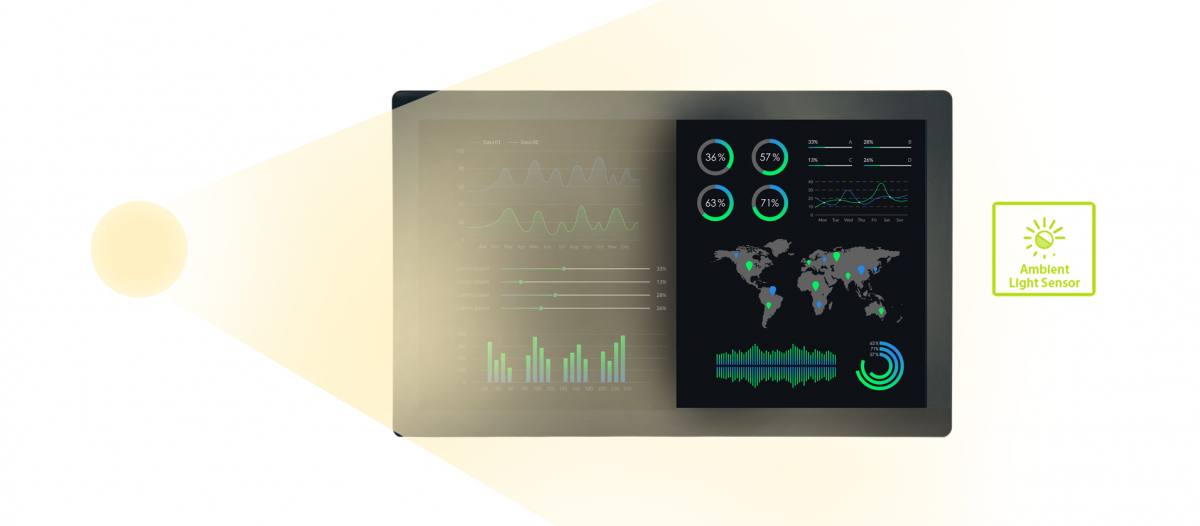

  • Ambient Light Sensor

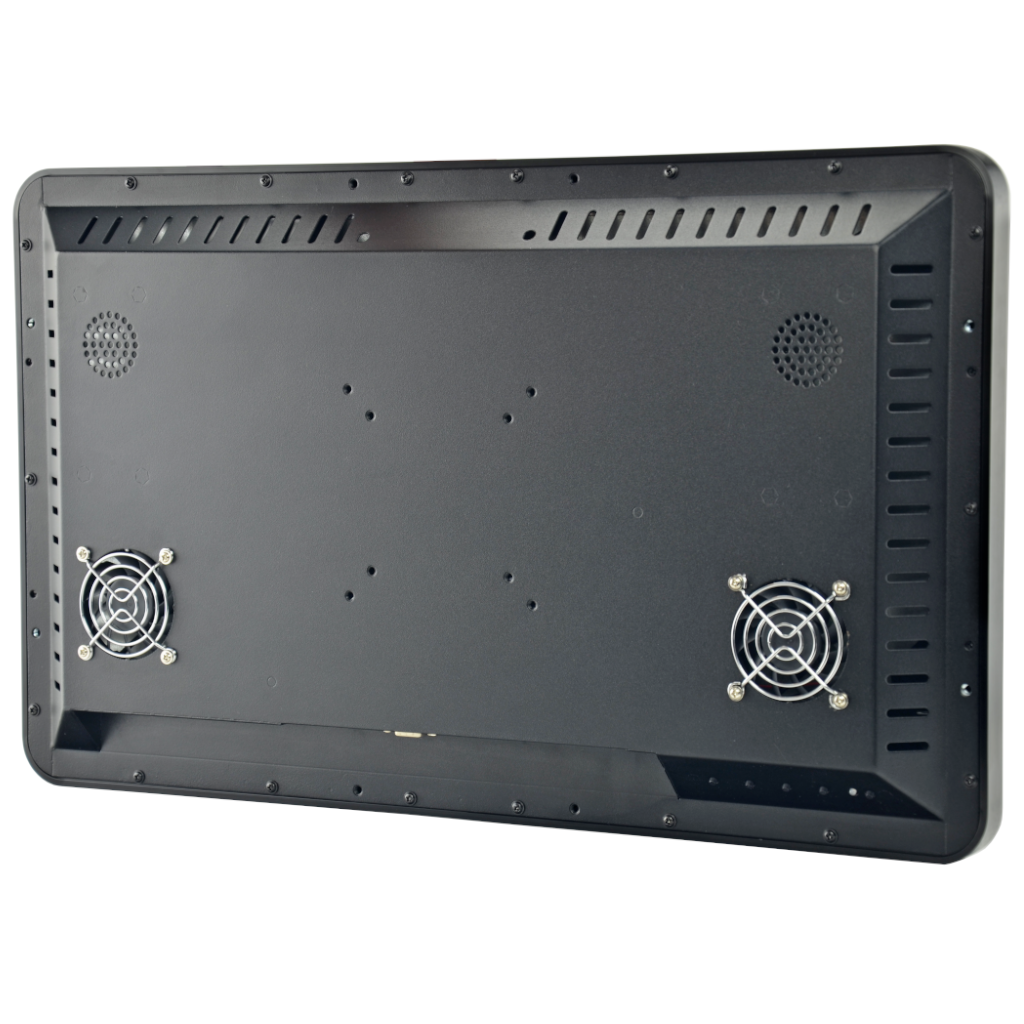

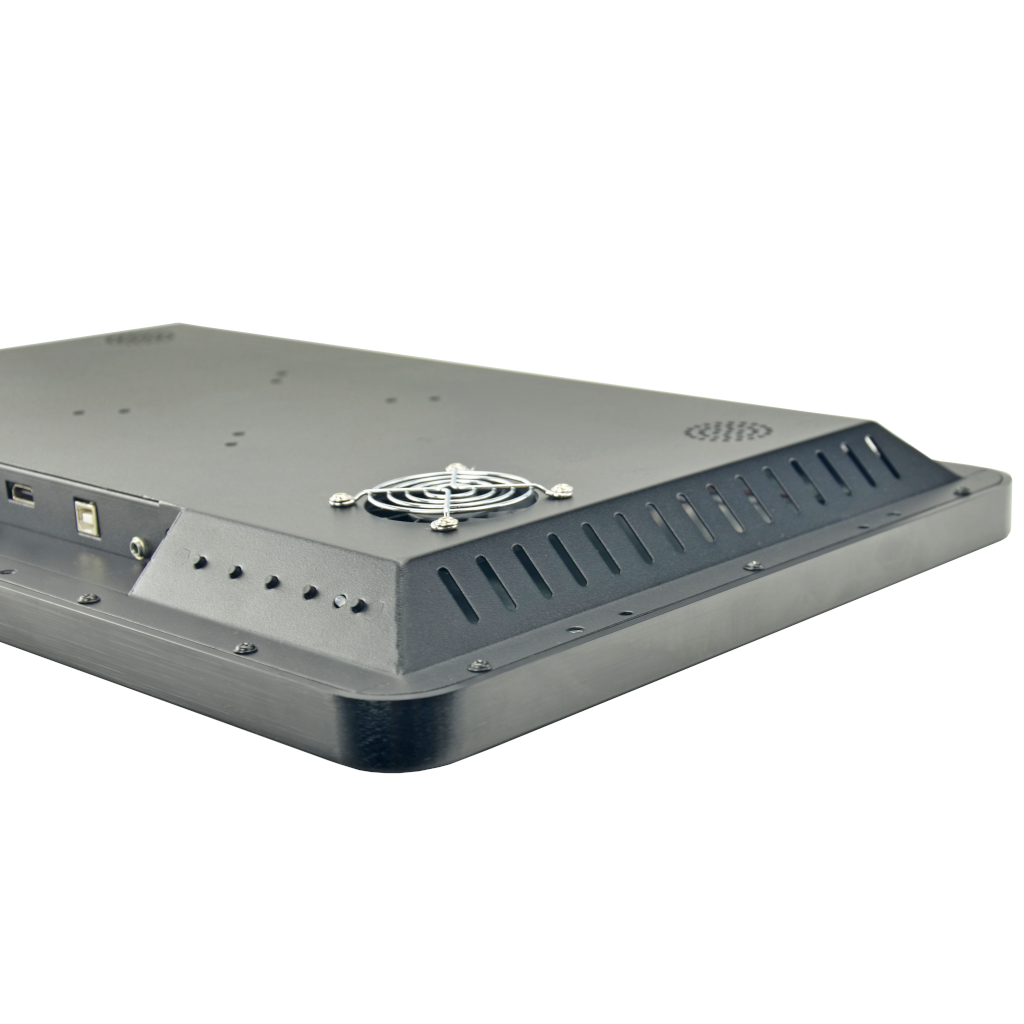

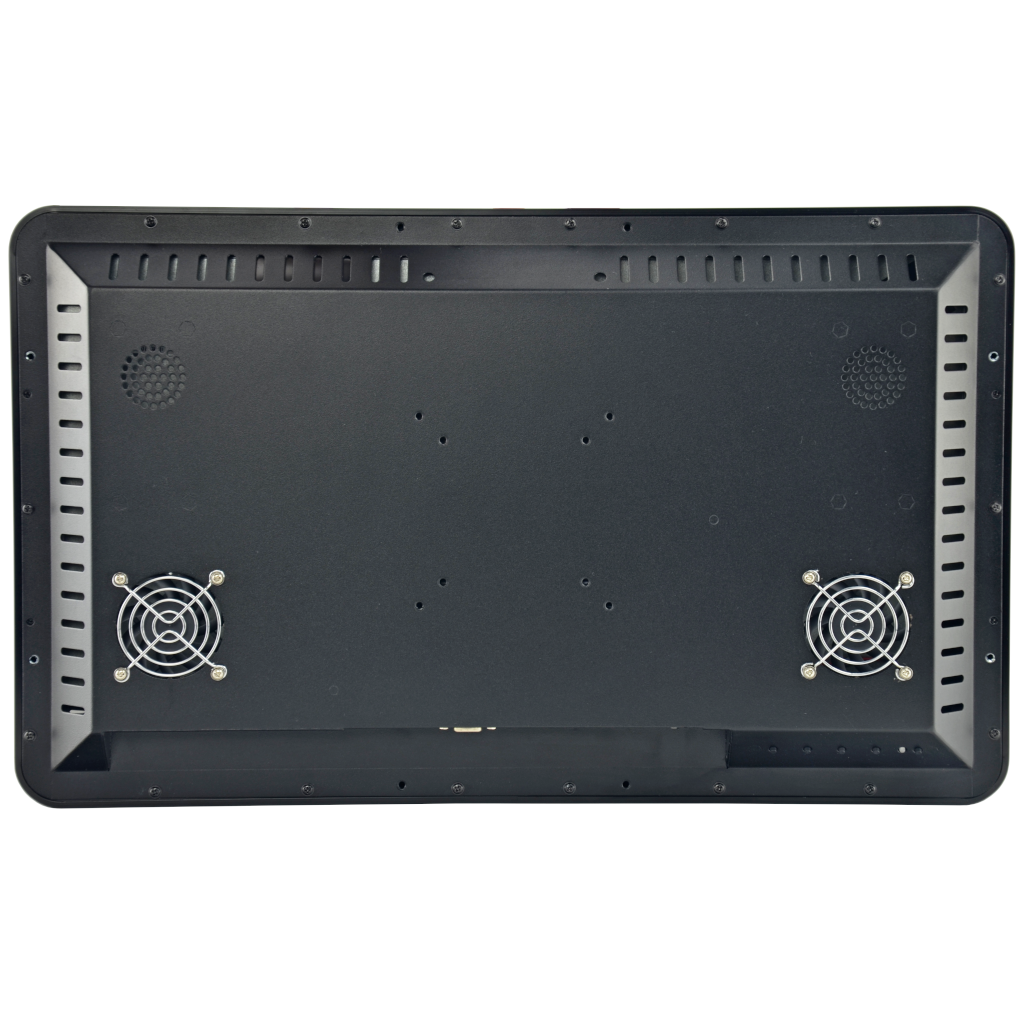

    Built-in fans
  • ≥7H Toughened Hard Panel Surface

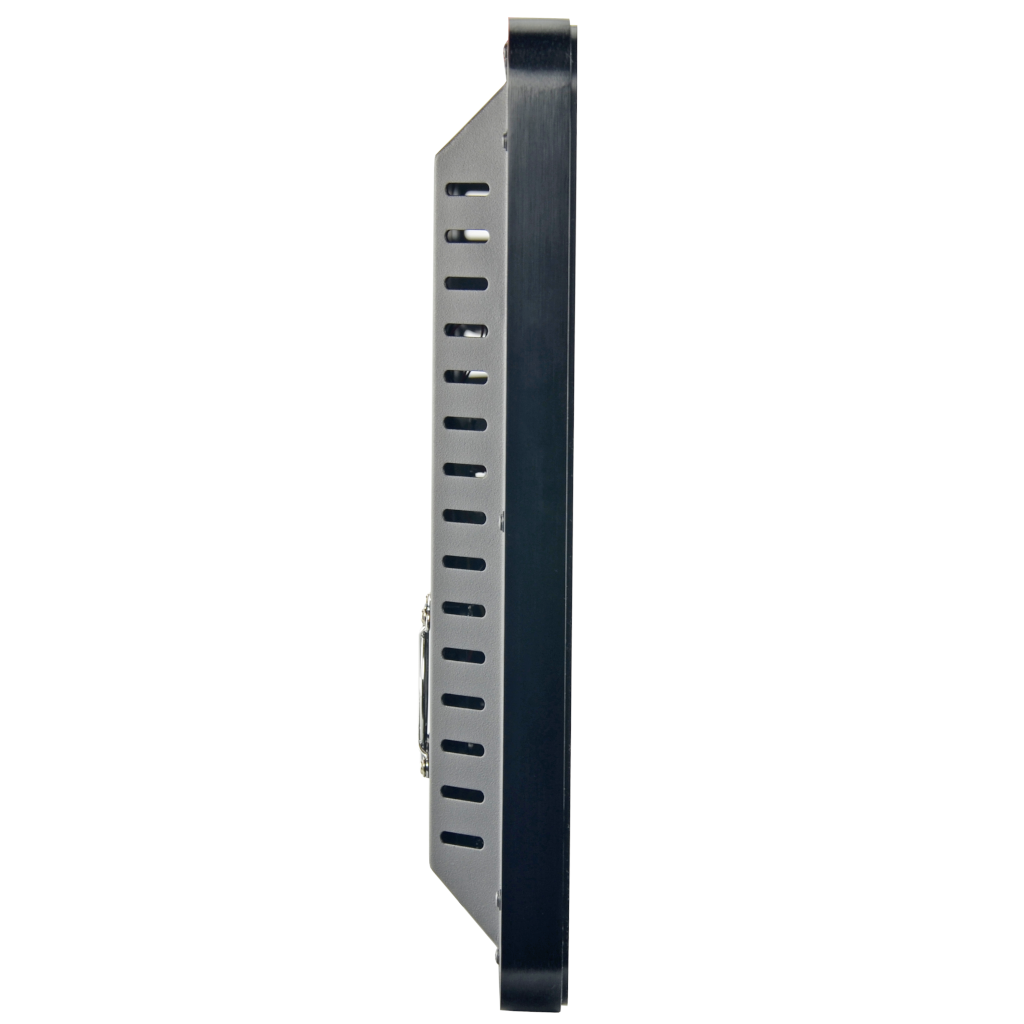

  • Slim Profile with Narrow Edges

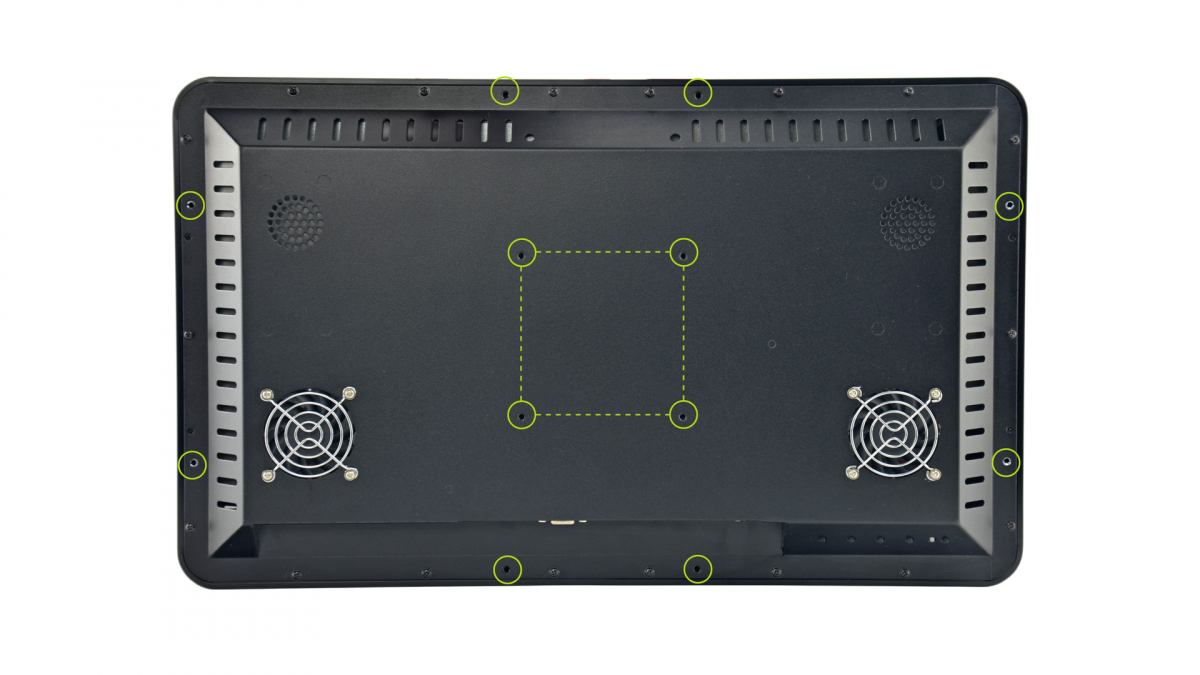

  • VESA Mount and Multiple Mounting Options
  • Edge to Edge glass without a raised frame

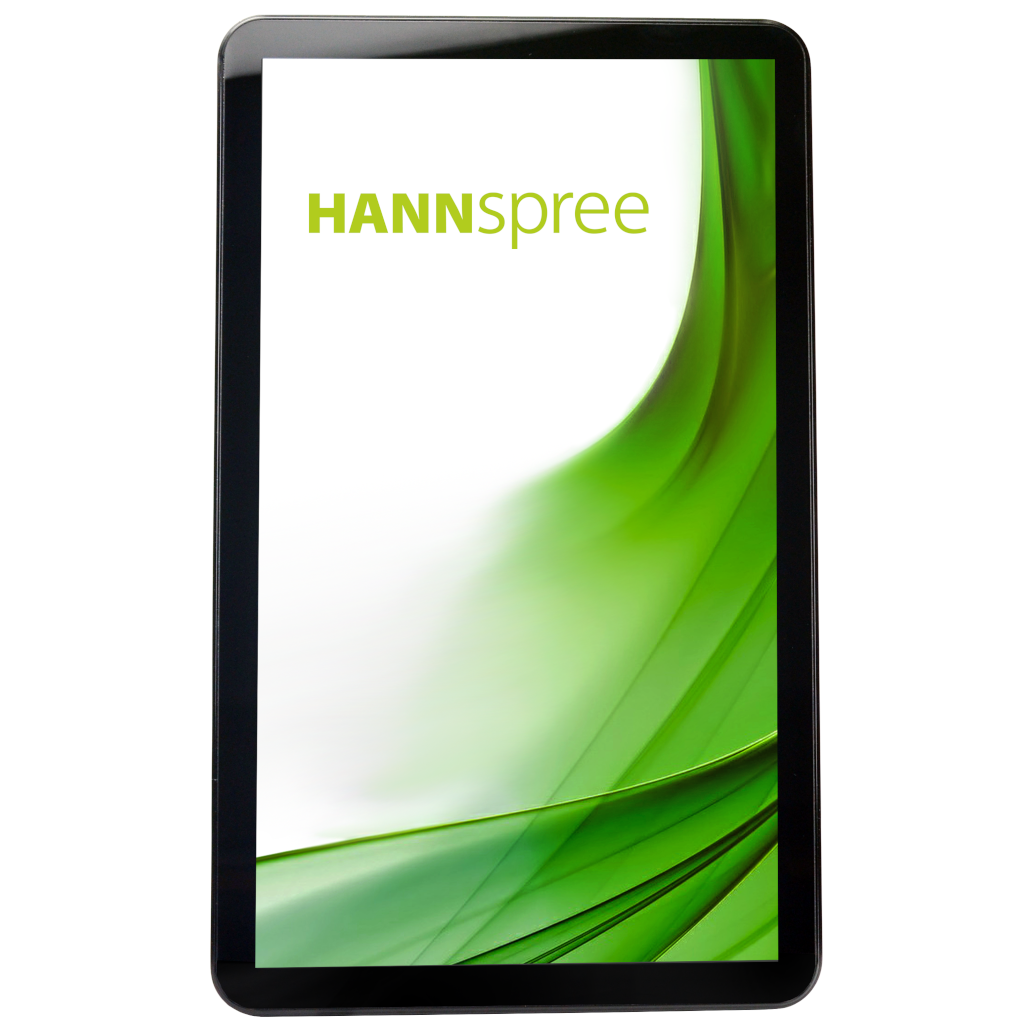

  • Orientation: Landscape, Portrait, Face-Up

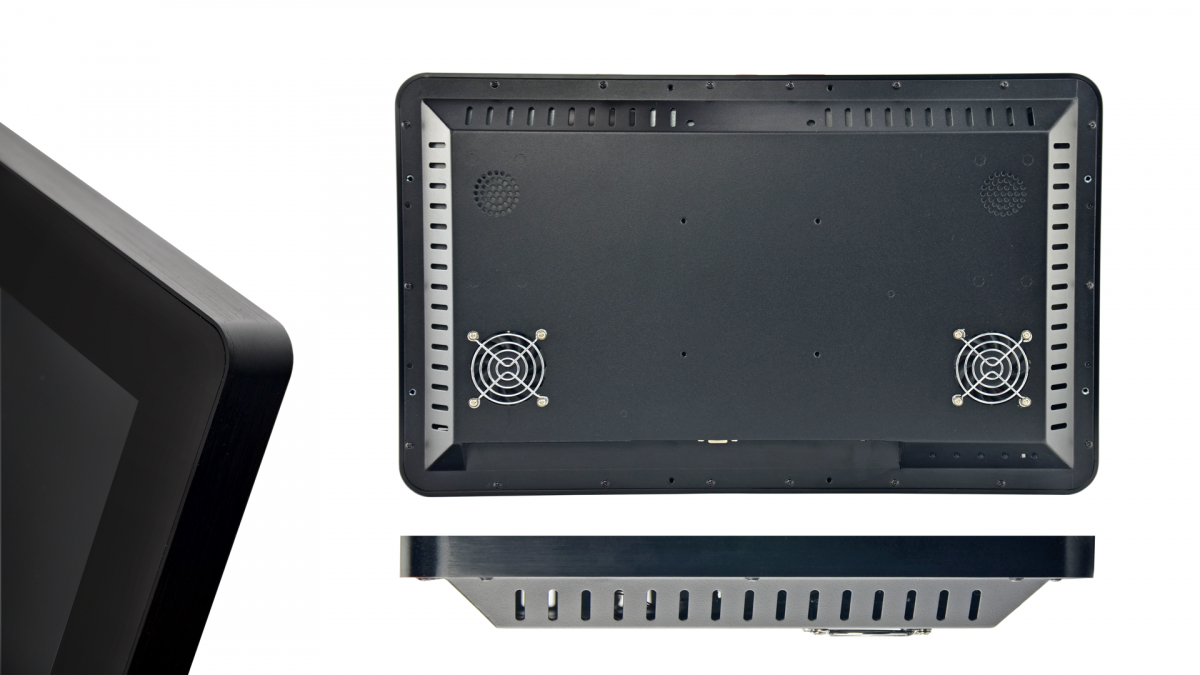

THE OPEN FRAME:

THE INDUSTRIAL DISPLAY SOLUTION

Possible Applications:

Gaming/Casino, Entertainment Slot Machines, Video lottery Machines, Totem Kiosks, Medicine and ticketing, Education, Self-service terminals, Industrial control…

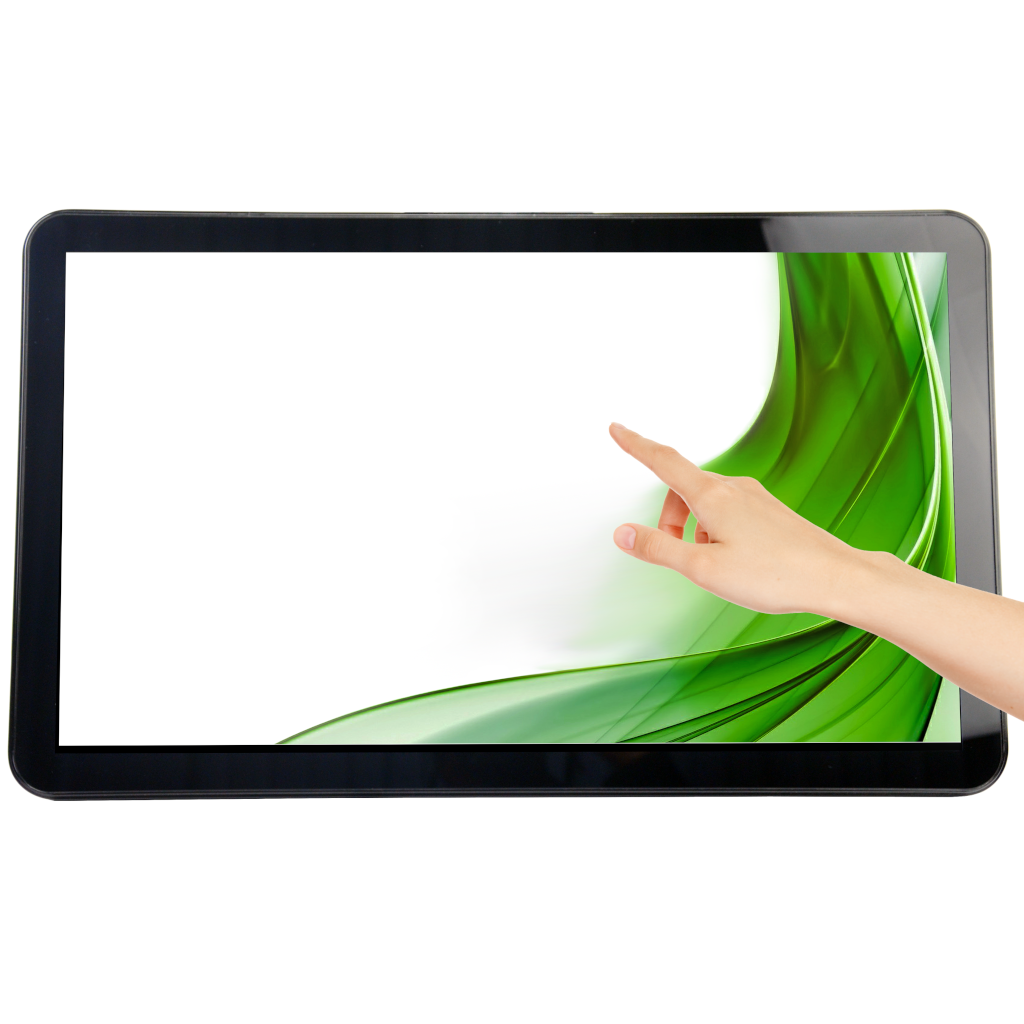

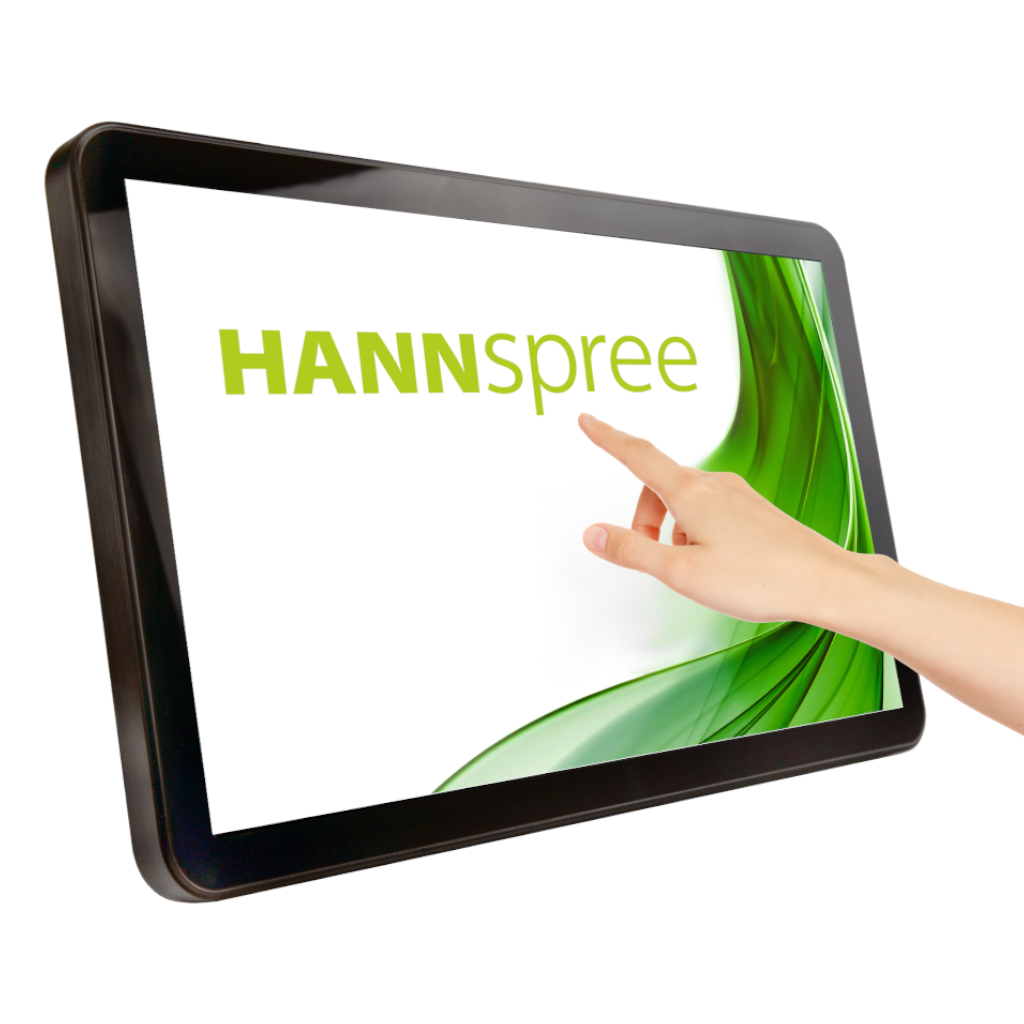

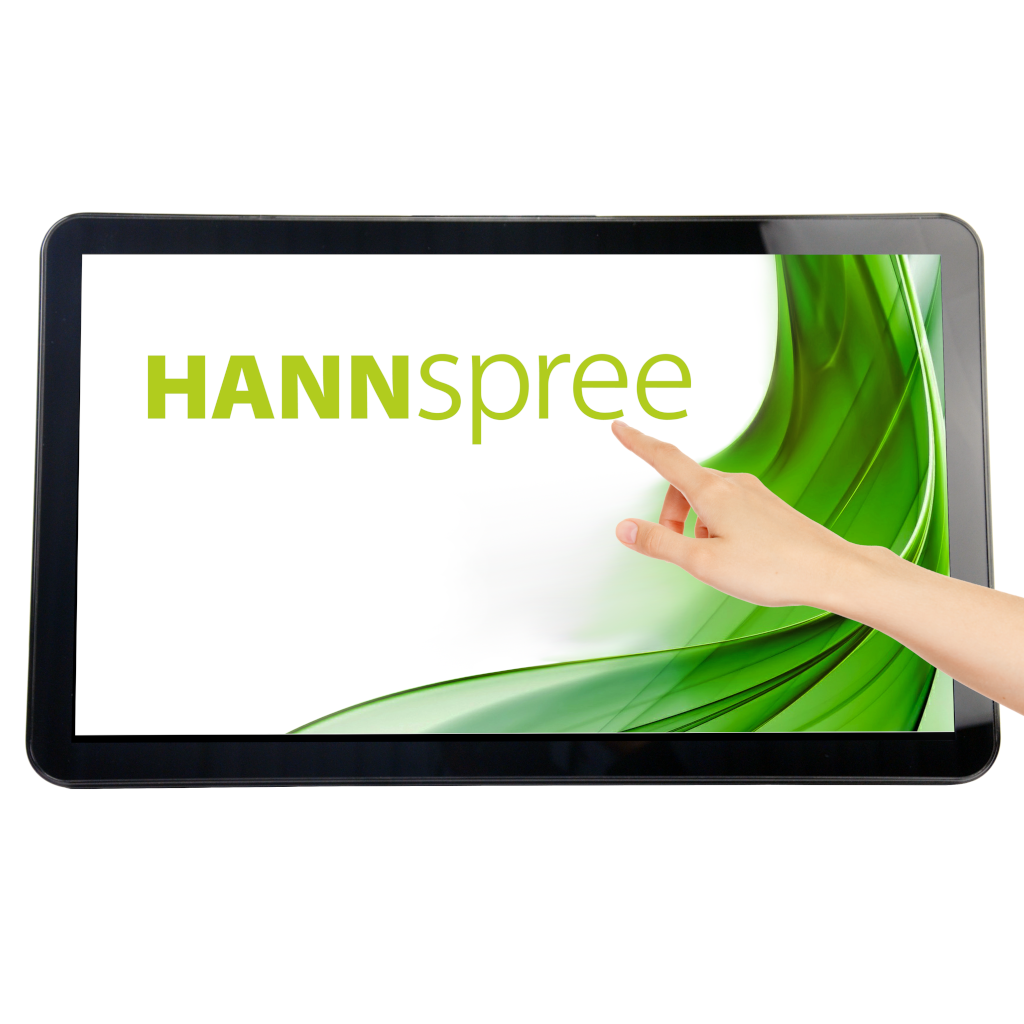

Now multiple users can experience shared touchscreen interaction. Using up to 10 finger touchpoints, the HANNSpree HO225OTB Monitor allows everyone to play and collaborate at the same time.

The precise and accurate multi-touch display — allowing up to 10 simultaneous touches — allowing you to work smarter and more efficiently.

There’s no need for additional controllers – all they have to do is just reach out and touch the screen. It is certified for Windows 10 and designed to offer superior performance as well as intuitive control, so you can be more productive and do everything you want to do smoothly and quickly.

With Projected Capacitive Touch, users can enjoy a smoother and more accurate touch display experience with increased interactivity. Thanks to the glass overlay this technology is highly durable, the Touch performance is unaffected by everyday use and mishaps such as dirt, dust, condensation, liquid spills or cleaning solutions.

ho161dtb-usp_2

SCRATCH RESISTANT – MULTI-TOUCH SCREEN WITH 7H SURFACE HARDNESS

6H scratch resistant surface hardness ensures durability, as well as a consistent high quality touch experience.

Scratch resistance is essential for touch solutions used for education and public environment. This is achieved thanks to a glass overlay covering the screen. This means that the panel surface can withstand impact from objects and scratches, making it perfect for public spaces and educational institutions.

Our toughened Hard Glass fronted LED Monitors (6H hardness rating) are designed specifically for retail and Industrial applications offering protection from impacts and dirt for a long life solution.

It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

VIVID IMAGES, LIFELIKE VISUALS THE LATEST TECHNOLOGY WITH 178° ULTRA-WIDE VIEW ANGLES

The Touch monitor HO225OTB features a 16:9 aspect ratio LED-backlit panel with a 178° ultra-wide view angle that minimizes colour shift on both horizontal and vertical planes to ensure quality visuals from almost any direction. It delivers improved colour accuracy plus increased energy efficiency.

The HO225OTB uses a 178°(H) / 178°(V) ultra-wide viewing angle Full HD panel that eliminates colour shift from almost any direction and in nearly every angle.

Display Size 54.61 cm / 21.5″ Diagonal
Panel Type TFT – LED Backlight
Aspect Ratio 16:09
Resolution (H x V) 1920 x 1080 Full HD
Panel Brightness 1000 cd/m² (Panel) – 850 cd/m² (Monitor)
Contrast (Typ.) 3.000:1 (Typical)
Viewing  Angle L/R – U/D  178°H / 178°V
Response Time 25 msec (typ)
Pixel Pitch 0,2479 (H) x 0,2479 (V) mm
Touch Type Projected Capacitive Type – 10 Point Touch
Material Glass + Glass
Display Colours 16.7M Colors
Horizontal Frequency 30 ~ 81 kHz
Vertical Frequency 56 ~ 75 kHz
Max Display Frequency 1920 x 1080 @ 60Hz

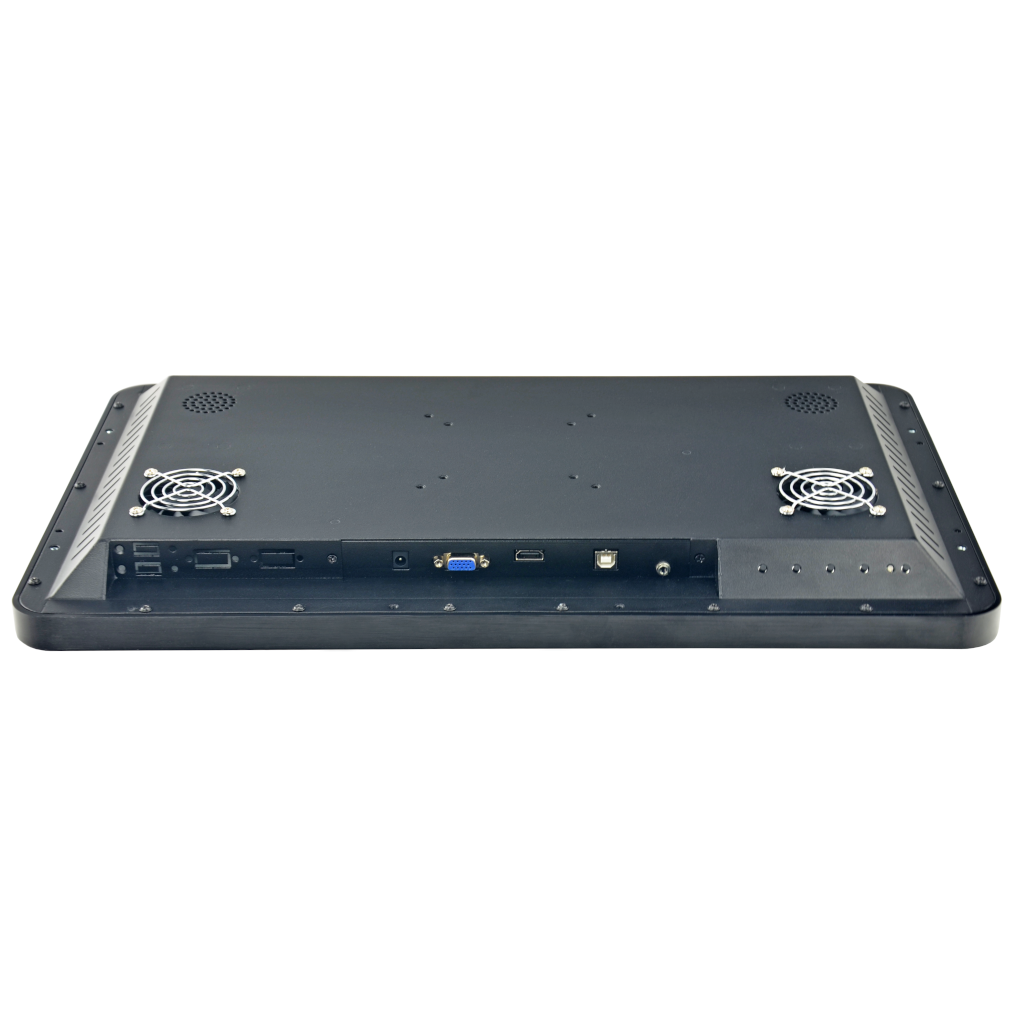

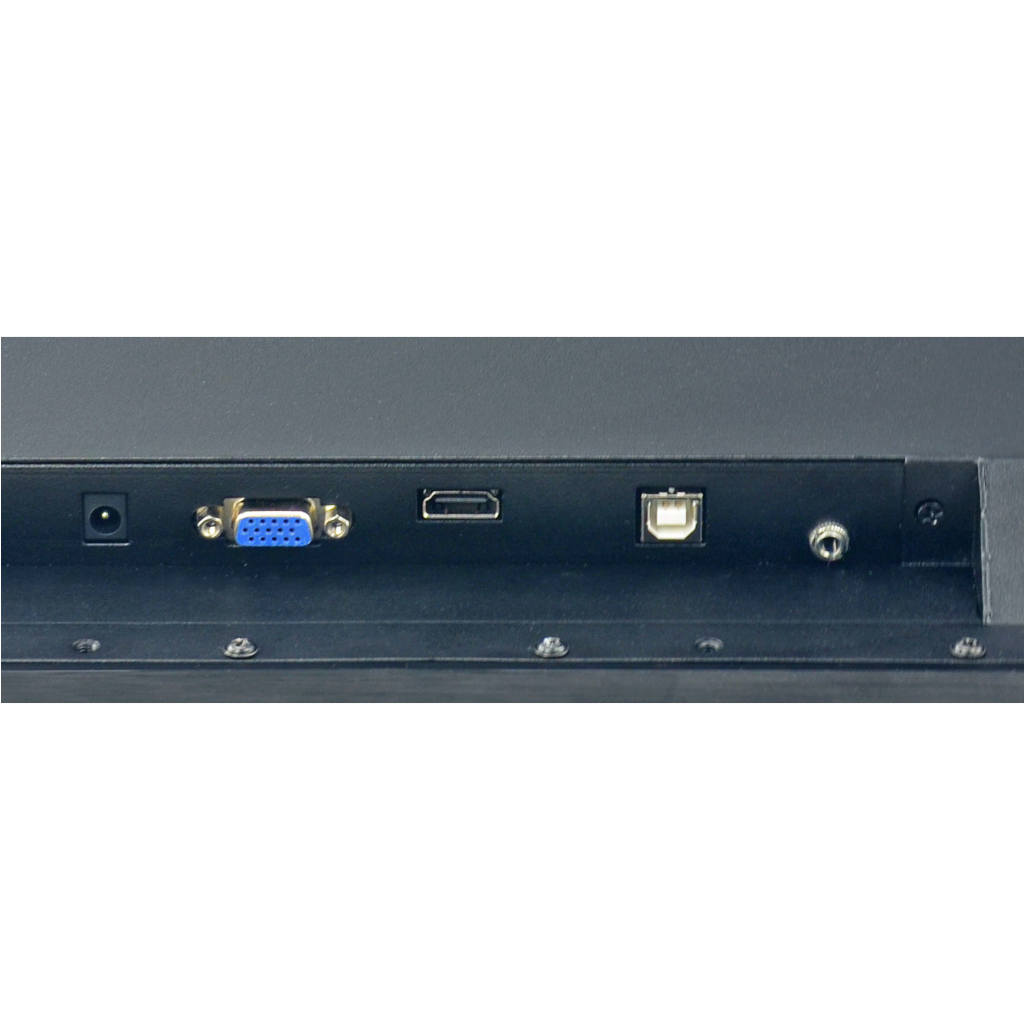

Input 1 VGA
Input 2 HDMI
Input 3 USB (Touch)
Speakers NA
Power Consumption On: 33W; Stand-by: <0,5W; Off: <0,3W TBC
AC Power Range External Power Supply
Input: AC 100 ~ 240 Volt; 50 ~ 60 Hz
Output: 12V – 4A
Product Dimensions 526.6 x 42 x 318.2 mm (W x D x H)
Packing Dimensions 570 x 150 x 380 mm (W x D x H) (TBC)
Net / Gross Weight 7 Kg / 9.5 Kg (TBC)
Vesa Mounting 100 x 100 mm
Display Protection Thickness 3±0.3 mm
Hardness / Transmittance 7H Toughened hard panel surface / ≥85%
IP Rating Level IP 65, Water and Dust Protection *
24 / 7 Operating Yes
LED Backlight life 50.000 Hours
Accessories Power supply;  HDMI Cable (2m);
USB Cable for Touch (1.8m).
Certifications CE, RoHS, ErP Energy Label
On-Screen Display 9 Languages
Colour 9300, 7500, 6500, User Mode
Ambient Light Sensor Yes, external sensor board
Operating Temperature 0° ~ 50°C
Humidity 10% ~ 90% non condensing
