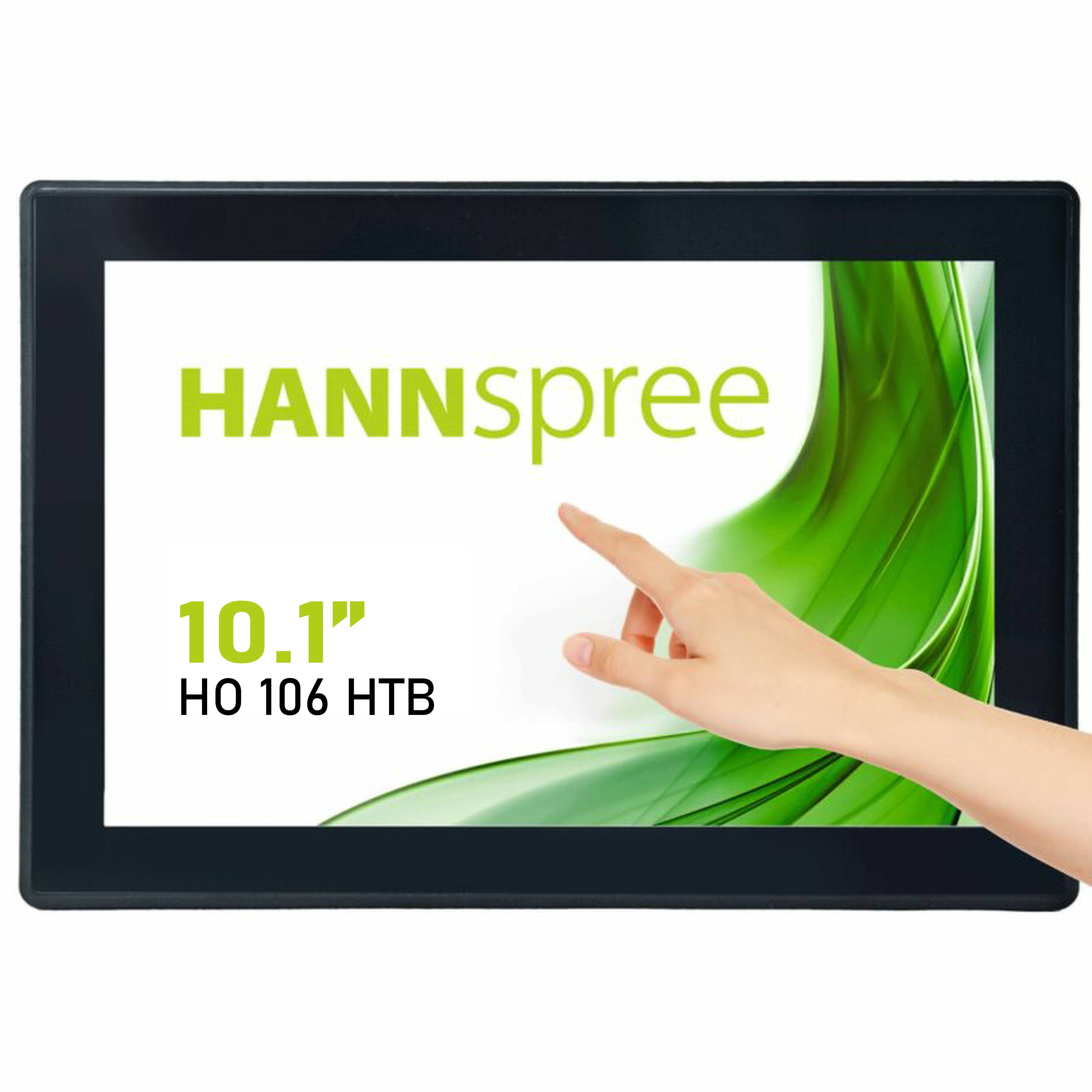

The HANNspree HO106HTB 10.1'' Open-Frame monitor delivers a high-performance display solution. Its rugged bezel with edge-to-edge glass makes it very suitable for applications like tabletop integration. The HANNspree HO106HTB is an ideal display for integration in kiosk, totem and a perfect solution for interactive digital signage, In-store Retail, Gaming and many other sectors.


CATEGORY: Open Frame Touch Series

TAG: Open Frame Touch Series

  • 1366 x 768 Resolution
  • 10-Point Touch P-Cap Technology
  • 170° / 170° Wide Viewing Angle
  • Dual Input: HDMI + VGA
  • IP65 (front) Rating Level
  • 12 Volt External Power Supply
  • ≥6H Toughened Hard Panel Surface
  • TP Module Thickness 2mm
  • Sturdy Metal Case
  • VESA Mount and Multiple Mounting Options
  • Edge to Edge glass without raised frame
  • Orientation: Landscape, Portrait, Face-Up



The Open Frame - An Industrial Display Solution

  • Gaming Casino
  • Entertainment Slot Machines
  • Video Lottery Machines
  • Totem Kiosks
  • Medicine Ticketing
  • Education
  • Self-Service Terminals
  • Industrial Control




Robust IP65 for water and dust resistance

The Ingress Protection (IP) ratings defined in international standard IEC/EN 60529, classifies how resistant a device is to foreign objects and moisture.

The HO106HTB meets the IP rating IP65 for water and dust resistance. It means that the monitor is protected from total dust ingress and it is protected against low pressure water jets.

A sturdy, water and dust resistant, edge-to-edge design to fit your needs.



Projected Capacitive (PCAP) Touch Technology

Now multiple users can experience shared touchscreen interaction. Using up to 10 finger touchpoints, the HANNSpree HO106HTB Monitor allows everyone to play and collaborate at the same time.

The precise and accurate multi-touch display — allowing up to 10 simultaneous touches — is optimised for use with Windows 8, 8.1 and 10, allowing you to work smarter and more efficiently.

This technology delivers super-fast, sensitive touch response with excellent dragging performance and perfect picture quality. Ten-point multi-touch support lets you unlock the power of today’s touch-enabled applications.





Mounting Options

Its rugged bezel with edge-to-edge glass makes it very suitable for applications like table top integration.

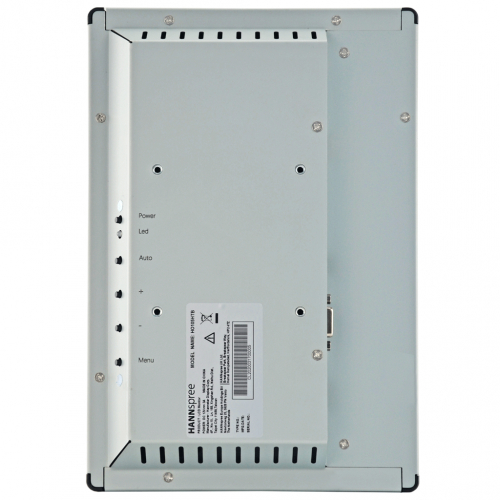

Equipped with VESA mounting design for any surface and screen orientation, the touch screen is the perfect display for various environments.

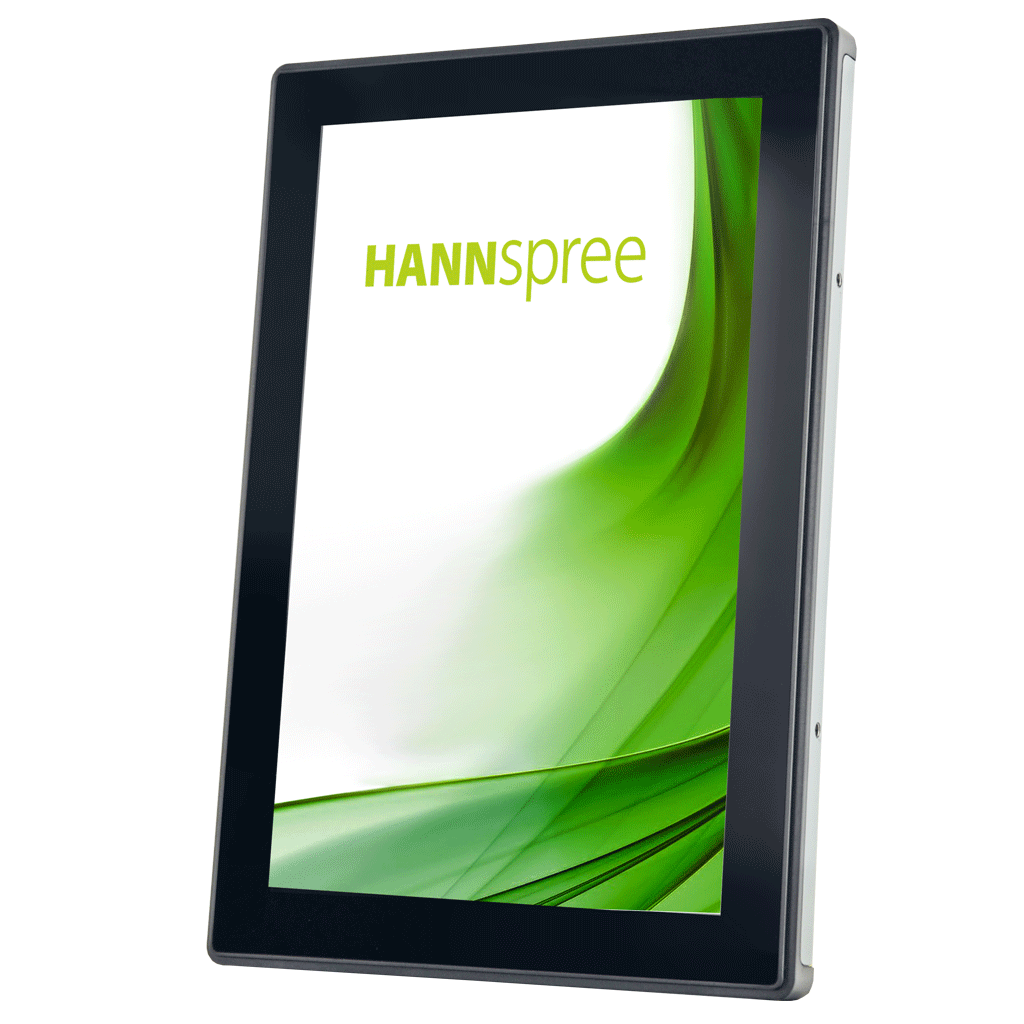

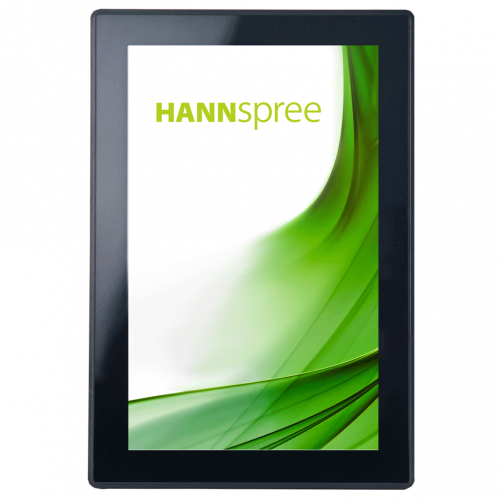

Horizontal, vertical or face-up, it can be installed in various orientations to suit your preferred venue and viewing angle.



Vivid Images, Lifelike Visuals the latest technology with 170° Wide View Angle

The Touch monitor HO106HTB features a 16:9 aspect ratio LED-backlit panel with a 170° wide view angle that minimizes colour shift on both horizontal and vertical planes to ensure quality visuals from almost any direction.

It delivers improved colour accuracy plus increased energy efficiency. The HO106HTB uses a 170°(H) / 170°(V) wide viewing angle panel that eliminates colour shift from almost any direction and in nearly every

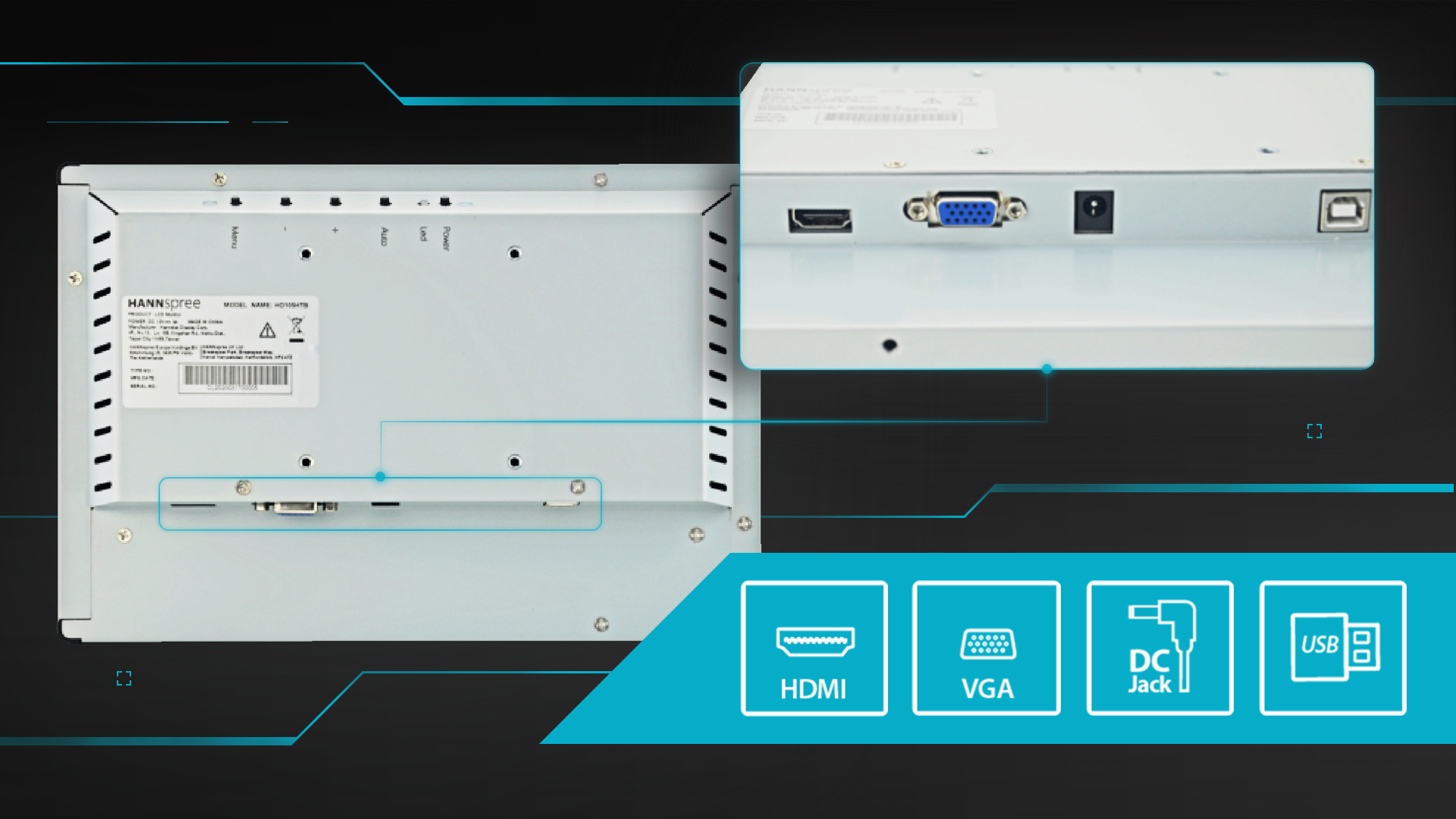

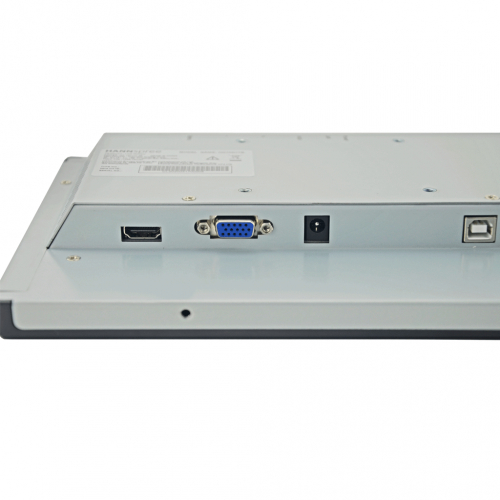

The HANNspree HO106HTB features a host of connectivity options that include HDMI and VGA.

The HO106HTB Open Frame Touch Monitor ensures that your monitor is more compatible and ready to handle all of your content. Enabling touch is easy! Simply connect the USB cable from your PC to the monitor’s USB upstream port, and connect one of the video inputs to project images onscreen.

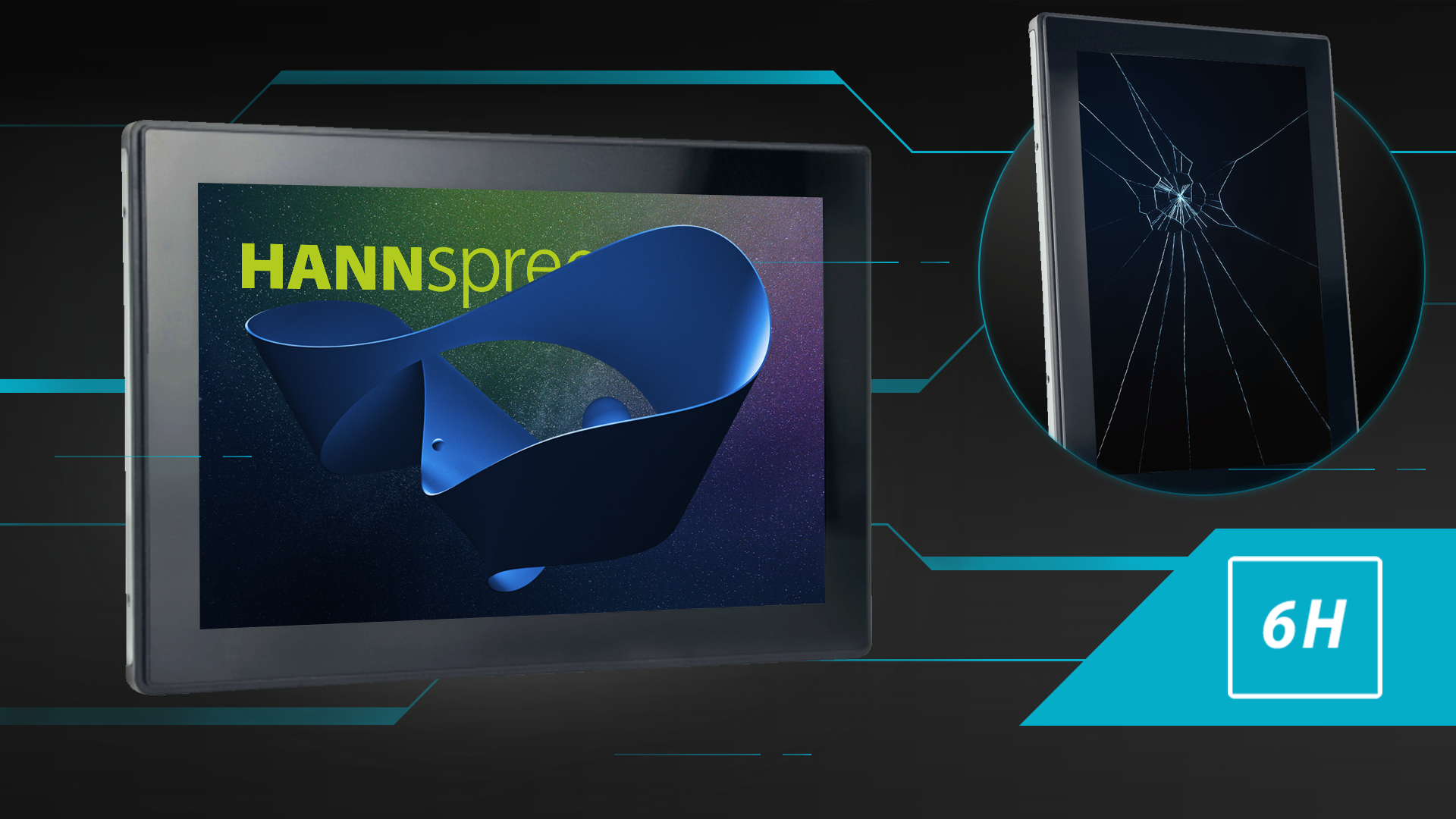

Scratch Resistant - Multi-Touchscreen with 6H Surface Hardness

6H scratch resistant surface hardness ensures durability, as well as a consistent high-quality touch experience. Scratch resistance is essential for touch solutions used for education and public environment. This is achieved thanks to a glass overlay covering the screen. This means that the panel surface can withstand impact from objects and scratches, making it perfect for public spaces and educational institutions. Our toughened Hard Glass fronted LED Monitors (6H hardness rating) are designed specifically for retail and Industrial applications offering protection from impacts and dirt for a long-life solution. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
