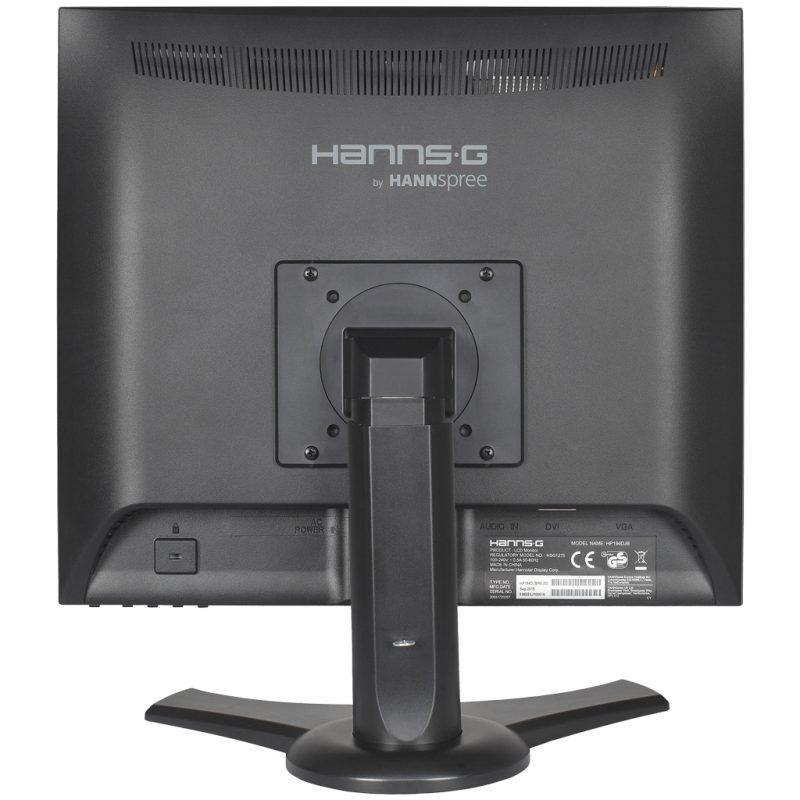

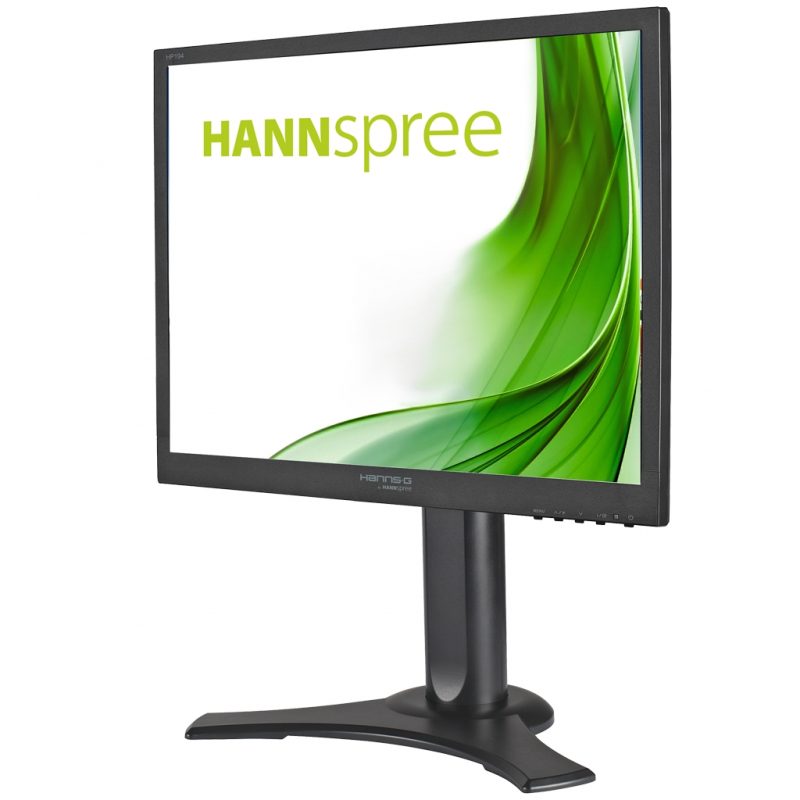

HP194DJB-side-a-upHP194DJB-side-aHP194DJB-sideHP194DJB-front-upHP194DJB-back

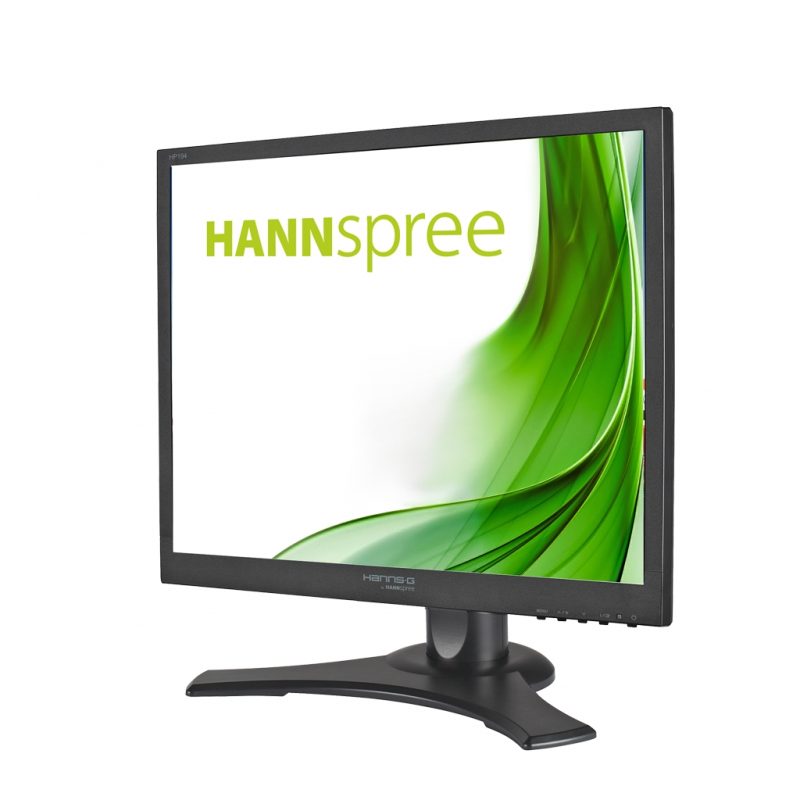

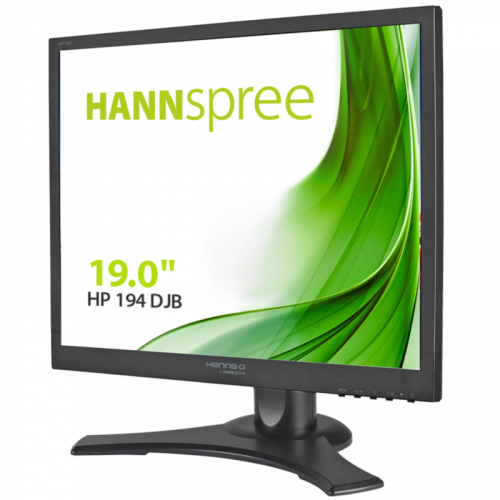

HP 194 DJB

SKU: HP194DJB Category: Tag:
  • 19” Square Monitor 5:4 Aspect Ratio
  • 1280 x 1024 SXGA Resolution
  • LED Backlight Monitor
  • 80,000,000:1 Active Contrast
  • 5ms Response Time
  • VGA + DVI (HDCP) Inputs
  • Built-In Stereo Speakers
  • Multi-Functional Height Adjustable Stand
  • Tilt and Wall-Mountable (VESA)
  • Pivot Function (90° Rotation) and Swivel
  • Low Power Consumption
  • Multi-Video Modes : PC / Movie / Game / ECO
  • ECO Friendly

19” SQUARE MONITOR: DESIGNED FOR OFFICE APPLICATIONS… MAKE WORK MORE EFFICIENT

While modern monitors are mostly in 16:9 aspect ratio, we understand that there are still several applications look right on older “squarish” 5:4 screens; with this is mind we are still offering such models available for your choice.

The HP194DJB is not only bringing great visual performance to your workstation and house, but also an essential part of your solutions to minimize total cost of ownership and maximize staff productivity – a win-win decision for the benefits of all.

The HANNspree HP194DJB boast an amazing 1280 x 1024 resolution at 75Hz, with 5:4 aspect ratio, 5 msec response time and an impressive 80M:1 Active Contrast ratio.

hp194djb-usp-01
hp194djb-usp-02

4 IN 1 HEIGHT ADJUSTABLE STAND: FIND THE SCREEN POSITION YOU PREFER

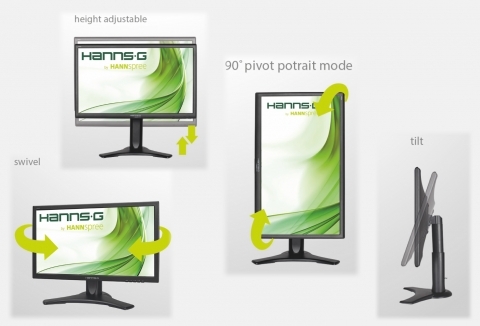

The ergonomically-designed HP194DJB Professional Monitor comes with a 4 in 1 stand that features swivel, tilt, pivot, and height adjustments for ideal viewing position. Raise or lower the screen to suit each individual’s height and seating preference.

A Height Adjustable Stand allows you to set the perfect position of the screen ensuring ergonomic posture and optimal viewing comfort which benefits not only your health but also productivity.

The easy-to-adjust stand ensures hours of viewing and working comfort.

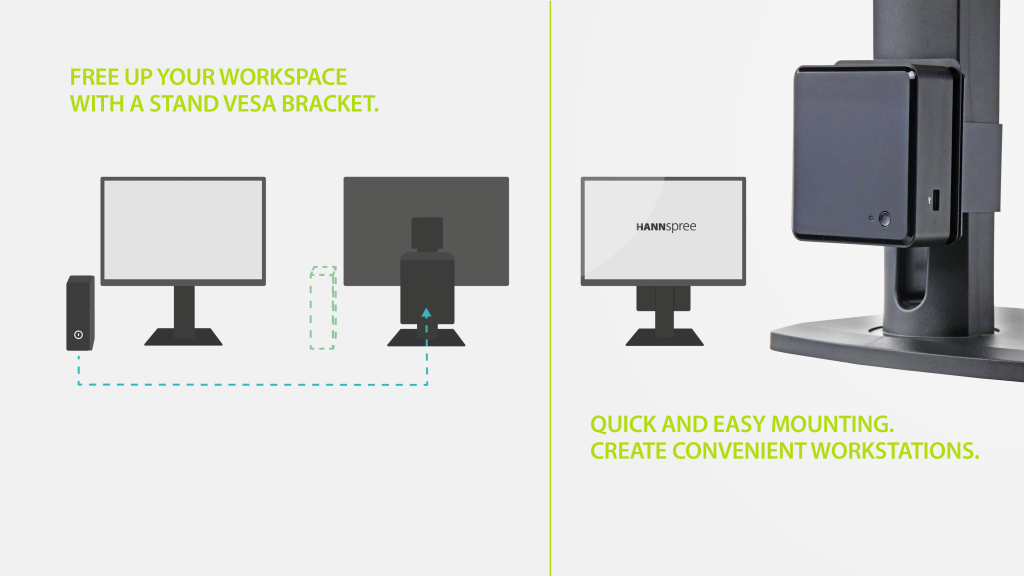

FREE UP YOUR WORKSPACE WITH A STAND VESA BRACKET

________________________________________________________

The 80-04000010G000 is a VESA-compliant bracket for easily mounting a client terminal such as a thin client or mini PC to the back of the monitor’s stand.

The space the client terminal previously occupied is now freed up so you can make better use of your desktop.

Get your PC off your desk with our custom made bracket, just install your VESA-Compatible device & you are all set

Even with the client terminal attached you can adjust the monitor’s stand freely.

DIGITAL AND ANALOG INPUTS

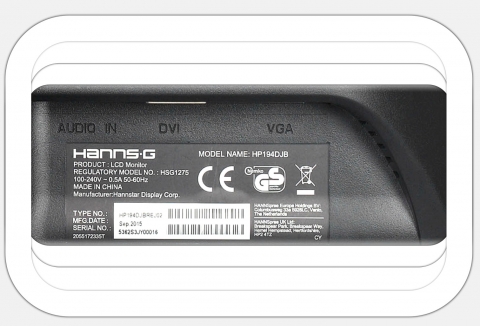

The HANNspree HP194DJB features a host of connectivity options that include both DVI-D and D-Sub VGA 15-pin inputs, you can quickly switch between the inputs via the front panel buttons.

hp194djb-usp-03
speakers-and-headphones

SPEAKERS AND HEADPHONES

The HP194DJB is equipped with two high quality speakers. Built-in speakers make it easy to catch up with family, friends and colleagues. For movies, music, games and more, you’ll enjoy quality audio without the hassle of connecting external speakers.

Don’t want to disturb anybody? Plug your headset to the headphone socket and turn the volume up.

ANTI-GLARE TREATMENT

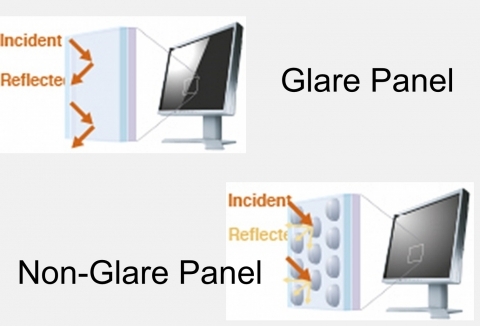

The HP194DJB mounts a non-glare screen reducing eye fatigue by reducing reflective light that otherwise makes the screen difficult to view.

Further to this also the bezel of the monitor is matt to prevent light reflection.

he225-usp-02
hp194djb-usp-04

VESA WALL MOUNT

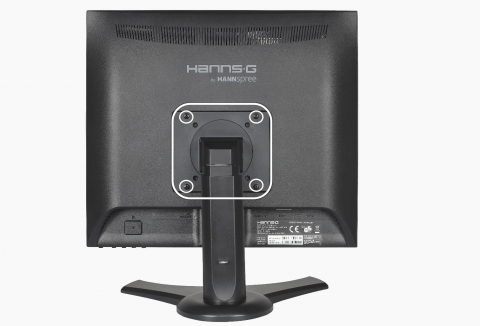

The HP194DJB complies with the VESA standard 100x100mm, it means that you can easily mount the display to any VESA mounting kit.

Hannspree

Hannspree Europe Holdings B.V. Specifications and design are subject to change without notice. Non-metric weights and measurements are approximate.

All brand, product, Service names and logos are trademarks and/or registered trademarks of their respective manufactures and companies. Screen shot are simulated. Actual products may differ slightly from those illustrated on this promotion material.

Please refer to actual samples for final selection. The products displayed on this promotion material may not be available for purchase in your particular country or locality. Please check with Hannspree authorized representatives for the availability of specific products in your area.

Hannspree reserves the right to alter design and specifications as well as to change the accessories with equivalents without notice.

Android, Google, Google Play and other marks are trademarks of Google Inc.

Monitor Display Spec Display size 48.3cm Diagonal / 19″ 5:4
Brightness(Typical) 250cd/m2
Contrast(Typical) 1,000:1 (typ)
80,000,000:1(Active Contrast)
Pixel Pitch 0.294(H) x 0.294(V)
Resolution (H x V) 1280 x 1024
Aspect Ratio 5:4
Response Time(Typical) 5ms
View Angles LR,UD(CR>10) H/V 170°/160°
Panel Surface AG
Display Colors 16.7M Colors
PC Input Range Horizontal Freq. 30kHz~81kHz
Vertical Freq. 56Hz~75Hz
Max. display frequency
(Resolution H*V/Fv)
1280×1024/60Hz
Interface Input 1 D-Sub (VGA) x 1
Input 2 DVI-D (HDCP)  x 1
Input 3 Audio x 1
Speakers 1W x 2
Power Consumption(Typical) On: 16W; Standby: ≤0,5W; Off: ≤0,3W
AC Power Range AC 100-240, 50-60Hz
Power Mode
Indicator Light
Power on : Green
Power Saving: Green flicker
Operating
Condition
Temperature 5 ~ 35℃
Humidity 20% ~ 85%, non-condensing
Physical Dimension
(W*D*H)
407mm(W)*178mm(D)*407mm(H)
Packing Dimension
(W*D*H)
485mm(W)*169mm(D)*457mm(H)
Net Weight 3.4 Kg
Gross Weight 4.5 Kg
Bezel Type Matt
Tilt  0∘ ~ 20∘
Pivot Function Yes
VESA Mounting 100 x 100 mm
Color WARM,NATURE,COOL, User Mode
Preset Mode PC, Movie, Game, ECO Modes
Certifications CE, Energy Star
