HP246PJB
HP246PJB-back-up

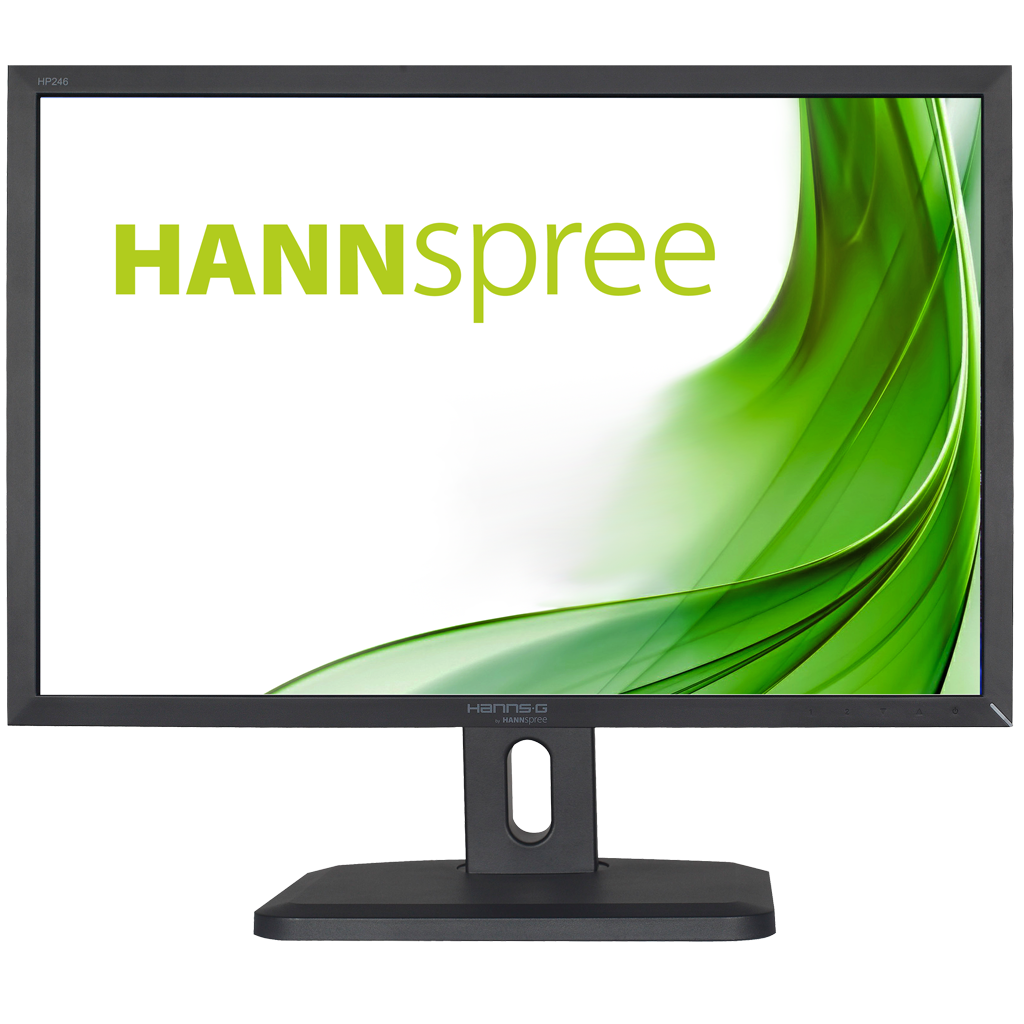

HP246PJB-front

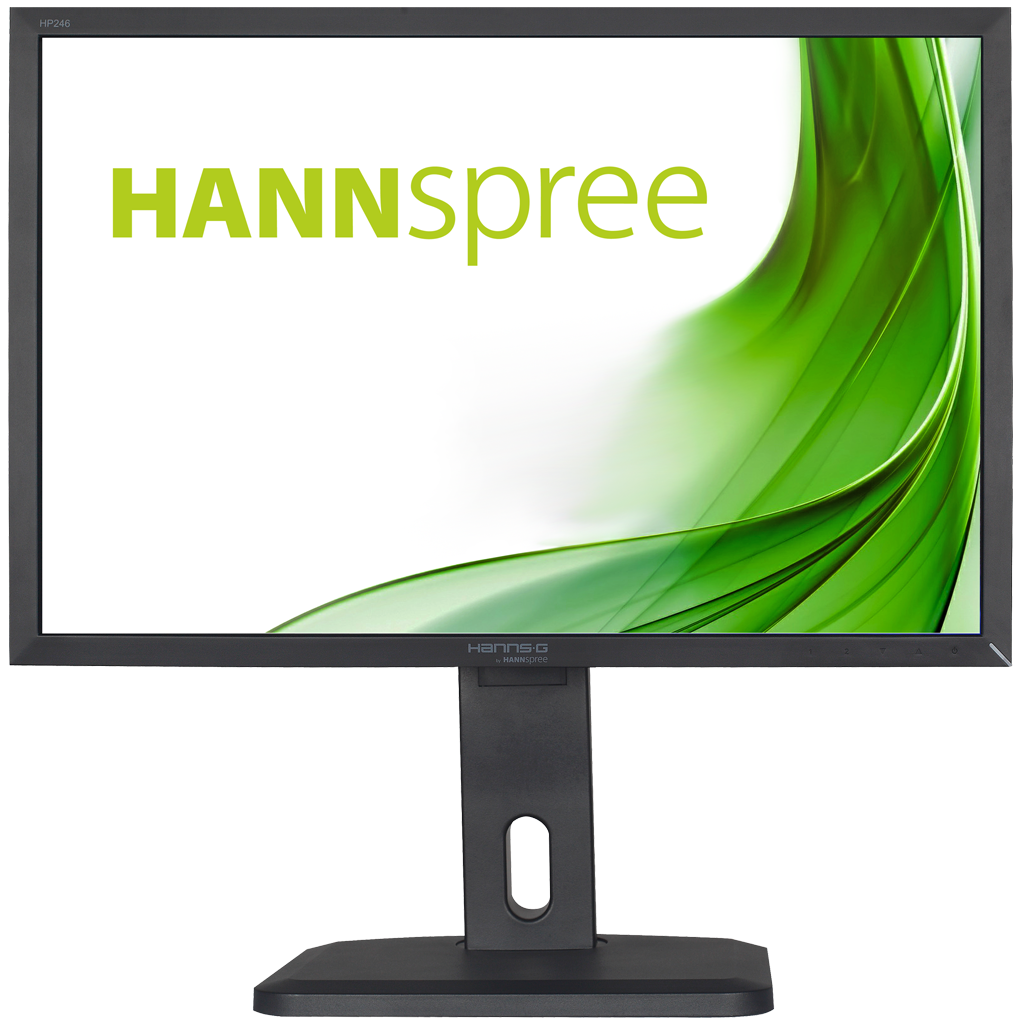

HP246PJB-front-up

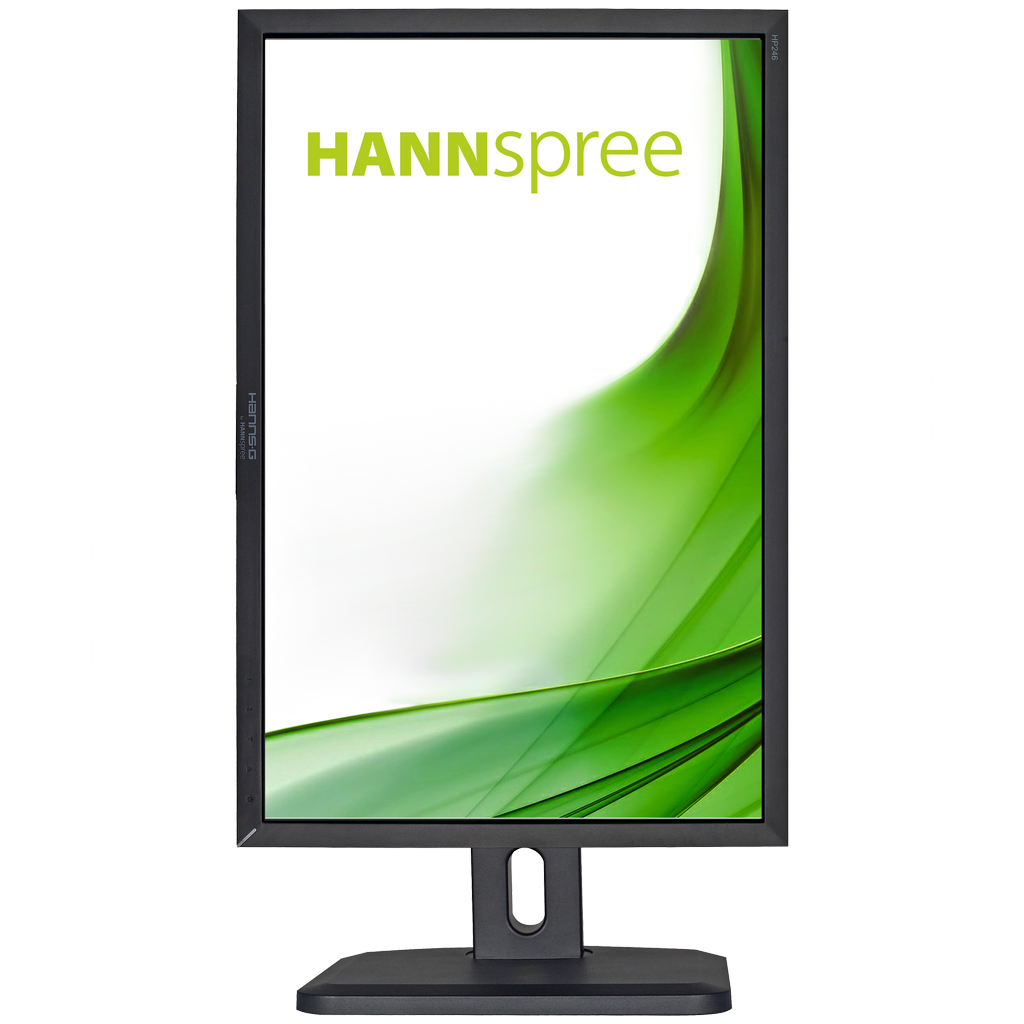

HP246PJB-pivot

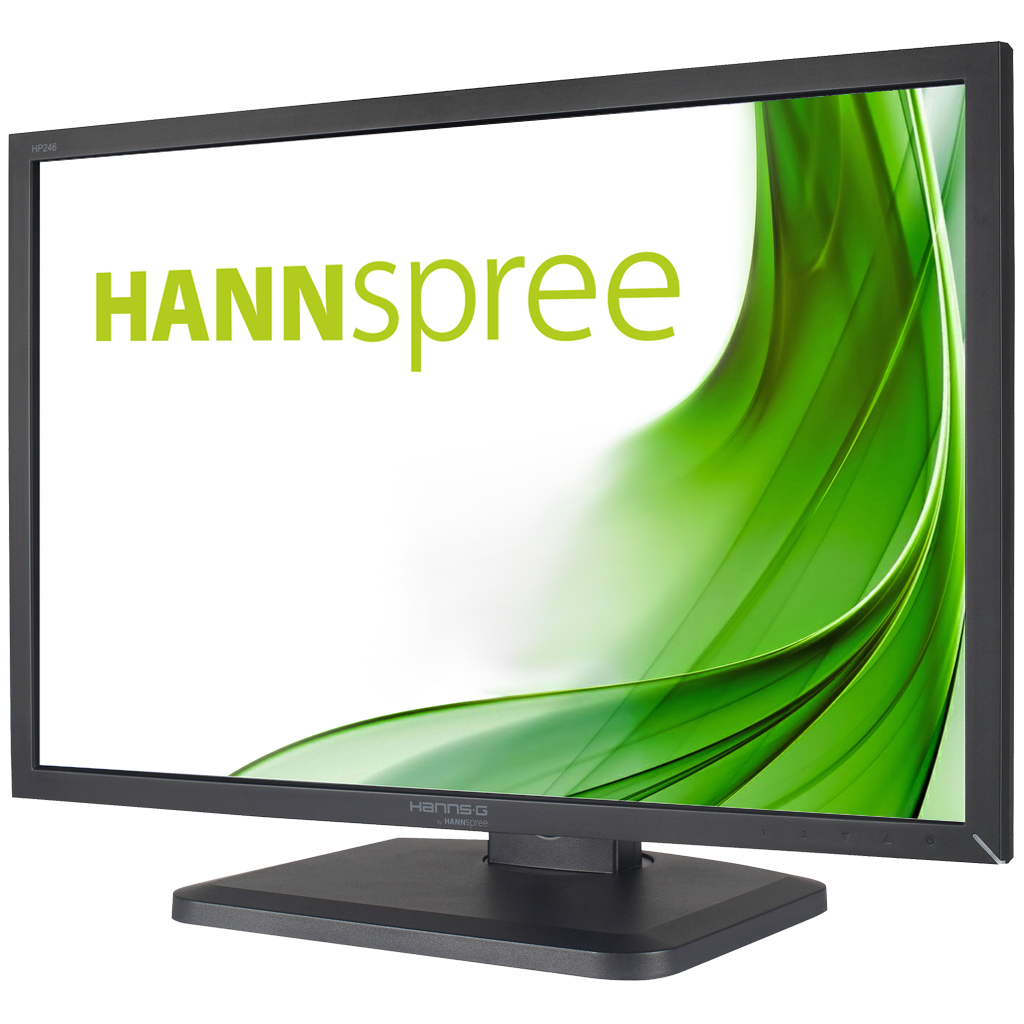

HP246PJB-side-a

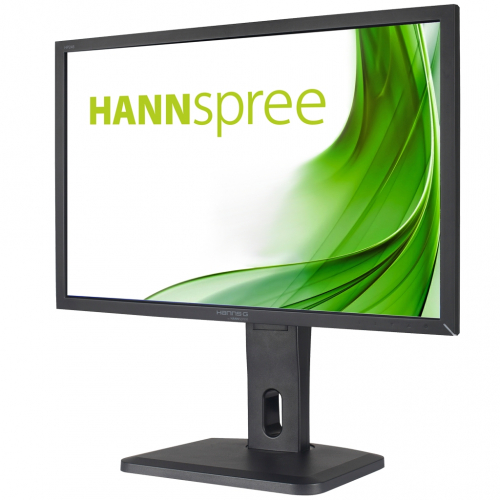

HP246PJB-side-a-up
HP246PJB-zoom-in-connectivity

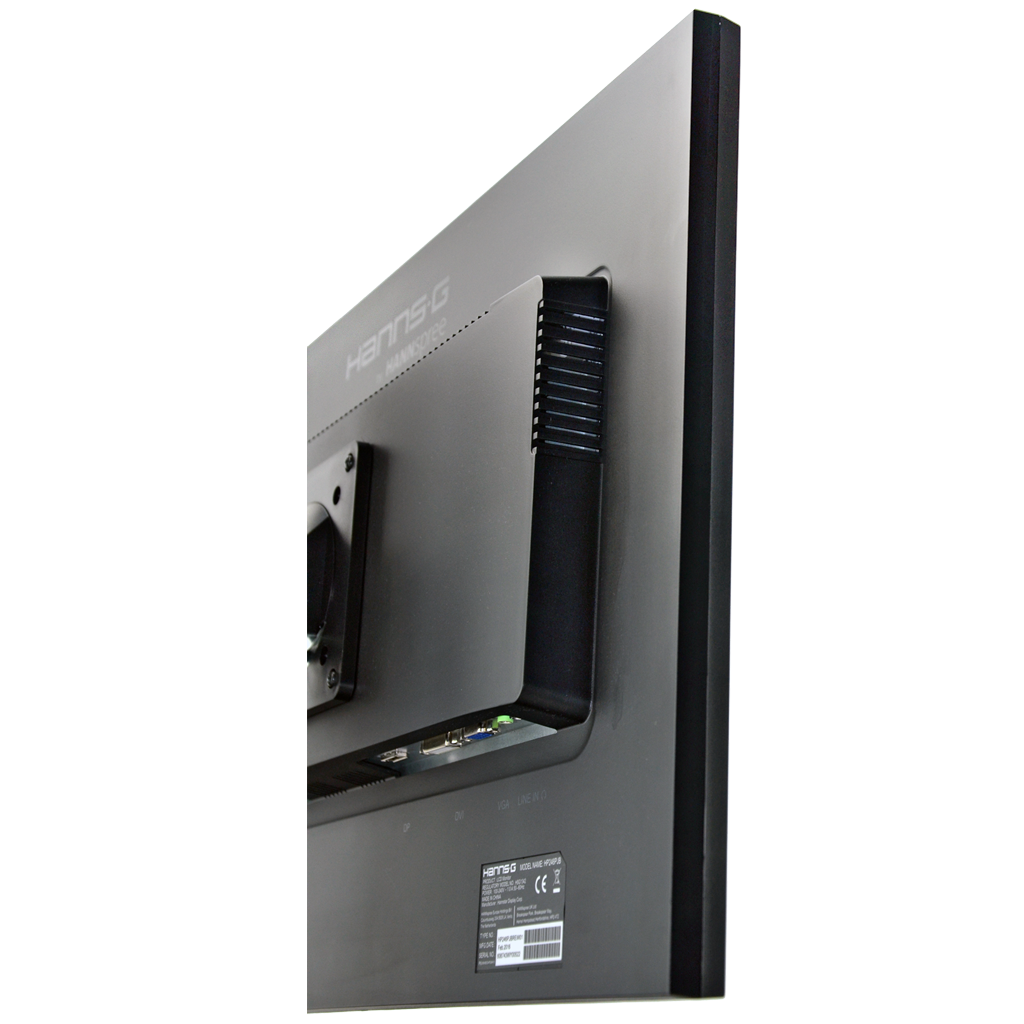

HP246PJB-zoom-in-edge,-air-holes
HP246PJB-zoom-in-USB-ports

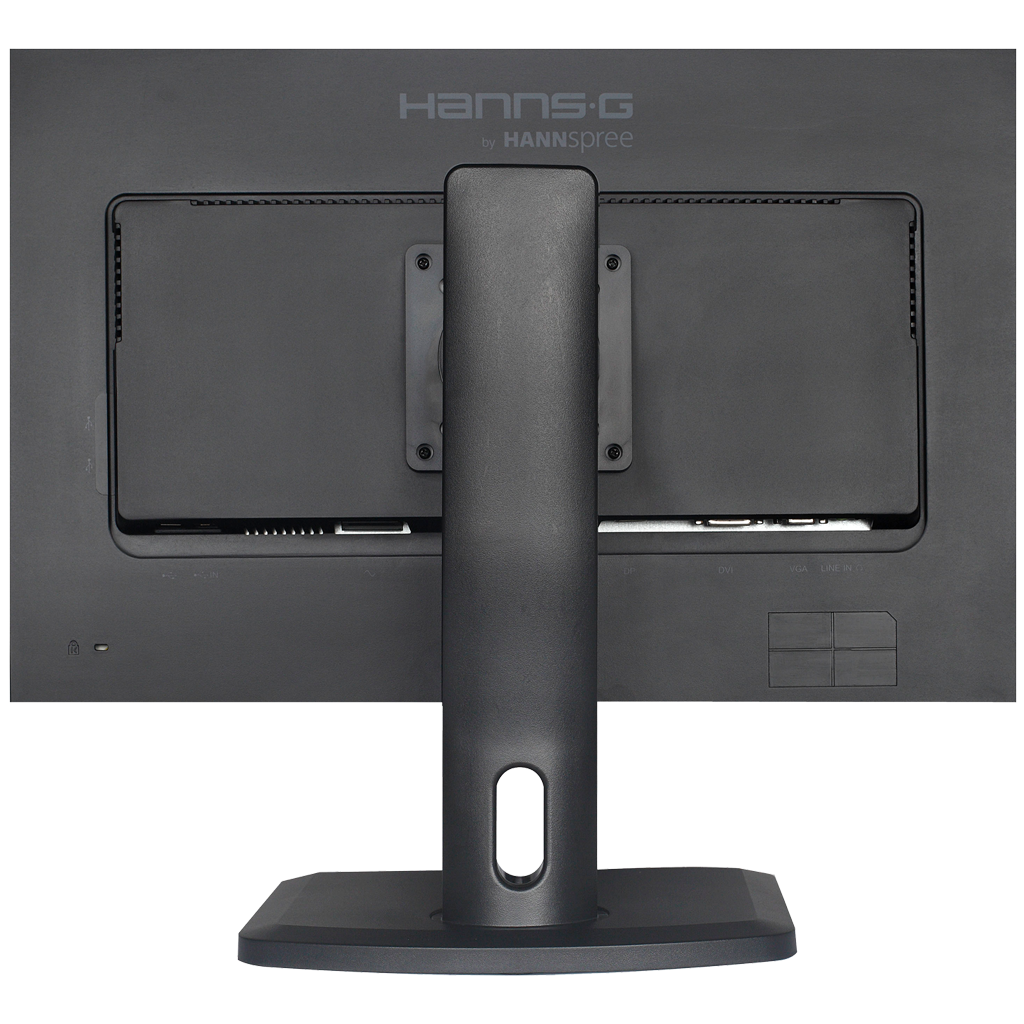

HP246PJB-back

HP 246 PJB

4 IN 1 HEIGHT ADJUSTABLE STAND: FIND THE SCREEN POSITION YOU PREFER

The ergonomically-designed HP246PJB Professional Monitor comes with a 4 in 1 stand that features swivel, tilt, pivot, and height adjustments for ideal viewing position. Raise or lower the screen to suit each individual’s height and seating preference.

A Height Adjustable Stand allows you to set the perfect position of the screen ensuring ergonomic posture and optimal viewing comfort which benefits not only your health but also productivity The easy-to-adjust stand ensures hours of viewing and working comfort.

Click Me

SKU: HP246PJB Category: Tag:
  • 24” 16:10 LED Backlight Monitor
  • 1920 x 1200 WUXGA Resolution
  • 178° / 178° Ultra Wide Viewing Angle
  • Inputs: HDMI + Display Port + DVI-D + VGA
  • Built-In Stereo Speakers
  • USB 3.0 HUB, 1 up – 4 down
  • 3H Hardness Coating
  • Tilt and Wall-Mountable (VESA)
  • Multi-Functional Height Adjustable Stand
  • Pivot Function (90° Rotation) and Swivel
  • Ergonomic Stand: Min distance display area to desk 40mm
  • Low Power Consumption & Multi-Video Modes
hp246pjb-power-consumption

VIVID IMAGES, LIFELIKE VISUALS THE LATEST TECHNOLOGY WITH 178° ULTRA-WIDE VIEW ANGLES

The Touch monitor HT225HPB features a 16:9 aspect ratio LED-backlit panel with a 178° ultra-wide view angle that minimizes color shift on both horizontal and vertical planes to ensure quality visuals from almost any direction. It deliveres improved color accuracy plus increased energy efficiency.

The HT225HPB uses a 178°(H) / 178°(V) ultra-wide viewing angle Full HD panel that eliminates color shift from almost any direction and in nearly every angle.

178-degree-viewing-angle
hp194djb-usp-02

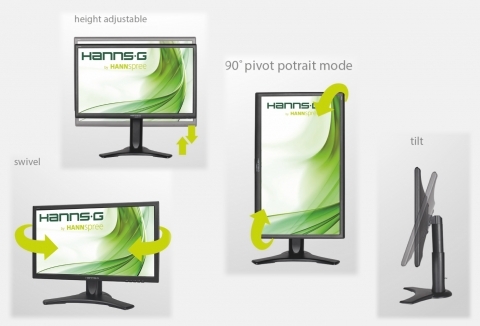

4 IN 1 HEIGHT ADJUSTABLE STAND: FIND THE SCREEN POSITION YOU PREFER

The ergonomically-designed HP246PJB Professional Monitor comes with a 4 in 1 stand that features swivel, tilt, pivot, and height adjustments for ideal viewing position. Raise or lower the screen to suit each individual’s height and seating preference.

A Height Adjustable Stand allows you to set the perfect position of the screen ensuring ergonomic posture and optimal viewing comfort which benefits not only your health but also productivity The easy-to-adjust stand ensures hours of viewing and working comfort.

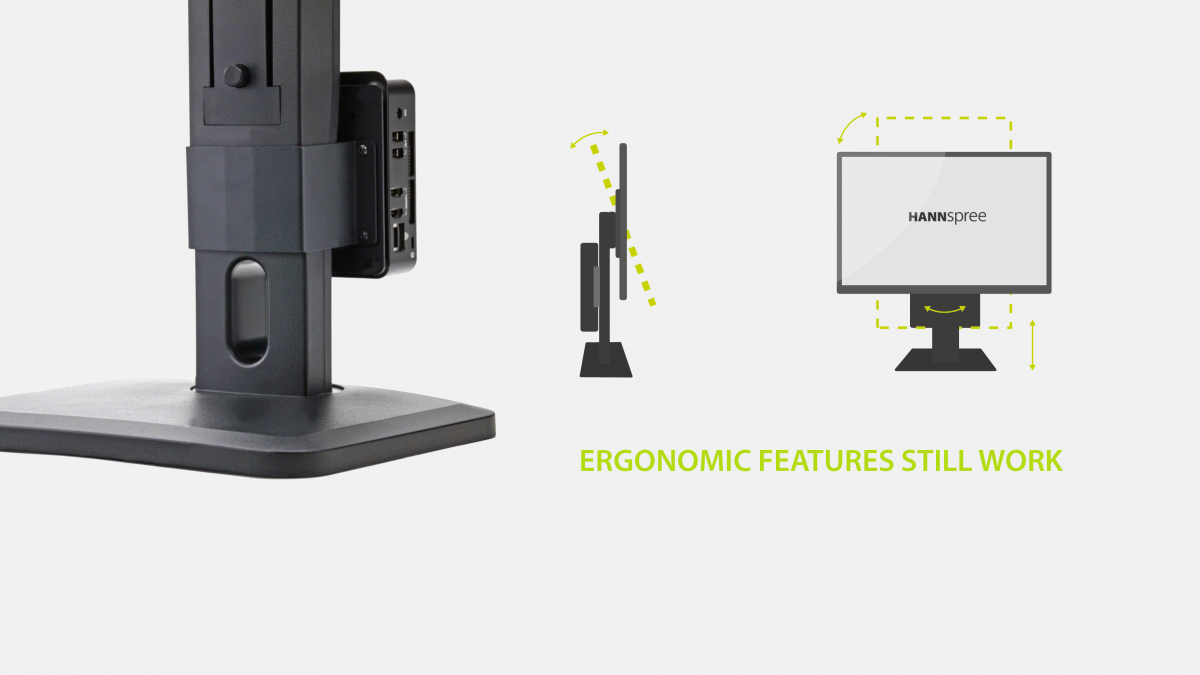

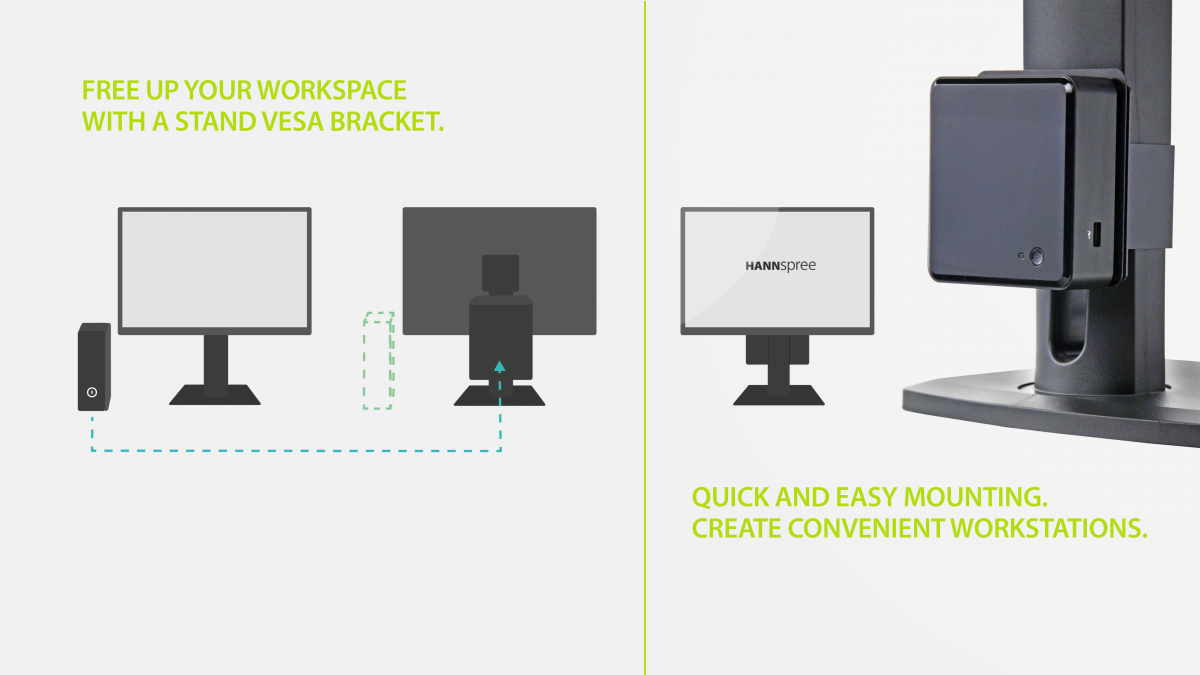

FREE UP YOUR WORKSPACE WITH A STAND VESA BRACKET

______________________________________________________

The 80-04000011G000 is a VESA-compliant bracket for easily mounting a client terminal such as a thin client or mini PC to the back of the monitor’s stand.

The space the client terminal previously occupied is now freed up so you can make better use of your desktop.

Get your PC off your desk with our custom made bracket, just install your VESA-Compatible device & you are all set.

Get your PC off your desk with our custom made bracket, just install your VESA-Compatible device & you are all set.

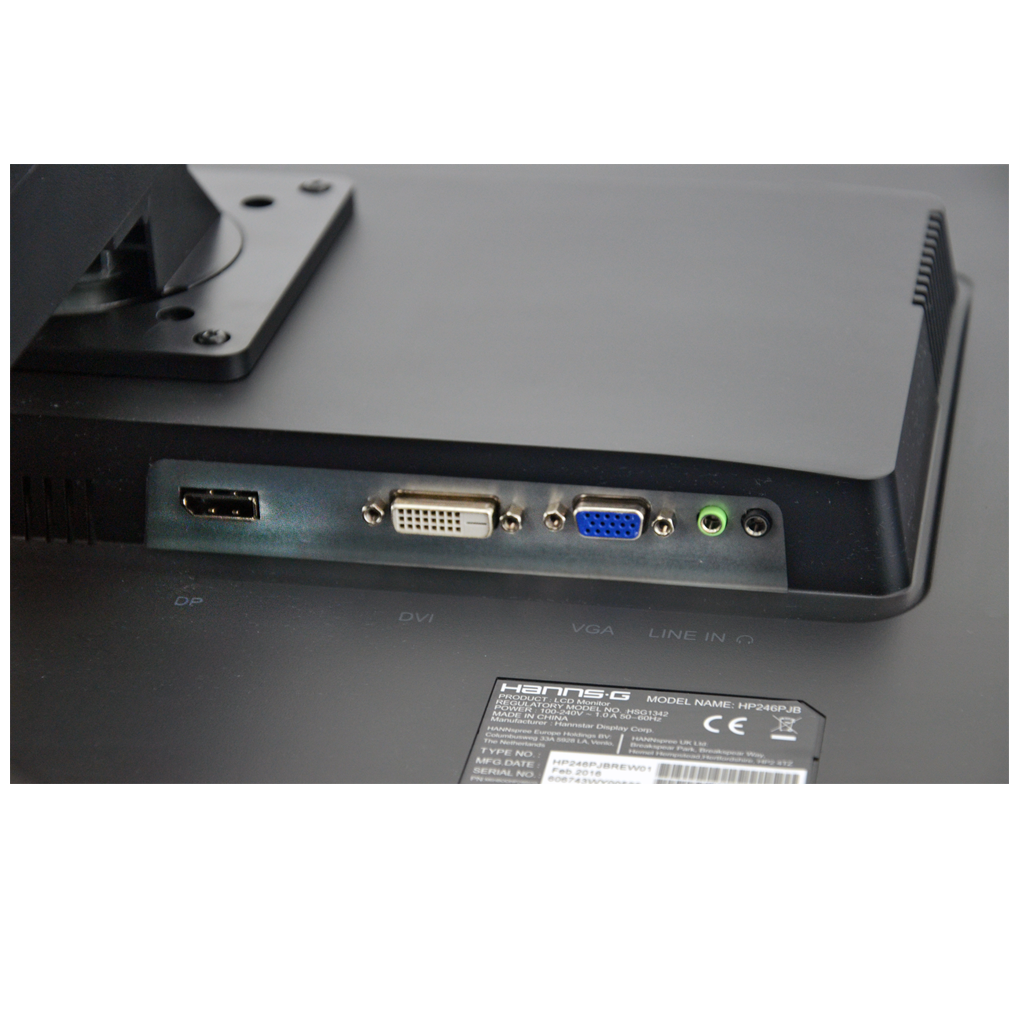

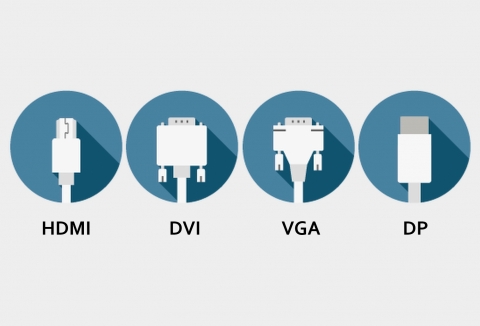

EXTENSIVE CONNECTIVITY WITH MULTI INTERFACE

Expand your visual horizon with multi-display setup

The HANNspree HP246PJB features an extensive array of connectivity and hardware interfaces with advanced connections to maximize the usability. It provides seamless connectivity with your PC and AV equipment with HDMI, DP, DVI and D-Sub ports.

hp246pjb-usp-01
HL326HPB-zoom-in-connectivity-USB

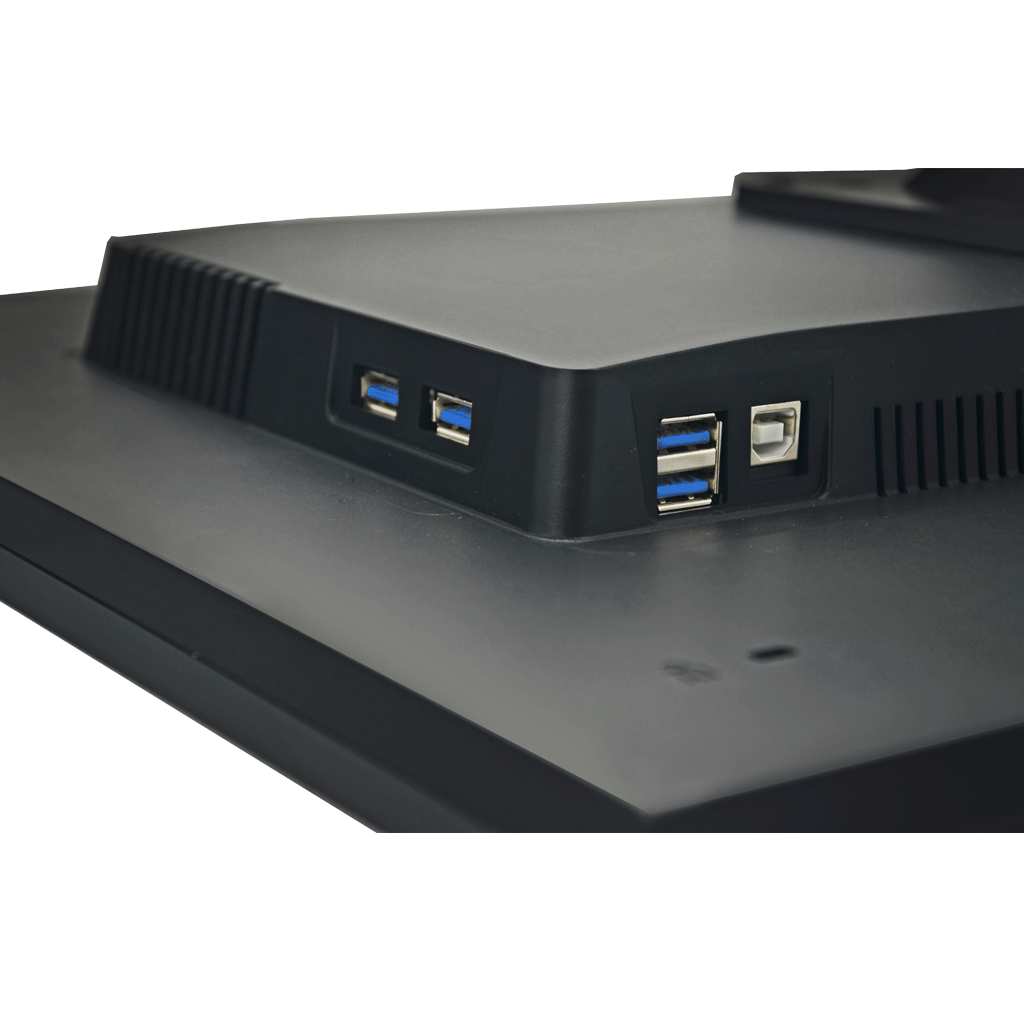

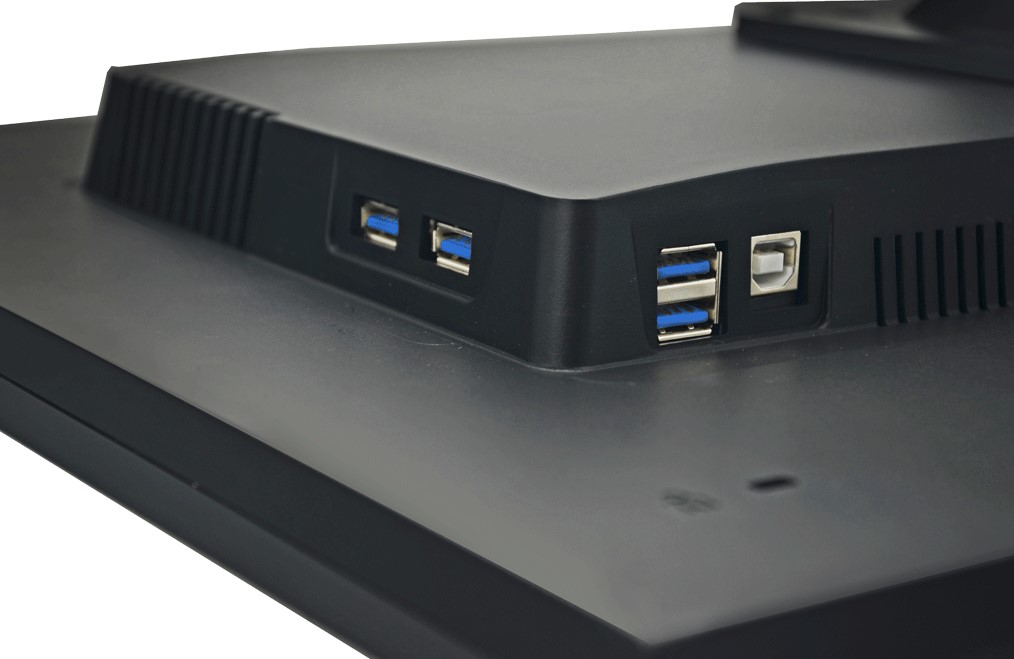

USB HUB WITH 4 PORTS FOR EASY CONNECTIONS

USB HUB allows user to conveniently connect their plug&play multimedia devices such as USB webcameras, storage devices, peripherals and many other accessories which have USB connection available.

NOTE that many devices like cameras and HDD may need to be powered On independently, as they have higher power requirements than the monitor USB HUB can provide.

SCRATCH RESISTANT – 3H SURFACE HARDNESS

3H scratch resistant surface hardness ensures durability, as well as a consistent high quality touch experience.

The HP246PJB meets the increasing demands for Protected Displays in the Education and Retail applications.

The HP246PJB (3H hardness rating) is designed for schools, colleges, universities but also Retail and Industrial applications offering protection for a long life solution.

he247dpb-usp-02

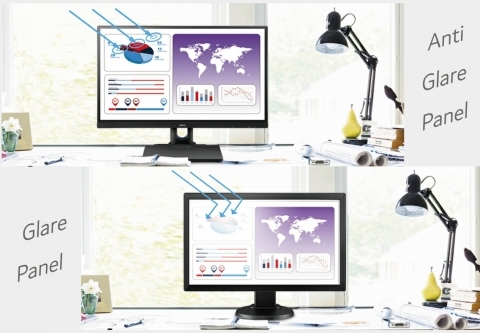

ANTI-GLARE TREATMENT

The HP246PJB mounts a non-glare screen reducing eye fatigue by reducing reflective light that otherwise makes the screen difficult to view.

Further to this also the bezel of the monitor is matt to prevent light reflection.

SPEAKERS AND HEADPHONES

The HP246PJB is equipped with stereo speakers, for clear audio that sounds like it’s coming from a high end stereo system. The speakers deliver a true stereo effect for an enhanced listening experience, especially when displaying multimedia content during lessons, therefore removing the need for external speakers.

With audio earphone output, users can connect an external headset to the monitors as well.

speakers-and-headphones
Hannspree

Hannspree Europe Holdings B.V. Specifications and design are subject to change without notice. Non-metric weights and measurements are approximate.

All brand, product, Service names and logos are trademarks and/or registered trademarks of their respective manufactures and companies. Screen shot are simulated. Actual products may differ slightly from those illustrated on this promotion material.

Please refer to actual samples for final selection. The products displayed on this promotion material may not be available for purchase in your particular country or locality. Please check with Hannspree authorized representatives for the availability of specific products in your area.

Hannspree reserves the right to alter design and specifications as well as to change the accessories with equivalents without notice.

Android, Google, Google Play and other marks are trademarks of Google Inc.

LCD Panel Display size  24″W Diagonal White LED-Backlight
Brightness(Typical) 300cd/m2 (Typical)
Contrast(Typical) 1000:1 (Typical)
80,000,000:1 (Active Contrast )
Pixel Pitch 0.27(H) * 0.27(V)
Resolution (H x V) 1920×1200
Aspect Ratio 16:10
Response Time(Typical)((Tr+Tf)) 5ms
View Angles LR,UD(CR>10) HV  178/178
Panel Surface Anti-glare
Panel Surface Coating Hardness 3H
Display Colors 16.7M colors(6Bit+FRC)
PC Input Range Horizontal Freq. 30 to 83KHz
Vertical Freq. 56 to 75Hz
Max. display frequency
(Resolution H*V/Fv)
1920 x1200  / 60hz
Interface Input 1 D-Sub x 1
Input 2 DP *1
Input 3 Audio in *1
Input 4 DVI-D (with HDCP)
Input 5 HDMI
Input 6 USB 3.0 (1 upstream, 4 down stream, Only one USB port for charging, Max 0.5A)
Output
Terminal
Earphone Yes
Speaker(Typical) 1.5W x 2
Power Consumption(Typical) On: 15,9W; Stand-by: 0,3W; Off: 0,23W
(TEC Total Energy Consumption. Related to EPA 7.1)
AC Power Range AC 100~240V, 50~60Hz
Power Mode
Indicator Light
Power on : Blue (LED)
Power saving : Amber (LED)
Operating
Condition
Temperature 5℃ ~ 35℃
Humidity 20% ~ 85%, non-condensing
Physical Dimension
(W*D*H)
556.8*245*562.9 mm
Packing Dimension
(W*D*H)
630*209*438 mm
Net Weight 7.2KG
Gross Weight 9.2KG
Tilt -5∘~ 30∘
High Adjustable Arm Yes
Swivel -170° / + 170°
Pivot Yes
Kensington Lock Yes
VESA Mounting 100 x 100mm
Controls Front Control 1, 2,▼, ▲, Power
On Screen Display 11  language  :  EN、FR、DE、IT、PT、ES、RU、TC、SC、JP、KO
Color 9300,6500,5500, User Mode
Preset Mode PC, Movie, Game & ECO  Modes
Accessory Power Cable Yes (1.5M)
HDMI Cable Yes (1.5M)
Quick Start Guide(Paper) Yes, HSD format
Color Plan Bezel /Arm / Base / Rear Cover  Texture
Certification CE, Energy Star 7.1, ISO9241-307 Class I, TCO 7.0, GS, WEEE, RoHS, Reach
