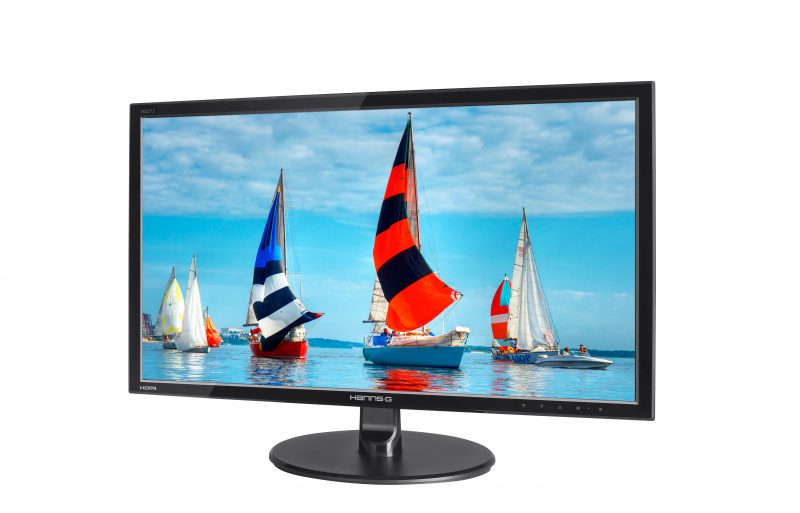

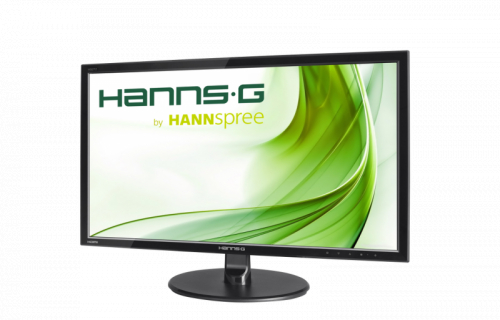

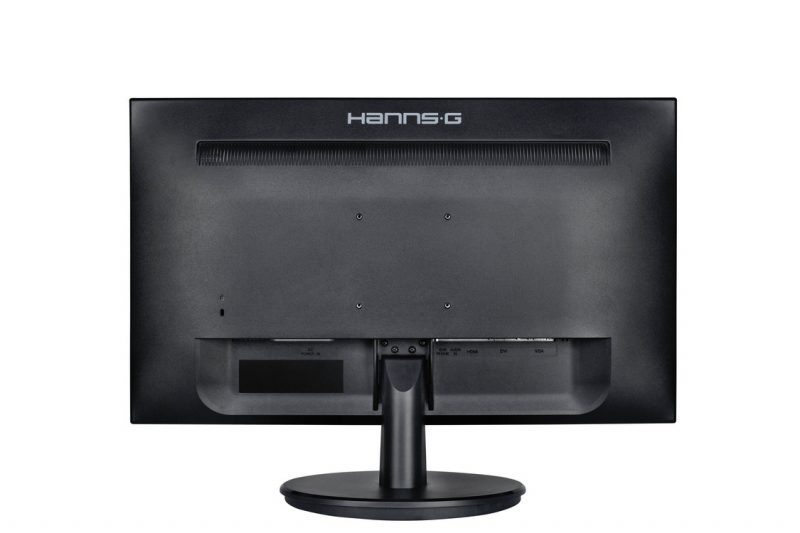

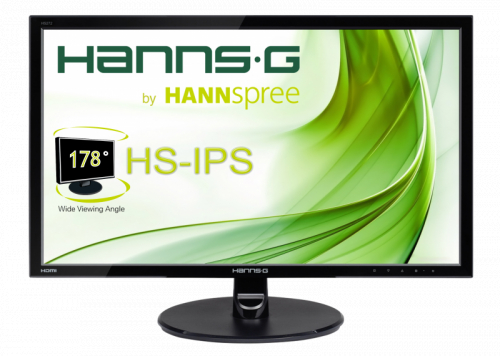

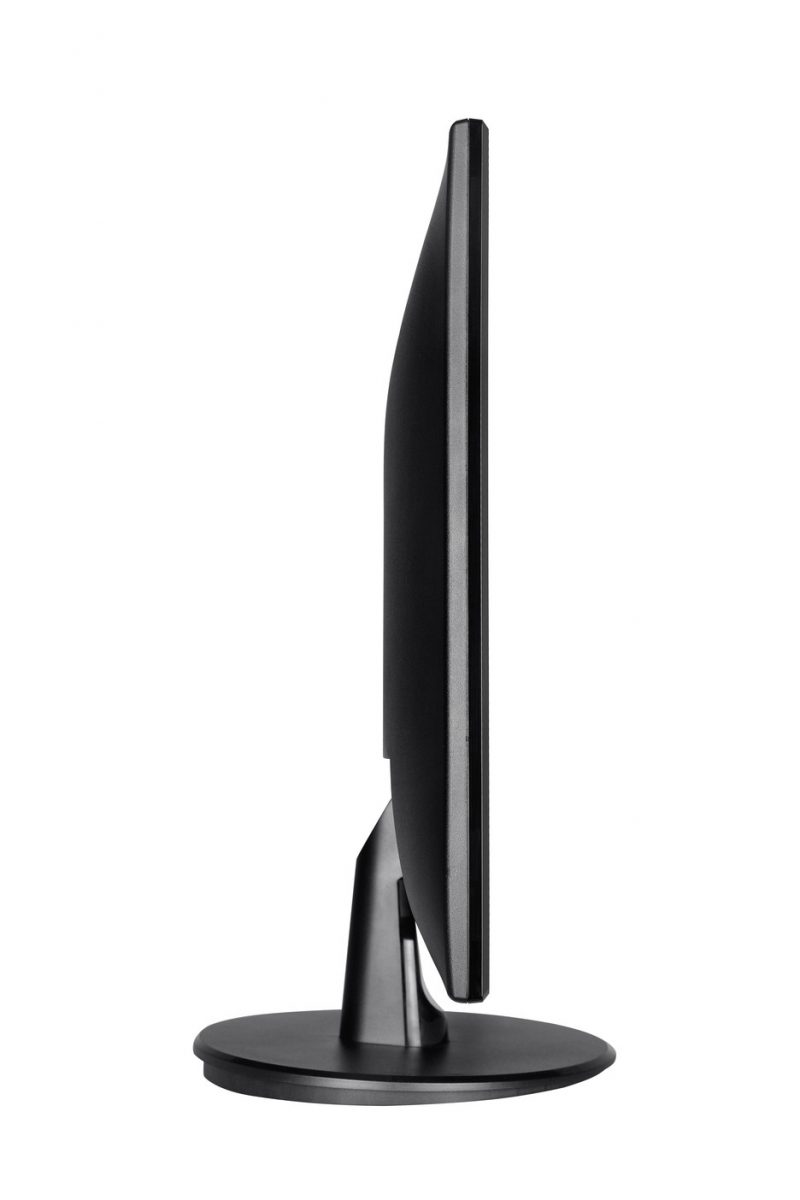

HS 272 HPB

SKU: HS272HPB Category:
  • 1920 x 1080 Resolution (68,6cm / 27″ Diagonal)
  • LED Backlight Monitor
  • HS-IPS Panel – 178° Ultra Wide Viewing Angle
  • Full HD 1080P
  • 80,000,000:1 Active Contrast
  • 7ms Response Time
  • VGA+DVI+HDMI Compatible Inputs
  • Multi-Video Modes: PC / Movie / Game / ECO
  • Built-In Stereo Speakers
  • Tilt and Wall-Mountable (VESA)
  • Low Power Consumption
LCD Panel Display size TFT – LCD
Brightness(Typical) 250cd/m2
Contrast(Typical) 1000:1 (Typical)
80,000,000:1 (Active Contrast )
Pixel Pitch 0.31(H) x 0.31(V) mm
Resolution (H x V) 1920 X 1080
Aspect Ratio 16:9
Response Time(Typical) 7ms
View Angles LR,UD(CR>10) R: 89/89 / L:89/89 (CR >=10)
Panel Surface Anti-Glare
Display Colors 16.7M colors
PC Input Range Horizontal Freq. 30 to 83KHz
Vertical Freq. 56 to 75Hz
Max. display frequency
(Resolution H*V/Fv)
1920 X 1080 /60 Hz
Interface Input 1 D-Sub x 1
Input 2 DVI-D 24pin X1
Input 3 HDMI X1
Input 4 PC audio x 1
Output
Terminal
Earphone NA
Speaker(Typical) 2W x 2
Power Consumption(Typical) On: 25 W
Standby<=0.5W, Off<=0.5W
AC Power Range AC 100~240V, 50~60Hz
Power Mode
Indicator Light
Power on : Green (LED)
Power saving :Orange (LED)
Operating
Condition
Temperature 0℃ ~ 40℃
Humidity 20% ~ 85%, non-condensing
Physical Dimension
(W*D*H)
461.8mm*643.3mm*248.5mm
Packing Dimension
(W*D*H)
525mm*704mm*137mm
Net Weight 5.3KG
Gross Weight 7.0KG
Bezel Type Glossy
Tilt TBD
Kensington Lock Yes
VESA Mounting 100 x 100mm
  On Screen Display BOE OSD format 12 language  : EN,TC,DE,FR,ES,IT,PT,NL,SC,JS,KR,Russian
Color WARM,NATURE,COOL, User Mode
Preset Mode PC, Movie, Game, ECO Modes
Accessory Power Cable(1.5m) Yes
VGA Cable(1.5m) Yes
Audio Cable(1.5m) Yes
User Manual(CD) Yes, HSD format
Quick Start Guide(Paper) N/A
Color Plan  Black, front bezel – Glossy,Rear cover-Texture , Arm & base : TBD
Carton Box Brown carton,
Certification  CE, CB,  EnergyStar6.0 ,TCO6.0,GS, EU Energy Label, HDMI
Energy Label Class A, 44kWh/annum
