HS 278 UPB

SKU: HS278UPB Category: Tag:
    • 27″ 16:9 LED Backlight monitor
    • 1920 x 1080 WUXGA Resolution Full HD 1080P
    • 178° Ultra-Wide viewing angle
    • Triple inputs: Display port + HDMI + VGA
    • Built-in stereo speakers
    • USB Hub: 1 up, 2 down
    • Tilt and wall mountable (VESA)
    • Low power consumption & multi-video modes
HS278UJB - Energy Label (Class A+)

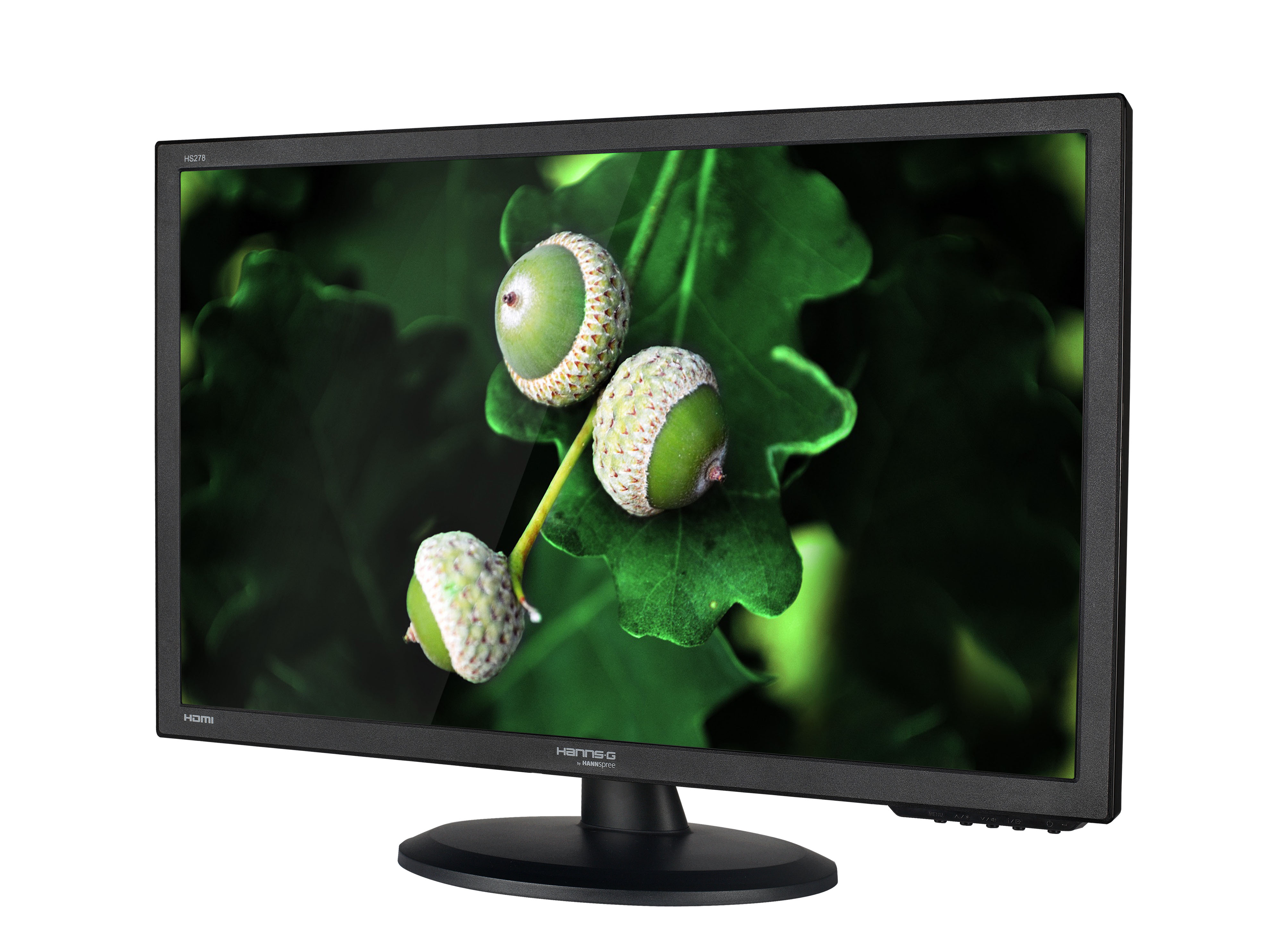

VIVID IMAGES, LIFELIKE VISUALS THE LATEST TECHNOLOGY WITH 178° ULTRA-WIDE VIEW ANGLES

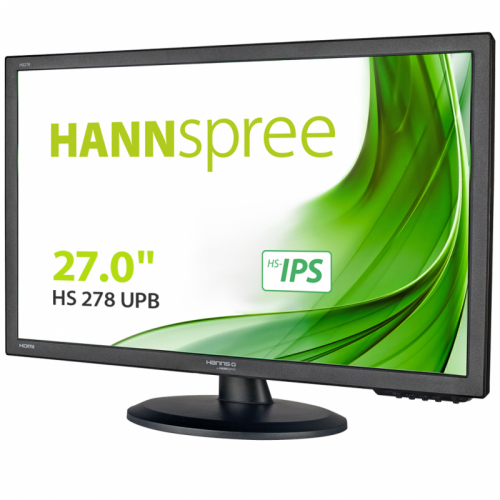

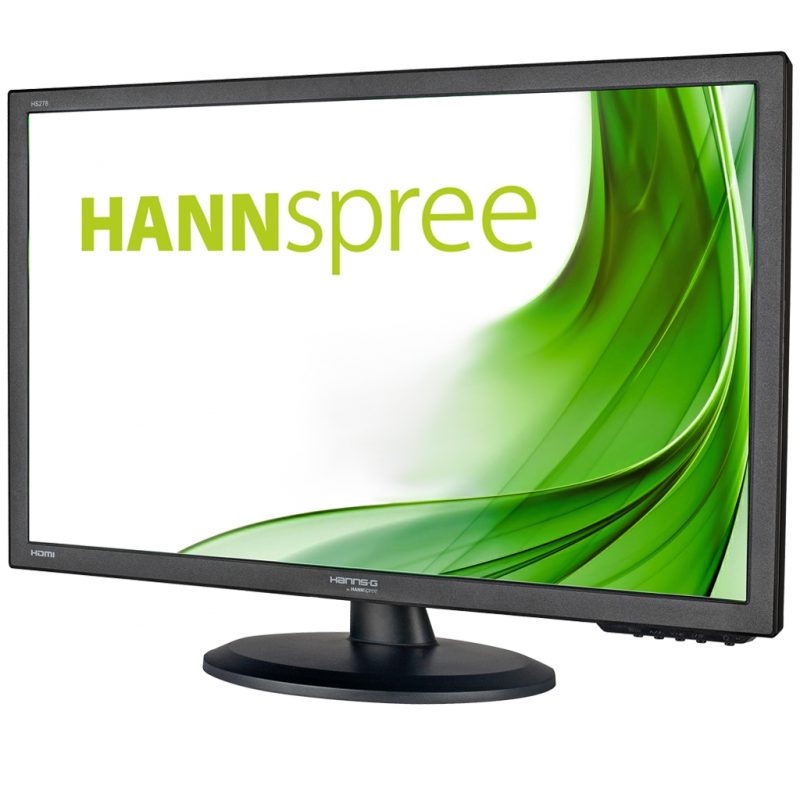

The Professional monitor HANNspree HS278UPB features a 16:9 aspect ratio LED-backlit panel with a 178° ultra-wide view angle that minimizes color shift on both horizontal and vertical planes to ensure quality visuals from almost any direction.

It deliveres improved color accuracy plus increased energy efficiency.

178-degree-viewing-angle
HT225HPB-zoom-in-connectivity

EXTENSIVE CONNECTIVITY

Expand your visual horizon with multi-display setup

The HANNspree HS278UPB features an extensive array of connectivity and hardware interfaces with advanced connections to maximize the usability. It provides seamless connectivity with your PC and AV equipment with DP, HDMI and D-Sub ports.

USB HUB WITH 2 PORTS FOR EASY CONNECTIONS

USB HUB allows user to conveniently connect their plug&play multimedia devices such as USB webcameras, storage devices, peripherals and many other accessories which have USB connection available.

NOTE that many devices like cameras and HDD may need to be powered On independently, as they have higher power requirements than the monitor USB HUB can provide.

hs278udp-usp-04
speakers-and-headphones

SPEAKERS AND HEADPHONES

The HS278UPB is equipped with stereo speakers, for clear audio that sounds like it’s coming from a high end stereo system. The speakers deliver a true stereo effect for an enhanced listening experience, especially when displaying multimedia content during lessons, therefore removing the need for external speakers.

With audio earphone output, users can connect an external headset to the monitors as well.

Display Size 68,6cm / 27“ Diagonal
Panel Type TFT – LED Backlight
Aspect Ratio 16:09
Resolution (H x V) 1920 x 1080 Full HD
Brightness 300cd/m²
Contrast (Typ.) 1.000:1 (Typical)
Contrast (Active) 80.000.000:1 (Active)
Viewing Angle L/R; U/D 178° H – 178° V (CR >10)
Response Time 5 msec
Pixel Pitch 0,311 (H) x 0,311 (V) mm
Panel Surface Anti-Glare
Display Colors 16.7M Colors
Horizontal Frequency 24 ~ 83 kHz (Analog) / 30 ~ 83 kHz (Digital)
Vertical Frequency 56 ~ 75 Hz
Max Display Frequency 1920 x 1080 @ 60Hz
Input 1 D-Sub (VGA)
Input 2 HDMI
Input 3 Display Port
Buil-in Speakers Yes, 2W x 2; Earphone out
Power Consumption On: 26W; Stand-by: ≤ 0, 41W; Off: ≤ 0,21W
AC Power Range AC 100 ~ 240 Volt; 50 ~ 65 Hz
Product Dimensions 646.6 x 219.8 x 447.3 mm (W x D x H)
Packing Dimensions 710 x 120 x 520 mm (W x D x H)
Net / Gross Weight 5,2 Kgs / 6.86 Kgs
Bezel & Color Plan Black texture: front bezel,back cover , arm, base

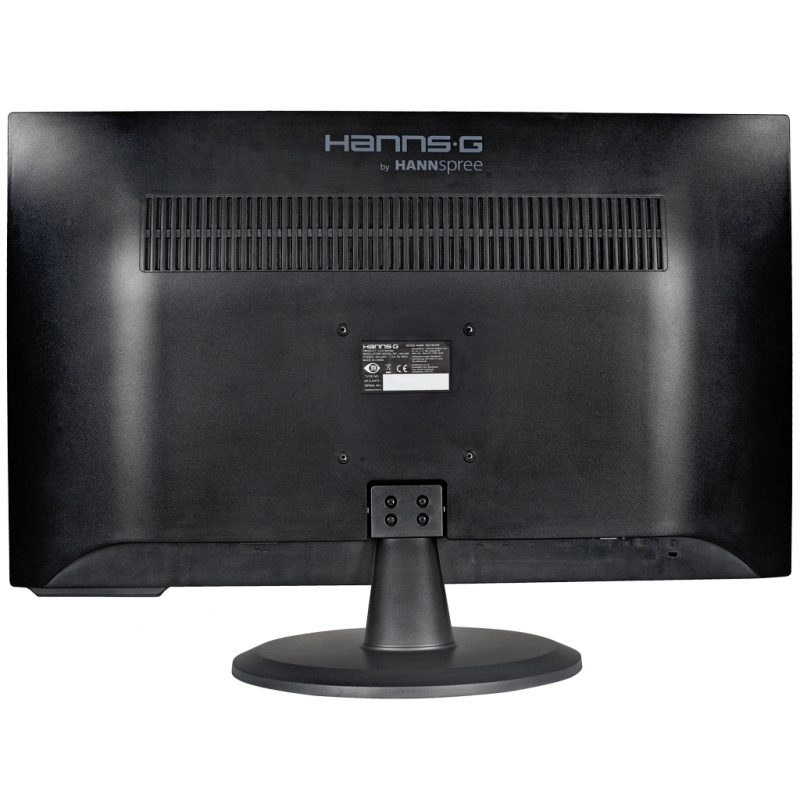

VESA Mounting 100 x 100 mm

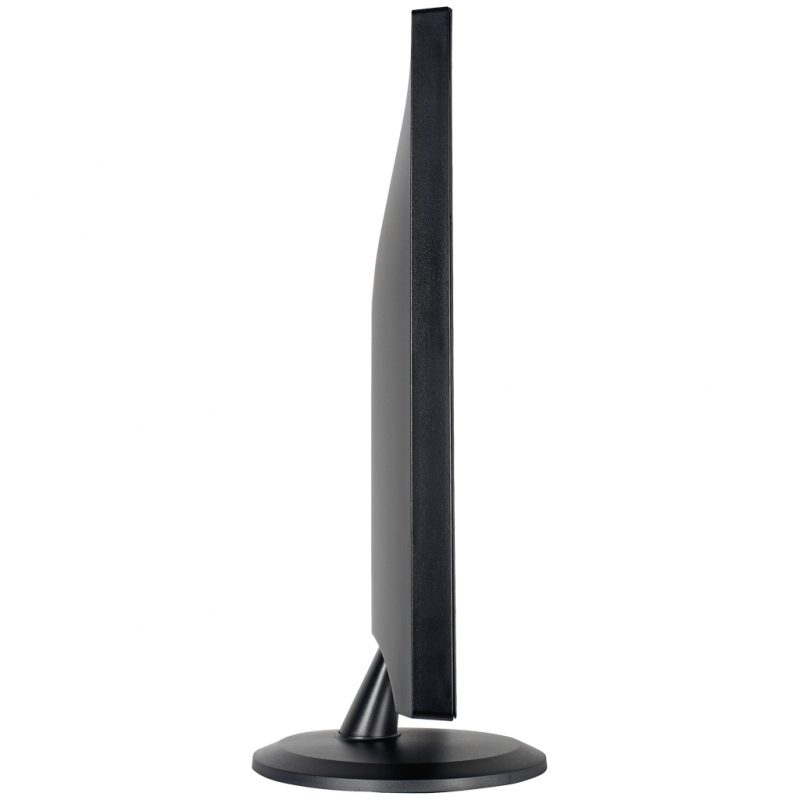

Tilt / Kensington Lock -5° ~ 20° / Yes
Controls Menu, Bri (+), Vol (-), Input/Enter, Power
Color Warm, Natural, Cool, User Mode
Preset Mode PC, Movie, Game Modes
On Screen Display 11 OSD Languages
Accessory Power Cable; VGA Cable ; Audio Cable; Warranty Card; Quick Start Guide
USB HUB USB 2.0 HUB: 1 PC Upstream, 2 Downstream
Certifications CE, Energy Star, ISO9241-307 Class II, TCO, WEEE, RoHS, Reach
