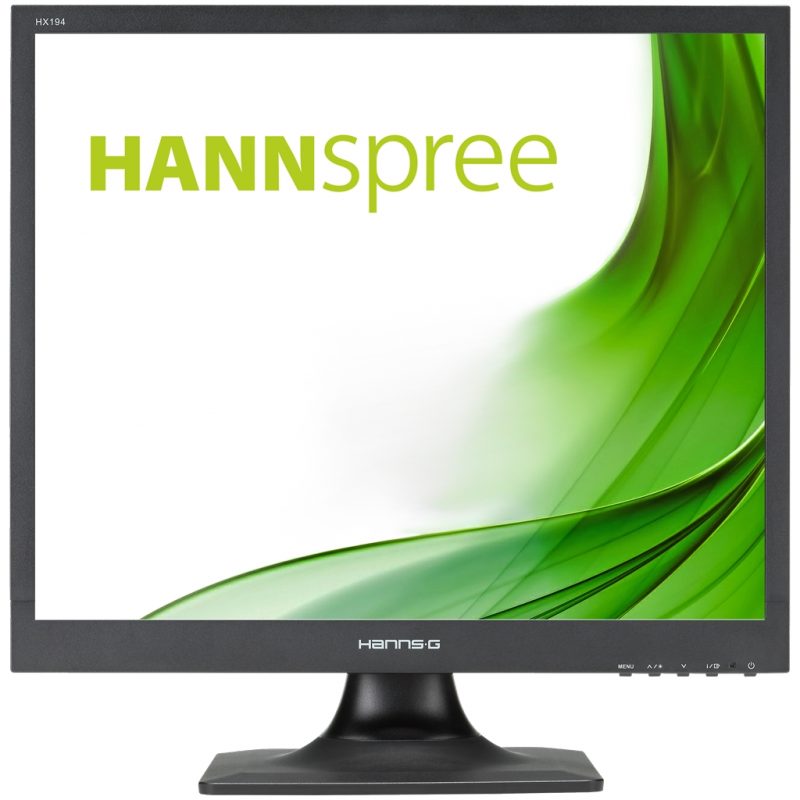

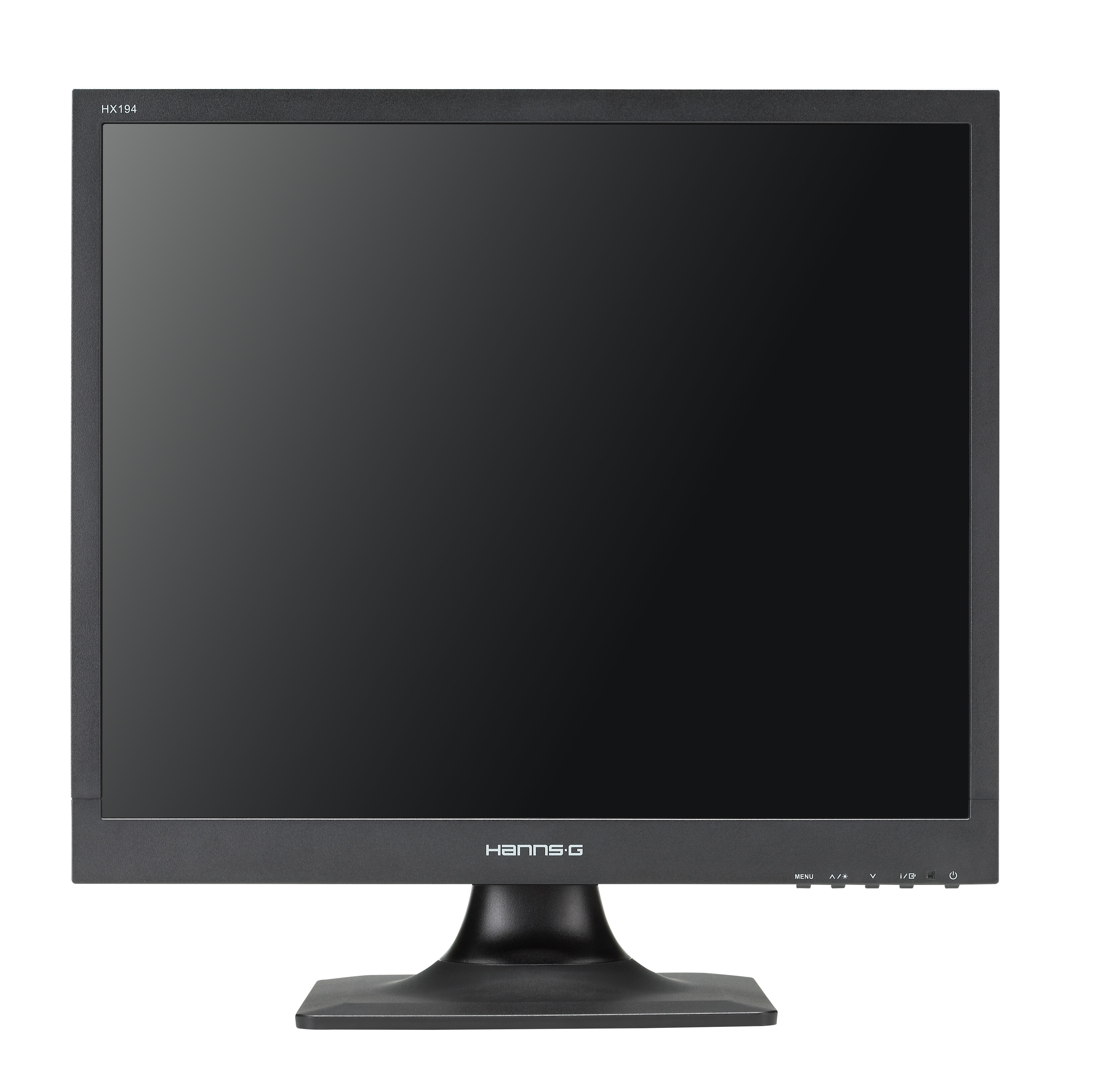

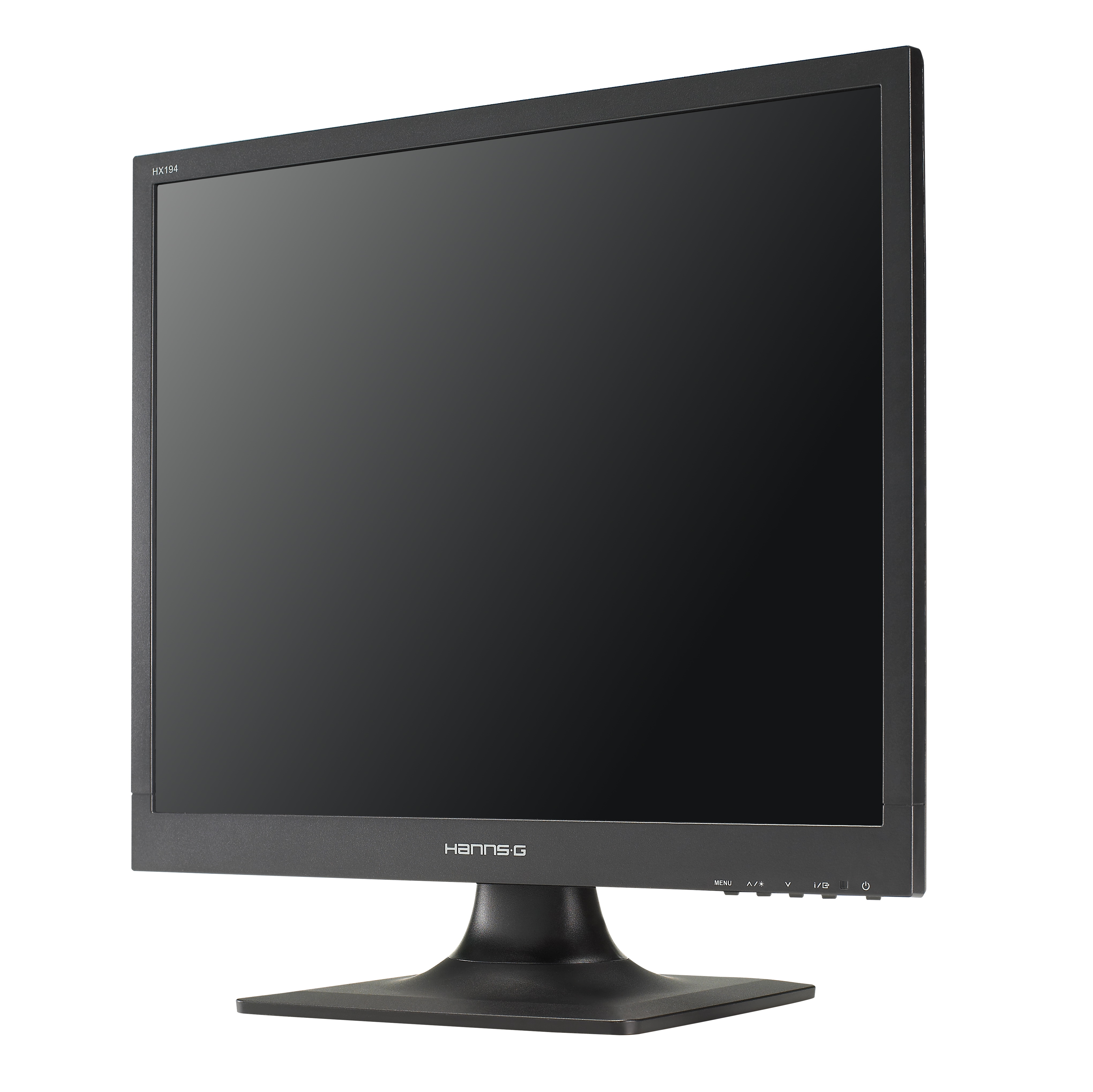

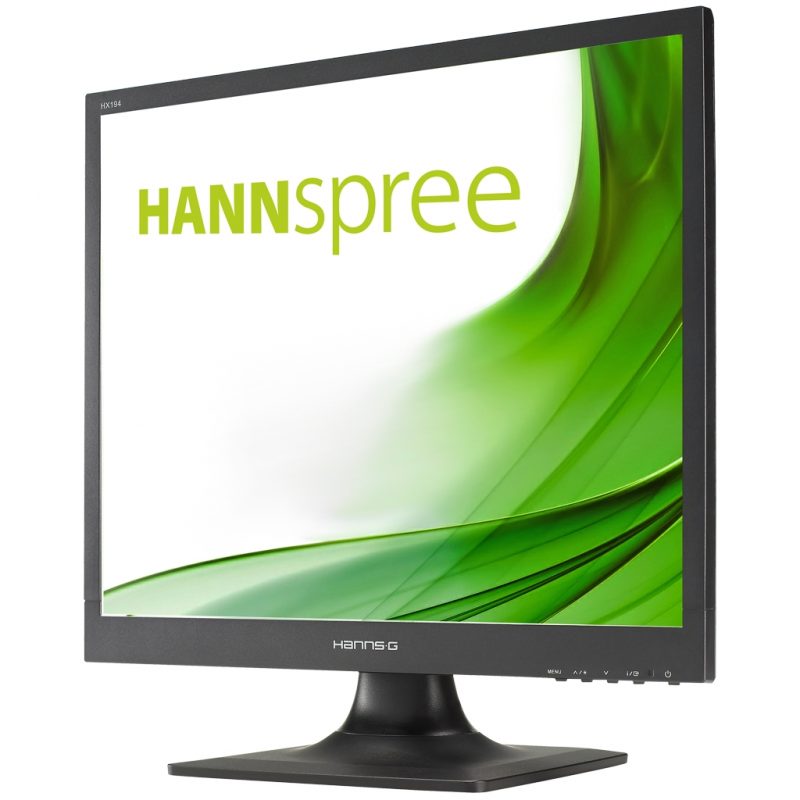

HX 194 DPB

19” SQUARE MONITOR: DESIGNED FOR OFFICE APPLICATIONS…MAKE WORK MORE EFFICIENT

While modern monitors are mostly in 16:9 aspect ratio, we understand that there are still several applications look right on older “squarish” 5:4 screens; with this is mind we are still offering such models available for your choice.

The HX194DPB is not only bringing great visual performance to your workstation and house, but also an essential part of your solutions to minimize total cost of ownership and maximize staff productivity – a win-win decision for the benefits of all.

The HANNspree HX194DPB boast an amazing 1280 x 1024 resolution at 75Hz, with 5:4 aspect ratio, 5 msec response time and an impressive 80M:1 Active Contrast ratio.

SKU: HX193DPB-1 Category: Tag:
  • LED Backlight Monitor
  • 1280 x 1024 SXGA Resolution
  • 80,000,000:1 Active Contrast
  • 5ms Response Time
  • VGA + DVI (HDCP) Inputs
  • Built-In Stereo Speakers
  • Low Power Consumption
  • Multi-Video Modes: PC / Movie / Game / ECO
  • Tilt and Wall-Mountable (VESA)
  • ECO Friendly

19” SQUARE MONITOR: DESIGNED FOR OFFICE APPLICATIONS…MAKE WORK MORE EFFICIENT

While modern monitors are mostly in 16:9 aspect ratio, we understand that there are still several applications look right on older “squarish” 5:4 screens; with this is mind we are still offering such models available for your choice.

The HX194DPB is not only bringing great visual performance to your workstation and house, but also an essential part of your solutions to minimize total cost of ownership and maximize staff productivity – a win-win decision for the benefits of all.

The HANNspree HX194DPB boast an amazing 1280 x 1024 resolution at 75Hz, with 5:4 aspect ratio, 5 msec response time and an impressive 80M:1 Active Contrast ratio.

hx194dpb-usp1
hx194dpb-usp2

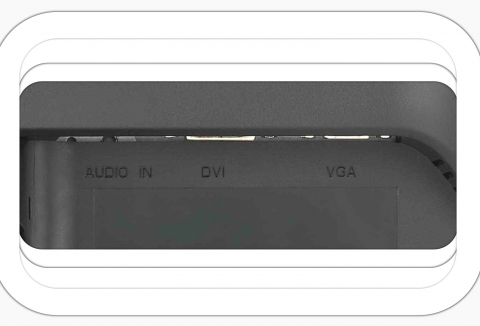

DIGITAL AND ANALOG INPUTS

The HANNspree HX194DPB features a host of connectivity options that include both DVI-D and D-Sub VGA 15-pin inputs, you can quickly switch between the inputs via the front panel buttons.

SPEAKERS AND HEADPHONES

The HX194DPB is equipped with two high quality speakers. Built-in speakers make it easy to catch up with family, friends and colleagues.

For movies, music, games and more, you’ll enjoy quality audio without the hassle of connecting external speakers.

Don’t want to disturb anybody? Plug your headset to the headphone socket and turn the volume up

speakers-and-headphones
hs-225pjb-usp-02

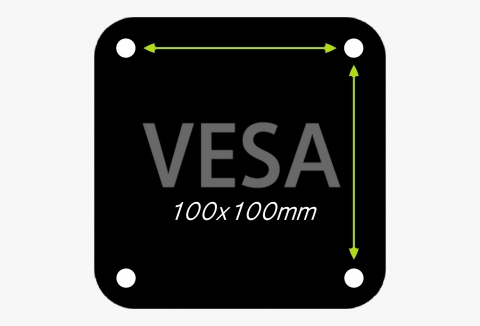

VESA WALL MOUNT

The HX194DPB complies with the VESA standard 100x100mm, it means that you can easily mount the display to any VESA mounting kit.

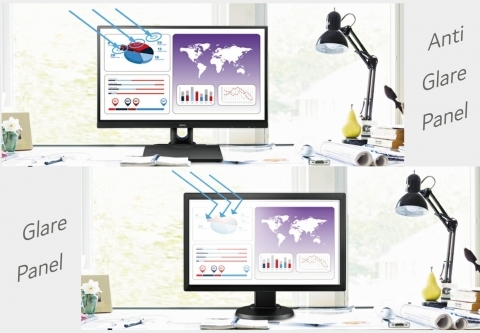

ANTI-GLARE TREATMENT

The HX194DPB mounts a non-glare screen reducing eye fatigue by reducing reflective light that otherwise makes the screen difficult to view.

Further to this also the bezel of the monitor is matt to prevent light reflection.

he247dpb-usp-02
Hannspree

Hannspree Europe Holdings B.V. Specifications and design are subject to change without notice. Non-metric weights and measurements are approximate.

All brand, product, Service names and logos are trademarks and/or registered trademarks of their respective manufactures and companies. Screen shot are simulated. Actual products may differ slightly from those illustrated on this promotion material.

Please refer to actual samples for final selection. The products displayed on this promotion material may not be available for purchase in your particular country or locality. Please check with Hannspree authorized representatives for the availability of specific products in your area.

Hannspree reserves the right to alter design and specifications as well as to change the accessories with equivalents without notice.

Android, Google, Google Play and other marks are trademarks of Google Inc.

Monitor Display Spec Display size 48.3cm / 19″ Diagonal LED Monitor
Brightness(Typical) 250cd/m2
Contrast(Typical) 1,000:1 (typ)
80,000,000:1(Active Contrast)
Pixel Pitch 0.294(H) x 0.294(V)
Resolution (H x V) 1280 x 1024
Aspect Ratio 5:4
Response Time(Typical) 5ms
View Angles LR,UD(CR>10) H/V 170°/160°
Panel Surface AG
Display Colors 16.7M Colors
PC Input Range Horizontal Freq. 30kHz~82kHz
Vertical Freq. 56Hz~75Hz
Max. display frequency
(Resolution H*V/Fv)
1280×1024/75Hz
Interface Input 1 D-Sub x 1
Input 2 DVI-D (HDCP)  x 1
Input 3 Audio x 1
Input 4 NA
Output
Terminal
Earphone NA
Speaker(Typical, Amplifier output)  1W x 2
Power Consumption(Typical) On: 12.1W
Standby<=0.3W, Off<=0.2W
AC Power Range AC 100-240, 50-60Hz
Power Mode
Indicator Light
Power on : Green
Power Saving: Orange
Operating
Condition
Temperature 0 ~ 40℃
Humidity 20% ~ 85%, non-condensing
Physical Dimension
(W*D*H)
407.09mm(W)*178mm(D)*406.93mm(H)
Packing Dimension
(W*D*H)
460mm(W)*118mm(D)*472mm(H)
Net Weight 3.0kg+/-0.2
Gross Weight 4.1kg+/-0.3
Bezel Type Matt
Tilt  0∘ ~ 20∘
Kensington Lock Yes
VESA Mounting 100 x 100 mm
  Color WARM,NATURE,COOL, User Mode
Preset Mode PC, Movie, Game, ECO Modes
Accessory Power Cable(1.5m) Yes
VGA Cable(1.5m) Yes
Audio Cable(1.5m) Yes
DVI Cable(1.5m) Optional
User Manual(CD) Yes, HSD format
Quick Start Guide(Paper) Yes, HSD format
Carton Box Brown carton, HSD format
Green Product  (Jan. 2009) Yes
HDMI Logo NA
Others PC99 function (Must)
Certification  CE, CB, Nemko GS, TCO 6.0, EPA 6.0, FCC, UL or NRTL
