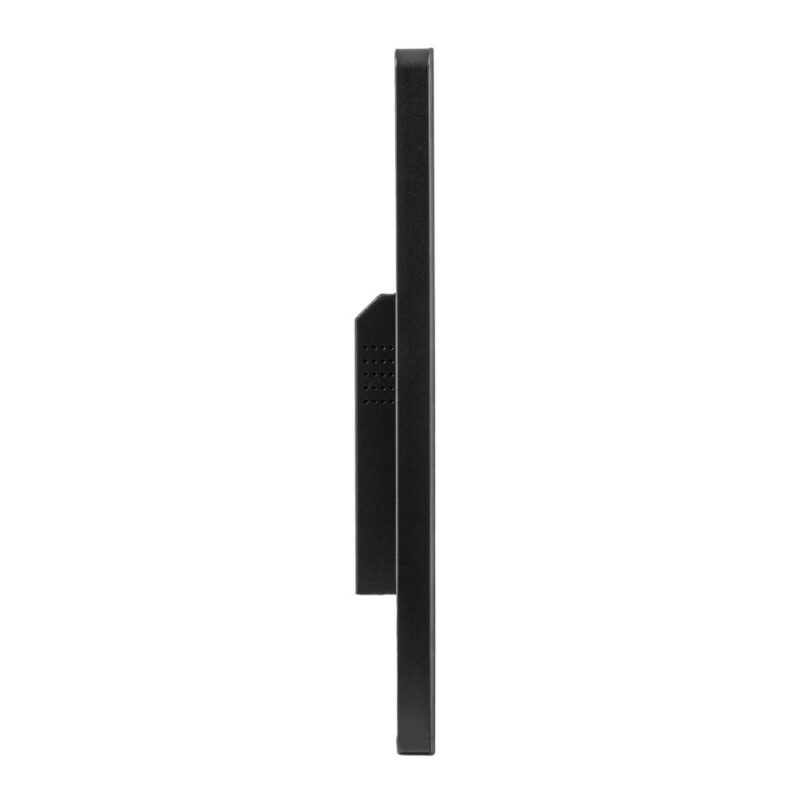

HO270HTB-side
HO270HTB-side-a hand
HO270HTB-zoom-in-edge1
HO270HTB-zoom-in-edge2
HO270HTB-zoom-in-mounting-options

HO 275 PTB

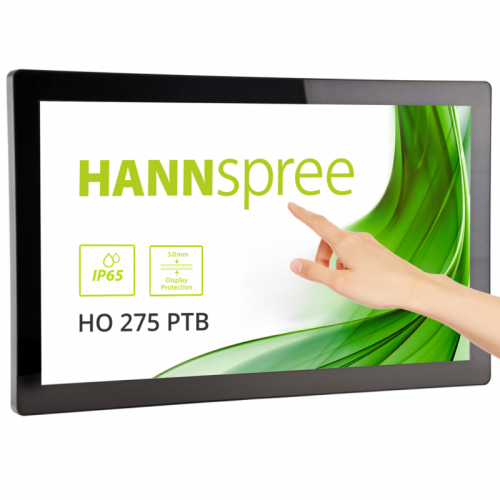

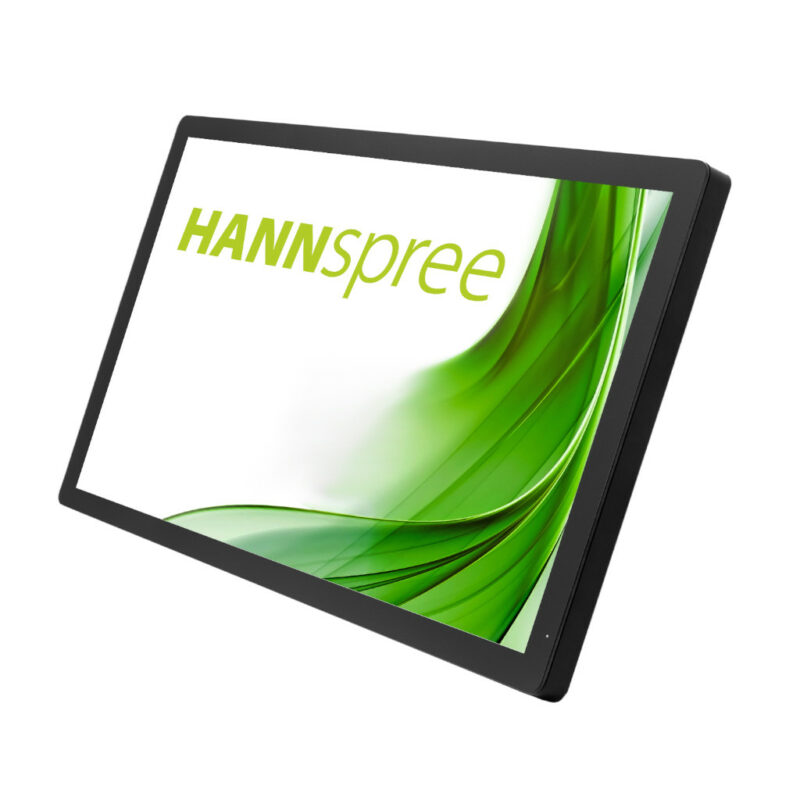

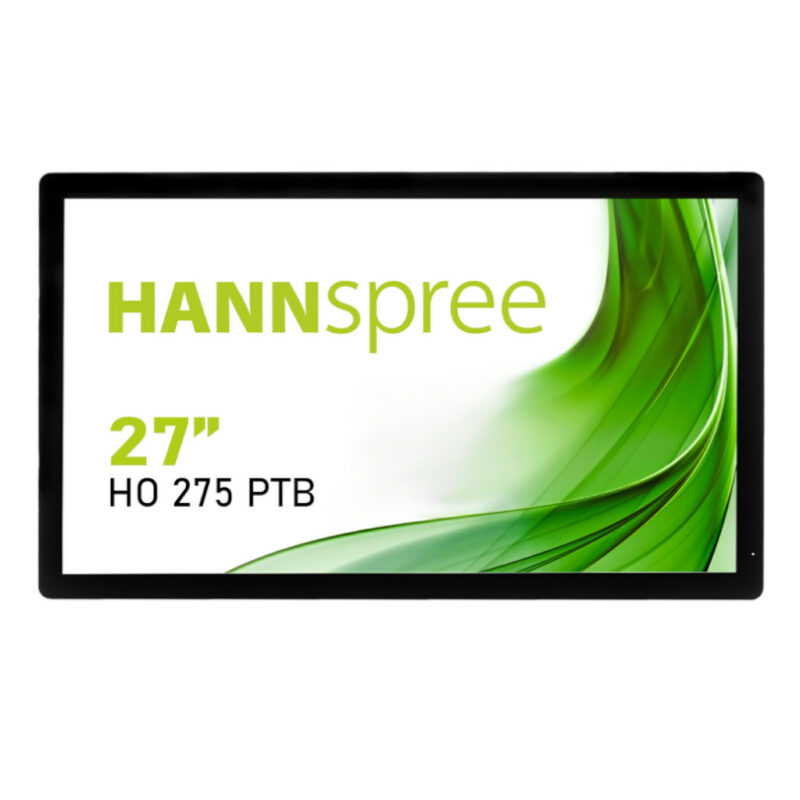

The HANNspree HO275PTB 27’’ 16:9 Open-Frame monitor delivers a high-performance display solution. Its rugged bezel with edge-to-edge glass makes it very suitable for applications like tabletop integration.

The HANNspree HO275PTB is an ideal display for integration in a kiosk, totem and a perfect solution for interactive digital signage, In-store Retail, Gaming and many other sectors.

SKU: HO275PTB Categories: , Tag:
  • 1920 x 1080 Full HD 1080P Resolution
  • 10-Point Touch P-Cap Technology
  • 178° / 178° Ultra Wide Viewing Angle
  • Triple Input: DP + HDMI + VGA
  • Built-in Speakers
  • IP65* (front) Rating Level
  • Display Protection: Thickness 3mm
  • 7H Toughened Hard Panel Surface
  • Built for 24/7
  • VESA Mount
  • Orientation: Landscape, Portrait, Face-Up

VIVID IMAGES, LIFELIKE VISUALS WITH ULTRA-WIDE VIEWING ANGLES

The Touch monitor HO275PTB features a 16:9 aspect ratio LED-backlit panel with a 178° ultra-wide view angle that minimizes colour shift on both horizontal and vertical planes to ensure quality visuals from almost any direction. It delivers improved colour accuracy plus increased energy efficiency.

The HO275PTB uses a 178°(H) / 178°(V) ultra-wide viewing angle Full HD panel that eliminates colour shift from almost any direction and in nearly every angle.

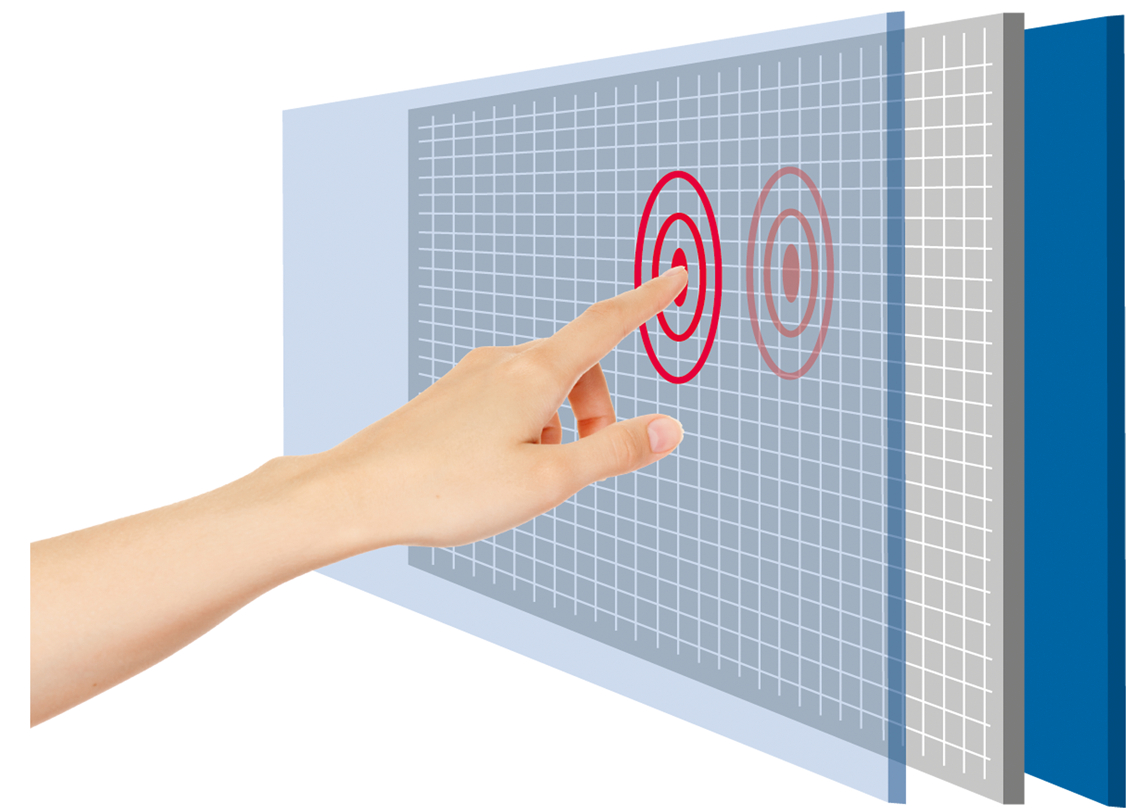

PROJECTED CAPACITIVE (PCAP) TOUCH TECHNOLOGY

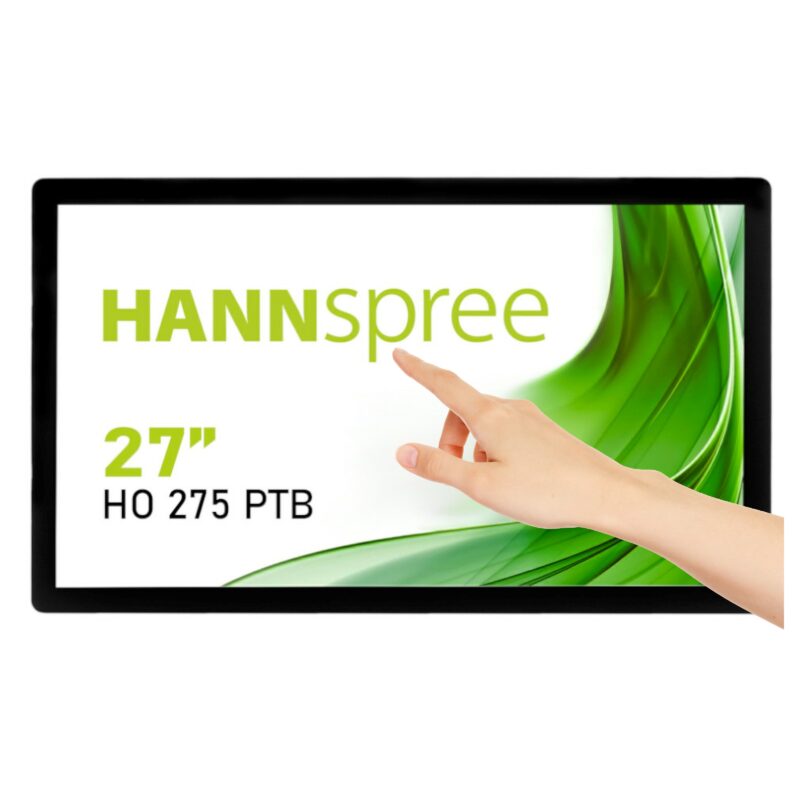

Now multiple users can experience shared touchscreen interaction. Using up to 10 finger touchpoints, the HANNSpree HO275PTB Monitor allows everyone to play and collaborate at the same time.

The precise and accurate multi-touch display — allowing up to 10 simultaneous touches — allowing you to work smarter and more efficiently.
There’s no need for additional controllers – all they have to do is just reach out and touch the screen. It is certified for Windows 10 and designed to offer superior performance as well as intuitive control, so you can be more productive and do everything you want to do smoothly and quickly.
With Projected Capacitive Touch, users can enjoy a smoother and more accurate touch display experience with increased interactivity. Thanks to the glass overlay this technology is highly durable, the Touch performance is unaffected by everyday use and mishaps such as dirt, dust, condensation, liquid spills or cleaning solutions.

This technology delivers super-fast, sensitive touch response with excellent dragging performance and perfect picture quality. Ten-point multi-touch support lets you unlock the power of today’s touch-enabled applications.

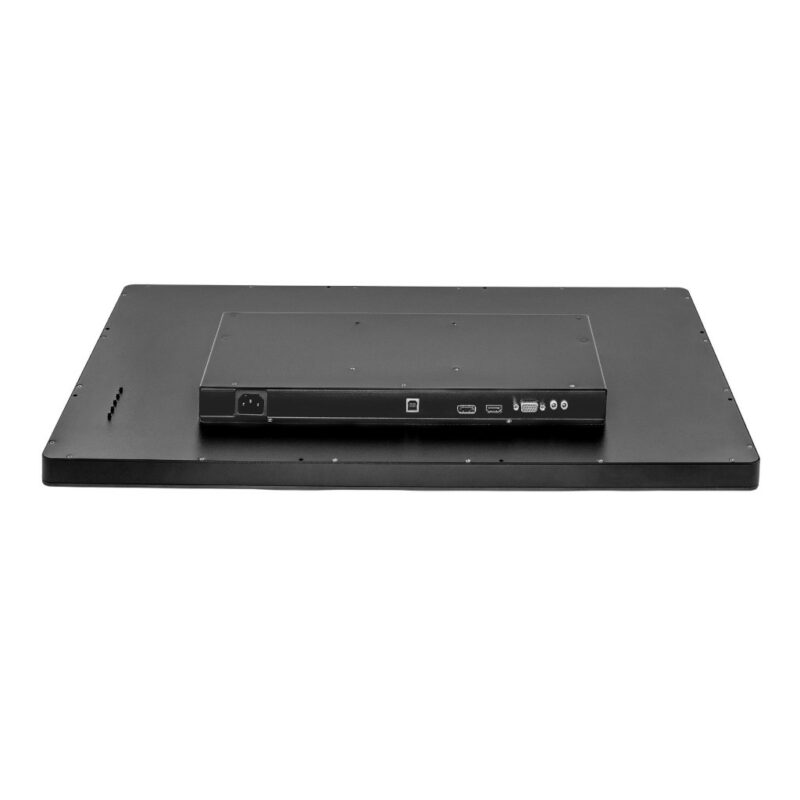

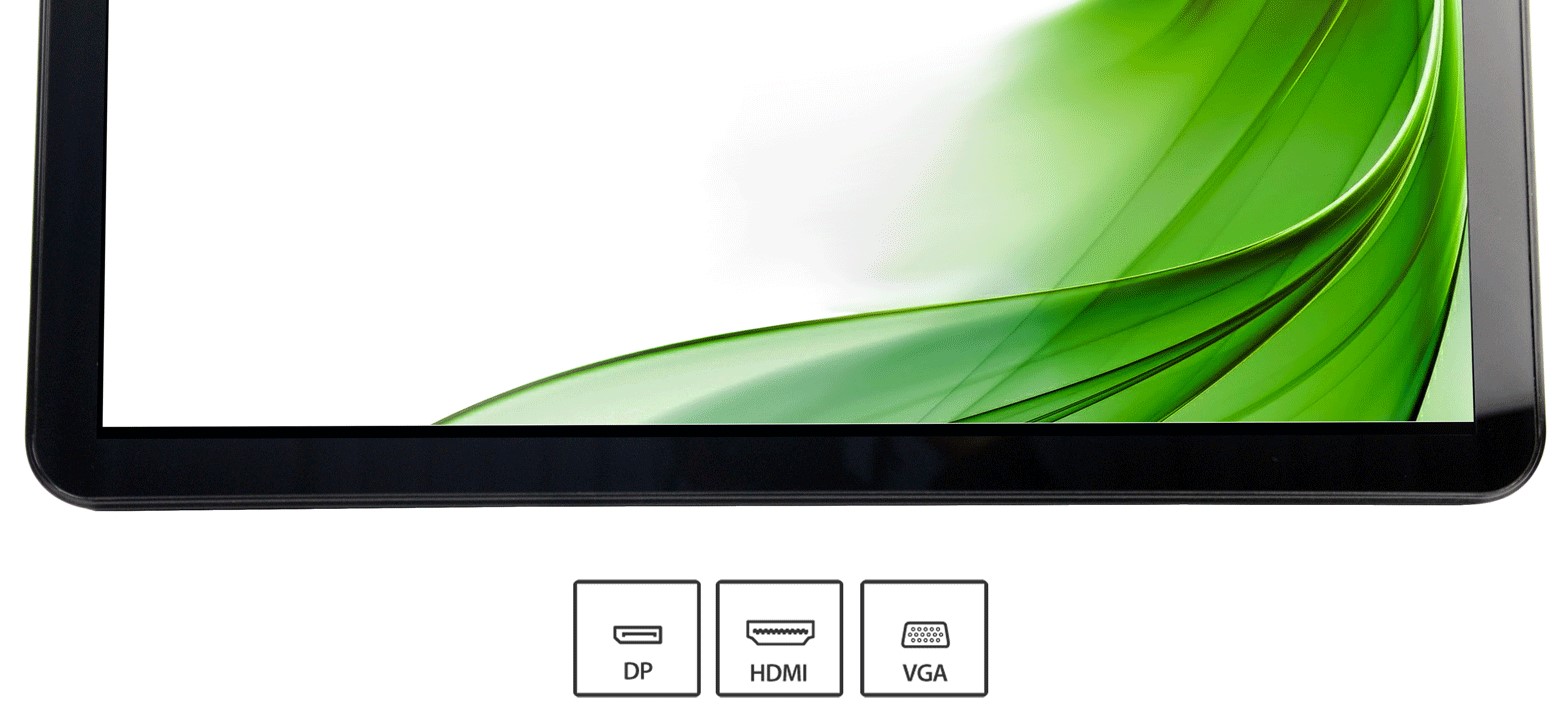

EXTENSIVE CONNECTIVITY

The HANNspree HO275PTB features a host of connectivity options that include VGA, HDMI and DP.

The HO275PTB Open Frame Touch Monitor ensures that your monitor is more compatible and ready to handle all of your content.

Enabling touch is easy! Simply connect the USB cable from your PC to the monitor’s USB upstream port, and connect one of the video inputs to project images onscreen

SCRATCH RESISTANT – MULTI-TOUCH SCREEN WITH 7H SURFACE HARDNESS

7H scratch resistant surface hardness ensures durability, as well as a consistent high-quality touch experience.

Scratch resistance is essential for touch solutions used for education and public environment. This is achieved thanks to a glass overlay covering the screen. This means that the panel surface can withstand impact from objects and scratches, making it perfect for public spaces and educational institutions.

Our toughened Hard Glass fronted LED Monitors (≥7H hardness rating) are designed specifically for retail and Industrial applications offering protection from impacts and dirt for a long-life solution.

It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

MOUNTING OPTIONS

Its rugged bezel with edge-to-edge glass makes it very suitable for applications like tabletop integration.

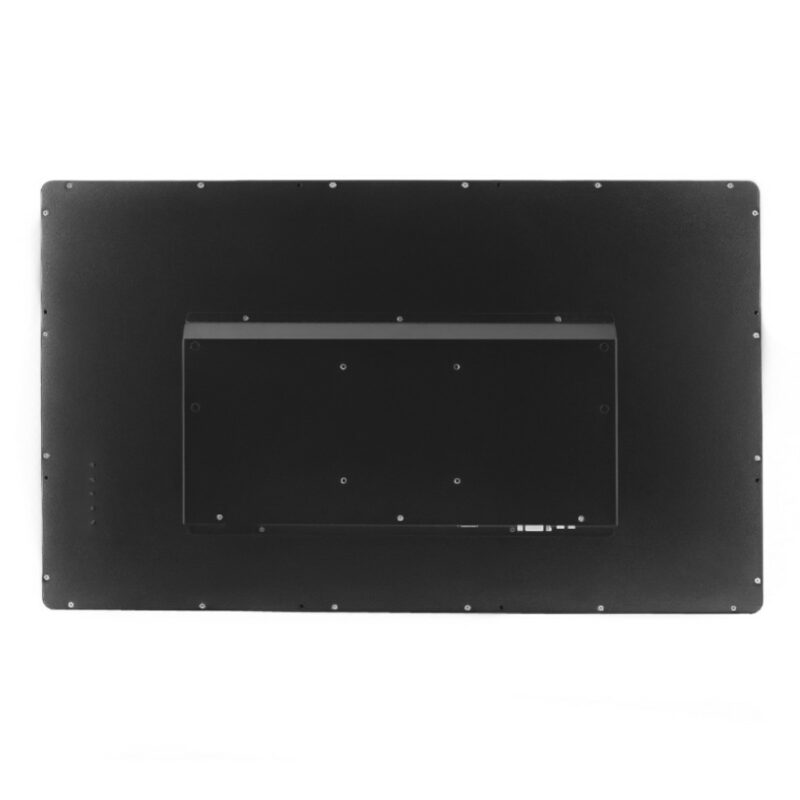

The display supports rear VESA and external mounting brackets for multiple mounting options.

The brackets provide the benefits of easy installation and flexibility for different applications.

  • Supports Multiple Mounting Options
  • Slim profile with narrow edges
Display Size 68.58cm / 27″ Diagonal
Panel Type TFT – LED Backlight
Aspect Ratio 16:9
Resolution (H x V) 1920 x 1080 Full HD
Brightness 300cd/m²
Contrast (Typ.) 3.000:1 (Typical)
Display Area 600 x 339 mm
Viewing Angle L/R; U/D 178° H / 178° V
Response time 12 msec
Pixel Pitch 0.311 (H) x 0.311 (V) mm
Touch Type Projected Capacitive Type – 10 Point Touch Material Glass + Glass
Display Colors 16.7M Colors
Horizontal Frequency 30 ~ 80 kHz
Vertical Frequency 60 ~ 75 kHz
Max Display Frequency 1920 x  1080 @ 60Hz
Input 1 VGA
Input 2 HDMI
Input 3 USB (Touch)
Power Consumption On: 25W; Standby<=0.5W, Off<=0.5W
AC Power Range AC 100 ~  240 Volt; 50 ~  60 Hz  / Output Voltage: 12V – 3 amp.
Product Dimensions 660.2 x 48 x 398.8 mm (W x D x H)
Packing Dimensions TBC x TBC x TBC mm (W x D x H)
Net / Gross Weight TBC Kgs / TBC Kgs  (±0.3KG)
VESA Mounting 100 x 100 mm and 75 x 75 MM
Display Protection Thickness 2.3 ±0.3 mm
Hardness / Transmittance ≥6H Toughened hard panel surface / ≥85%
IP Rating Level IP 54 (Front) Water and Dust Protection*
Controls Power, Auto, (+), (-), Menu
LED Backlight life 30.000 hours
Accessories Power Cable; VGA Cable (1.5.); USB Cable for Touch
Certifications CE, RoHS
On Screen Display 5 Languages
