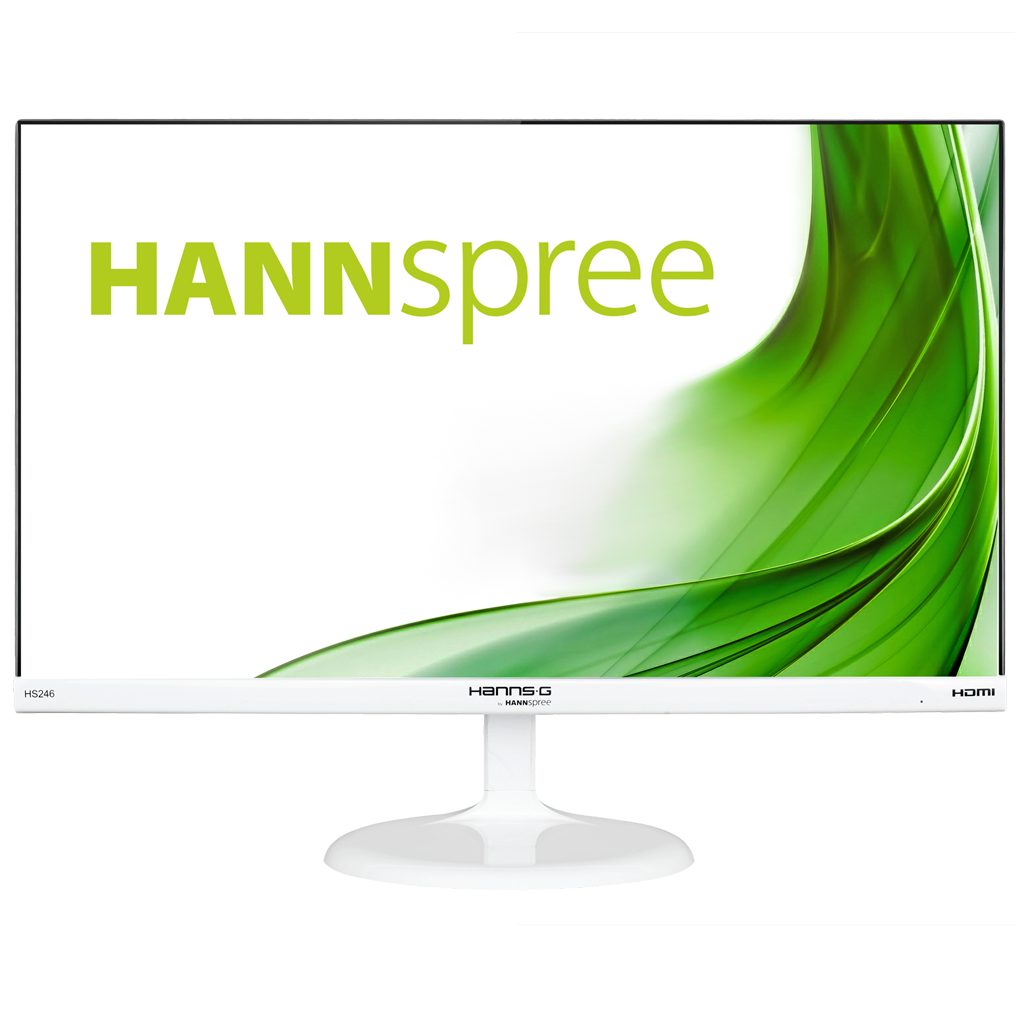

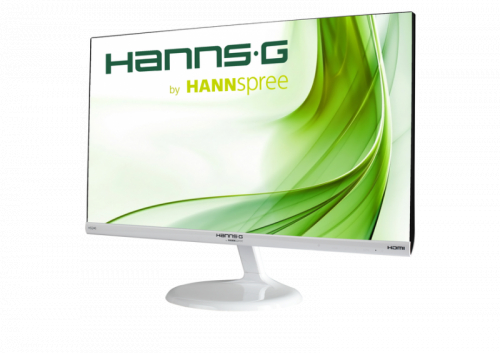

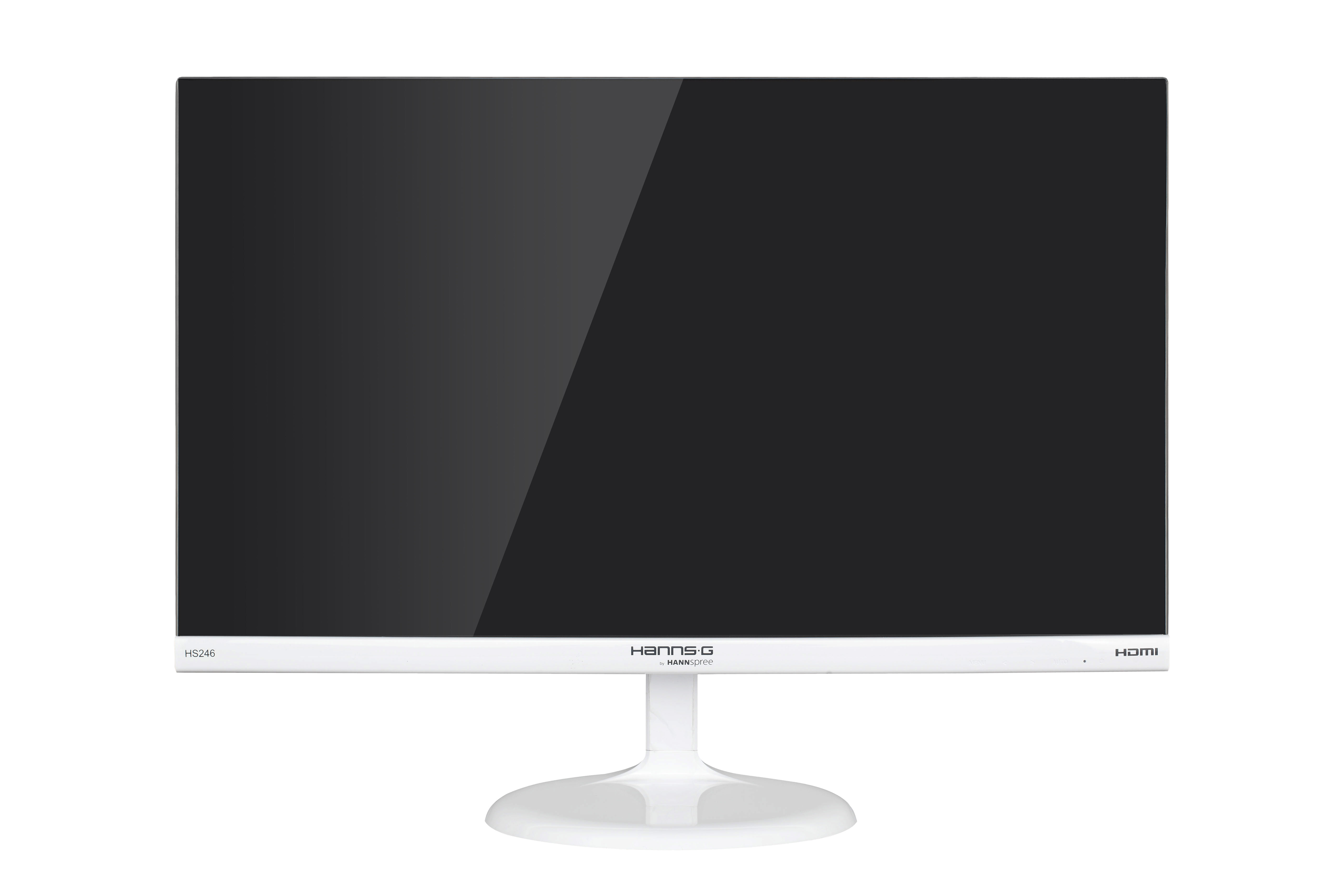

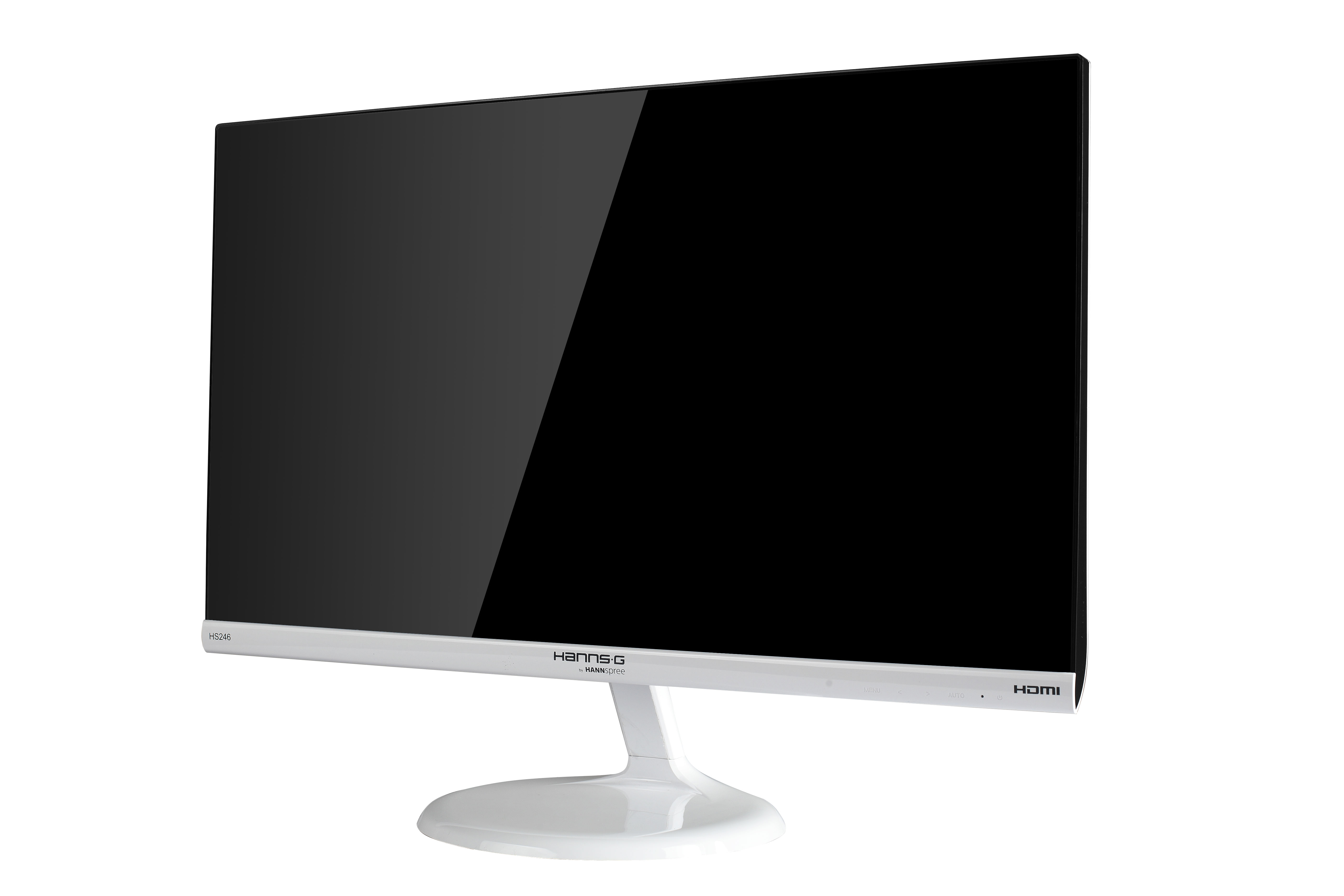

HS246HFW

HS 246 HFW

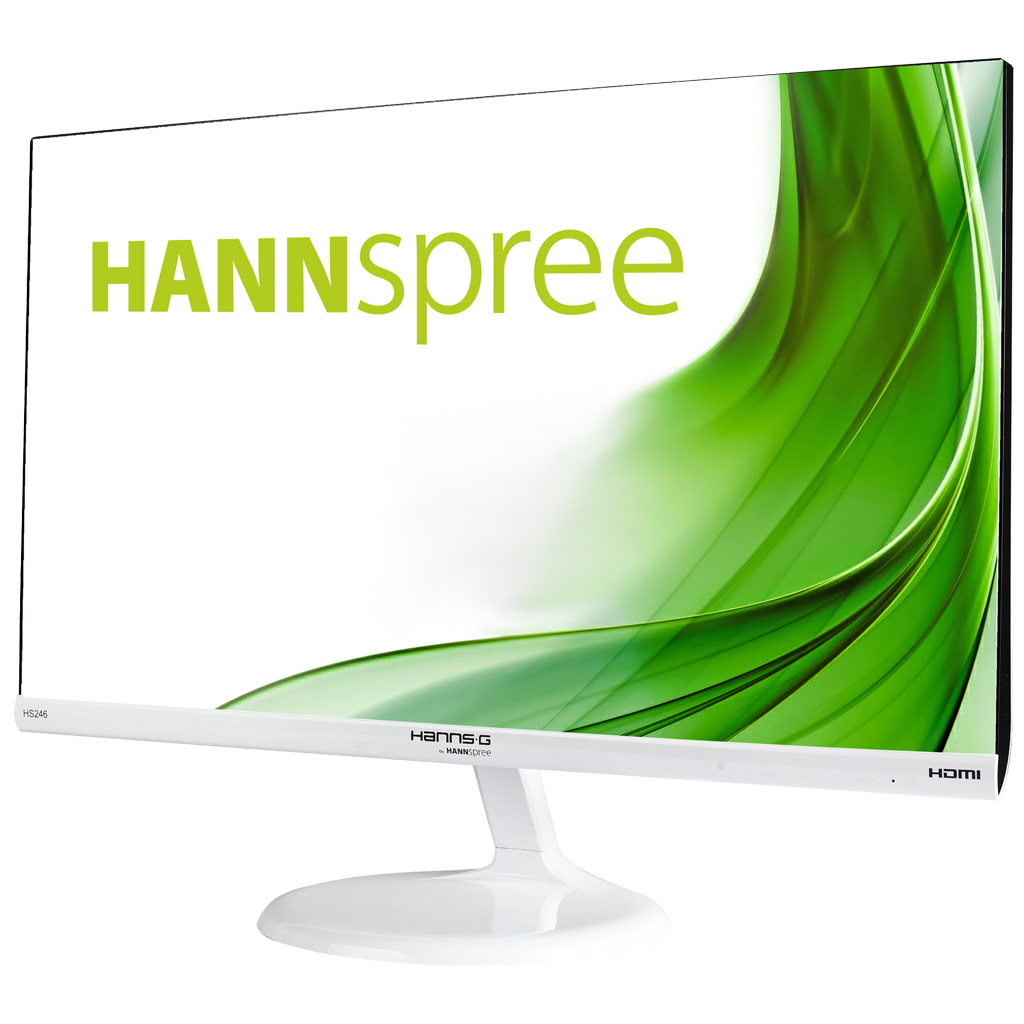

The HS246HFW features an edge-to-edge frameless panel with 178° ultra-wide viewing angle HS-IPS technology for incredible visuals.

HANNspree HS246HFW features ultra-slim profiles measuring just 15mm at its thinnest point. In addition it presents an edge-to-edge frameless screen with bezel thickness of just 1.3mm

It’s ultra-slim and ergonomic design can be titled to provide you comfortable viewing experiences.

SKU: HS246HFW Category: Tag:
  • 1920 x 1080 WUXGA Resolution (60.4cm / 23.6″ Diagonal)
  • LED Backlight Monitor
  • HS-IPS Panel – 178° Ultra Wide Viewing Angle
  • Edge-to-edge Frameless design
  • Full HD 1080P
  • 80,000,000:1 Active Contrast
  • 7ms Response Time
  • VGA+HDMI Compatible Inputs
  • Multi-Video Modes : PC / Movie / Game / ECO
  • Built-In Stereo Speakers
  • Low Power Consumption
hs246hfw-power-consumption

VIVID IMAGES, LIFELIKE VISUALS THE LATEST TECHNOLOGY WITH 178° ULTRA-WIDE VIEW ANGLES

The Touch monitor HT225HPB features a 16:9 aspect ratio LED-backlit panel with a 178° ultra-wide view angle that minimizes color shift on both horizontal and vertical planes to ensure quality visuals from almost any direction. It deliveres improved color accuracy plus increased energy efficiency.

The HT225HPB uses a 178°(H) / 178°(V) ultra-wide viewing angle Full HD panel that eliminates color shift from almost any direction and in nearly every angle.

178-degree-viewing-angle
HS246HFW-usp-01

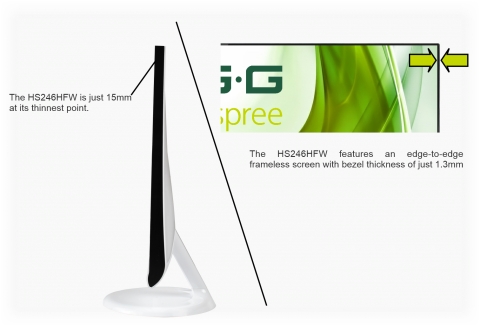

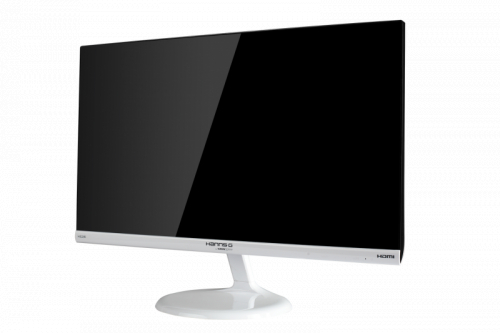

FRAMELESS ELEGANT DESIGN

The HS246HFW features an edge-to-edge frameless panel with 178° ultra-wide viewing angle HS-IPS technology for incredible visuals.

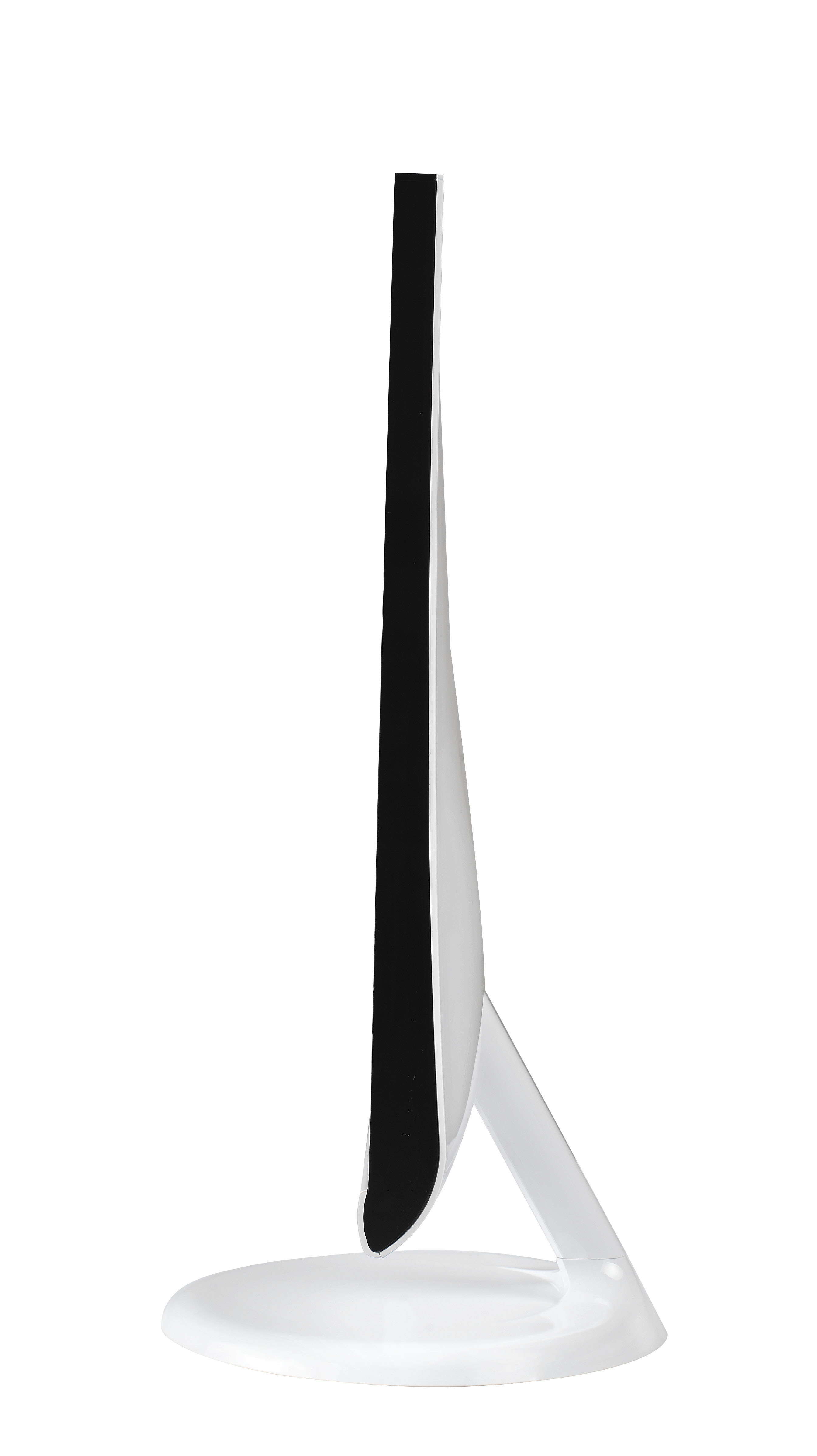

HANNspree HS246HFW features ultra-slim profiles measuring just 15mm at its thinnest point. In addition it presents an edge-to-edge frameless screen with bezel thickness of just 1.3mm

It’s ultra-slim and ergonomic design can be titled to provide you comfortable viewing experiences.

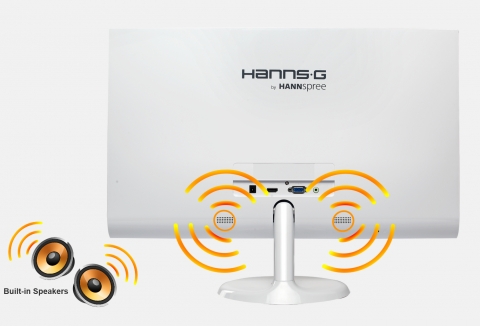

SPEAKERS

The HS246HFW is equipped with two high quality speakers. Built-in speakers make it easy to catch up with family, friends and colleagues. For movies, music, games and more, you’ll enjoy quality audio without the hassle of connecting external speakers.

HS246HFW-usp-02
HS246HFW-usp-03

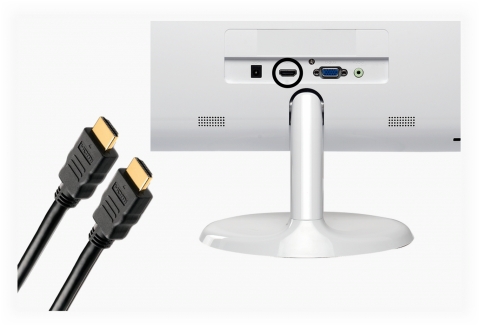

HDMI READY

An HDMI-ready device has all the required hardware to accept High-Definition Multimedia Interface (HDMI) input, high quality digital video and audio signals all transmitted over a single cable from a PC or any number of AV sources including set-top boxes, DVD players and A/V receivers and video cameras.

LCD Panel Display size 23.6″ /  Lower edge side
Brightness(Typical) 250cd/m2 (Typical)
Contrast(Typical) 1000:1 (Typical)
Pixel Pitch 0.2715(H)*0.0905(W)
Resolution (H x V) 1920 x 1080
Aspect Ratio 16:9
Response Time(Typical)  7ms
View Angles LR,UD(CR>5) H/V 178°/178°
Panel Surface Anti-glare
Display Colors 16.7M colors
PC Input Range Horizontal Freq. 30 to 83KHz
Vertical Freq. 56 to 75Hz
Max. display frequency
(Resolution H*V/Fv)
1920 x 1080 /60 Hz

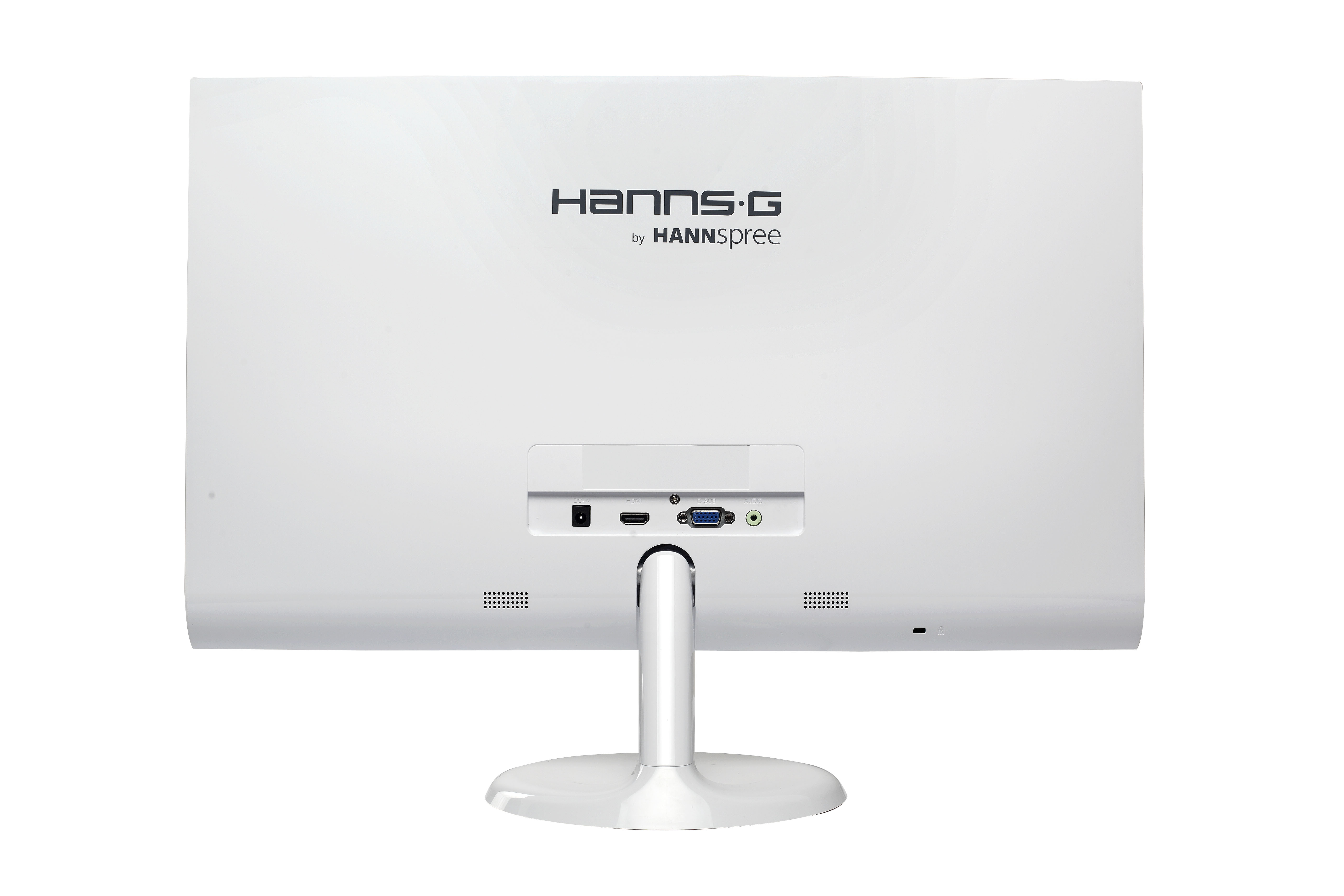

Interface Input 1  (D-Sub) Yes
Input 3  (PC Audio in) Yes
Input 4(HDMI) Yes
Speaker(Typical) 1.5W x 2
Power Consumption(Typical) On: 16 W
Standby<=0.5W, Off<=0.3W
Power Supply External Power Supply

Input 100~240V 50~60Hz

Output: 12V – 3A

Power Mode
Indicator Light
Power on : Green
Power Saving: Flicker
Operating
Condition
Temperature 5℃ ~ 35℃
Humidity 20% ~ 85%, non-condensing
Physical Dimension
(W*D*H)
534*194*401mm
Packing Dimension
(W*D*H)
596*103*490mm
Net Weight 3.1kg
Gross Weight 4.6kg
Bezel Type Glossy
Tilt -5∘~ 20∘
Kensington Lock Yes
VESA Mounting NA
Controls Front Control Menu, Bri (+), Vol(-)  Input/Enter, Power
On Screen Display HSD OSD format 12 language  : EN,TC,DE,FR,ES,IT,PT,NL,SC,JS,KR,Russian
Color WARM,NATURE,COOL, User Mode
Preset Mode PC, Movie, Game, ECO Modes
Accessory Power Cable Yes (1.5M)
HDMI Cable Yes (1.5M)
Color Plan Arm / Base /Bezel / Rear Cover –  Glossy
Carton Box Brown carton, HSD format
Certification CE, HDMI

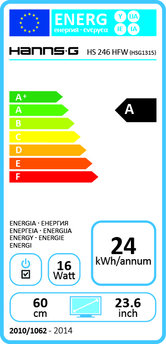

Energy Label Class A, 24kWh/annum
